Isuzu WW
▶
TRUCKS
▶
FTR
▶
11564 - FTR(INDONESIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-73 - BLOWER UNIT
▶

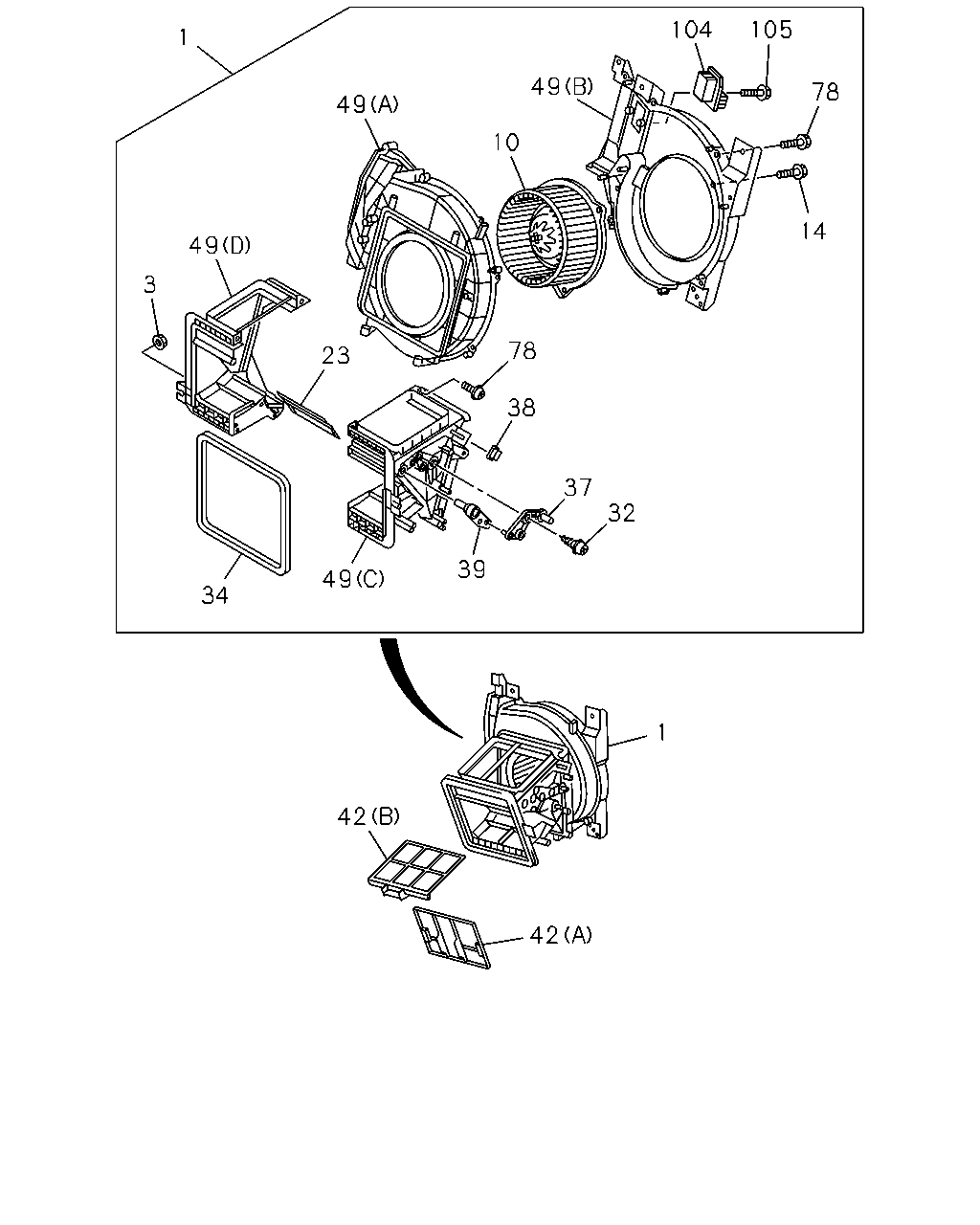

8-73 — BLOWER UNIT
(#131302) — 19 parça
1
49
49
104
105
78
14
78
23
49
3
49
34
39
32
37
38
1
42
42
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BLOWER ASM
VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-98171-720-0
01
1
1312-
3
NUT; CASE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6
1-83539-354-0
02
1
1312-
10
MOTOR ASM; FAN,BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-98183-924-0
01
1
1312-
14
SCREW; COVER TO CASE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16
8-98047-448-0
03
1
1312-
23
SHUTTER; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-98171-863-0
01
1
1312-
32
SCREW; LEVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16
8-98047-416-0
01
1
1312-
34
LINING; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-98096-453-0
01
1
1312-
37
LEVER; MODE LEVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-98047-436-0
01
1
1312-
38
CLIP; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-98047-417-0
01
1
1312-
39
LEVER; SHUTTER,BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-98047-435-0
01
1
1312-
42
FILTER; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)
8-98025-006-1
01
1
1312-
42
FILTER; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)
8-98041-327-0
01
1
1312-
49
CASE; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B)
8-98047-440-0
01
1
1312-
49
CASE; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A)
8-98047-441-0
01
1
1312-
49
CASE; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (D)
8-98077-413-0
01
1
1312-
49
CASE; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (C)
8-98077-414-0
01
1
1312-
78
SCREW; CASE TO CASE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 TAPPING IDN
8-97957-708-0
15
1
1312-
104
RESISTOR; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-98074-113-0
01
1
1312-
105
SCREW; RESISTOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 TAPPING IDN
8-97957-708-0
02
1
1312-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
