◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11564 - FTR(INDONESIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#131300) — 42 parça

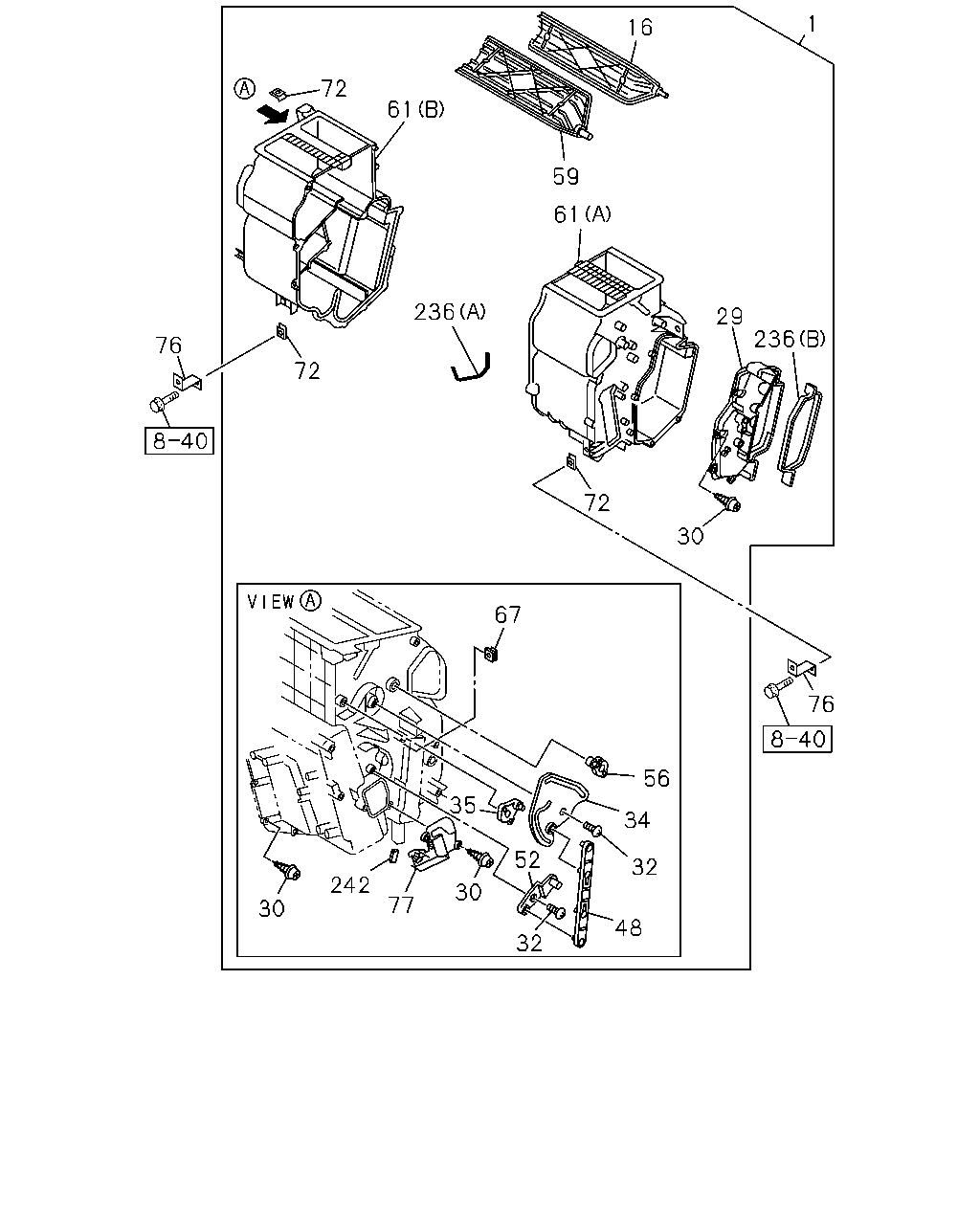

çizim 389570
61 72 16 1 61 59 236 72 76 67 72 29 30 236 76 56 34 32 48 52 35 30 32 77 242 30
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98214-400-0 01 1 1312-1401
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98214-400-1 01 1 1402-
16 SHUTTER; HTR UNIT,CENTER UPR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-387-0 01 1 1312-1401
16 SHUTTER; HTR UNIT,CENTER UPR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98047-387-0 01 1 1402-
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98231-367-0 01 1 1312-1401
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98231-367-0 01 1 1402-
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 TAPPING IDN 		8-97957-708-0 20 1 1312-1401
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> M4X16 TAPPING IDN 		8-97957-708-0 20 1 1402-
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 		8-98047-416-0 02 1 1312-1401
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> M4X16 		8-98047-416-0 02 1 1402-
34 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-389-0 01 1 1312-1401
34 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98047-389-0 01 1 1402-
35 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-392-0 01 1 1312-1401
35 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98047-392-0 01 1 1402-
48 LEVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-391-0 01 1 1312-1401
48 LEVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98047-391-0 01 1 1402-
52 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-390-0 01 1 1312-1401
52 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98047-390-0 01 1 1402-
56 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-393-0 01 1 1312-1401
56 LEVER; SHUTTER,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98047-393-0 01 1 1402-
59 SHUTTER; HTR UNIT,SIDE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-386-0 01 1 1312-1401
59 SHUTTER; HTR UNIT,SIDE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98047-386-0 01 1 1402-
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-98077-422-0 01 1 1312-1401
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (A) 		8-98077-422-0 01 1 1402-
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98077-423-0 01 1 1312-1401
61 CASE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (B) 		8-98077-423-0 01 1 1402-
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-417-0 01 1 1312-1401
67 CLIP; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98047-417-0 01 1 1402-
72 NUT; CASE,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 		8-98047-428-0 03 1 1312-1401
72 NUT; CASE,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> M6 		8-98047-428-0 03 1 1402-
76 BRACKET; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98009-742-1 02 1 1312-1401
76 BRACKET; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98009-742-1 02 1 1402-
77 COVER; HTR CASE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98047-414-0 01 1 1312-1401
77 COVER; HTR CASE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98047-414-0 01 1 1402-
236 GASKET; HEATER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-98047-420-0 01 1 1312-1401
236 GASKET; HEATER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (A) 		8-98047-420-0 01 1 1402-
236 GASKET; HEATER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98047-421-0 01 1 1312-1401
236 GASKET; HEATER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (B) 		8-98047-421-0 01 1 1402-
242 GASKET; CASE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98048-816-0 01 1 1312-1401
242 GASKET; CASE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98048-816-0 01 1 1402-1411
çizim 414062
1
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98214-400-0 01 1 1312-1401
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98214-400-1 01 1 1402-
