◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11564 - FTR(INDONESIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#131281) — 110 parça

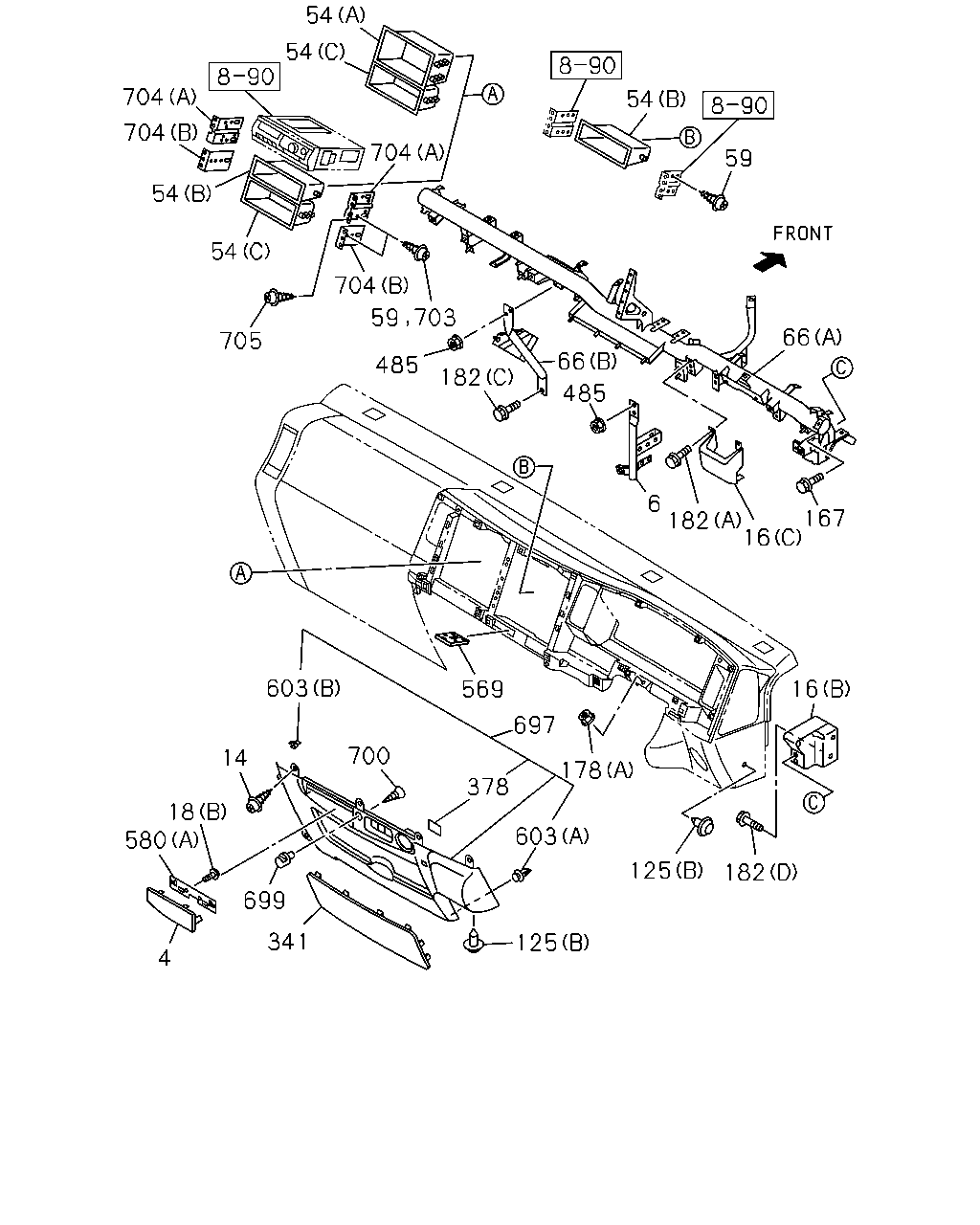

çizim 389076
16 182 167 6 485 66 66 59 54 54 54 704 54 704 54 705 485 703 704 704 59 182 603 14 18 580 699 341 4 125 603 700 378 125 182 178 697 569 16
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL
GRAY IDN 		8-97407-898-1 01 1 1312-
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1312-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1312-
16 BRACKET; INST PNL
(C) IDN 		8-98053-711-0 01 1 1312-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1312-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1312-
16 BRACKET; INST PNL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-97585-612-2 01 1 1312-
18 BOLT; BRKT
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1312-
18 BOLT; BRKT
(B) T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1312-
54 POCKET; CENTER CLUSTER
VIN MODEL YEAR 2014<VZE> (A) IDN 		8-97926-874-0 01 1 1402-
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK IDN 		8-97407-129-2 01 1 1312-1401
54 POCKET; CENTER CLUSTER
EXC. VIN MODEL YEAR 2014<VZE> (A) H=108.4 BLACK IDN 		8-97407-129-3 01 1 1402-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK IDN 		8-97408-864-3 01 1 1312-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK IDN 		8-97408-865-3 01 1 1312-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1312-
66 REINFORCEMENT; INST PANEL
(B) 		8-98151-167-0 01 1 1312-
66 REINFORCEMENT; INST PANEL
(A) 		8-98174-904-1 01 1 1312-1406
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-609-0 01 1 1407-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1312-
125 CLIP; INST PANEL
(A) GRAY IDN 		8-97419-968-1 02 1 1312-1401
125 CLIP; INST PANEL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (A) GRAY IDN 		8-97419-968-1 02 1 1402-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1312-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1312-
178 NUT; INST PANEL
(B) IDN 		8-98037-629-0 15 1 1312-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1312-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1312-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1312-
182 BOLT; BRKT,INST PANEL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1312-1401
182 BOLT; BRKT,INST PANEL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1402-
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1312-
378 SEAL; INST PANEL
5X30 IDN 		8-98176-199-0 01 1 1312-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1312-
569 HOLDER; CARD
IDN 		8-97410-276-1 01 1 1312-
580 BRACKET; COVER
(A) IDN 		8-98091-546-0 01 1 1312-
580 BRACKET; COVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98017-528-1 01 1 1312-1401
580 BRACKET; COVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (B) 		8-98017-528-1 01 1 1402-
603 CLIP; COVER
(A) IDN 		8-98004-025-0 01 1 1312-
603 CLIP; COVER
(B) IDN 		8-98021-271-0 04 1 1312-
603 CLIP; COVER
(B) IDN 		8-98021-271-0 05 1 1312-1401
603 CLIP; COVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) IDN 		8-98021-271-0 05 1 1402-
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1312-
699 HOOK; INST PANEL
GRAY IDN 		8-97408-927-0 01 1 1312-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1312-
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1312-
704 BRACKET; CENTER POCKET
(B) IDN 		8-97585-616-2 02 1 1312-
704 BRACKET; CENTER POCKET
(A) IDN 		8-97585-618-2 02 1 1312-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1312-

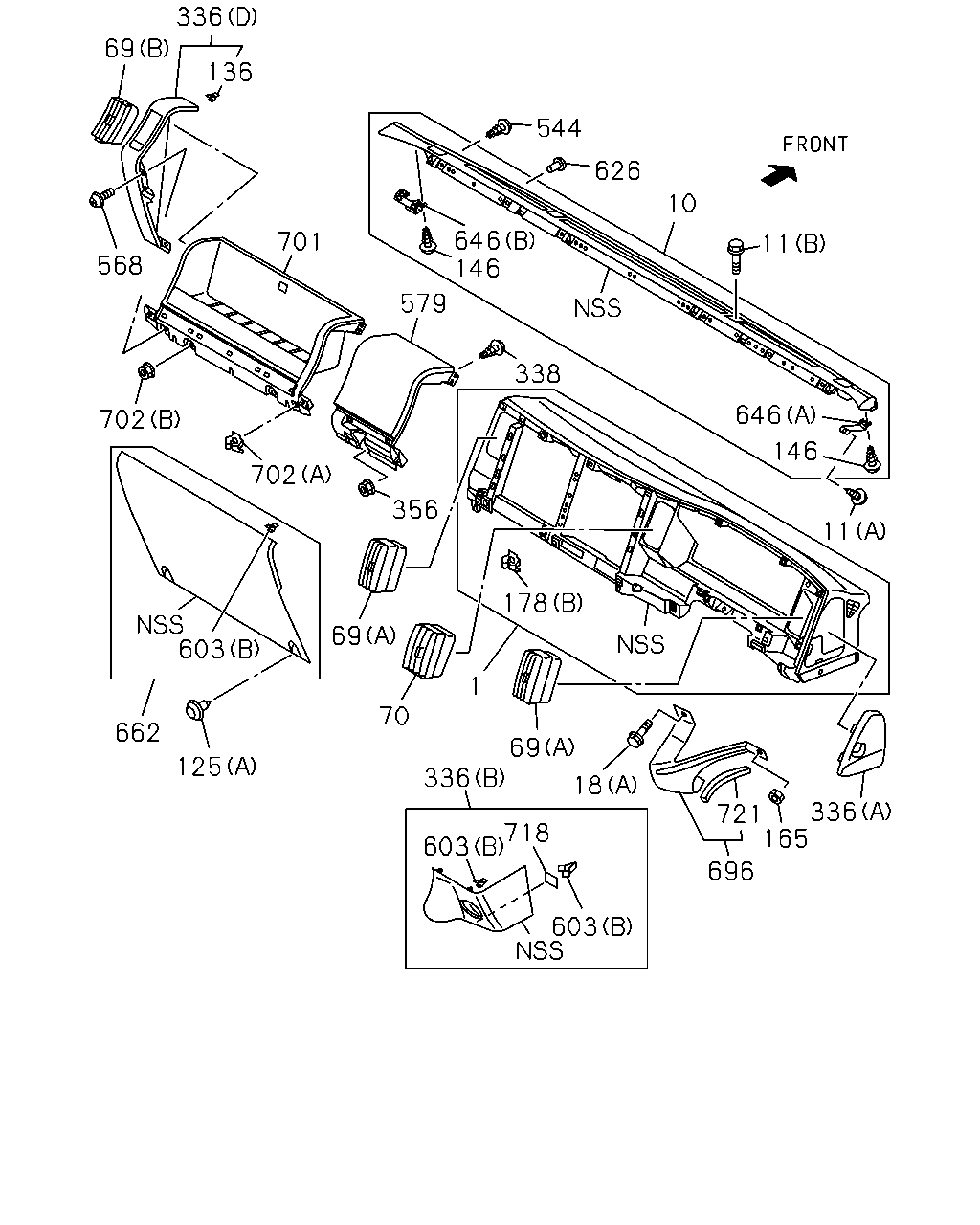

çizim 389164
11 10 626 544 646 146 646 146 11 336 165 721 696 603 718 603 336 69 1 70 178 69 356 338 579 701 136 336 69 568 702 702 603 662 125 18
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97423-015-0 01 1 1312-
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-1 01 1 1312-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1312-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1312-
18 BOLT; BRKT
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1312-
18 BOLT; BRKT
(B) T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1312-
69 GRILLE; SIDE,AIR OUTLET
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) IDN 		8-98028-561-2 02 1 1312-
69 GRILLE; SIDE,AIR OUTLET
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) IDN 		8-98028-562-2 01 1 1312-
70 GRILLE; CENTER,AIR OUTLET
VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN 		8-98028-563-2 01 1 1312-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1312-
125 CLIP; INST PANEL
(A) GRAY IDN 		8-97419-968-1 02 1 1312-1401
125 CLIP; INST PANEL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (A) GRAY IDN 		8-97419-968-1 02 1 1402-
136 CLIP; INST COVER 8-98076-254-0 02 1 1312-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1312-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1312-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1312-
178 NUT; INST PANEL
(B) IDN 		8-98037-629-0 15 1 1312-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1312-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1312-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1312-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1312-
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1312-
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 1312-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1312-
568 BOLT; COVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> VIN MODEL YEAR 2014<VZE> M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1402-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1312-1401
568 BOLT; COVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1402-
579 COVER; INST PNL
GRAY 		8-97409-853-2 01 1 1312-
603 CLIP; COVER
(A) IDN 		8-98004-025-0 01 1 1312-
603 CLIP; COVER
(B) IDN 		8-98021-271-0 04 1 1312-
603 CLIP; COVER
(B) IDN 		8-98021-271-0 05 1 1312-1401
603 CLIP; COVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) IDN 		8-98021-271-0 05 1 1402-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1312-
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1312-
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1312-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 1312-1401
662 COVER; LWR,INST PANEL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> GRAY 		8-97407-429-3 01 1 1402-
696 BRACKET; KNEE 8-98066-085-1 01 1 1312-
701 TRAY; INST
GRAY 		8-97421-976-1 01 1 1312-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1312-
702 NUT; TRAY
(A) IDN 		8-98037-629-0 01 1 1312-
718 SEAL; COVER
7X31 IDN 		8-98061-777-0 01 1 1312-
721 FINISHER; BRKT,KNEE
L=140 IDN 		8-97892-742-0 01 1 1312-

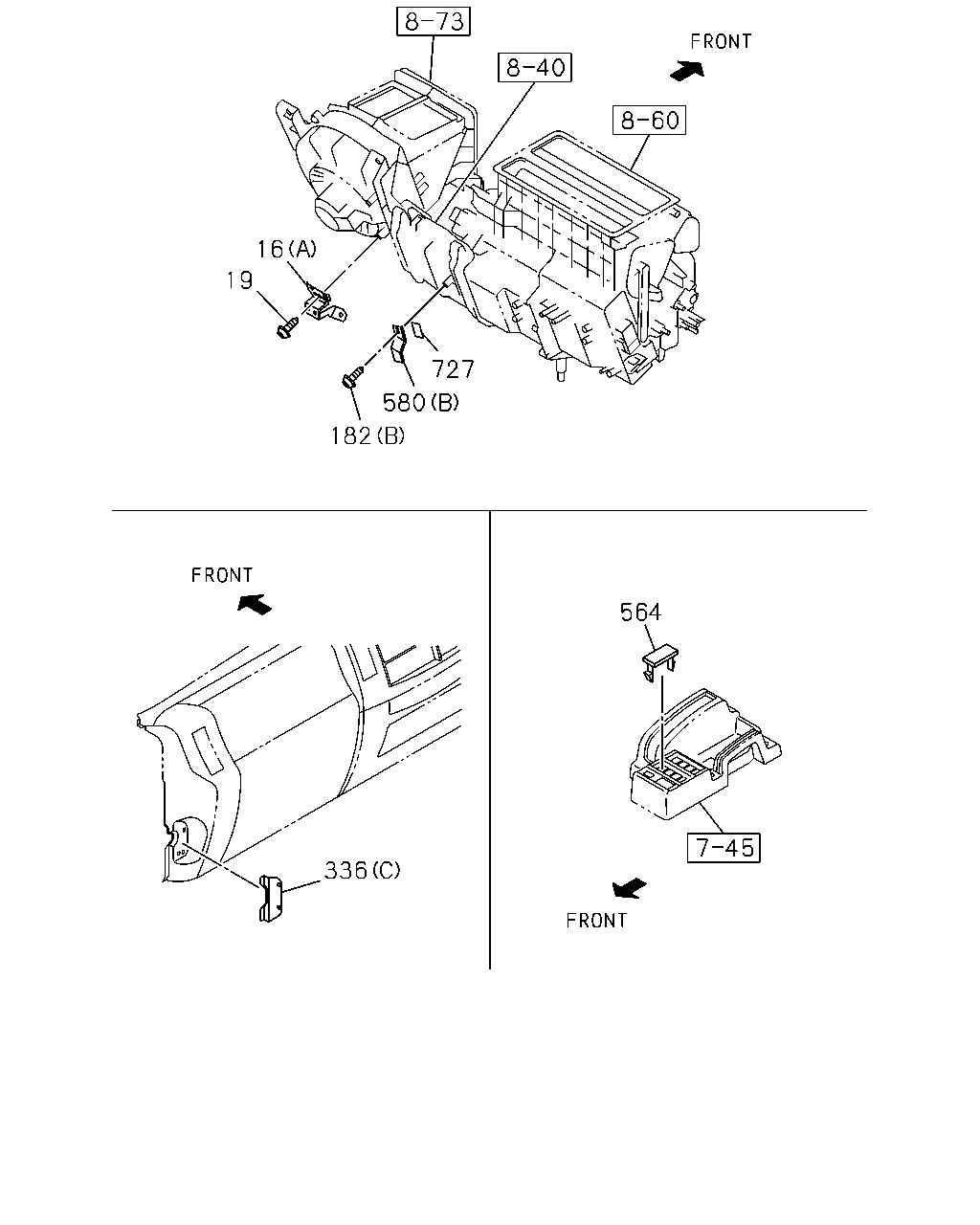

çizim 389452
727 580 182 19 16 564 336
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(C) IDN 		8-98053-711-0 01 1 1312-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1312-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1312-
16 BRACKET; INST PNL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-97585-612-2 01 1 1312-
19 SCREW; BRKT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1312-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1312-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1312-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1312-
182 BOLT; BRKT,INST PANEL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1312-1401
182 BOLT; BRKT,INST PANEL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1402-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1312-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1312-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1312-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1312-
564 COVER; SW 8-97043-732-1 06 1 1312-
580 BRACKET; COVER
(A) IDN 		8-98091-546-0 01 1 1312-
580 BRACKET; COVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98017-528-1 01 1 1312-1401
580 BRACKET; COVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (B) 		8-98017-528-1 01 1 1402-
727 SEAL; BRACKET
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98186-934-0 01 1 1312-1401
727 SEAL; BRACKET
VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> 		8-98186-934-0 01 1 1402-
