◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11564 - FTR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#131269) — 61 parça

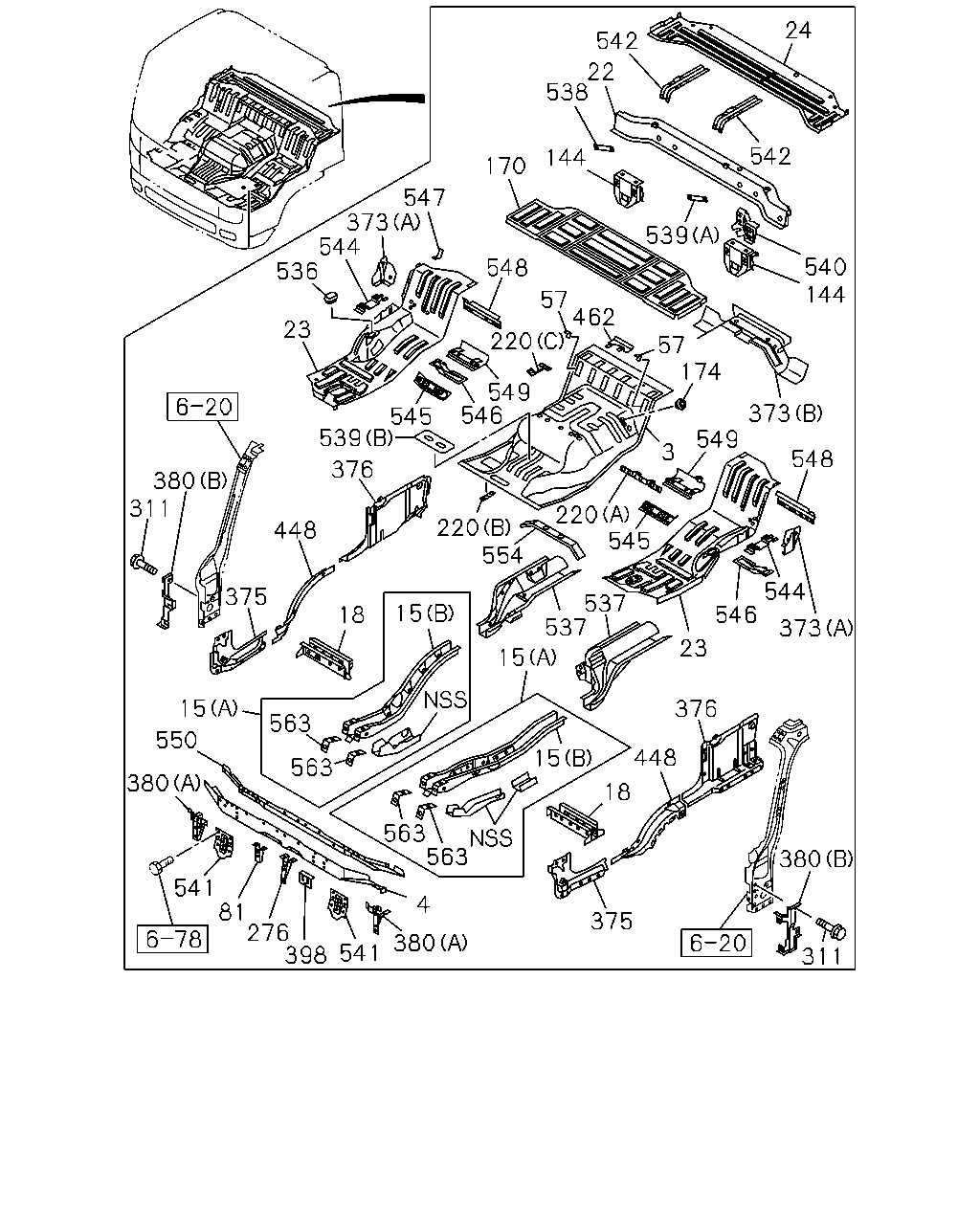

çizim 388967
24 542 542 22 538 539 540 144 144 170 373 548 544 546 373 549 545 220 3 174 57 462 57 220 549 546 545 548 547 373 544 536 23 539 376 448 380 311 375 18 220 554 537 537 23 15 563 563 15 15 15 563 563 18 376 448 375 380 311 550 380 541 81 276 398 541 380 4
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG 8-98167-036-0 01 1 1312-
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1312-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1312-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1312-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1312-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1312-
18 FRAME; FLOOR,CENTER SIDE 8-97584-398-4 01 1 1312-
18 FRAME; FLOOR,CENTER SIDE 8-97584-421-4 01 1 1312-
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1312-
23 PANEL; FLOOR,SIDE 8-97584-372-7 01 1 1312-
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 1312-
24 PANEL; BED PAN 8-97584-378-6 01 1 1312-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1312-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1312-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1312-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1312-
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1312-
174 GROMMET; AIR PIPE
OD=35 IDN 		8-94122-971-0 01 1 1312-
220 PATCH
(A) 		8-97588-840-4 01 1 1312-
220 PATCH
(B) 		8-97589-603-3 01 1 1312-
220 PATCH
(C) 		8-97589-627-2 01 1 1312-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1312-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1312-
373 REINFORCEMENT; SEAT BELT
(B) 		8-97584-345-9 01 1 1312-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1312-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1312-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1312-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1312-
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1312-1403
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404-
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1312-
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1312-
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1312-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1312-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1312-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1312-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1312-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1312-
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 1312-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1312-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1312-
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1312-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1312-
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 1312-
539 PATCH ASM; SAFTY HOOK
(B) IDN 		8-98131-661-0 01 1 1312-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1312-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1312-
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1312-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1312-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1312-
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1312-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1312-
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1312-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1312-
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1312-
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1312-
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1312-
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1312-
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1312-
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1312-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1312-
