5-01 — FRAME AND OTHER PARTS (#131251) — 57 parça

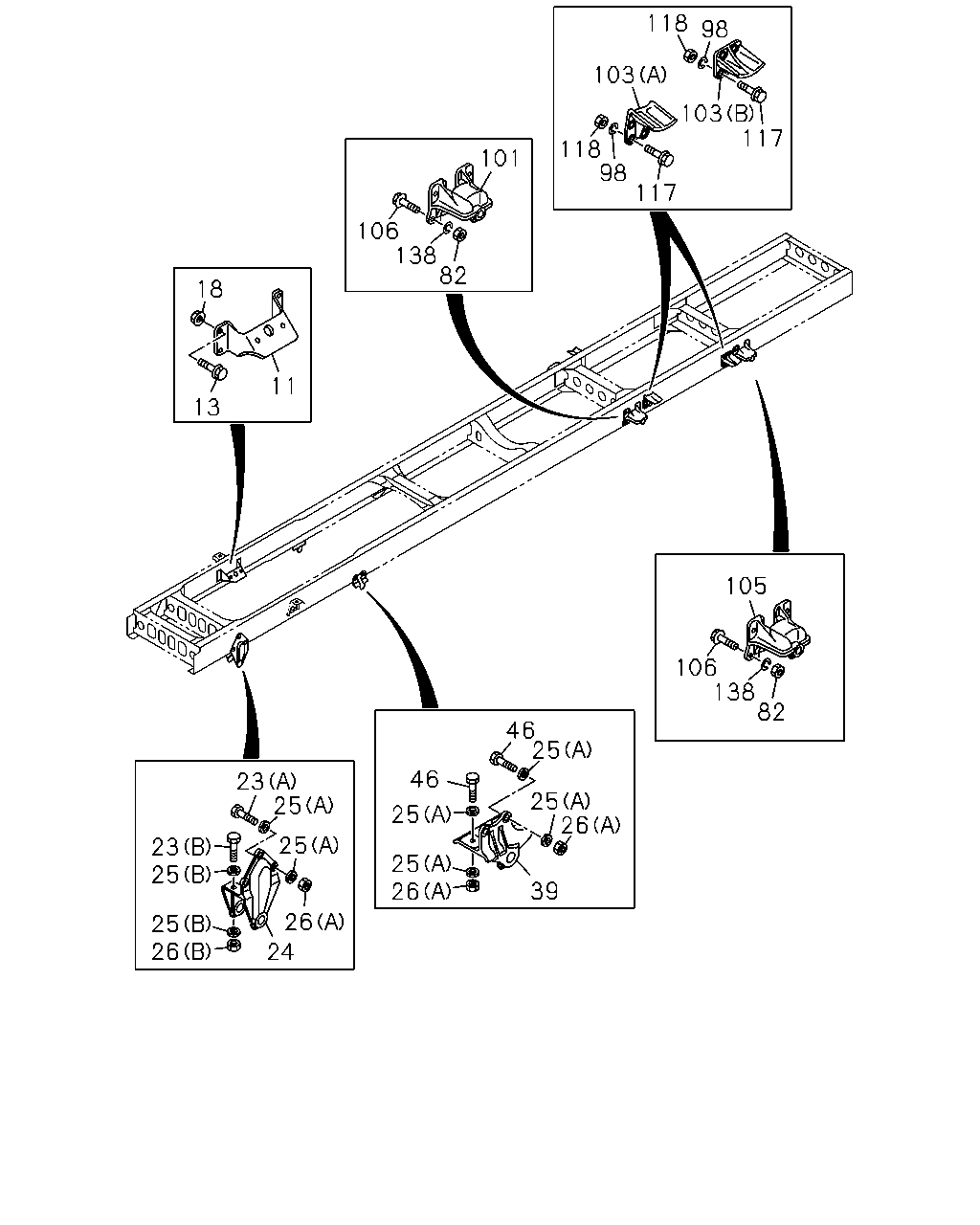

çizim 388899
18 11 13 106 138 82 101 118 103 118 98 103 117 117 23 23 25 25 26 24 25 25 26 26 25 25 46 46 25 25 26 39 138 105 106 82 98
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG
IDN 		8-97639-385-1 01 1 1312- ● ● ●
11 BRACKET; ENG MTG
IDN 		8-97639-386-1 01 1 1312- ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 12 1 1312- ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 12 1 1312- ● ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 1312- ● ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 1312- ● ● ●
24 BRACKET; FRT SPR,FRT
IDN 		8-97695-046-0 01 1 1312- ● ● ●
24 BRACKET; FRT SPR,FRT
IDN 		8-97695-047-0 01 1 1312- ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1312- ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1312- ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 1312- ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 1312- ● ● ●
39 BRACKET; FRT SPR,RR
IDN 		8-97924-625-0 01 1 1312- ● ● ●
39 BRACKET; FRT SPR,RR
IDN 		8-97924-626-0 01 1 1312- ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 1312- ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 20 1 1312- ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 1312- ● ● ●
101 BRACKET; RR SPR,FRT
IDN 		8-97695-045-0 02 1 1312- ● ● ●
103 STOPPER; SUB SPR
(B) IDN 		8-97695-055-0 02 1 1312- ● ● ●
103 STOPPER; SUB SPR
(A) IDN 		8-97695-056-0 02 1 1312- ● ● ●
105 BRACKET; RR SPR,RR
IDN 		8-97695-045-0 02 1 1312- ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 20 1 1312- ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1312- ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1312- ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 20 1 1312- ● ● ●

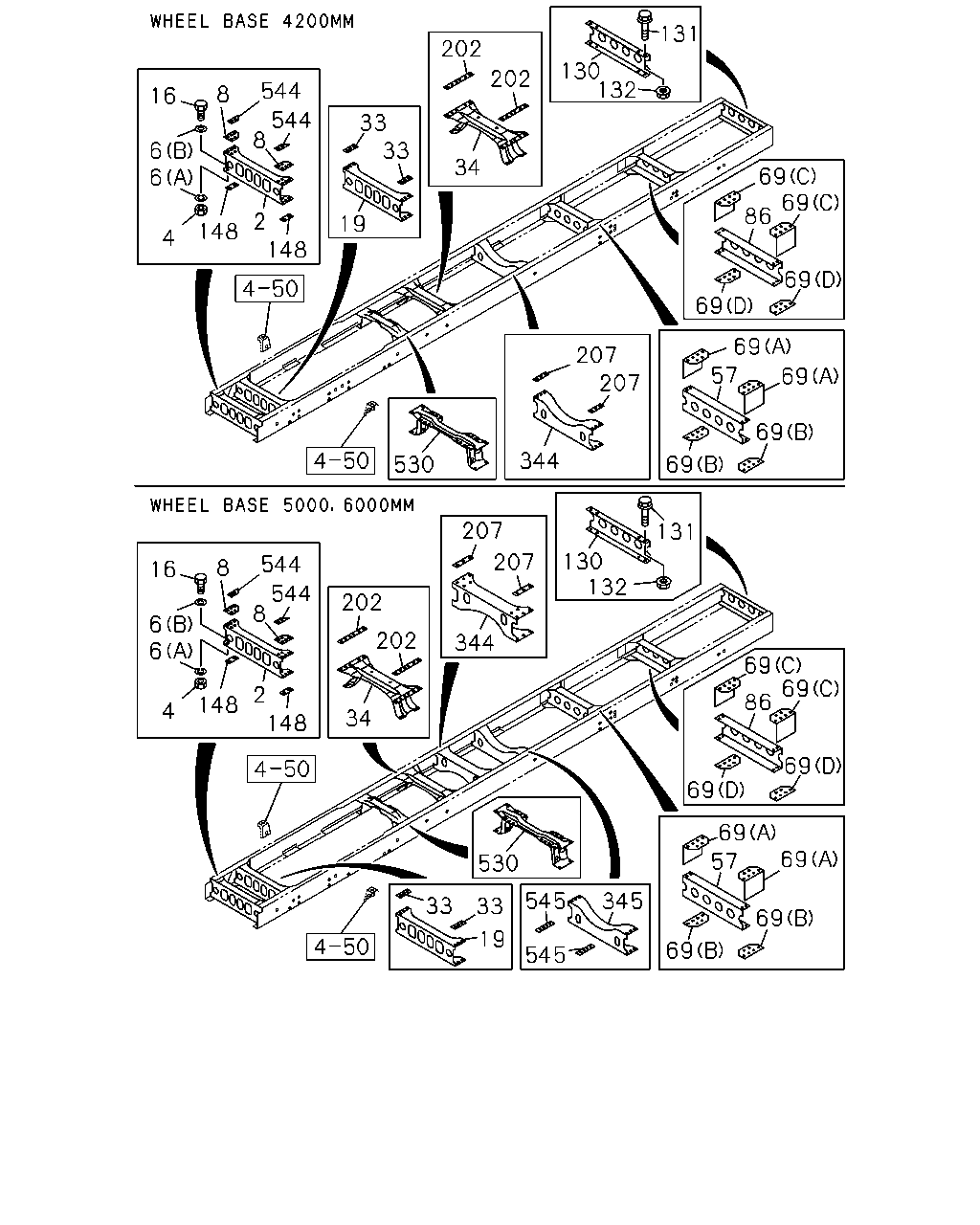

çizim 389042
16 6 6 4 148 2 148 8 544 544 8 33 33 34 202 202 130 132 131 69 69 86 69 69 69 69 69 57 69 207 207 344 131 130 132 69 69 86 69 69 69 69 57 69 69 345 545 545 530 33 19 33 34 202 202 344 207 207 530 544 544 8 16 8 6 6 4 148 148 2 19
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST
IDN 		8-97695-001-0 01 1 1312- ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 1312- ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=14.2 		0-91510-814-0 02 1 1312- ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=15 		8-98010-627-1 02 1 1312- ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 1312- ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
M14X40 		0-20851-440-0 02 1 1312- ● ● ●
19 MEMBER; CROSS,2ND
IDN 		8-97695-002-0 01 1 1312- ● ● ●
33 SPACER; 2ND C/MBR,UPR
IDN 		8-97948-140-0 02 1 1312- ● ● ●
34 MEMBER; CROSS,3RD
IDN 		8-97695-208-0 01 1 1312- ● ● ●
57 MEMBER; CROSS,RR SUSP FRT
IDN 		8-97695-019-0 01 1 1312- ● ● ●
69 GUSSET; RR SUSP,UPR
(B) IDN 		8-97695-025-0 02 1 1312- ● ● ●
69 GUSSET; RR SUSP,UPR
(D) IDN 		8-97695-026-0 02 1 1312- ● ● ●
69 GUSSET; RR SUSP,UPR
(C) IDN 		8-97695-029-0 01 1 1312- ● ● ●
69 GUSSET; RR SUSP,UPR
(C) IDN 		8-97695-030-0 01 1 1312- ● ● ●
69 GUSSET; RR SUSP,UPR
(A) IDN 		8-97695-126-0 01 1 1312- ● ● ●
69 GUSSET; RR SUSP,UPR
(A) IDN 		8-97695-127-0 01 1 1312- ● ● ●
86 MEMBER; CROSS,RR SUSP RR
IDN 		8-97695-019-0 01 1 1312- ● ● ●
130 MEMBER; CROSS,END
IDN 		8-97695-020-0 01 1 1312- ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 1312- ● ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 1312- ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 1312- ● ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 1312- ● ● ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 1312- ● ● ●
344 MEMBER; CROSS,4TH
IDN 		8-97695-004-0 01 1 1312- ● ● ●
345 MEMBER; CROSS,5TH
IDN 		8-97695-004-0 01 1 1312- ● ●
530 MEMBER; CROSS,T/M
IDN 		8-97695-210-0 01 1 1312- ● ● ●
544 PLATE; CAB FRT MTG
IDN 		8-97695-135-0 02 1 1312- ● ●
544 PLATE; CAB FRT MTG
IDN 		8-97695-133-0 02 1 1312- ●
544 PLATE; CAB FRT MTG
IDN 		8-97695-135-0 02 1 1312- ● ●
544 PLATE; CAB FRT MTG
IDN 		8-97695-133-0 02 1 1312- ●
545 SPACER; 5TH C/MBR
0.25KG 		8-97611-244-0 02 1 1312- ●
545 SPACER; 5TH C/MBR
0.24KG 		8-97611-245-0 02 1 1312- ● ●
