Isuzu WW
▶
TRUCKS
▶
FTR
▶
11564 - FTR(INDONESIA)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

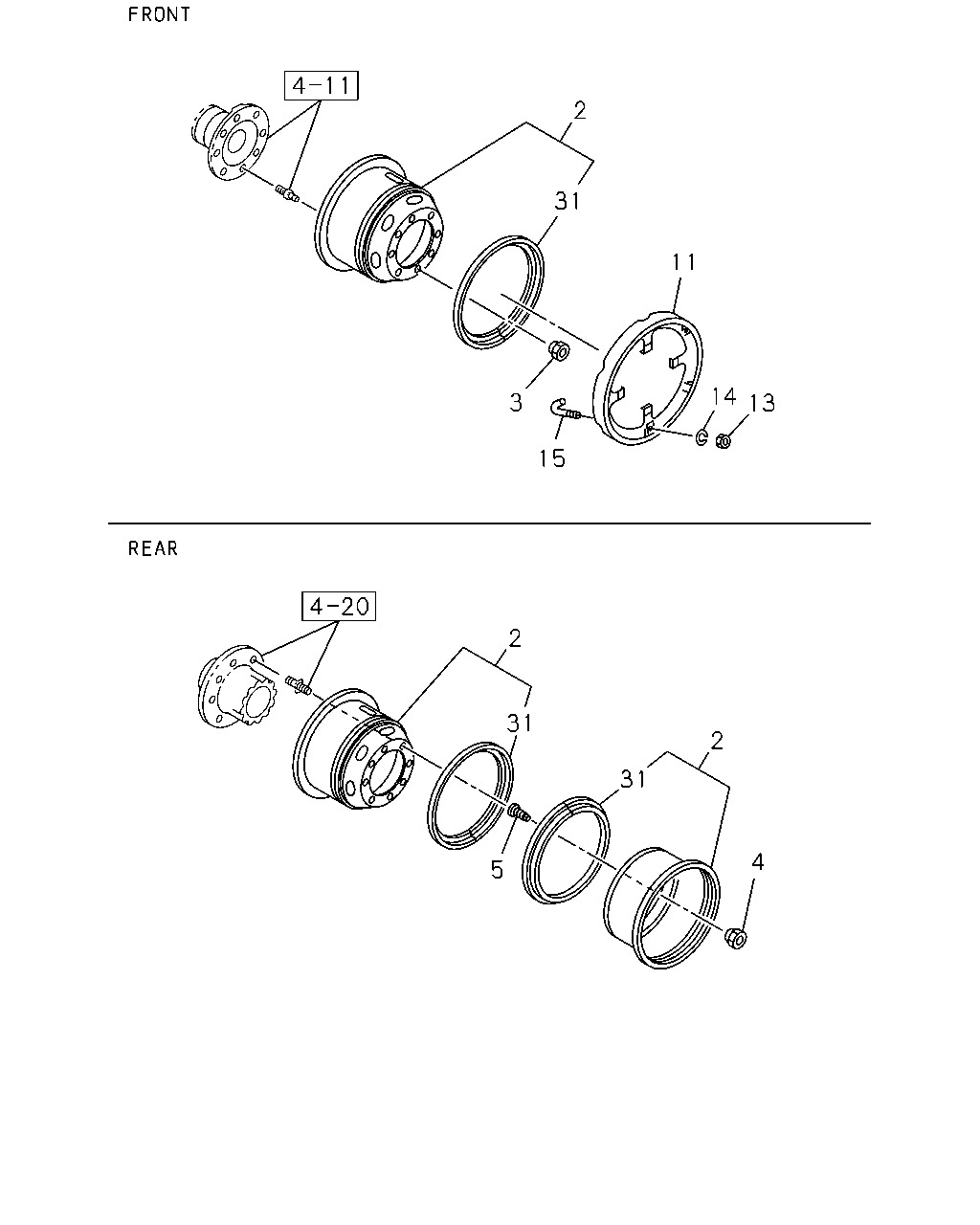

4-80 — ROAD WHEEL
(#131250) — 14 parça
2
31
11
14
13
15
3
2
31
31
4
2
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
FRONT,REAR IDN
1-42350-268-2
06
1
1312-
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE(R46) SPARE IDN
1-42350-268-2
01
1
1312-
3
NUT; WHEEL,FRT AXLE
M24 LH THREAD
1-42334-022-3
08
1
1312-
3
NUT; WHEEL,FRT AXLE
M24
1-42333-022-3
08
1
1312-
4
NUT; WHEEL,RR AXLE
M30 LH THREAD
8-97359-810-0
08
1
1312-
4
NUT; WHEEL,RR AXLE
M30 RH THREAD
8-97359-809-0
08
1
1312-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD IDN
8-97359-806-0
08
1
1312-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD IDN
8-97359-805-0
08
1
1312-
11
STEP; DISC WHEEL SIDE
IDN
1-43139-002-2
02
1
1312-
13
NUT; STEP DISC
M10
0-91110-510-0
06
1
1312-
14
WASHER; LK,STEP DISC
ID=10.2 IDN
0-91510-810-0
06
1
1312-
15
BOLT; STEP DISC
L=44
9-43139-023-1
06
1
1312-
31
RING; SIDE,DISC WHEEL
FRONT,REAR IDN
1-42355-012-1
06
1
1312-
31
RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR TIRE ONE(R46) SPARE IDN
1-42355-012-1
01
1
1312-
