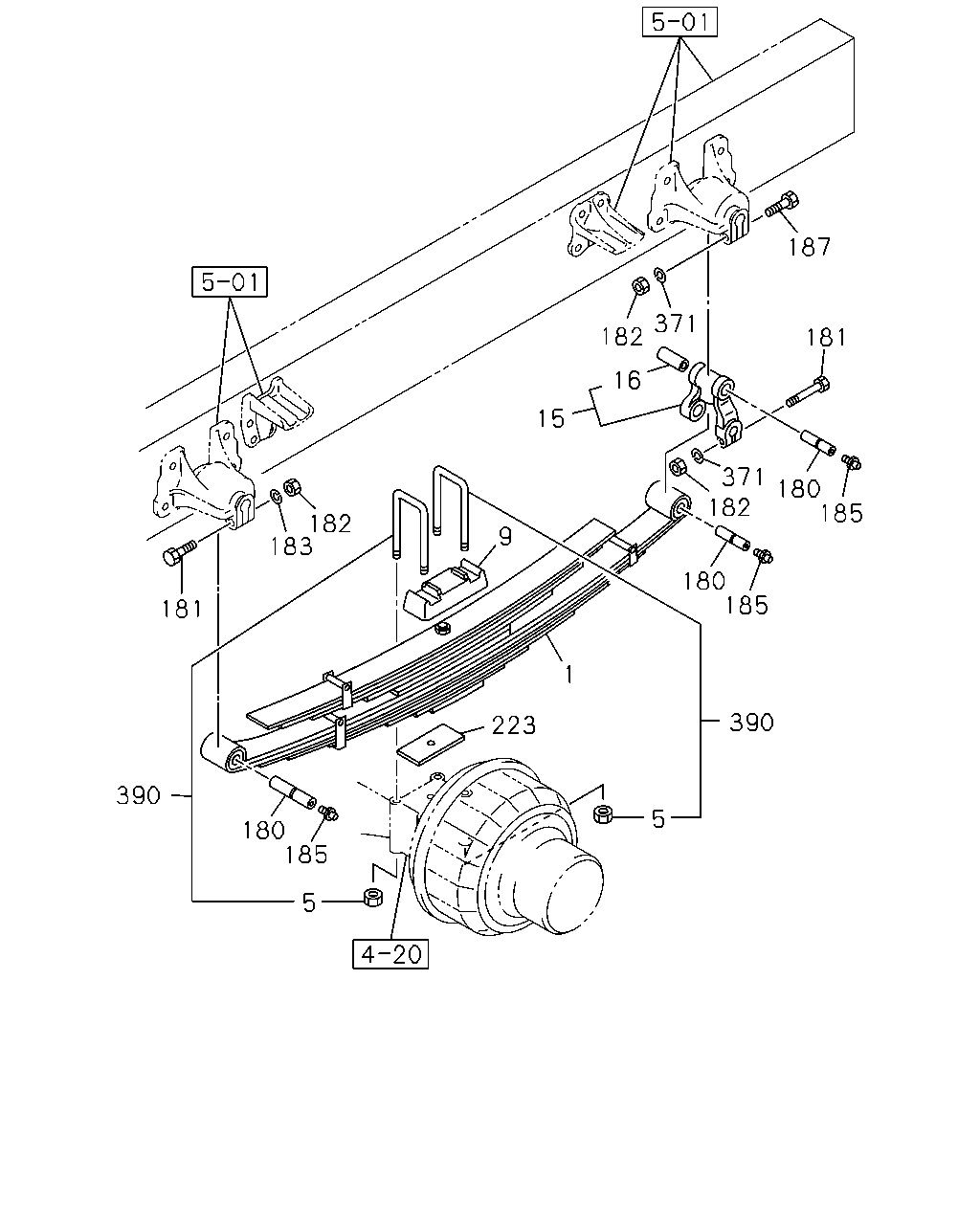

4-60 — REAR SUSPENSION
(#131248) — 16 parça
181
183
182
390
180
185
5
9
15
16
182
371
187
181
185
180
371
182
180
185
390
5
223
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. IDN
8-98017-564-0
02
1
1312-
5
NUT; U-BOLT,RR SPR
M24
0-91112-824-0
08
1
1312-
9
PAD; U BOLT,RR SPR
IDN
8-97916-138-0
02
1
1312-
15
SHACKLE; RR SPR
IDN
1-51362-049-2
02
1
1312-
16
BUSHING; SHACKLE,RR SPR
8-98081-830-0
02
1
1312-
180
PIN; RR SPR
DO=28 L=131 PT1/8
1-51361-015-0
06
1
1312-
181
BOLT; SPR & SHACKLE
0-10861-465-0
02
1
1312-
182
NUT; PIN,RR SPR
M14
0-91110-514-0
02
1
1312-
182
NUT; PIN,RR SPR
M14
0-91110-514-0
04
1
1312-
183
WASHER; LK,PIN,RR SPR
ID=14.2
0-91510-514-0
02
1
1312-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
02
1
1312-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
04
1
1312-
187
BOLT; SPR & SHACKLE
M14X65
0-10811-465-0
04
1
1312-
223
SPACER; U BOLT,RR SPR
1-51377-166-0
02
1
1312-
371
WASHER; LK,SHACKLE
ID=14.2
0-91510-514-0
04
1
1312-
390
U-BOLT SET; RR SPRING
L=455
1-87870-268-1
04
1
1312-
