Isuzu WW
▶
TRUCKS
▶
FTR
▶
11564 - FTR(INDONESIA)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶

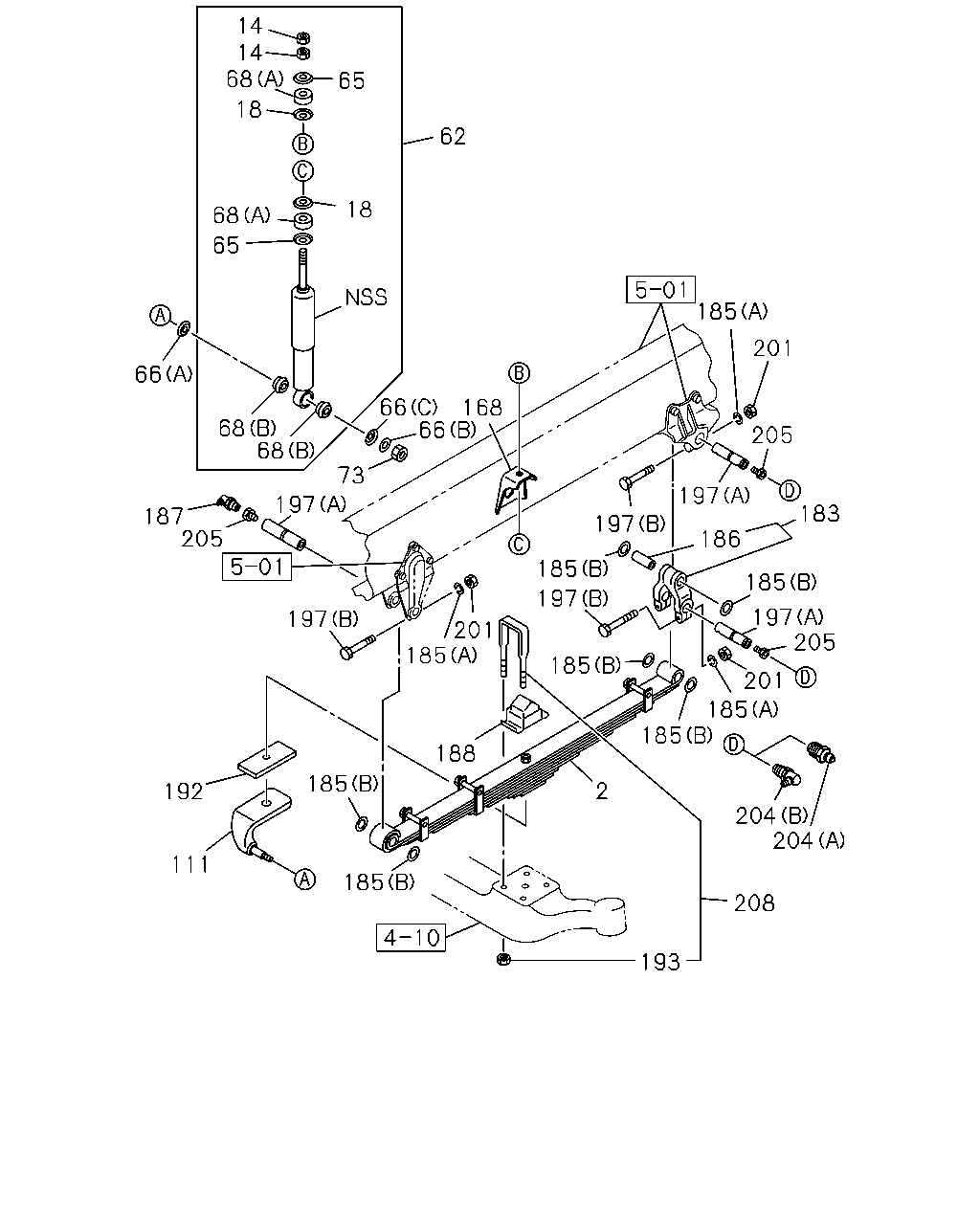

4-50 — FRONT SUSPENSION
(#131246) — 30 parça
14
68
14
68
65
66
68
187
197
197
185
188
185
192
111
185
2
185
201
73
66
18
65
62
185
197
185
204
204
208
201
185
193
186
197
197
185
97
205
183
205
201
185
168
66
68
205
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. IDN
1-51130-343-0
02
1
1312-
14
NUT; S/ABS,UPR
M12
8-98010-412-0
04
1
1312-
18
WASHER; CENTERING,S/ABS
ID=16.8
1-51631-022-0
04
1
1312-
62
ABSORBER ASM; SHOCK,FRT
IDN
8-97924-225-0
02
1
1312-
65
WASHER; S/ABS
ID=14.5
9-51631-051-0
04
1
1312-
66
WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30
0-91610-516-0
02
1
1312-
66
WASHER; LK,S/ABS SETTING
(A) ID=23
1-51631-019-0
02
1
1312-
66
WASHER; LK,S/ABS SETTING
(C) ID=17
1-51631-020-0
02
1
1312-
68
BUSHING; S/ABS
(B)
1-51631-009-1
04
1
1312-
68
BUSHING; S/ABS
(A)
9-51631-050-0
04
1
1312-
73
NUT; BRKT,SHOCK
M16
0-91110-516-0
02
1
1312-
111
SUPPORTER; S/ABS,FRT SUSP
IDN
8-98123-348-0
01
1
1312-
111
SUPPORTER; S/ABS,FRT SUSP
IDN
8-98123-347-0
01
1
1312-
168
BRACKET; S/ABS,FRT SUSP
IDN
1-51681-306-0
02
1
1312-
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
1312-
185
WASHER; LK,PIN
(B) ID=32.4
1-51169-018-0
12
1
1312-
185
WASHER; LK,PIN
(A) ID=12.2
8-98179-315-0
12
1
1312-
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
02
1
1312-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
1312-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-096-2
02
1
1312-
192
PIECE; DIST
80X144 ID=17.5
1-51177-284-1
AR
1
1312-
193
NUT; U BOLT
M22
8-98179-318-0
08
1
1312-
197
PIN; FRT SPR,FRT
(B) M12X80
0-10856-280-0
12
1
1312-
197
PIN; FRT SPR,FRT
(A) IDN
8-97948-141-0
06
1
1312-
201
NUT; PIN LK
M12
0-91110-512-0
12
1
1312-
204
NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT
0-90301-410-0
02
1
1312-
204
NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
02
1
1312-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
1312-
208
U-BOLT SET; FRT SPRING
L=230
1-87870-493-0
04
1
1312-1401
208
U-BOLT SET; FRT SPRING
L=210
1-87870-498-0
04
1
1402-
