◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11564 - FTR(INDONESIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#131244) — 59 parça

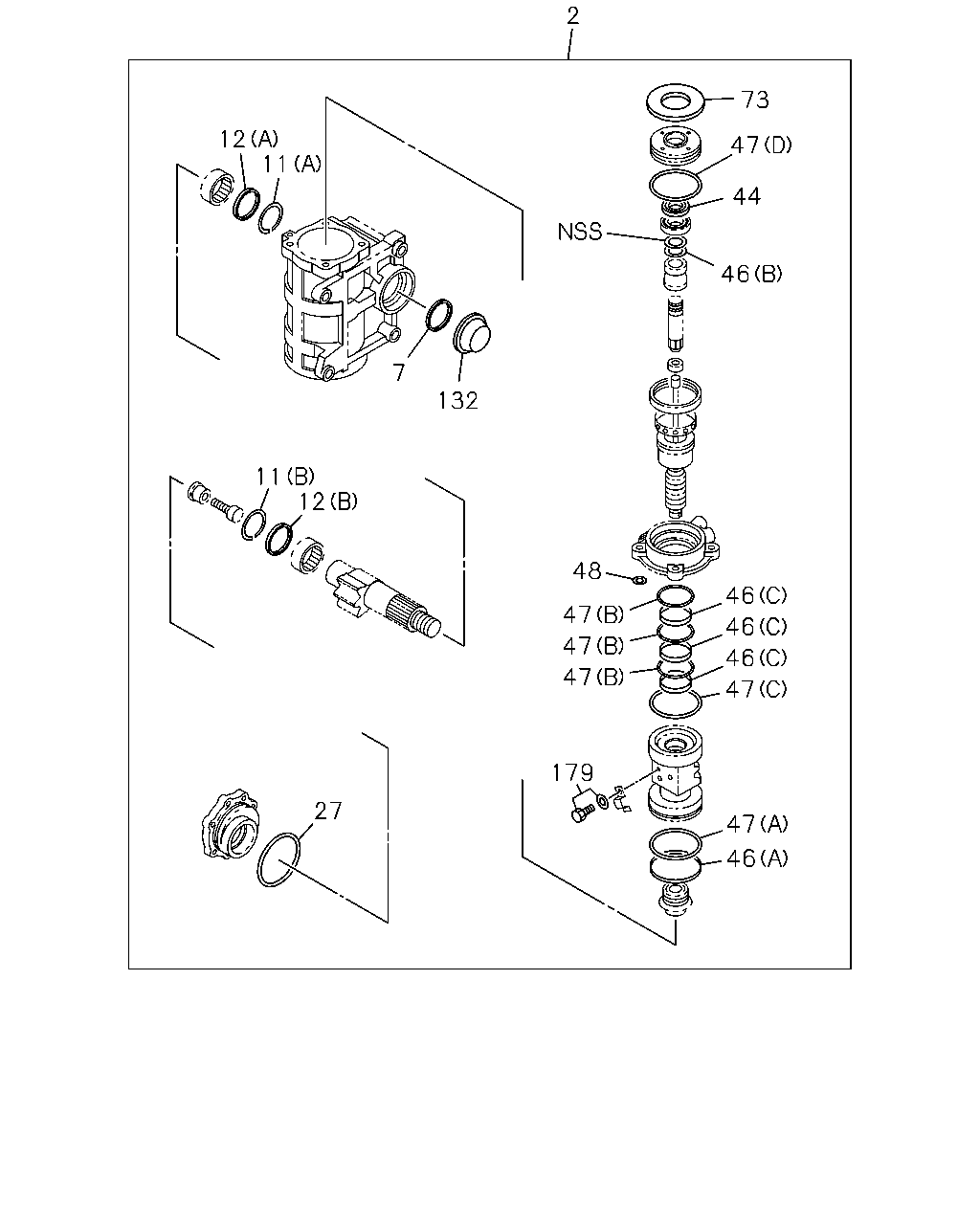

çizim 388593
2 73 12 11 132 7 11 27 179 7 47 47 48 46 46 46 47 47 46 47 44 46 12
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR, IDN ASM PART: A = 1-44000-953-1 		8-98095-830-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		8-98159-116-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A), IDN ASM PART: A = 1-44000-953-1 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B), IDN ASM PART: A = 1-44000-953-1 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A), IDN ASM PART: A = 1-44000-953-1 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B), IDN ASM PART: A = 1-44000-953-1 		1-44519-226-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44269-035-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A), IDN ASM PART: A = 1-44000-953-1 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B), IDN ASM PART: A = 1-44000-953-1 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C), IDN ASM PART: A = 1-44000-953-1 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A), IDN ASM PART: A = 1-44000-953-1 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B), IDN ASM PART: A = 1-44000-953-1 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C), IDN ASM PART: A = 1-44000-953-1 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D), IDN ASM PART: A = 1-44000-953-1 		1-44519-260-0 01 1 -
48 GASKET; HSG,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		8-98074-089-0 01 1 -
132 COVER; DUST,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44519-227-0 01 1 -
179 SCREW; CLIP STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-09000-610-0 02 1 -

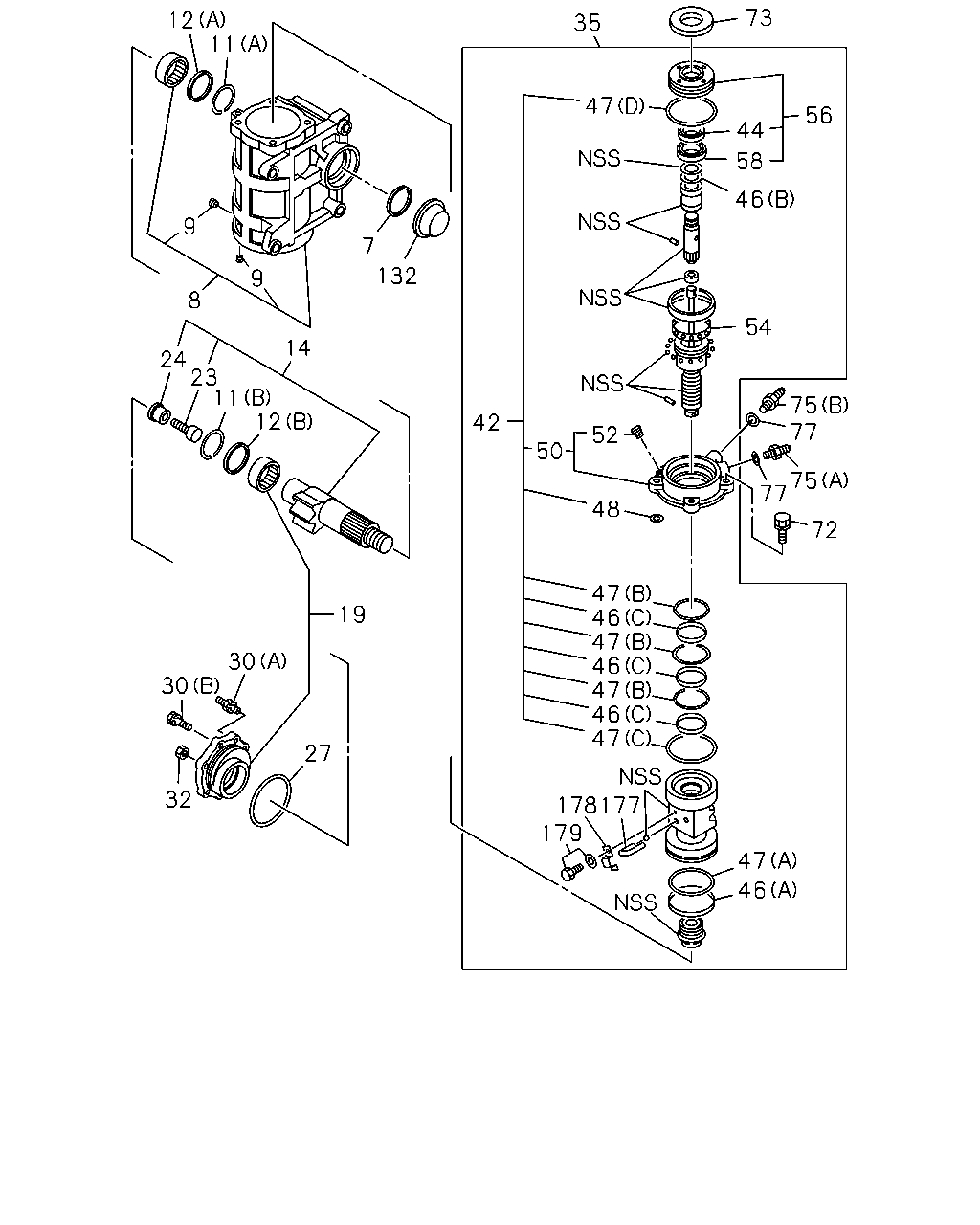

çizim 389026
77 47 46 47 46 47 46 47 177 178 47 46 179 27 19 30 30 32 12 11 23 24 14 132 42 48 72 75 77 75 54 52 50 46 58 44 56 73 35 47 8 9 7 9 11 12
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		8-98159-116-0 01 1 -
8 BOX ASM; STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		8-98159-752-0 01 1 -
9 PLUG; FILLER,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A), IDN ASM PART: A = 1-44000-953-1 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B), IDN ASM PART: A = 1-44000-953-1 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A), IDN ASM PART: A = 1-44000-953-1 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B), IDN ASM PART: A = 1-44000-953-1 		1-44519-226-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44320-003-0 01 1 -
19 COVER; SIDE STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		8-98159-763-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(A), IDN ASM PART: A = 1-44000-953-1 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B), IDN ASM PART: A = 1-44000-953-1 		1-44279-012-0 05 1 -
32 NUT; ADJ SCREW,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44269-037-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		8-98095-563-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44560-073-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A), IDN ASM PART: A = 1-44000-953-1 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B), IDN ASM PART: A = 1-44000-953-1 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C), IDN ASM PART: A = 1-44000-953-1 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A), IDN ASM PART: A = 1-44000-953-1 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B), IDN ASM PART: A = 1-44000-953-1 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C), IDN ASM PART: A = 1-44000-953-1 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D), IDN ASM PART: A = 1-44000-953-1 		1-44519-260-0 01 1 -
48 GASKET; HSG,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44560-072-0 01 1 -
52 PLUG; HSG STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		8-98074-089-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-953-1 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-953-1 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44519-227-0 01 1 -
177 TUBE; BALL BRG STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44159-032-0 02 1 -
178 CLIP; BALL TUBE STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-44159-034-0 01 1 -
179 SCREW; CLIP STRG UNIT
IDN ASM PART: A = 1-44000-953-1 		1-09000-610-0 02 1 -
