◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11564 - FTR(INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-81 - POWER TAKE OFF; TRANSMISSION SIDE ▶

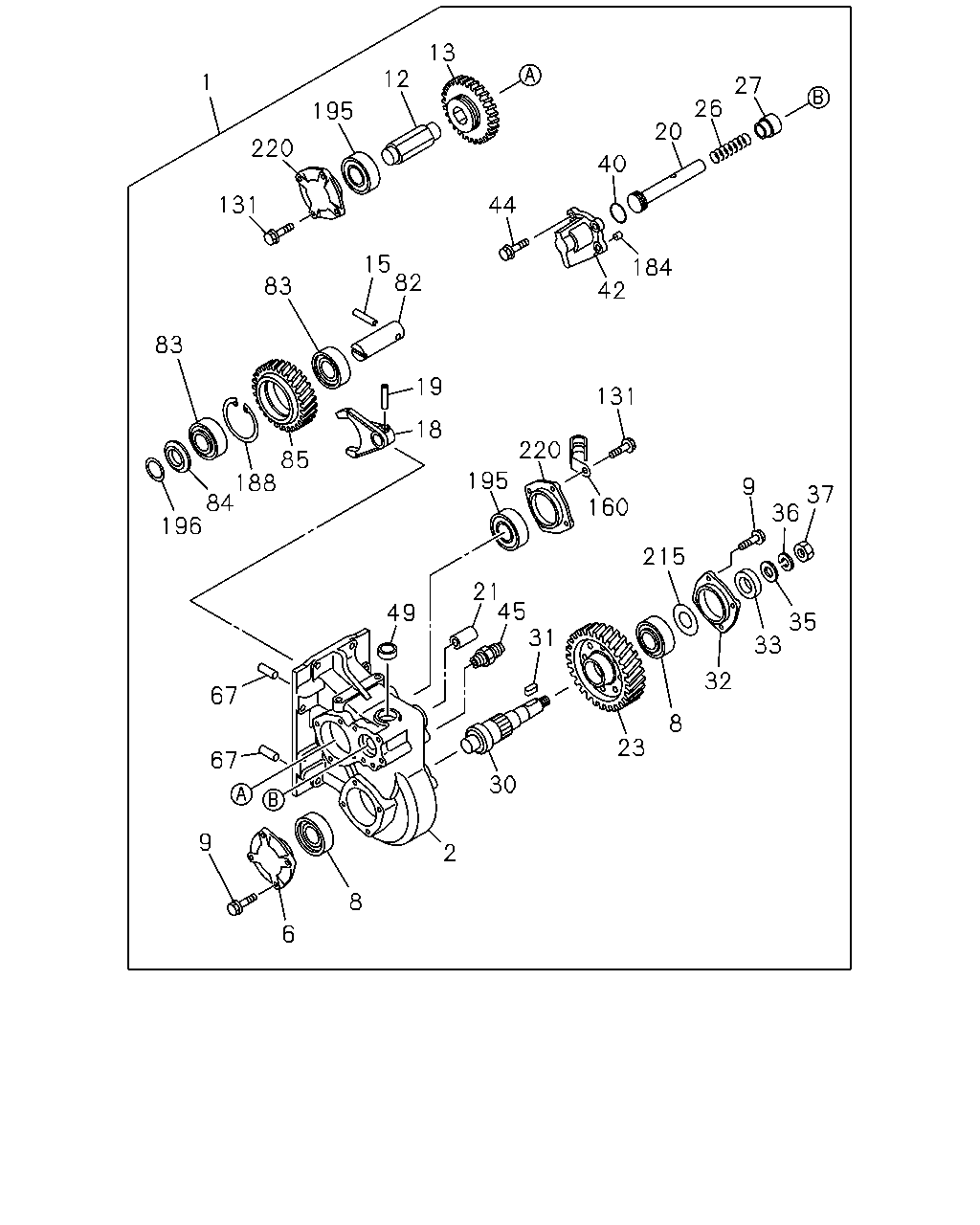

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#131214) — 133 parça

1 195 12 13 44 42 184 40 20 26 27 15 19 18 83 131 83 85 188 84 196 195 220 131 160 215 9 35 37 33 36 32 8 23 31 30 45 21 49 2 8 6 9 67 67 220 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98118-444-3	01	1	1312-1312
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98238-578-1	01	1	1401-
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98134-895-1	01	1	1312-1312
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98238-785-1	01	1	1401-
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98134-910-0	01	1	1312-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	5-09820-017-0	02	1	1312-
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) M8X20 FLANGE	0-28050-820-0	08	1	1312-
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98140-219-1	01	1	1312-1312
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98238-791-0	01	1	1401-
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) Z=27	8-98134-900-1	01	1	1312-1312
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) Z=27	8-98238-793-0	01	1	1401-
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) L=20 OD=4	9-09678-514-0	01	1	1312-
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98204-322-0	01	1	1312-1312
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98238-797-0	01	1	1401-
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-97306-596-0	01	1	1312-
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	1-38371-062-0	01	1	1312-1312
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	1-38371-057-0	01	1	1401-
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98046-619-0	01	1	1312-
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) Z=29	8-98134-903-0	01	1	1312-1312
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) Z=29	8-98238-790-0	01	1	1401-
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	1-38121-004-1	01	1	1312-
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98134-912-0	01	1	1312-1312
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98153-945-0	01	1	1401-
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-97374-129-1	01	1	1312-1312
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98238-787-0	01	1	1401-
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) L=25	8-98068-088-0	01	1	1312-
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-97305-794-0	01	1	1312-
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	1-38159-007-0	01	1	1312-
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) ID=15	0-91610-514-0	01	1	1312-
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) ID=14.2	0-91510-814-0	01	1	1312-
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) M14	0-91111-514-0	01	1	1312-
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	9-09561-324-0	01	1	1312-
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98134-911-1	01	1	1312-1312
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98238-798-0	01	1	1401-
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) M8X20 FLANGE	0-28050-820-0	04	1	1312-
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1312-
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98037-773-0	01	1	1312-
67	PIN; STRAIGHT TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) L=22	8-94483-674-0	02	1	1312-1312
67	PIN; STRAIGHT TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) L=22	8-98238-799-0	02	1	1401-
82	SHAFT; INPUT TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98134-904-0	01	1	1312-
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	5-09820-017-0	02	1	1312-
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	9-38245-603-1	01	1	1312-1312
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98238-800-0	01	1	1401-
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) Z=28	8-98134-898-1	01	1	1312-1312
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) Z=28	8-98238-795-0	01	1	1401-
131	BOLT; FLANGE TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) M8X20 FLANGE	0-28050-820-0	08	1	1312-
160	CLIP; PTO A/T SIDE TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) ID=8.5	5-09700-275-0	01	1	1312-
184	DOWEL; PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) OD=11 L=8	9-11229-058-1	01	1	1312-
188	RING; SNAP,INPUT SHAFT TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) T=2.2	1-09587-103-1	01	1	1312-
195	BEARING; ROLLER,TAPER,PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) NSK	8-97360-312-0	02	1	1312-
196	PIECE; THRUST TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) T=1.50	8-97106-724-0	02	1	1312-
196	PIECE; THRUST TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) T=1.60	8-97106-725-0	02	1	1312-
196	PIECE; THRUST TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) T=1.65	8-97106-726-0	02	1	1312-
196	PIECE; THRUST TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) T=1.70	8-97106-727-0	02	1	1312-
196	PIECE; THRUST TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) T=1.80	8-97106-728-0	02	1	1312-
196	PIECE; THRUST TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) T=1.85	8-97106-729-0	02	1	1312-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) T=0.1	5-33156-022-0	AR	1	1312-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) T=0.2	5-33156-024-0	AR	1	1312-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) T=0.15	8-98067-573-0	AR	1	1312-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) T=0.40	8-98067-574-0	AR	1	1312-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) T=0.65	8-98067-575-0	AR	1	1312-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) T=0.80	8-98067-576-0	AR	1	1312-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) T=1.00	8-98134-917-0	AR	1	1312-
220	COVER; IDLE SHAFT TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98134-910-0	02	1	1312-

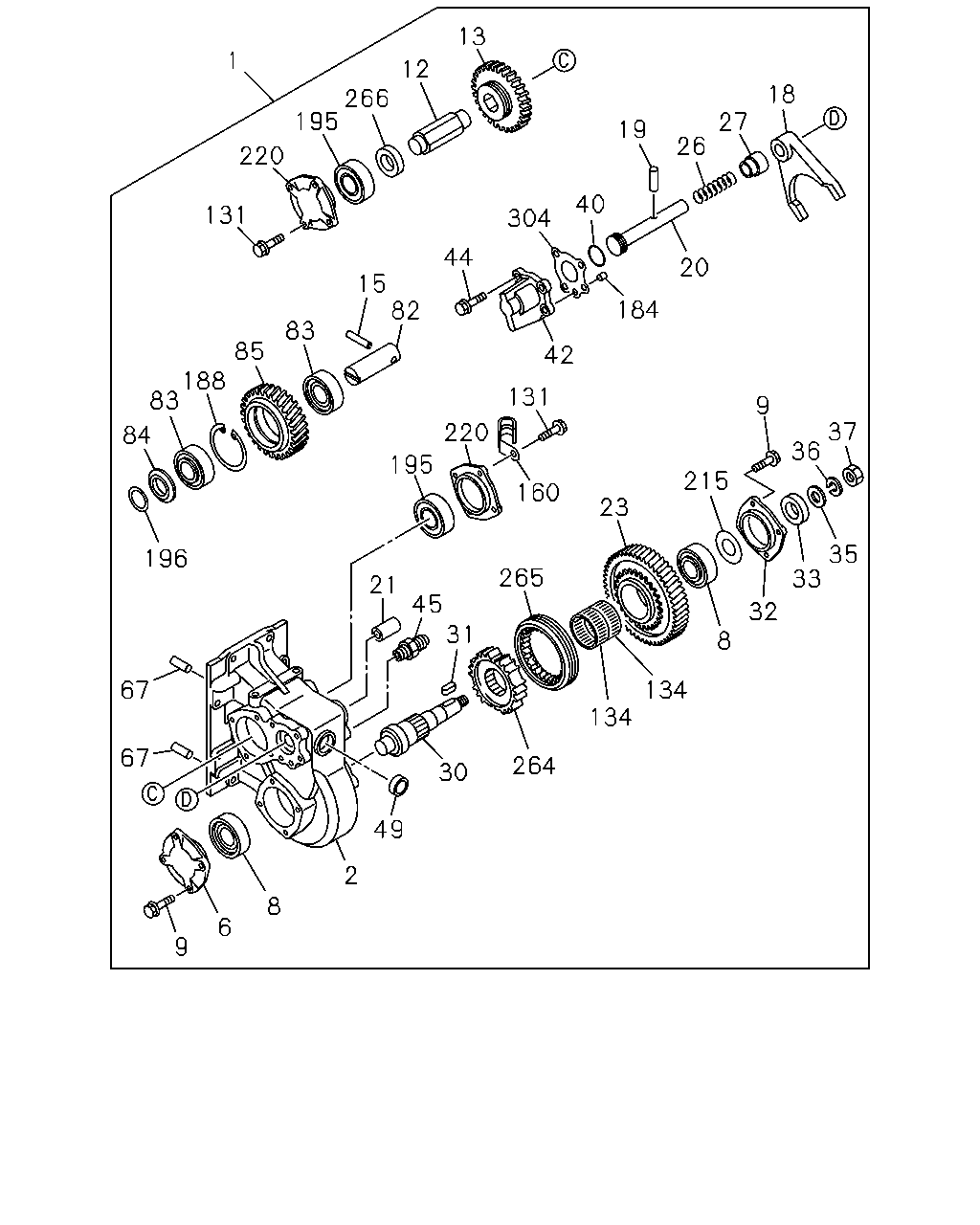

1 131 220 195 266 12 13 84 83 188 85 83 15 82 44 304 40 19 27 18 195 220 131 42 184 20 9 36 37 215 23 160 265 31 45 21 196 67 67 9 8 6 2 30 49 264 134 134 8 32 33 35 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98118-444-3	01	1	1312-1312
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98238-578-1	01	1	1401-
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98134-895-1	01	1	1312-1312
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98238-785-1	01	1	1401-
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98134-910-0	01	1	1312-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	5-09820-017-0	02	1	1312-
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) M8X20 FLANGE	0-28050-820-0	08	1	1312-
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98140-219-1	01	1	1312-1312
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98238-791-0	01	1	1401-
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) Z=27	8-98134-900-1	01	1	1312-1312
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) Z=27	8-98238-793-0	01	1	1401-
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) L=20 OD=4	9-09678-514-0	01	1	1312-
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98204-322-0	01	1	1312-1312
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98238-797-0	01	1	1401-
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-97306-596-0	01	1	1312-
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	1-38371-062-0	01	1	1312-1312
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	1-38371-057-0	01	1	1401-
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98046-619-0	01	1	1312-
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) Z=29	8-98134-903-0	01	1	1312-1312
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) Z=29	8-98238-790-0	01	1	1401-
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	1-38121-004-1	01	1	1312-
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98134-912-0	01	1	1312-1312
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98153-945-0	01	1	1401-
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-97374-129-1	01	1	1312-1312
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98238-787-0	01	1	1401-
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) L=25	8-98068-088-0	01	1	1312-
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-97305-794-0	01	1	1312-
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	1-38159-007-0	01	1	1312-
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) ID=15	0-91610-514-0	01	1	1312-
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) ID=14.2	0-91510-814-0	01	1	1312-
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) M14	0-91111-514-0	01	1	1312-
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	9-09561-324-0	01	1	1312-
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98134-911-1	01	1	1312-1312
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98238-798-0	01	1	1401-
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) M8X20 FLANGE	0-28050-820-0	04	1	1312-
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1312-
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98037-773-0	01	1	1312-
67	PIN; STRAIGHT TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) L=22	8-94483-674-0	02	1	1312-1312
67	PIN; STRAIGHT TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) L=22	8-98238-799-0	02	1	1401-
82	SHAFT; INPUT TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98134-904-0	01	1	1312-
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	5-09820-017-0	02	1	1312-
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	9-38245-603-1	01	1	1312-1312
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98238-800-0	01	1	1401-
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) Z=28	8-98134-898-1	01	1	1312-1312
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) Z=28	8-98238-795-0	01	1	1401-
131	BOLT; FLANGE TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) M8X20 FLANGE	0-28050-820-0	08	1	1312-
134	BEARING; NEEDLE,OUTPUT SHAFT TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98238-803-0	02	1	1401-
160	CLIP; PTO A/T SIDE TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) ID=8.5	5-09700-275-0	01	1	1312-
184	DOWEL; PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) OD=11 L=8	9-11229-058-1	01	1	1312-
188	RING; SNAP,INPUT SHAFT TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) T=2.2	1-09587-103-1	01	1	1312-
195	BEARING; ROLLER,TAPER,PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) NSK	8-97360-312-0	02	1	1312-
196	PIECE; THRUST TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) T=1.50	8-97106-724-0	02	1	1312-
196	PIECE; THRUST TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) T=1.60	8-97106-725-0	02	1	1312-
196	PIECE; THRUST TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) T=1.65	8-97106-726-0	02	1	1312-
196	PIECE; THRUST TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) T=1.70	8-97106-727-0	02	1	1312-
196	PIECE; THRUST TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) T=1.80	8-97106-728-0	02	1	1312-
196	PIECE; THRUST TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) T=1.85	8-97106-729-0	02	1	1312-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) T=0.1	5-33156-022-0	AR	1	1312-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) T=0.2	5-33156-024-0	AR	1	1312-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) T=0.15	8-98067-573-0	AR	1	1312-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) T=0.40	8-98067-574-0	AR	1	1312-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) T=0.65	8-98067-575-0	AR	1	1312-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) T=0.80	8-98067-576-0	AR	1	1312-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L) T=1.00	8-98134-917-0	AR	1	1312-
220	COVER; IDLE SHAFT TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98134-910-0	02	1	1312-
264	CLUTCH; OUTPUT SHAFT TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98238-804-0	01	1	1401-
265	SLEEVE; OUTPUT SHAFT TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98238-802-0	01	1	1401-
266	COLLAR; IDLE SHAFT TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98238-806-0	01	1	1401-
304	PACKING; PTO TRANSMISSION SIDE PTO VAR5 GEAR=36/16(C5L)	8-98328-479-0	01	1	1407-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
