Isuzu WW
▶
TRUCKS
▶
FTR
▶
11564 - FTR(INDONESIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-30 - GEAR SHIFTER AND QUADRANT BOX
▶
2-30 — GEAR SHIFTER AND QUADRANT BOX
(#131210) — 76 parça
◀
[230A] ARM AND ROD (25 parça)

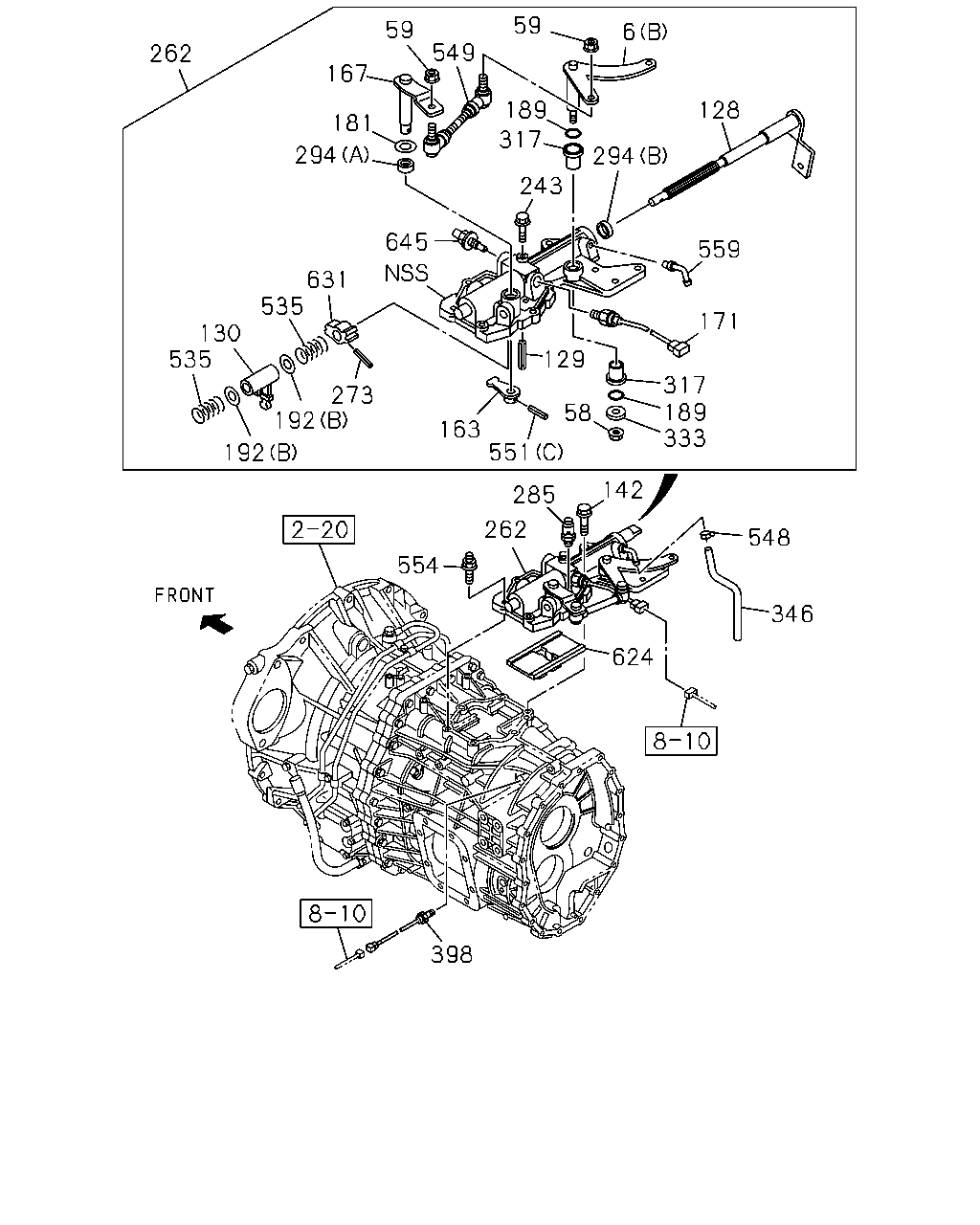

[230A] SHIFT CONTROL BOX (43 parça)

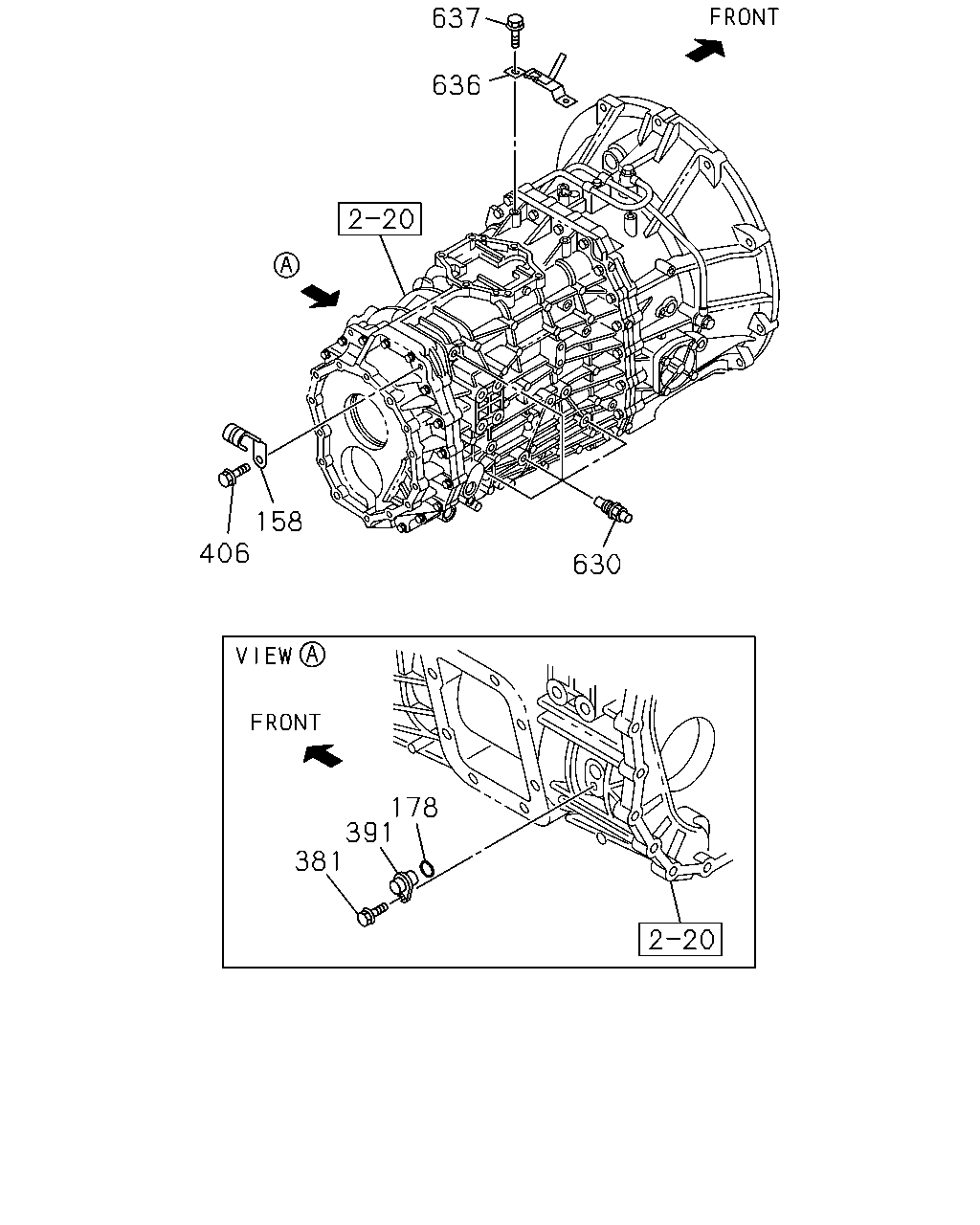

[230A] BRACKET AND OTHER PARTS (8 parça)
▶
51
551
65
551
683
682
453
551
82
685
320
192
6
192
6
192
192
234
6
78
551
32
684
551
89
102
551
99
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
LEVER; RELAY
(A)
8-97241-342-0
03
1
1312-
6
LEVER; RELAY
(B)
8-98014-157-1
01
1
1312-
32
ARM; SHIFT,1ST & 2ND
8-98236-424-1
01
1
1312-
51
BLOCK; SHIFT,1ST & 2ND
8-98074-457-1
01
1
1312-
65
BLOCK ASM; SHIFT,5TH & 6TH
8-97388-980-1
01
1
1312-
66
ARM; SHIFT,5TH & 6TH
8-97388-981-0
01
1
1312-
78
ARM; SHIFT,REV
8-97388-975-1
01
1
1312-
82
BLOCK; SHIFT,REV
8-97388-969-0
01
1
1312-
89
ROD; SHIFT,REV
8-98062-172-0
01
1
1312-
99
ARM; SHIFT,4TH & 3RD
8-98062-170-0
01
1
1312-1506
99
ARM; SHIFT,4TH & 3RD
8-98309-861-0
01
1
1507-
102
BLOCK; SHIFT,3RD & 4TH
8-97388-978-2
01
1
1312-
158
CLIP; HARNESS
ID=12 VINYL CHLORIDE IDN
8-97367-984-1
02
1
1312-
192
WASHER; PL
(A) ID=18.2 OD=29
1-09503-032-0
04
1
1312-
192
WASHER; PL
(B)
8-97305-661-0
02
1
1312-
234
RING; SNAP
ID=16.5
0-91800-618-0
01
1
1312-
320
SHAFT; LEVER
8-97377-928-0
01
1
1312-
453
BLOCK; RELAY LEVER
8-97377-927-1
01
1
1312-
551
PIN; SPRING
(C) L=25 OD=5
1-09748-032-0
01
1
1312-
551
PIN; SPRING
(A) L=32
8-97011-596-2
05
1
1312-
551
PIN; SPRING
(B) L=20
8-97241-340-0
01
1
1312-
682
ROD; SHIFT,REV,SUB
8-97388-974-0
01
1
1312-
683
ROD; SHIFT,5TH & 6TH
8-98062-173-1
01
1
1312-
684
BLOCK; SHIFT,REV,SUB
8-97388-970-0
01
1
1312-
685
BOLT; BLOCK
M8X30 FLANGE
8-98034-764-0
02
1
1312-
59
549
59
167
181
294
645
631
535
130
535
192
192
273
163
58
129
243
317
189
6
294
128
559
171
317
189
333
551
285
262
554
398
624
142
548
346
262
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
LEVER; RELAY
(A)
8-97241-342-0
03
1
1312-
6
LEVER; RELAY
(B)
8-98014-157-1
01
1
1312-
58
NUT
M10 FLANGE
0-91180-110-0
01
1
1312-
59
NUT
M8 FLANGE
0-91180-108-0
02
1
1312-
128
LEVER; SHIFT,EXTERNAL
8-98212-106-0
01
1
1312-1507
128
LEVER; SHIFT,EXTERNAL
8-98305-345-0
01
1
1508-
129
PIN; SPR,SHIFT
L=30 OD=4
1-09748-031-0
01
1
1312-
130
LEVER; SHIFT,INTERNAL
8-97306-647-0
01
1
1312-
142
BOLT; QUAD BOX
M8X22 FLANGE
8-97365-376-0
04
1
1312-
158
CLIP; HARNESS
ID=12 VINYL CHLORIDE IDN
8-97367-984-1
02
1
1312-
163
LEVER; SELECT,INTERNAL
8-97305-663-0
01
1
1312-
167
LEVER; SELECT,EXTERNAL
8-98021-489-0
01
1
1312-
171
SWITCH; NEUTRAL
8-98023-050-0
01
1
1312-1312
171
SWITCH; NEUTRAL
8-98242-172-1
01
1
1401-
181
WASHER; PL,SELECT LEVER
8-97367-327-0
01
1
1312-
189
GASKET; SELECT LEVER,CONT BOX
1-09623-594-0
02
1
1312-
192
WASHER; PL
(A) ID=18.2 OD=29
1-09503-032-0
04
1
1312-
192
WASHER; PL
(B)
8-97305-661-0
02
1
1312-
243
BOLT; COVER
M6X12 FLANGE
1-33739-842-0
01
1
1312-
262
BOX ASM; SHIFT CONT
8-98249-037-0
01
1
1312-1312
262
BOX ASM; SHIFT CONT
8-98240-991-0
01
1
1401-1404
262
BOX ASM; SHIFT CONT
8-98276-157-1
01
1
1405-1507
262
BOX ASM; SHIFT CONT
8-98305-332-0
01
1
1508-
273
PIN; SPR,STOPPER
D=4.2 L=25
8-97103-142-0
01
1
1312-
285
BREATHER; AIR,QUAD BOX
1-33149-003-0
01
1
1312-1404
294
SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A)
8-97305-662-0
01
1
1312-
294
SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B)
8-97363-225-0
01
1
1312-
317
BUSHING; LEVER
1-09330-119-0
02
1
1312-
333
WASHER; PL,LEVER
ID=10.5
0-91610-710-0
01
1
1312-
346
HOSE; AIR
8-97309-855-0
01
1
1405-
398
SWITCH; REV LAMP
8-98023-050-0
01
1
1312-1312
398
SWITCH; REV LAMP
8-98242-173-1
01
1
1401-
535
SPRING; LEVER
8-97385-713-0
02
1
1312-
548
CLIP; HOSE
8-97031-674-0
01
1
1405-
549
ROD; LINK
8-98023-095-0
01
1
1312-
551
PIN; SPRING
(C) L=25 OD=5
1-09748-032-0
01
1
1312-
551
PIN; SPRING
(A) L=32
8-97011-596-2
05
1
1312-
551
PIN; SPRING
(B) L=20
8-97241-340-0
01
1
1312-
554
STUD; CONT BOX
M8X15,M8X25 L=49
8-97365-378-0
02
1
1312-
559
PIPE; BREATHER
8-97358-318-0
01
1
1405-
624
PLATE; INTER LOCK
8-97241-317-3
01
1
1312-
631
STOPPER; SPRING
8-98014-158-0
01
1
1312-
645
DETENT ASM
8-98019-536-0
01
1
1312-
630
406
636
637
391
381
178
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
158
CLIP; HARNESS
ID=12 VINYL CHLORIDE IDN
8-97367-984-1
02
1
1312-
178
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T).
9-09567-113-0
01
1
1312-
381
BOLT
M6X16 FLANGE
0-28650-616-0
01
1
1312-
391
PLUG; SW HOLE
8-97300-273-1
01
1
1312-
406
BOLT; HARNESS CLIP
M8X16 FLANGE
0-28050-816-0
02
1
1312-
630
DETENT ASM
8-98019-536-0
04
1
1312-
636
BRACKET; CLIP
8-97610-092-1
01
1
1312-1502
637
BOLT; BRACKET
M8X16 FLANGE
0-28050-816-0
02
1
1312-1502
