◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11139 - FSR-R(EU)EU4 EXC.SPA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#13121) — 61 parça

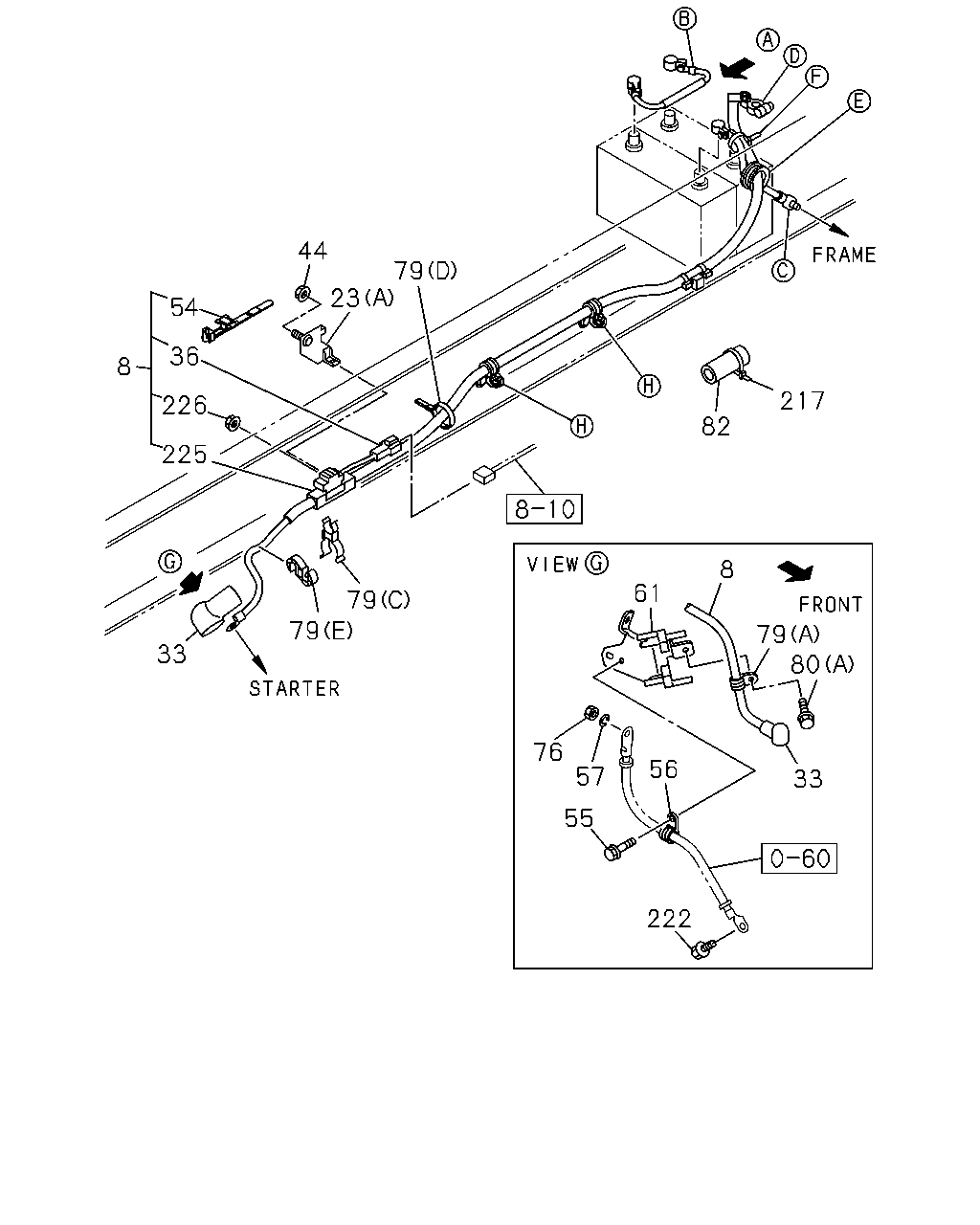

çizim 107346
44 79 23 54 36 8 217 226 82 225 8 61 79 79 79 80 33 76 56 57 33 55 222
BalonParca AdiParca NoAdetTipApplied Date
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1750 		8-98064-948-2 01 1 0803-
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> L=1990 		8-98064-949-0 01 1 0803-0805
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> L=1990 		8-98123-462-2 01 1 0806-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98092-593-0 01 1 0803-
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98051-381-2 02 1 0803-0805
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 01 1 0806-0806
23 BRACKET; CABLE CLIP TO FRAME
(C) L=65 		1-47479-064-1 01 1 0807-
33 CAP; INSULATOR 1-82699-431-0 01 1 0803-
36 FUSIBLE LINK; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> 		8-97615-498-1 01 1 0803-
44 NUT; BRKT
M10 FLANGE 		0-91180-110-0 01 1 0803-0804
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0805-
54 CLIP; BAND,BATTERY CABLE
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> L=175 		1-09707-176-1 01 1 0803-1004
55 BOLT; CLIP,BATTERY CABLE
M8X16 FLANGE 		0-28050-816-0 01 1 0803-
56 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 0803-
57 WASHER; PL,BATTERY CABLE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 0803-
61 BRACKET; BATTERY CABLE 8-98051-379-1 01 1 0803-
76 NUT; BATTERY CABLE
M10 FLANGE 		0-91180-210-0 01 1 0803-
79 CLIP; BATTERY CABLE
(A) ID=14.5 L=40 		1-09701-014-0 01 1 0803-
79 CLIP; BATTERY CABLE
(C) ID=21 & 9.8 		8-97309-945-0 01 1 0803-
79 CLIP; BATTERY CABLE
(B) ID=21 L=24 		8-98019-191-0 02 1 0803-0805
79 CLIP; BATTERY CABLE
(B) ID=21 L=24 		8-98019-191-0 01 1 0806-0806
79 CLIP; BATTERY CABLE
(B) ID=13-18 L=14.5 		1-09709-290-0 01 1 0807-
79 CLIP; BATTERY CABLE
(D) L=350 		1-09707-183-0 01 1 0806-
79 CLIP; BATTERY CABLE
(E) ID=4.76 & 15 		1-09709-307-0 01 1 0806-
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0803-
80 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0806-0806
82 PROTECTOR; HEAT,BATTERY CABLE
ID=6 OD=10 L=70 		1-09376-512-0 01 1 0803-0806
217 CLIP; BAND,CABLE
L=250 		5-09707-030-1 01 1 0803-
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0803-
225 BLOCK; TERMINAL
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> 		8-98029-689-0 01 1 0803-
226 NUT; FUSIBLE LINK
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M6 W/LK WASHER 		8-94424-179-0 01 1 0803-

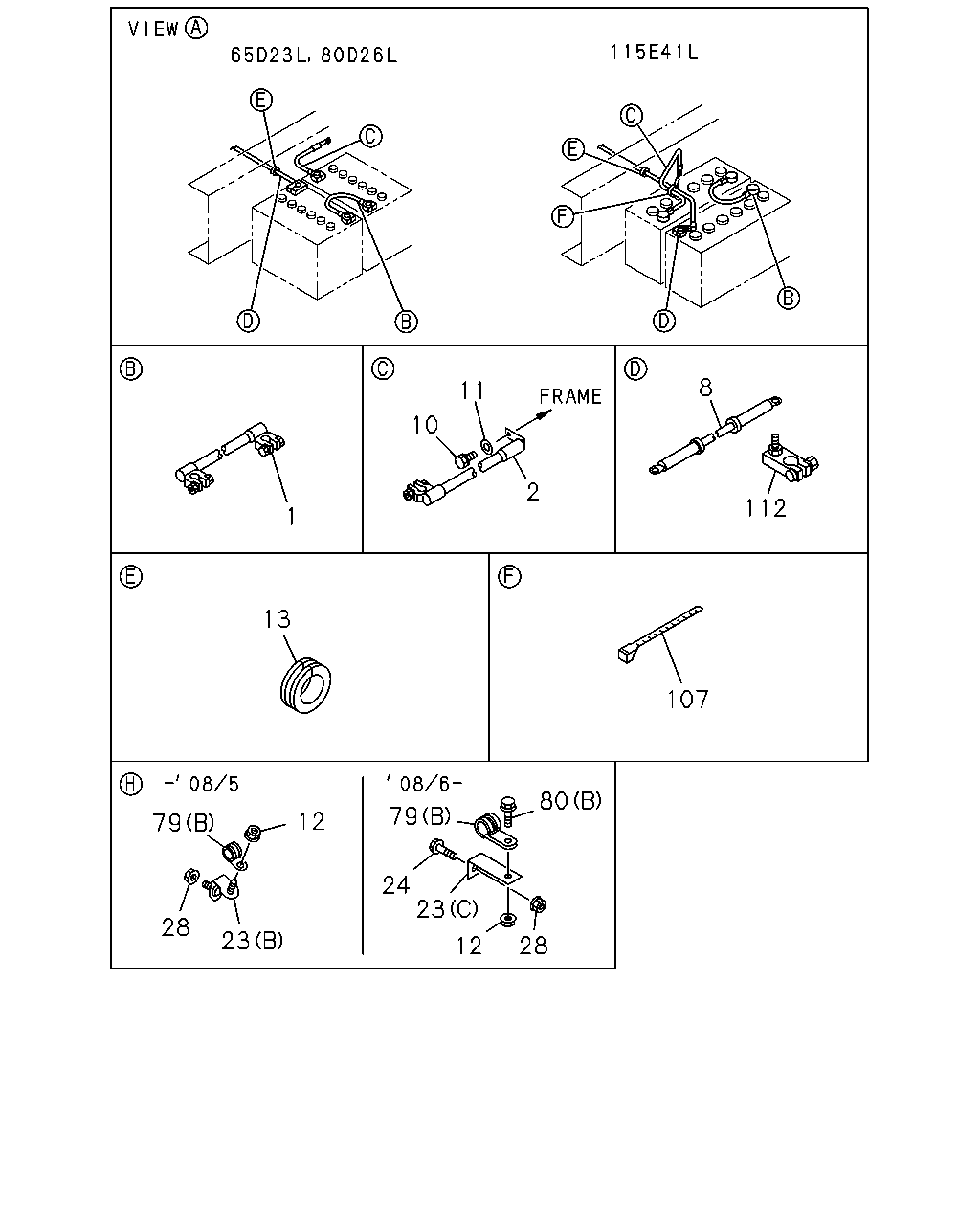

çizim 107415
8 11 10 2 112 1 13 107 80 79 12 79 24 23 28 23 12 28
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 0803-
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=250 		8-97619-729-2 01 1 0803-
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=400 		8-97619-733-1 01 1 0803-
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=1750 		8-98064-948-2 01 1 0803-
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> L=1990 		8-98064-949-0 01 1 0803-0805
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> L=1990 		8-98123-462-2 01 1 0806-
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0803-
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0803-
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0803-0805
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0806-0806
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0803-
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98092-593-0 01 1 0803-
23 BRACKET; CABLE CLIP TO FRAME
(B) 		8-98051-381-2 02 1 0803-0805
23 BRACKET; CABLE CLIP TO FRAME
(C) L=95 		1-82699-085-0 01 1 0806-0806
23 BRACKET; CABLE CLIP TO FRAME
(C) L=65 		1-47479-064-1 01 1 0807-
24 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28650-830-0 01 1 0806-
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0803-0805
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0806-
79 CLIP; BATTERY CABLE
(A) ID=14.5 L=40 		1-09701-014-0 01 1 0803-
79 CLIP; BATTERY CABLE
(C) ID=21 & 9.8 		8-97309-945-0 01 1 0803-
79 CLIP; BATTERY CABLE
(B) ID=21 L=24 		8-98019-191-0 02 1 0803-0805
79 CLIP; BATTERY CABLE
(B) ID=21 L=24 		8-98019-191-0 01 1 0806-0806
79 CLIP; BATTERY CABLE
(B) ID=13-18 L=14.5 		1-09709-290-0 01 1 0807-
79 CLIP; BATTERY CABLE
(D) L=350 		1-09707-183-0 01 1 0806-
79 CLIP; BATTERY CABLE
(E) ID=4.76 & 15 		1-09709-307-0 01 1 0806-
80 BOLT; BATTERY CABLE CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0803-
80 BOLT; BATTERY CABLE CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0806-0806
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 0803-
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0803-1408
112 TERMINAL; BATTERY
<+> 		8-98290-356-0 01 1 1409-
