◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11564 - FTR(INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26 - MANUAL TRANSMISSION GEAR ▶
2-26 — MANUAL TRANSMISSION GEAR (#131209) — 125 parça

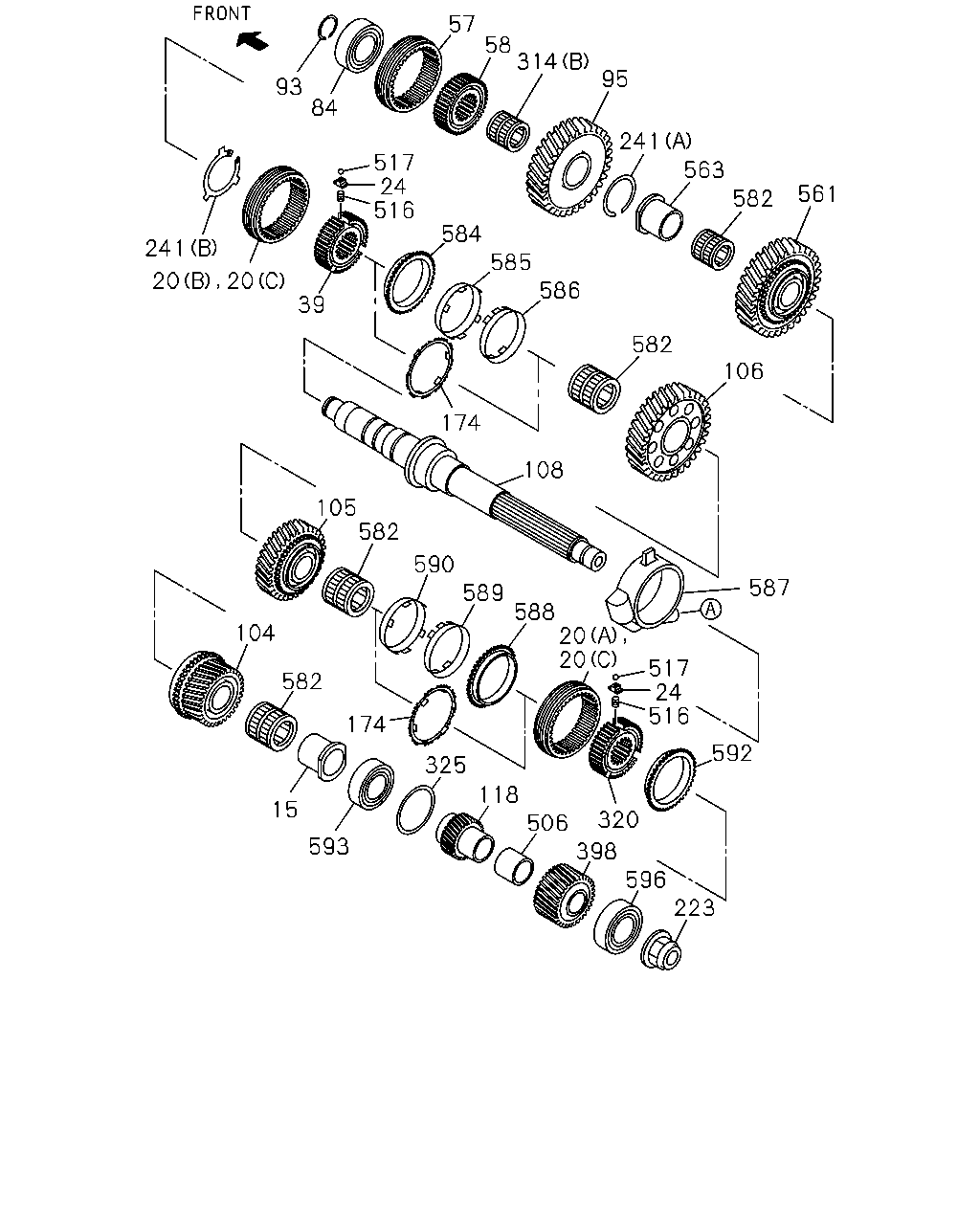

çizim 389009
588 589 590 582 15 593 174 352 118 506 398 596 223 587 592 516 517 24 20 20 320 104 20 20 241 516 24 517 84 93 584 586 582 106 561 582 563 241 95 314 58 57 108 174 582 105 585 39
BalonParca AdiParca NoAdetTipApplied Date
15 COLLAR; 4TH GEAR 8-98146-345-0 01 1 1312-
20 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1312-1312
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1312-1508
20 SLEEVE
(C) Z=45 		8-98258-279-0 03 1 1509-
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1312-1508
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1312-
39 HUB; CLU,LOW & 2ND
Z=45 		8-98075-732-0 01 1 1312-1501
39 HUB; CLU,LOW & 2ND
Z=45 		8-98303-646-0 01 1 1502-1507
39 HUB; CLU,LOW & 2ND
Z=45 		8-98309-852-0 01 1 1508-
57 SLEEVE; REV
Z=45 		8-94421-871-1 01 1 1312-
58 HUB; CLU,REV
Z=45-27 		8-98005-296-0 01 1 1312-
84 BEARING; COUNTER SHAFT,FRT 8-97377-957-1 01 1 1312-
93 RING; SNAP,COUNTER FRT BRG 8-97377-958-0 01 1 1312-
95 GEAR; REV,COUNTER
Z=44 		8-98005-229-0 01 1 1312-
104 GEAR; 4TH,COUNTER
Z=29 		8-98198-297-0 01 1 1312-
105 GEAR; 3RD,COUNTER
Z=35 		8-98168-501-0 01 1 1312-
106 GEAR; 2ND,COUNTER
Z=44 		8-98140-884-0 01 1 1312-
108 SHAFT; COUNTER
Z=27-42-26 		8-98223-607-0 01 1 1312-1501
108 SHAFT; COUNTER
Z=27-42-26 		8-98303-643-0 01 1 1502-
118 GEAR; 6TH,COUNTER
Z=17 		8-98005-292-1 01 1 1312-
174 SYNCHRONIZER ASM; 2ND-3RD 8-98315-823-0 02 1 1509-
223 NUT; COUNTER SHAFT END
M34 FLANGE 		8-98005-894-0 01 1 1312-
241 RING; SNAP
(A) ID=46.5 T=1.8 		8-97254-743-0 01 1 1312-
241 RING; SNAP
(B) ID=96 T=2.5 		8-98009-391-0 01 1 1312-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1312-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1312-
320 HUB; CLU,4TH & 3RD
Z=45 		8-98075-733-0 01 1 1312-1501
320 HUB; CLU,4TH & 3RD
Z=45 		8-98303-649-0 01 1 1502-1507
320 HUB; CLU,4TH & 3RD
Z=45 		8-98309-859-0 01 1 1508-
325 SHIM; COUNTER SHAFT BRG
T=1.56 		8-97377-994-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.62 		8-97377-995-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.68 		8-97377-996-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.74 		8-97377-997-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		8-97377-998-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.26 		8-98009-373-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.32 		8-98009-374-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.38 		8-98009-375-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.44 		8-98009-376-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98009-377-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.14 		8-98022-218-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.20 		8-98022-219-0 01 1 1312-
398 GEAR; COUNTER
Z=22 		8-97380-568-0 01 1 1312-
506 COLLAR; 6TH,COUNTER 8-97377-965-0 01 1 1312-
516 SPRING; SYNCHRO,INDEX 8-98032-197-0 09 1 1312-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1312-
561 GEAR; LOW,COUNTER
Z=44 		8-98000-330-0 01 1 1312-
563 COLLAR; 1ST GEAR 8-98146-345-0 01 1 1312-
582 BEARING; NEEDLE,COUNTER GEAR 8-97253-110-0 04 1 1312-
584 RING; BLOCK,2ND
Z=45 		8-98034-770-0 01 1 1312-1508
585 RING; OUTSIDE,2ND 8-97241-309-1 01 1 1312-1508
586 RING; INSIDE,2ND 8-97241-312-1 01 1 1312-1508
587 CASE; PUMP,COUNTER 8-98212-196-0 01 1 1312-1501
587 CASE; PUMP,COUNTER 8-98303-650-0 01 1 1502-
588 RING; BLOCK,3RD
Z=45 		8-97241-306-1 01 1 1312-1508
589 RING; OUTSIDE,3RD 8-97241-309-1 01 1 1312-1508
590 RING; INSIDE,3RD 8-97241-312-1 01 1 1312-1508
592 RING; BLOCK,4TH
Z=45 		8-97241-306-1 01 1 1312-
593 BEARING; COUNTER MIDDLE 8-97377-976-0 01 1 1312-
596 BEARING; ROOLER,COUNTER END 8-97377-968-0 01 1 1312-

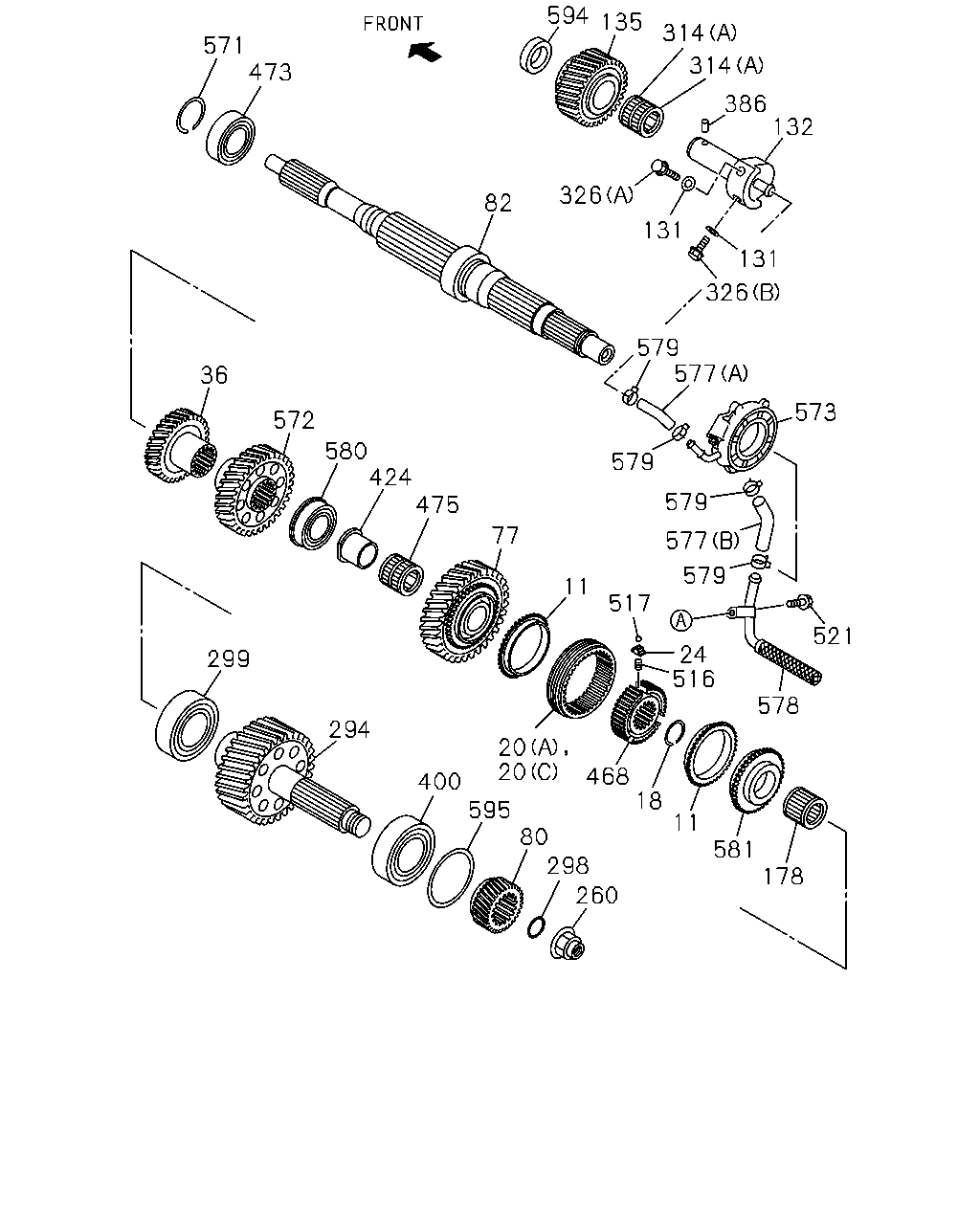

çizim 389178
571 473 594 135 314 314 386 132 326 131 131 326 82 579 577 573 579 579 577 579 521 24 516 578 517 11 77 475 424 580 572 36 299 294 400 20 20 595 80 298 260 468 18 11 581 178
BalonParca AdiParca NoAdetTipApplied Date
11 RING; BLOCK,5TH & 6TH
Z=45 		8-97241-306-1 02 1 1312-
18 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 1312-
20 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1312-1312
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1312-1508
20 SLEEVE
(C) Z=45 		8-98258-279-0 03 1 1509-
20 SLEEVE
(B) Z=45 		8-98034-769-0 01 1 1312-1508
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1312-
36 GEAR; 3RD,MAINSHAFT
Z=29 		8-98168-499-0 01 1 1312-
77 GEAR; 6TH,MAINSHAFT
Z=46 		8-98137-256-0 01 1 1312-
80 GEAR; SPD DRIVE
Z=5 		8-97377-978-1 01 1 1312-
82 SHAFT; MAIN,TRANS
Z=13-21-19-26 		8-98245-057-0 01 1 1312-
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0 		9-09571-410-0 02 1 1312-
132 SHAFT; REV 8-98009-372-0 01 1 1312-
135 GEAR; REV IDLER
Z=27 		8-98005-601-1 01 1 1312-
178 BEARING; NEEDLE,MAINSHAFT 8-97253-099-1 01 1 1312-
260 NUT; MAINSHAFT END
M36 FLANGE 		8-98014-140-0 01 1 1312-
294 SHAFT; OUTPUT
Z=43 		8-97380-571-0 01 1 1312-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5 		1-09623-380-0 01 1 1312-
299 BEARING; OUTPUT SHAFT FRT 8-97377-970-0 01 1 1312-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1312-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.56 		8-97377-994-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.62 		8-97377-995-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.68 		8-97377-996-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.74 		8-97377-997-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		8-97377-998-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.26 		8-98009-373-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.32 		8-98009-374-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.38 		8-98009-375-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.44 		8-98009-376-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98009-377-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.14 		8-98022-218-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
T=1.20 		8-98022-219-0 01 1 1312-
326 BOLT; REV SHAFT
(A) M10X50 FLANGE 		0-29261-050-0 01 1 1312-
326 BOLT; REV SHAFT
(B) M10X50 		8-98014-738-0 01 1 1312-
386 PIN; REV SHAFT
OD=4 L=8 		9-08150-408-0 01 1 1312-
400 BEARING; OUTPUT SHAFT RR 8-97377-977-0 01 1 1312-
424 COLLAR; 6TH GEAR 8-98125-318-0 01 1 1312-
468 HUB; CLU,5TH & 6TH
Z=45 		8-98075-734-0 01 1 1312-
473 BEARING; INPUT SHAFT 8-97377-950-0 01 1 1312-
475 BEARING; 6TH
COLLAR OD=-49.999 		8-98101-505-0 01 1 1312-
475 BEARING; 6TH
COLLAR OD=50.000- 		8-98142-265-0 01 1 1312-
516 SPRING; SYNCHRO,INDEX 8-98032-197-0 09 1 1312-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1312-
521 BOLT
M8X12 FLANGE 		0-28050-812-0 01 1 1312-
571 RING; SNAP,BRG 8-97377-951-0 01 1 1312-
572 GEAR; 4TH,INPUT
Z=37 		8-98168-500-0 01 1 1312-
573 PUMP ASM; OIL 8-98212-241-0 01 1 1312-
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 01 1 1312-
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 01 1 1312-
578 SCREEN; OIL PUMP 8-98009-345-0 01 1 1312-
579 CLAMP; HOSE
ID=16 		8-97329-628-0 04 1 1312-
580 BEARING; MAINSHAFT RR 8-97377-953-0 01 1 1312-
581 CLUTCH; DOG,5TH GEAR 8-97377-956-0 01 1 1312-
594 WASHER; THRUST,REV IDLE 8-98005-633-0 01 1 1312-
595 SHIM; OUTPUT SHAFT
T=1.44 		8-97377-984-0 01 1 1312-
595 SHIM; OUTPUT SHAFT
T=1.50 		8-97377-985-0 01 1 1312-
595 SHIM; OUTPUT SHAFT
T=1.56 		8-97377-986-0 01 1 1312-
595 SHIM; OUTPUT SHAFT
T=1.62 		8-97377-987-0 01 1 1312-
595 SHIM; OUTPUT SHAFT
T=1.68 		8-97377-988-0 01 1 1312-
595 SHIM; OUTPUT SHAFT
T=1.74 		8-97377-989-0 01 1 1312-
595 SHIM; OUTPUT SHAFT
T=1.80 		8-97377-990-0 01 1 1312-
595 SHIM; OUTPUT SHAFT
T=1.86 		8-97377-991-0 01 1 1312-
595 SHIM; OUTPUT SHAFT
T=1.38 		8-98009-379-0 01 1 1312-
595 SHIM; OUTPUT SHAFT
T=1.26 		8-98022-221-0 01 1 1312-
595 SHIM; OUTPUT SHAFT
T=1.32 		8-98022-222-0 01 1 1312-
