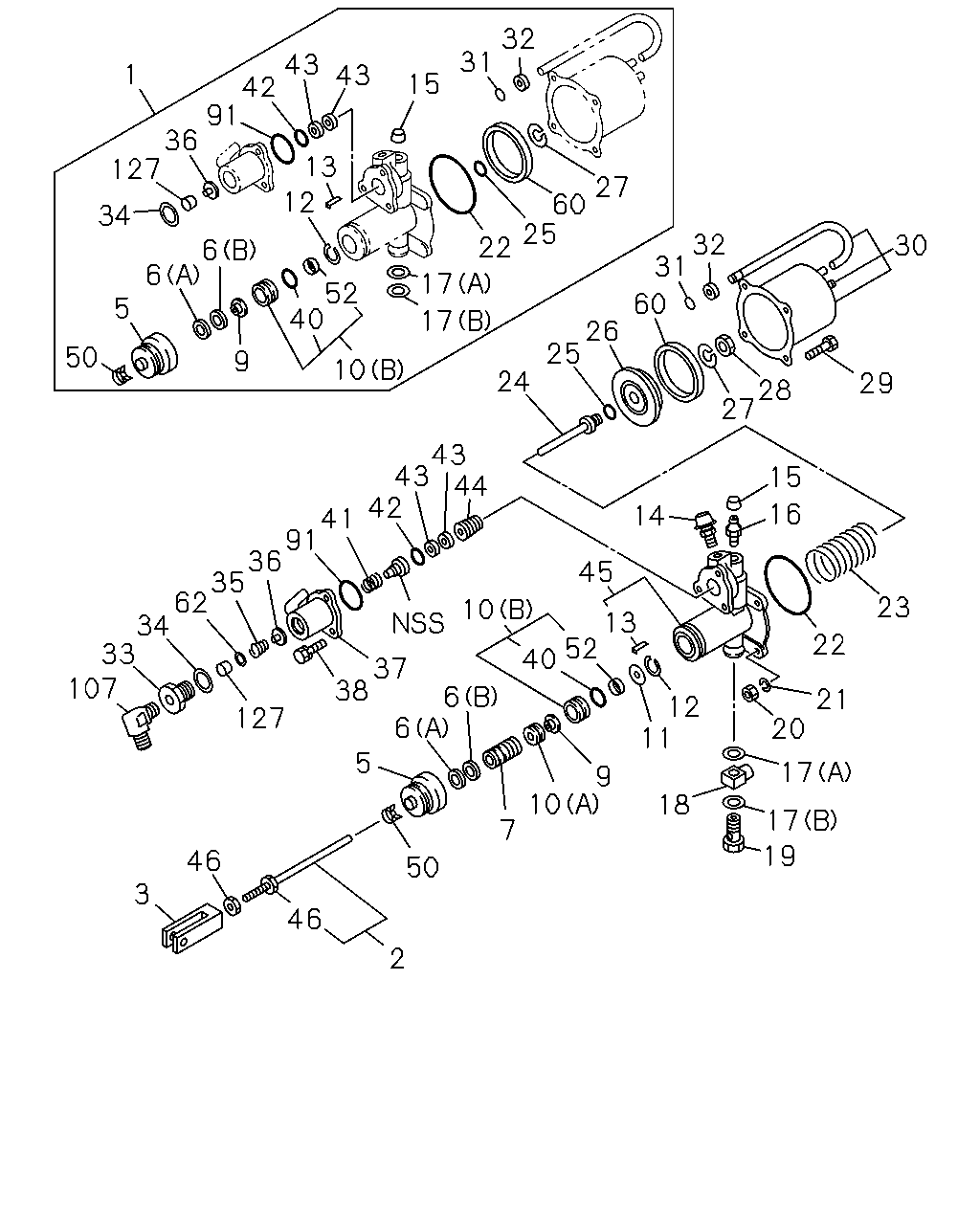

2-07 — CLUTCH BOOSTER; MINIPACK (#131204) — 53 parça
çizim 389082
19 17 17 21 20 22 23 29 30 28 15 27 16 14 45 12 11 18 13 52 9 10 7 40 10 6 6 5 50 2 46 46 3 37 38 127 107 34 33 32 31 60 26 25 24 44 43 43 42 41 91 36 35 62 27 60 25 22 17 17 10 32 31 15 43 43 13 12 52 40 9 42 91 36 127 6 6 34 5 50 1
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-602-0 01 1 1312-
2 ROD; PUSH,CLU BOOSTER 1-31824-240-0 01 1 1312-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-1 01 1 1312-
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1312-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-498-0 01 1 1312-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-499-0 01 1 1312-
7 PISTON; CLU BOOSTER 1-31821-047-0 01 1 1312-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 1312-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 1312-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 1312-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1312-
12 RING; RET,CLU BOOSTER 9-83315-315-0 01 1 1312-
13 PIN; SPR 1-31829-109-0 01 1 1312-
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1312-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1312-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1312-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1312-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1312-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1312-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1312-
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 1312-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 1312-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 1312-
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 1312-
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 1312-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 1312-
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 1312-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 1312-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 1312-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 1312-
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 1312-
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 1312-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 1312-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-212-0 01 1 1312-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1312-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1312-
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1312-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-146-0 01 1 1312-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1312-
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1312-
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 1312-
42 GASKET; FITTING,CLU BOOSTER 1-31829-507-0 01 1 1312-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1312-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-051-0 01 1 1312-
45 PLATE; END,CLU BOOSTER 1-31811-142-0 01 1 1312-
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1312-
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1312-
52 SEAL; OIL,END PLATE,CLU BOOSTER 9-83315-118-0 01 1 1312-
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 1312-
62 RETAINER; POPPET 1-31829-489-0 01 1 1312-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1312-
107 CONNECTOR; ELBOW 1-09650-358-1 01 1 1312-
127 FILTER; POPPET 1-31829-495-0 01 1 1312-
