1-31 — AIR DUCT (#131193) — 60 parça

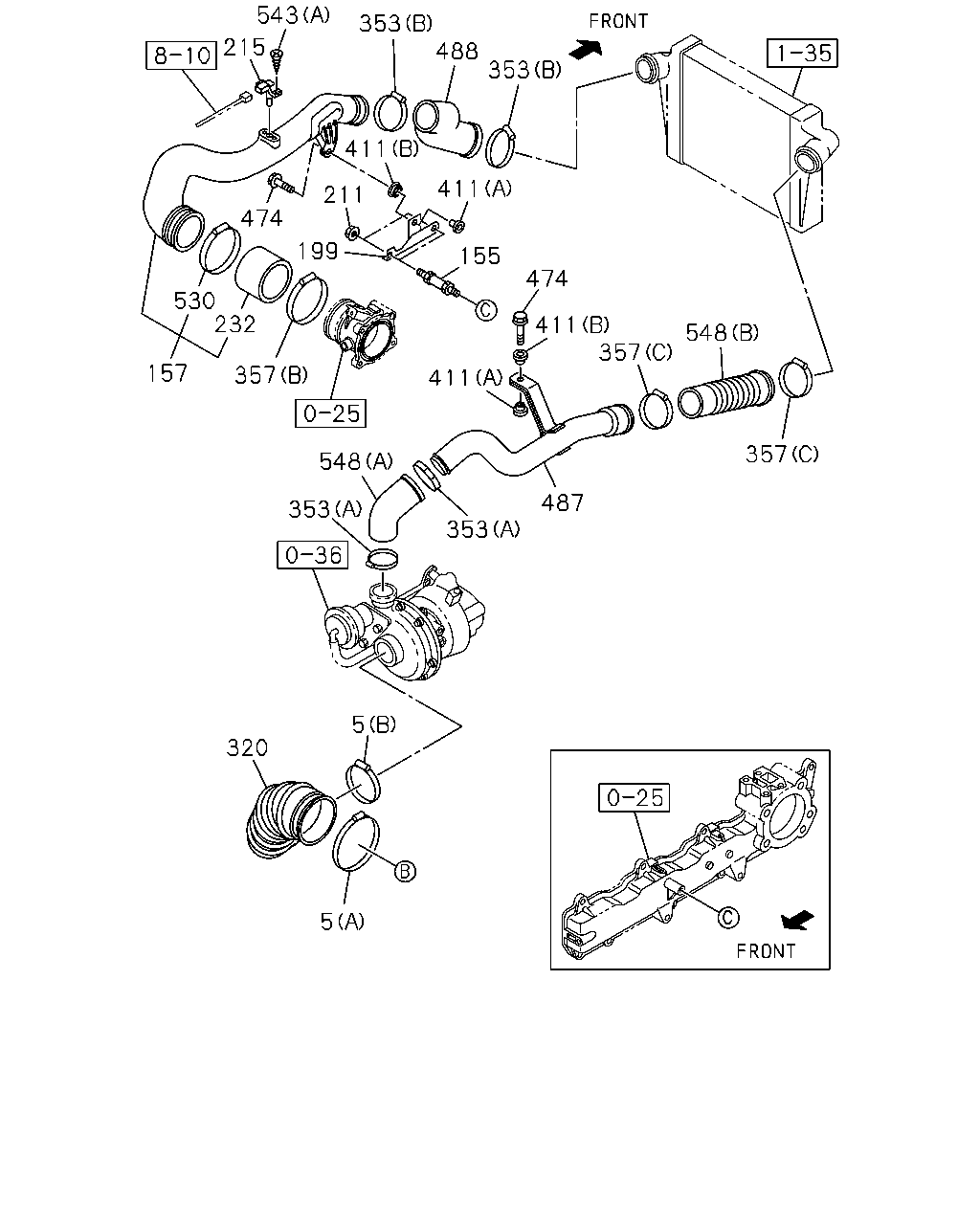

çizim 388249
5 5 320 353 353 232 530 157 548 487 357 357 548 411 155 411 411 411 211 199 474 215 543 353 488 353 474 357
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
(B) ID=55-75 		8-98133-349-0 01 1 1312-
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 1312-
155 BOLT; BRKT
M10X17,M10X30 L=105 		8-97233-428-0 02 1 1312-
157 PIPE; AIR 8-98010-719-3 01 1 1312-
199 BRACKET; PIPE 8-97385-293-1 01 1 1312-
211 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1312-
215 SENSOR; MAP 8-98009-418-0 01 1 1312-
232 HOSE; CONN 8-98067-929-0 01 1 1312-
320 HOSE; CONN,ACL 8-98188-580-0 01 1 1312-
353 CLIP; RUBBER HOSE
(A) ID=60-65 		8-98096-418-0 02 1 1312-
353 CLIP; RUBBER HOSE
(B) ID=55-75 		8-98133-349-0 02 1 1312-
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1312-
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 02 1 1312-
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98133-357-0 01 1 1312-
411 RUBBER; CUSHION
(A) OD=32 		8-94395-766-0 02 1 1312-
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 1312-
474 BOLT; PIPE
M8X40 FLANGE 		0-28650-840-0 02 1 1312-
487 PIPE; TURBO TO CHARGE AIR COOLER 8-98073-592-0 01 1 1312-
488 HOSE; RUBBER,PIPE
IDN 		8-98010-723-0 01 1 1312-
530 CLAMP; AIR DUCT
ID=75-95 		8-98133-357-0 01 1 1312-
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1312-
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1312-
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1312-
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) IDN 		8-98181-971-1 01 1 1312-
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) IDN 		8-98181-972-1 01 1 1312-

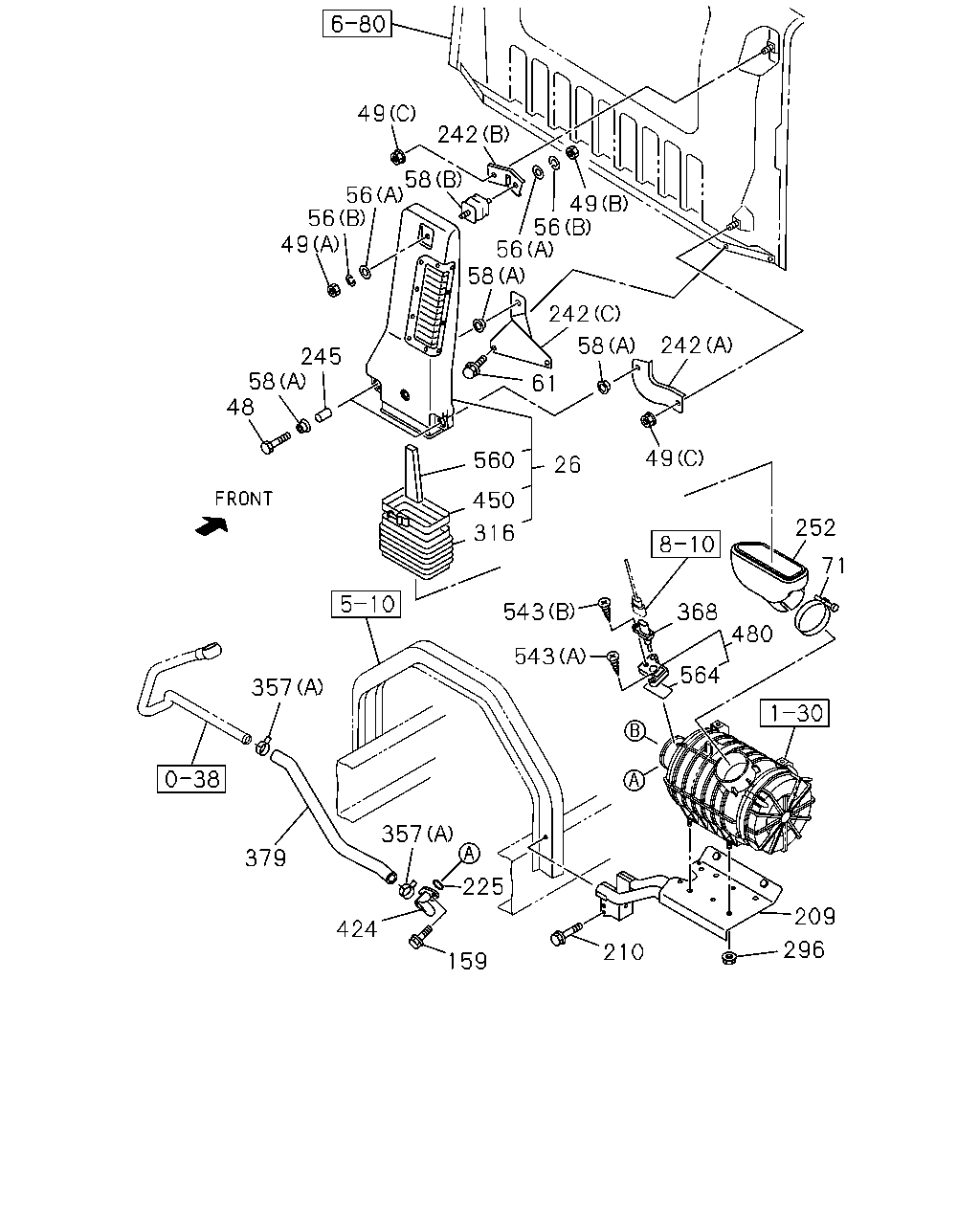

çizim 389221
49 58 242 56 56 49 245 58 48 560 450 316 543 543 368 480 564 252 71 49 26 242 242 56 49 56 58 61 58 209 296 210 225 357 424 379 357 159
BalonParca AdiParca NoAdetTipApplied Date
26 DUCT; AIR INT 8-98010-361-2 01 1 1312-
48 BOLT; AIR DUCT
M10X26 		1-09030-044-1 02 1 1312-
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1312-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1312-
49 NUT; AIR DUCT
(C) M8 FLANGE IDN 		8-94279-517-0 02 1 1312-
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1312-
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1312-
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1312-
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1312-
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1312-
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1312-
159 BOLT; AIR PIPE
M6X16 FLANGE IDN 		0-28050-616-0 02 1 1312-
209 BRACKET; ACL
IDN 		8-97948-148-0 01 1 1312-
210 BOLT; ACL BRKT
M10X25 FLANGE IDN 		0-28651-025-0 04 1 1312-
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1312-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1312-
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1312-
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 1312-
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1312-
252 DUCT; AIR INT 8-98012-861-1 01 1 1312-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1312-
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1312-
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1312-
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 02 1 1312-
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98133-357-0 01 1 1312-
368 SENSOR; TEMP 8-98065-377-0 01 1 1312-
379 HOSE; RUBBER 8-98188-903-0 01 1 1312-
424 PIPE; AIR,INL 8-98081-837-0 01 1 1312-
450 CLAMP; HOSE 9-09915-504-1 01 1 1312-
480 ADAPTER 8-98086-417-0 01 1 1312-
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1312-
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1312-
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1312-
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1312-
564 GASKET; ADAPTER 8-98071-416-0 01 1 1312-
