◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11564 - FTR(INDONESIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#131192) — 16 parça

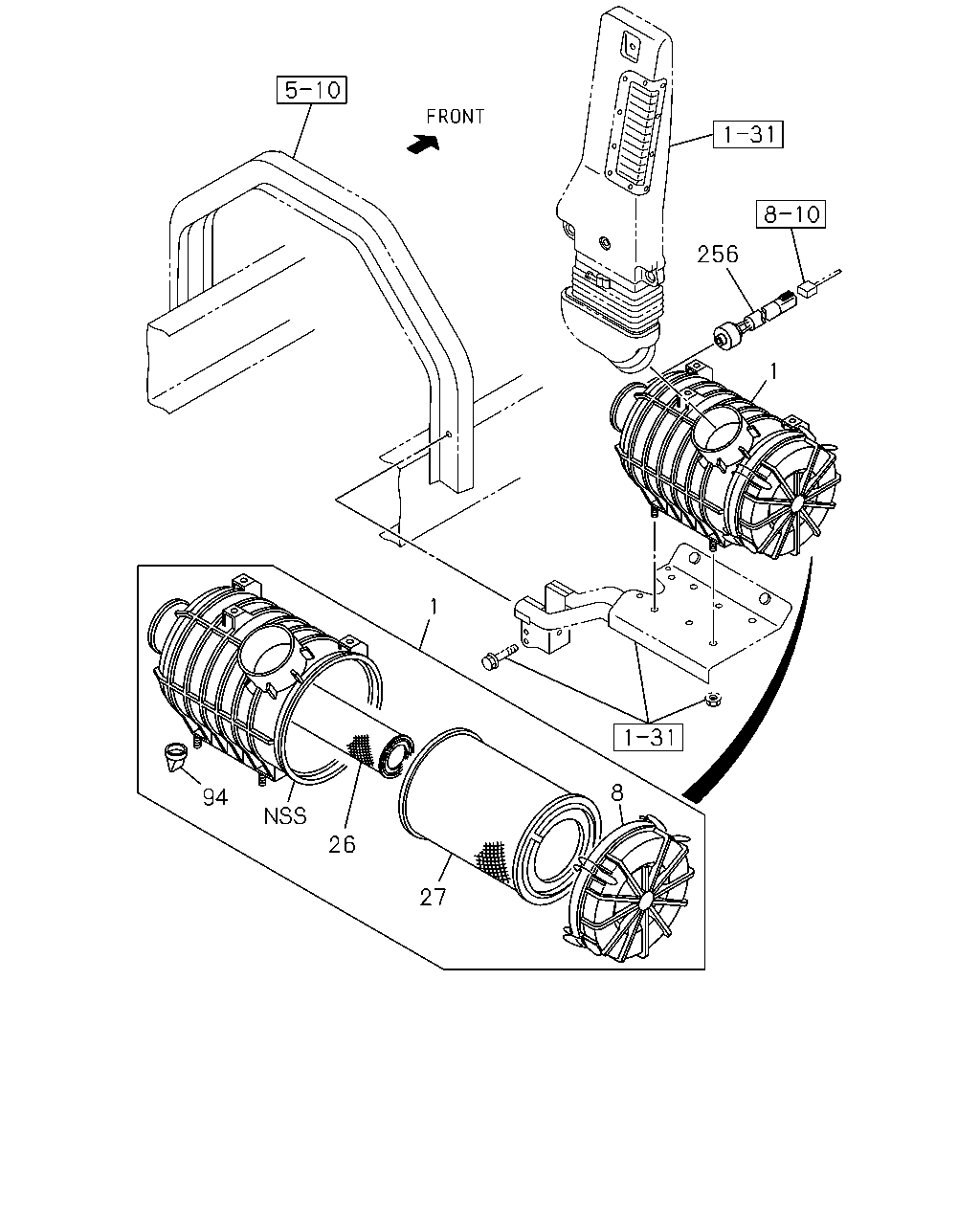

çizim 388247
1 1 26 27 8 94 256
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR
VIN MODEL YEAR 2014<VZE> IDN 		8-97948-126-0 01 1 1402-
1 CLEANER ASM; AIR 8-98082-165-1 01 1 1312-1401
1 CLEANER ASM; AIR
EXC. VIN MODEL YEAR 2014<VZE> 		8-98082-165-1 01 1 1402-
8 COVER ASM; ACL
IDN 		8-98066-740-0 01 1 1312-
26 FILTER; ACL,INNER
BEST VALUE PARTS 		1-87610-114-0 01 1 1312-1401
26 FILTER; ACL,INNER
EXC. VIN MODEL YEAR 2014<VZE> BEST VALUE PARTS 		1-87610-114-0 01 1 1402-
26 FILTER; ACL,INNER
VIN MODEL YEAR 2014<VZE> IDN 		8-97948-919-0 01 1 1402-
26 FILTER; ACL,INNER 8-98071-422-0 01 1 1312-1401
26 FILTER; ACL,INNER
EXC. VIN MODEL YEAR 2014<VZE> 		8-98071-422-0 01 1 1402-
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-113-0 01 1 1312-1401
27 FILTER; ACL,OUTER
EXC. VIN MODEL YEAR 2014<VZE> BEST VALUE PARTS 		1-87610-113-0 01 1 1402-
27 FILTER; ACL,OUTER
VIN MODEL YEAR 2014<VZE> IDN 		8-97948-918-0 01 1 1402-
27 FILTER; ACL,OUTER
DRY TYPE 		8-98071-421-0 01 1 1312-1401
27 FILTER; ACL,OUTER
EXC. VIN MODEL YEAR 2014<VZE> DRY TYPE 		8-98071-421-0 01 1 1402-
94 VALVE; VACUATOR
IDN 		1-14219-279-0 01 1 1312-
256 SENSOR; AIRFLOW 8-98152-742-1 01 1 1312-
