Isuzu WW
▶
TRUCKS
▶
FTR
▶
11564 - FTR(INDONESIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶

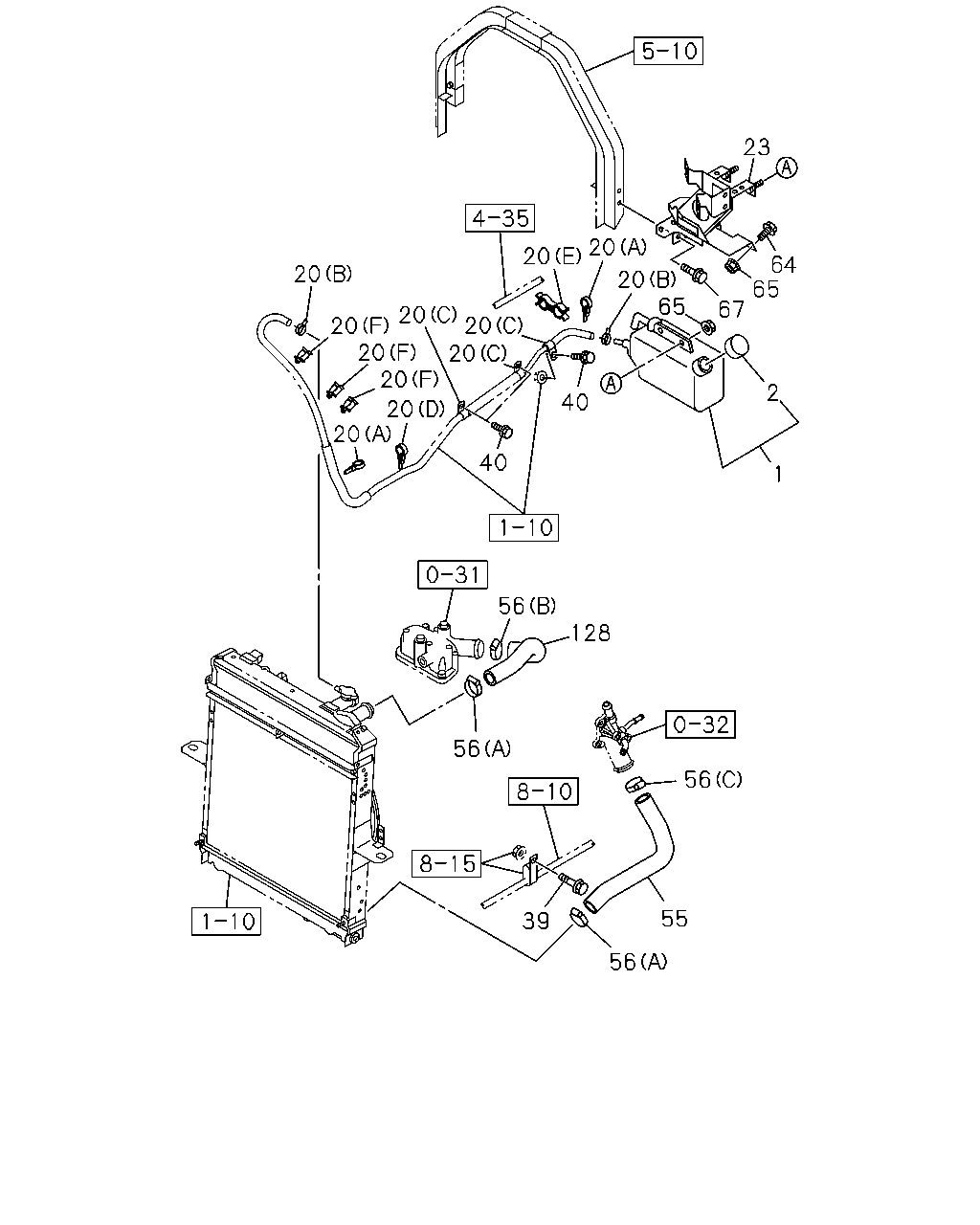

1-11 — RADIATOR HOSE AND SUB TANK
(#131191) — 22 parça
40
40
67
65
64
2
1
65
23
20
20
20
20
20
55
56
128
56
56
39
56
20
20
20
20
20
20
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
8-98171-757-0
01
1
1312-
2
CAP; SURGE TANK
8-98178-074-0
01
1
1312-
20
CLIP; HOSE,RAD
(C) ID=13 L=20
0-95235-235-0
01
1
1312-
20
CLIP; HOSE,RAD
(C) ID=13 L=20
0-95235-235-0
02
1
1312-
20
CLIP; HOSE,RAD
(E) ID=11.5 & 14.5
8-94314-293-0
01
1
1312-
20
CLIP; HOSE,RAD
(B) ID=11.5
8-97375-638-0
02
1
1312-
20
CLIP; HOSE,RAD
(F) ID=12
8-98029-256-0
03
1
1312-
20
CLIP; HOSE,RAD
(D) ID=14 L=44
9-09917-427-0
01
1
1312-
20
CLIP; HOSE,RAD
(A) ID=20 L=50
9-09917-430-0
01
1
1312-
20
CLIP; HOSE,RAD
(A) ID=20 L=50
9-09917-430-0
01
1
1312-
23
BRACKET; RESERVE TANK
8-98049-965-4
01
1
1312-
39
BOLT; BRKT FIX
M8X20 FLANGE IDN
0-28650-820-0
01
1
1312-
40
BOLT; CLIP
M8X20 FLANGE IDN
0-28650-820-0
01
1
1312-
40
BOLT; CLIP
M8X20 FLANGE IDN
0-28650-820-0
02
1
1312-
55
HOSE; WATER,RAD OUTLET
8-98010-573-2
01
1
1312-
56
CLIP; WATER HOSE,RAD
(B) ID=52
1-09704-057-0
01
1
1312-
56
CLIP; WATER HOSE,RAD
(A) ID=48
8-98133-956-0
02
1
1312-
56
CLIP; WATER HOSE,RAD
(C) ID=62
8-98133-957-0
01
1
1312-
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
1312-
65
NUT; BRKT,SUB TANK
M8 FLANGE
0-91180-108-0
03
1
1312-
67
BOLT; BRKT
M8X20 FLANGE IDN
0-28650-820-0
03
1
1312-
128
HOSE; WATER,RAD INL
8-98010-572-1
01
1
1312-
