◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11564 - FTR(INDONESIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-01 - ACCELERATOR PEDAL AND CONTROL ▶
1-01 — ACCELERATOR PEDAL AND CONTROL (#131189) — 21 parça

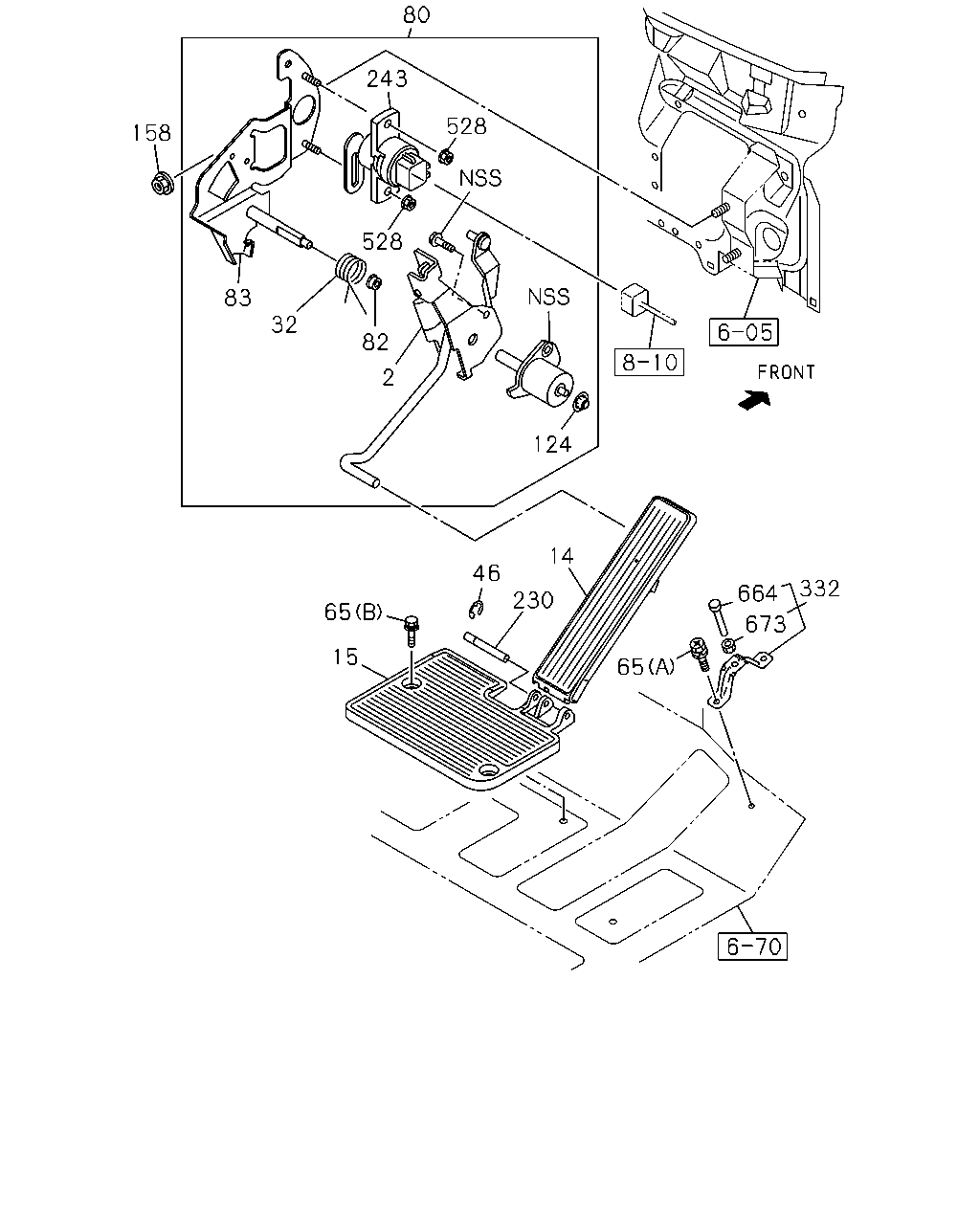

çizim 388221
332 673 65 230 46 65 15 14 664 124 82 32 2 83 158 80 243 528 528
BalonParca AdiParca NoAdetTipApplied Date
2 LEVER; ENG CONT 8-98049-120-1 01 1 1312-
14 PAD; PEDAL,ACCEL 8-97859-101-0 01 1 1312-
15 STAND; HEEL,ACCEL PEDAL 8-98022-259-2 01 1 1312-
32 SPRING; RETURN,ACCEL PEDAL 8-98031-665-0 01 1 1312-
46 RING; SNAP,ACCEL CONT PEDAL
ID=4 		0-91805-504-0 01 1 1312-
65 BOLT
(B) M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 1312-
65 BOLT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1312-
80 LINK ASM; ENG CONT 8-98038-418-4 01 1 1312-
82 BUSHING; ENG CONT LVR 8-97581-053-0 01 1 1312-
83 BRACKET; CONT LINK 8-98020-217-0 01 1 1312-
124 NUT; LEVER
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 1312-
158 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1312-
230 PIN; JOINT,ACCEL PEDAL TO BRKT 8-98026-806-0 01 1 1312-
243 SENSOR; ACCEL 8-98131-263-0 01 1 1312-
332 BRACKET; ACCEL PEDAL STOPPER 8-98011-468-2 01 1 1312-
528 NUT; ACCEL SENSOR
M5 		8-94169-022-0 02 1 1312-
664 BOLT; STOPPER
M8X40 		0-20850-840-0 01 1 1312-
673 NUT; STOPPER
M8 IDN 		0-91110-508-0 01 1 1312-

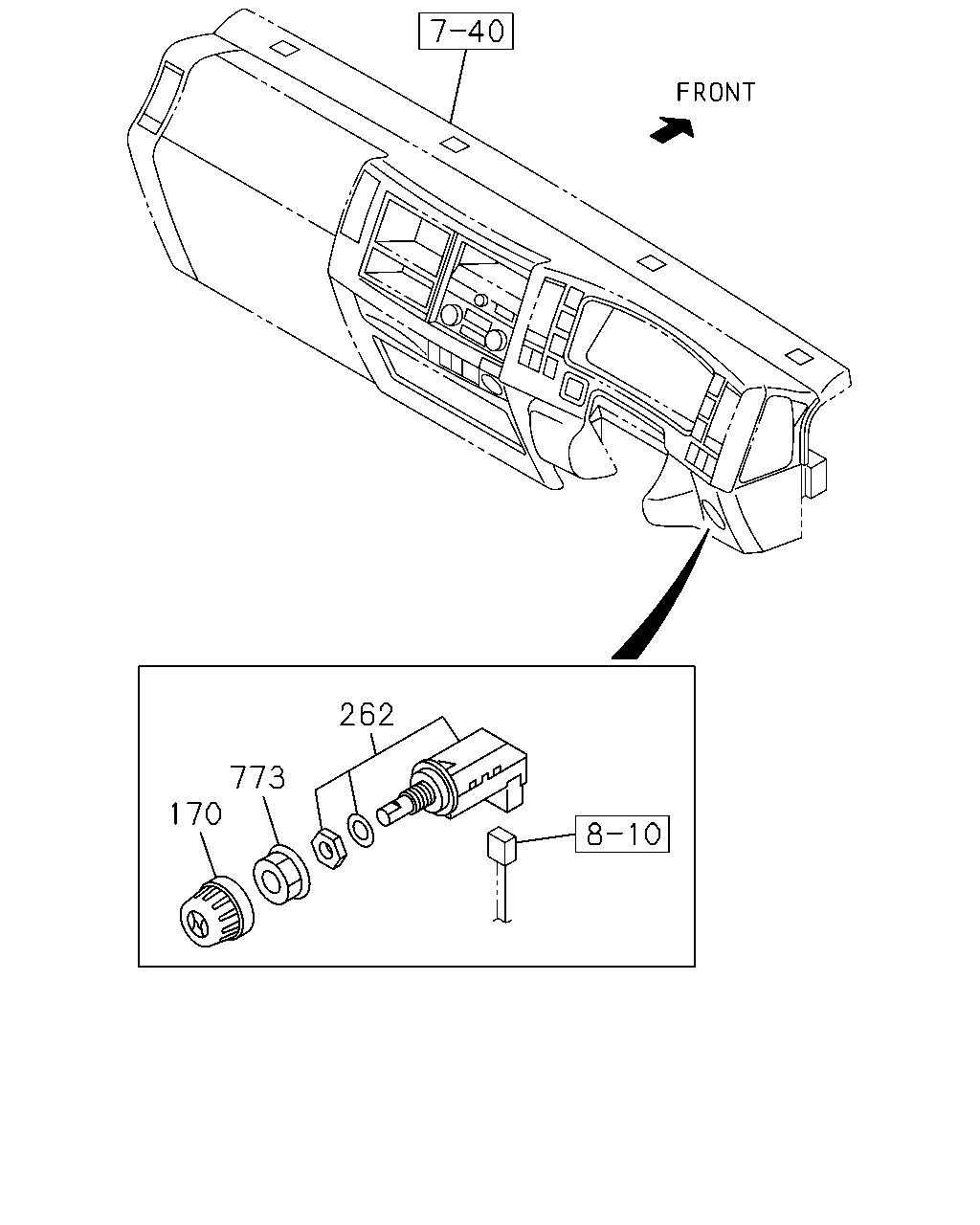

çizim 388740
773 262 170
BalonParca AdiParca NoAdetTipApplied Date
170 KNOB 8-98013-420-0 01 1 1312-
262 SWITCH; ACCEL,IDLE 8-98013-418-0 01 1 1312-
773 HOLDER; ACCEL PEDAL 8-97352-127-0 01 1 1312-
