Isuzu WW
▶
BUSES
▶
LV
▶
11523 - LV152/452(LHD) EURO4
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-70 - AIR SUSPENSION VALVE AND CONTROL
▶
4-70 — AIR SUSPENSION VALVE AND CONTROL
(#131163) — 38 parça
◀
[470A] REAR (21 parça)

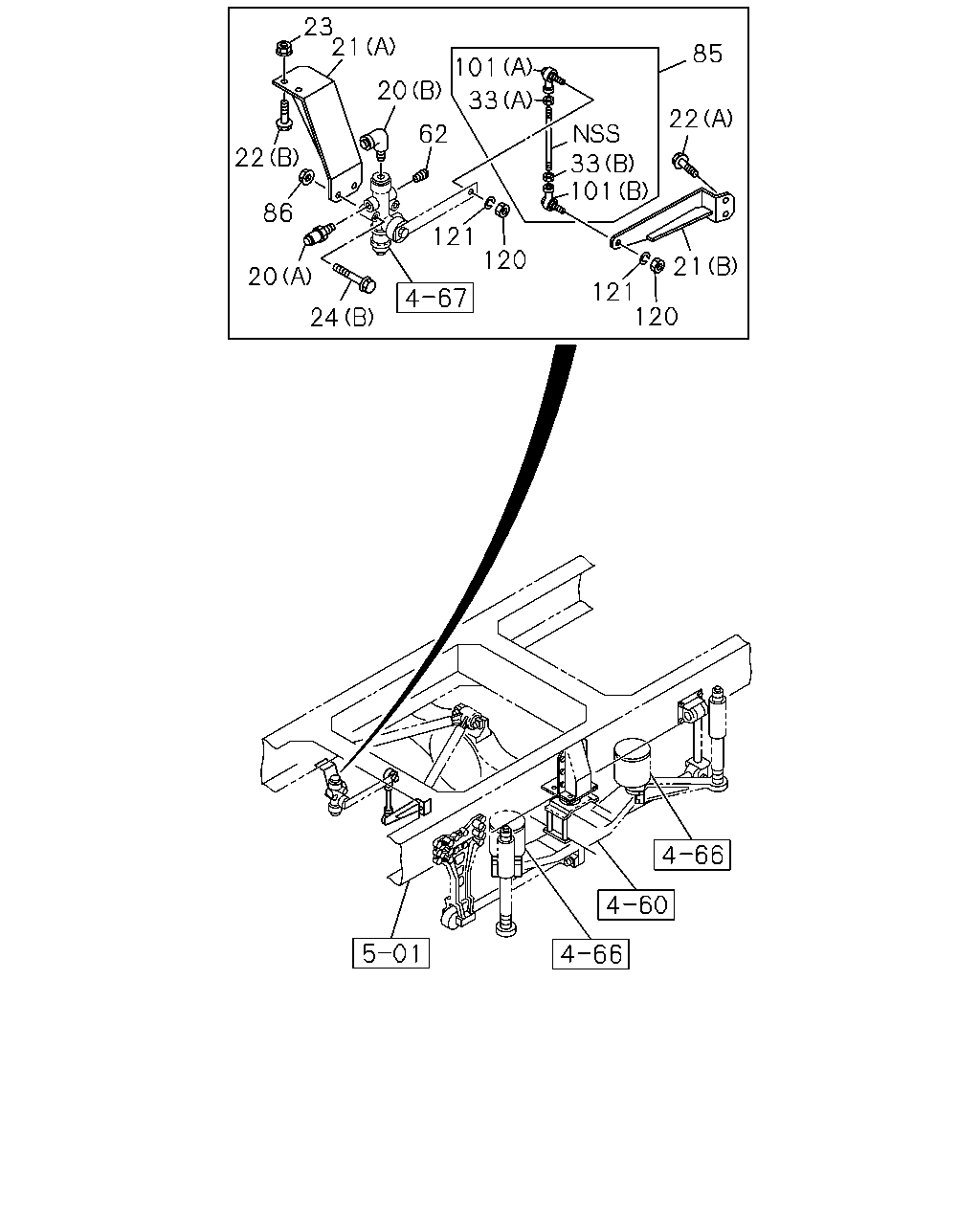

[470A] FRONT (17 parça)
▶
23
22
21
86
121
24
20
120
101
21
120
121
22
85
33
33
101
62
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
20
CONNECTOR; LEVELING VLV
(B) DIN8 & R1/4 ELBOW
1-09660-956-0
02
1
1312-
20
CONNECTOR; LEVELING VLV
(A) DIN8 R1/4 STRAIGHT
1-09660-963-0
02
1
1312-
21
BRACKET; LEVELING VLV
(A)
1-52171-186-0
01
1
1312-
21
BRACKET; LEVELING VLV
(B)
1-52171-187-1
01
1
1312-
21
BRACKET; LEVELING VLV
(B)
1-52171-188-1
01
1
1312-
21
BRACKET; LEVELING VLV
(A)
1-52171-210-0
01
1
1312-
21
BRACKET; LEVELING VLV
(C)
8-98198-438-0
01
1
1312-
22
BOLT; BRKT
(A) M8X20 FLANGE
0-28660-820-0
04
1
1312-
22
BOLT; BRKT
(B) M12X30 FLANGE
0-28661-230-0
04
1
1312-
23
NUT; BRKT
M12 FLANGE
0-91180-112-0
04
1
1312-
24
BOLT; LEVELING VLV
(A) M8X50 FLANGE
0-28050-850-0
02
1
1312-
24
BOLT; LEVELING VLV
(B) M8X45 FLANGE
0-28060-845-0
04
1
1312-
33
NUT
(A) M10
0-91111-510-0
03
1
1312-
33
NUT
(B) M10 LH THREAD
9-09840-167-0
03
1
1312-
62
PLUG; VLV
PT1/4
1-09605-019-0
02
1
1312-
85
ROD; LEVELING VLV
1-52137-046-0
02
1
1312-
86
NUT; LEVELING VLV
M8 FLANGE
0-91180-108-0
06
1
1312-
101
JOINT ASM; BALL
(A) RH THREAD
1-09760-119-1
03
1
1312-
101
JOINT ASM; BALL
(B) LH THREAD
8-94178-868-1
03
1
1312-
120
NUT; ROD
M8
0-91110-508-0
06
1
1312-
121
WASHER; LK,ROD
ID=8.2
0-91510-808-0
06
1
1312-
36
119
101
33
33
101
120
121
120
121
119
36
86
36
24
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
BRACKET; LEVELING VLV
(A)
1-52171-186-0
01
1
1312-
21
BRACKET; LEVELING VLV
(B)
1-52171-187-1
01
1
1312-
21
BRACKET; LEVELING VLV
(B)
1-52171-188-1
01
1
1312-
21
BRACKET; LEVELING VLV
(A)
1-52171-210-0
01
1
1312-
21
BRACKET; LEVELING VLV
(C)
8-98198-438-0
01
1
1312-
24
BOLT; LEVELING VLV
(A) M8X50 FLANGE
0-28050-850-0
02
1
1312-
24
BOLT; LEVELING VLV
(B) M8X45 FLANGE
0-28060-845-0
04
1
1312-
33
NUT
(A) M10
0-91111-510-0
03
1
1312-
33
NUT
(B) M10 LH THREAD
9-09840-167-0
03
1
1312-
36
CONNECTOR; PIPE,LEVELING VALVE
(A) M12 & PT1/4 STRAIGHT
1-09650-074-1
02
1
1312-
36
CONNECTOR; PIPE,LEVELING VALVE
(B) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1312-
86
NUT; LEVELING VLV
M8 FLANGE
0-91180-108-0
06
1
1312-
101
JOINT ASM; BALL
(A) RH THREAD
1-09760-119-1
03
1
1312-
101
JOINT ASM; BALL
(B) LH THREAD
8-94178-868-1
03
1
1312-
119
ROD; LEVERING VLV
8-98198-440-0
01
1
1312-
120
NUT; ROD
M8
0-91110-508-0
06
1
1312-
121
WASHER; LK,ROD
ID=8.2
0-91510-808-0
06
1
1312-
