Isuzu WW
▶
BUSES
▶
LV
▶
11523 - LV152/452(LHD) EURO4
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

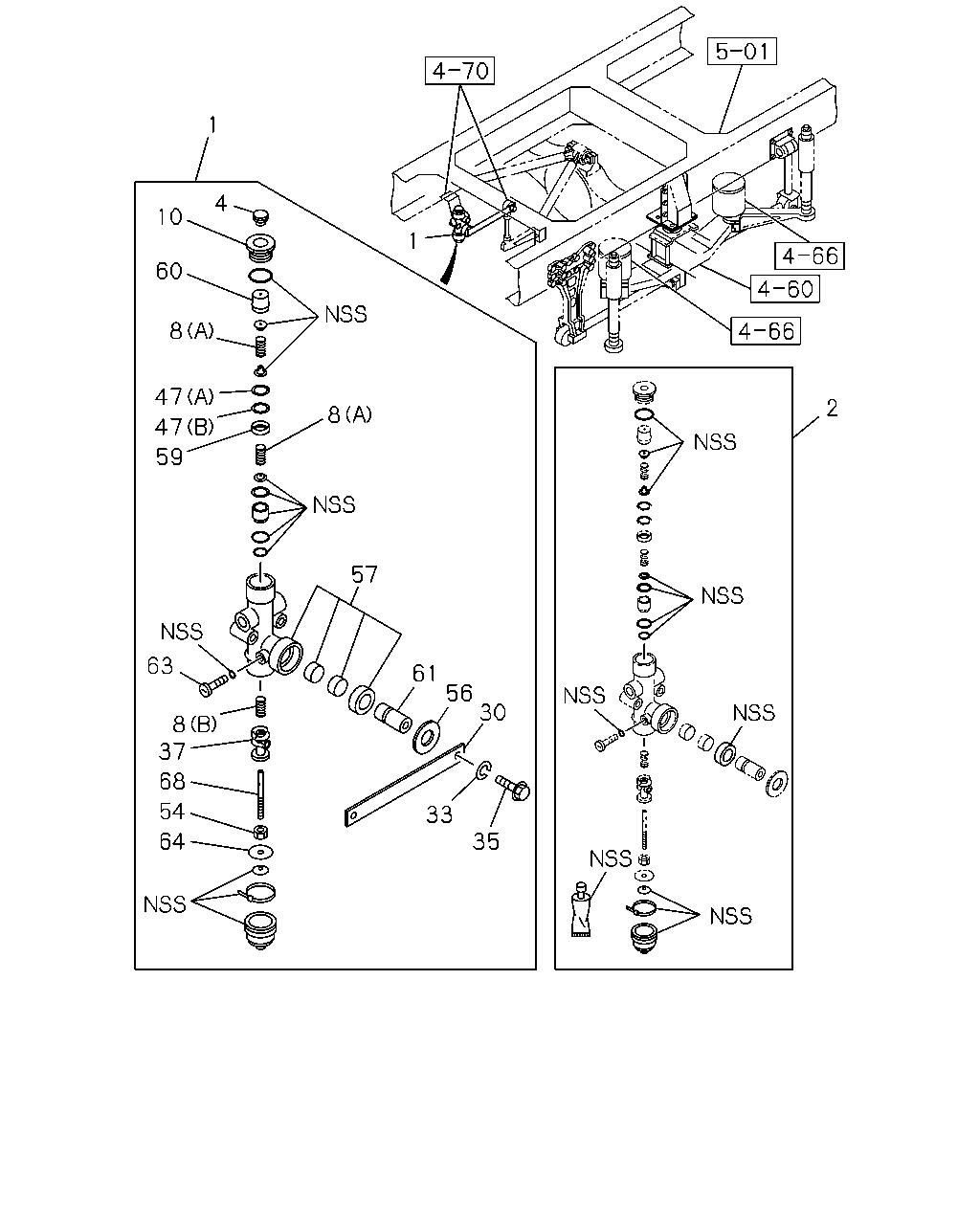

4-67 - REAR LEVELING VALVE
▶
4-67 — REAR LEVELING VALVE
(#131162) — 22 parça
1
4
10
60
8
47
47
59
8
57
61
56
30
35
33
64
54
68
37
8
63
1
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE ASM; LEVELING
1-52130-107-1
01
1
1312-
1
VALVE ASM; LEVELING
1-52130-108-1
01
1
1312-
2
REPAIR KIT; LEVELING VALVE
1-85573-009-0
02
1
1312-
4
FILTER; AIR,LEVELING VALVE
1-53457-081-0
02
1
1312-
8
SPRING; LEVELING VALVE
(A)
1-52139-053-0
04
1
1312-
8
SPRING; LEVELING VALVE
(B)
1-52139-057-0
02
1
1312-
10
PLUG; BODY
1-52139-055-0
02
1
1312-
30
LEVER; LEVELING VALVE
1-52137-047-0
02
1
1312-
33
WASHER; LK
1-52139-061-0
02
1
1312-
35
BOLT; LOCK,LEVER
1-52139-060-0
02
1
1312-
37
PISTON; LEVELING VLV
1-52135-011-0
02
1
1312-
47
SHIM; LEVELING VLV
(A) T=0.2
1-52139-067-0
AR
1
1312-
47
SHIM; LEVELING VLV
(B) T=0.1
1-52139-068-0
AR
1
1312-
54
NUT; LEVELING VLV
1-52139-058-0
02
1
1312-
56
WASHER; LEVELING VLV
1-52139-059-0
02
1
1312-
57
BODY ASM; LEVELING VALVE
1-52139-046-0
02
1
1312-
59
SPACER; LEVELING VALVE
1-52139-050-0
02
1
1312-
60
SEAT; VALVE,LEVELING VALVE
1-52132-003-0
02
1
1312-
61
SHAFT; LEVELING VALVE
1-52135-009-0
02
1
1312-
63
BOLT; STOPPER,LEVELING VALVE
1-52139-069-0
02
1
1312-
64
PLATE; LEVELING VALVE
1-52139-091-0
02
1
1312-
68
SPOOL; LEVELING VALVE
1-52139-092-0
02
1
1312-
