0-13 — OIL PAN AND LEVEL GAUGE (#131155) — 16 parça

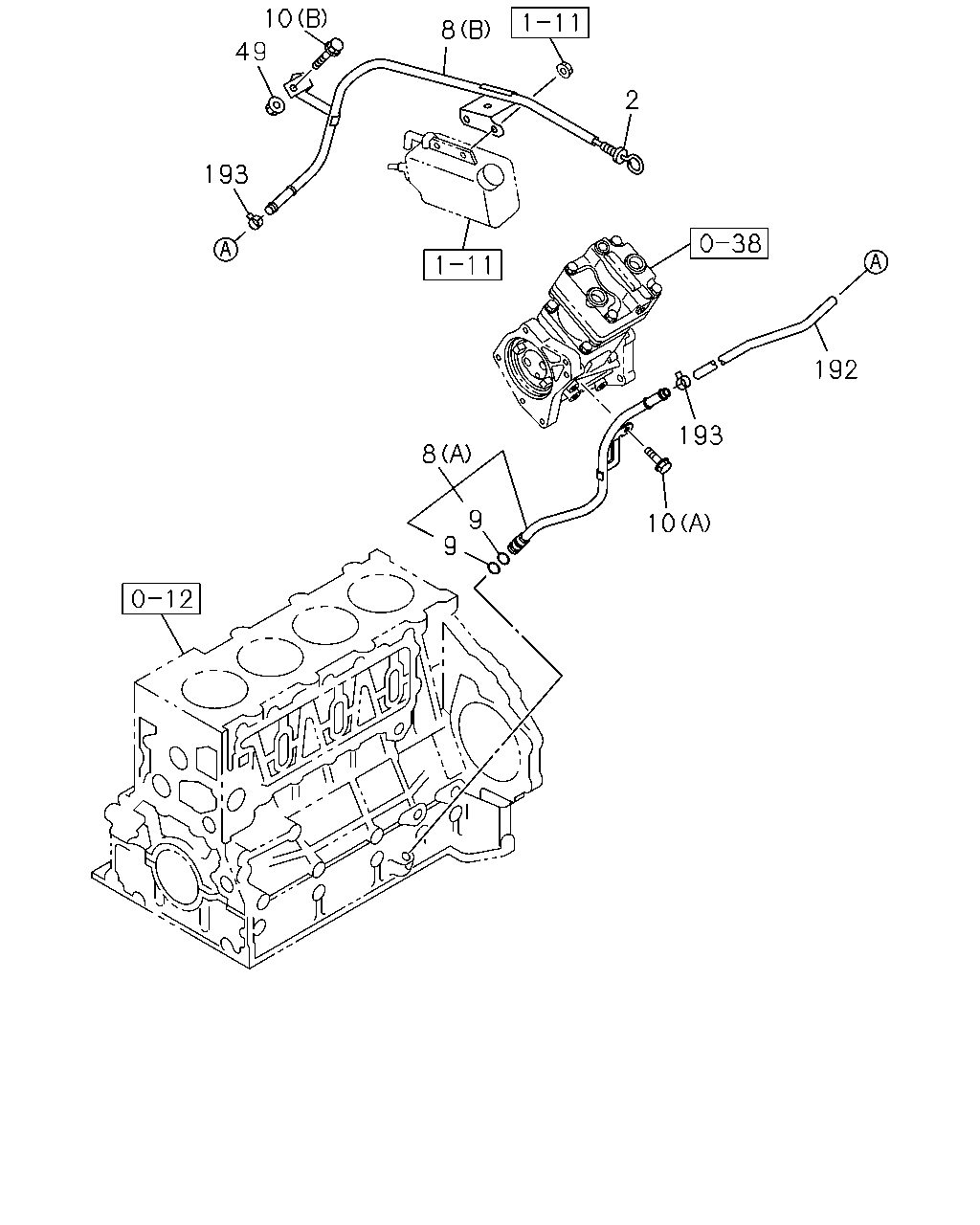

10 49 8 193 2 192 193 10 8 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	GAUGE; OIL LEVEL	8-98179-979-0	01	1	1312-1406
2	GAUGE; OIL LEVEL	8-98245-516-0	01	1	1407-
8	TUBE; GUIDE,OIL LEVEL GAUGE (A)	8-98009-115-1	01	1	1312-
8	TUBE; GUIDE,OIL LEVEL GAUGE (B)	8-98179-498-0	01	1	1312-
9	GASKET; GUIDE TUBE,OIL LEVEL GAUGE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	1-09623-469-0	02	1	1312-
10	BOLT; GUIDE TUBE (A) M6X12 FLANGE	0-28050-612-0	01	1	1312-
10	BOLT; GUIDE TUBE (B) M8X20 FLANGE IDN	0-28650-820-0	01	1	1312-
49	NUT; GUIDE TUBE M8 FLANGE	0-91180-108-0	01	1	1312-
192	HOSE; GUIDE TUBE	8-97620-319-0	01	1	1312-
193	CLIP; HOSE,GUIDE TUBE ID=17	1-09707-158-0	02	1	1312-

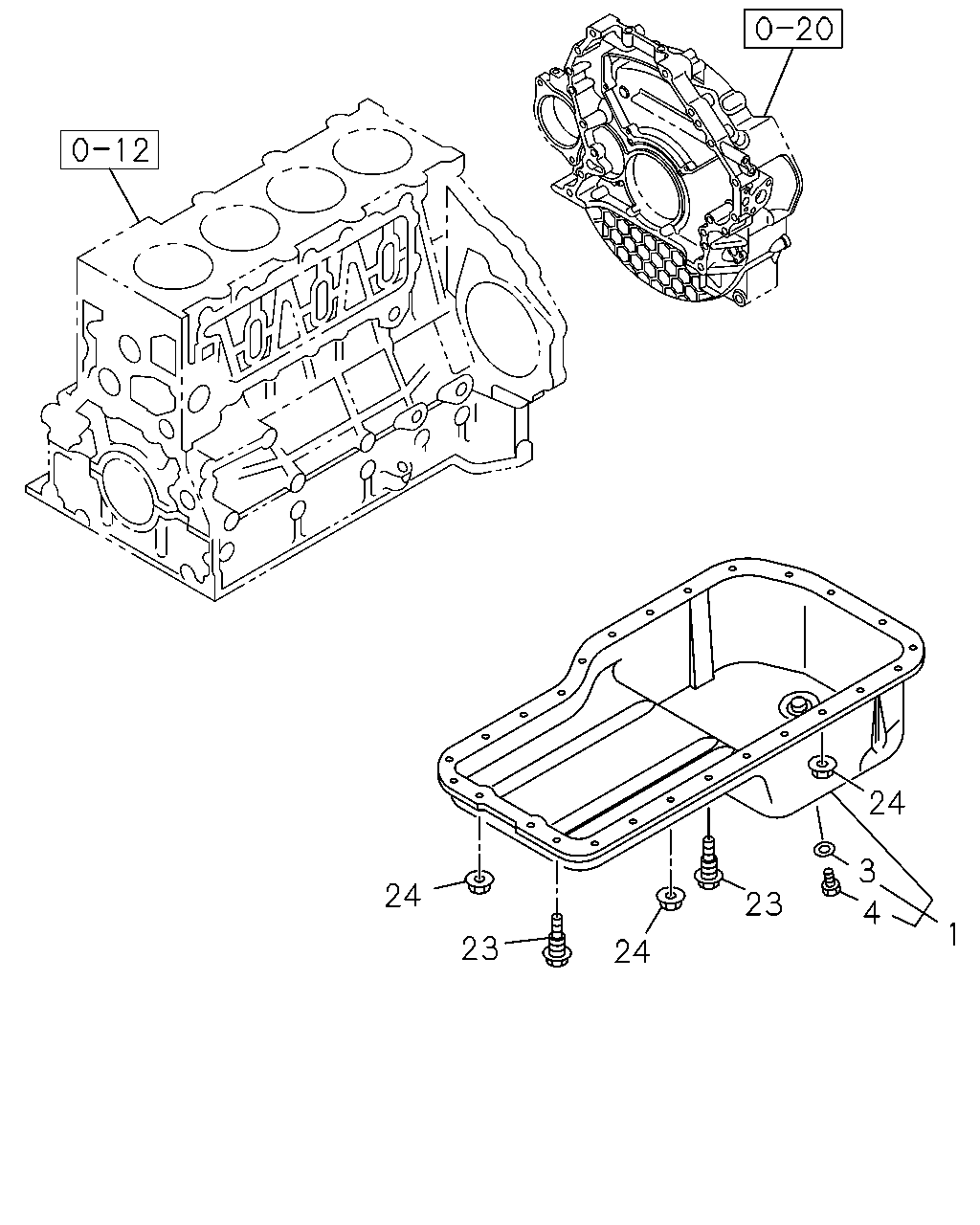

24 23 24 3 4 23 24 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PAN ASM; OIL	8-98191-050-0	01	1	1312-
3	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24	8-94158-328-0	01	1	1312-
4	PLUG; DRAIN,OIL M14X14 IDN	8-94152-613-0	01	1	1312-
23	BOLT; OIL PAN M8X14 W/SCOTCH GRIP	8-97047-004-1	01	1	1312-
23	BOLT; OIL PAN M8X14	8-97047-005-0	18	1	1312-
24	NUT; OIL PAN M8 W/LK WASHER IDN	8-97581-234-0	07	1	1312-
