8-65 — CONTROL LEVER; HEATER AND AIR CON (#131145) — 23 parça

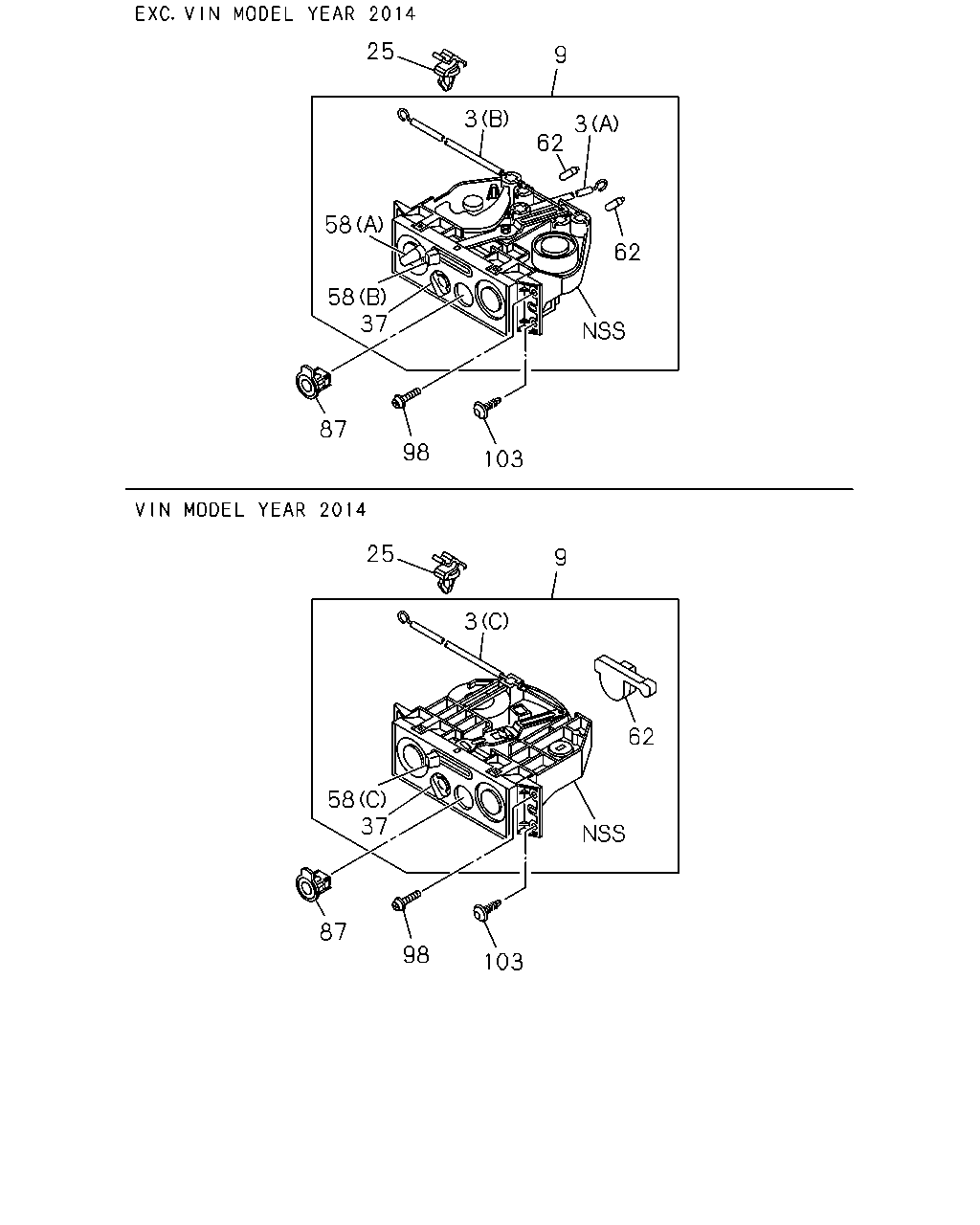

çizim 389591
25 9 3 3 62 62 58 58 103 98 37 87 25 9 3 62 103 98 87 37 58
BalonParca AdiParca NoAdetTipApplied Date
3 CABLE; HTR CONT LVR
VIN MODEL YEAR 2014<VZE> (C) R/F 		8-97927-122-0 01 1 1402-
3 CABLE; HTR CONT LVR
(B) R/F 		8-98041-504-2 01 1 1312-1401
3 CABLE; HTR CONT LVR
EXC. VIN MODEL YEAR 2014<VZE> (B) R/F 		8-98041-504-2 01 1 1402-
3 CABLE; HTR CONT LVR
(A) MODE 		8-98044-176-0 01 1 1312-1401
3 CABLE; HTR CONT LVR
EXC. VIN MODEL YEAR 2014<VZE> (A) MODE 		8-98044-176-0 01 1 1402-
9 LEVER ASM; HTR & A/C CONT
VIN MODEL YEAR 2014<VZE> 		8-98255-067-0 01 1 1402-
9 LEVER ASM; HTR & A/C CONT 8-98062-806-1 01 1 1312-1401
9 LEVER ASM; HTR & A/C CONT
EXC. VIN MODEL YEAR 2014<VZE> 		8-98062-806-1 01 1 1402-
25 CLIP; CABLE,CONT LEVER
ID=4.8 		8-94128-483-0 02 1 1312-
37 KNOB; SW,HTR CONT LVR
VIN MODEL YEAR 2014<VZE> 		8-97926-674-0 01 1 1402-
37 KNOB; SW,HTR CONT LVR 8-98037-368-0 01 1 1312-1401
37 KNOB; SW,HTR CONT LVR
EXC. VIN MODEL YEAR 2014<VZE> 		8-98037-368-0 01 1 1402-
58 KNOB; LVR,HTR CONT LVR
VIN MODEL YEAR 2014<VZE> (C) 		8-97926-675-0 01 1 1402-
58 KNOB; LVR,HTR CONT LVR
(A) 		8-98037-369-0 01 1 1312-1401
58 KNOB; LVR,HTR CONT LVR
EXC. VIN MODEL YEAR 2014<VZE> (A) 		8-98037-369-0 01 1 1402-
58 KNOB; LVR,HTR CONT LVR
(B) 		8-98037-370-0 01 1 1312-1401
58 KNOB; LVR,HTR CONT LVR
EXC. VIN MODEL YEAR 2014<VZE> (B) 		8-98037-370-0 01 1 1402-
62 BULB; HTR CONT LVR
VIN MODEL YEAR 2014<VZE> 		8-97926-676-0 01 1 1402-
62 BULB; HTR CONT LVR
24V 1.1W 		8-98037-371-0 02 1 1312-1401
62 BULB; HTR CONT LVR
EXC. VIN MODEL YEAR 2014<VZE> 24V 1.1W 		8-98037-371-0 02 1 1402-
87 CAP; A/C SWITCH 8-98006-089-0 01 1 1312-
98 SCREW; CONT PANEL
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1312-
103 CLIP
DARK GRAY 		8-97098-326-0 01 1 1312-
