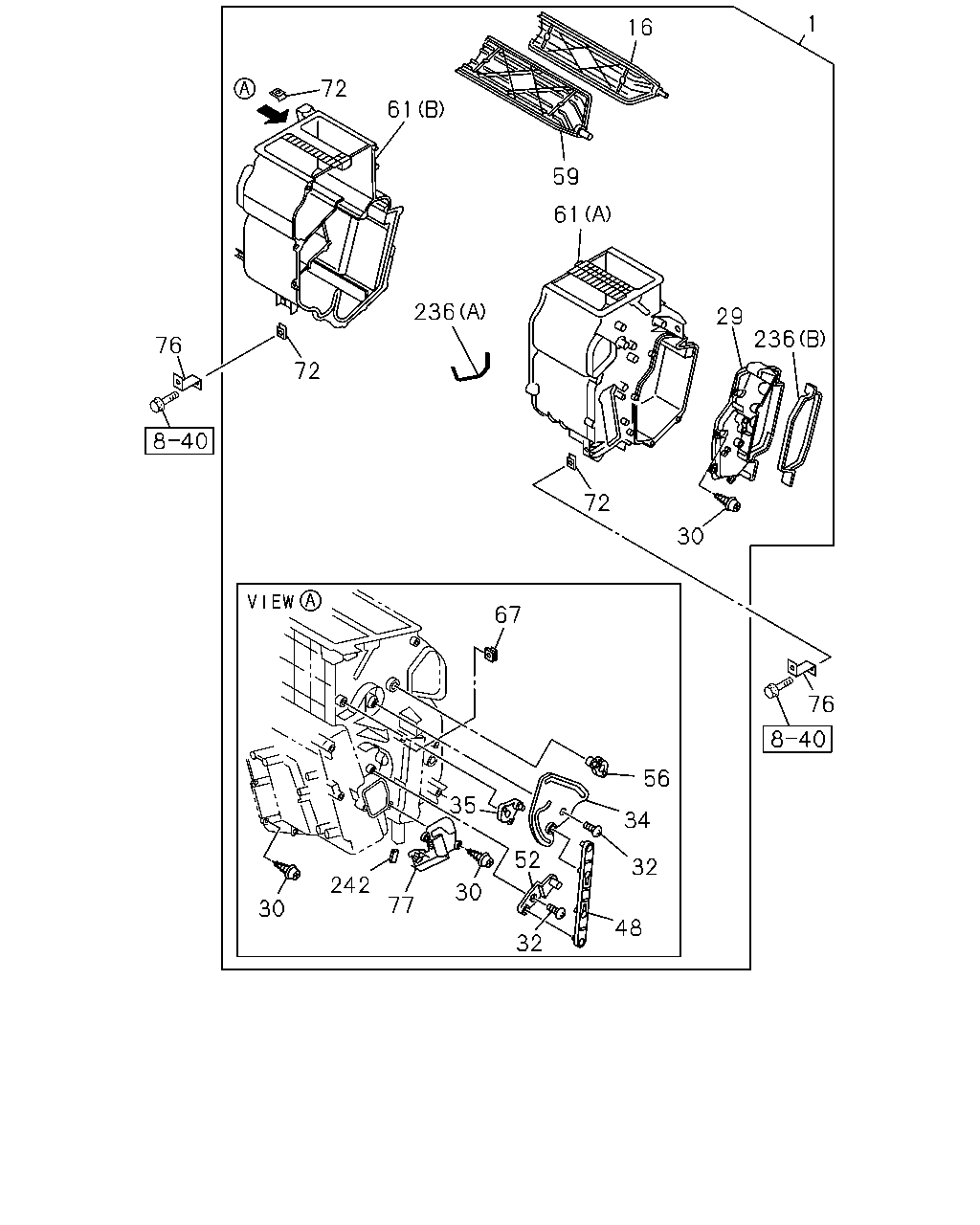

8-60 — HEATER UNIT; FRONT (#131144) — 42 parça

16 1 59 61 72 236 72 76 67 72 236 29 61 76 30 56 34 32 48 32 52 35 30 77 242 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEATER UNIT	8-98214-400-0	01	1	1312-1401
1	HEATER UNIT EXC. VIN MODEL YEAR 2014<VZE>	8-98214-400-1	01	1	1402-
16	SHUTTER; HTR UNIT,CENTER UPR	8-98047-387-0	01	1	1312-1401
16	SHUTTER; HTR UNIT,CENTER UPR EXC. VIN MODEL YEAR 2014<VZE>	8-98047-387-0	01	1	1402-
29	COVER; HTR UNIT	8-98231-367-0	01	1	1312-1401
29	COVER; HTR UNIT EXC. VIN MODEL YEAR 2014<VZE>	8-98231-367-0	01	1	1402-
30	SCREW; HTR UNIT M4X16 TAPPING IDN	8-97957-708-0	20	1	1312-1401
30	SCREW; HTR UNIT EXC. VIN MODEL YEAR 2014<VZE> M4X16 TAPPING IDN	8-97957-708-0	20	1	1402-
32	SCREW; HTR UNIT M4X16	8-98047-416-0	02	1	1312-1401
32	SCREW; HTR UNIT EXC. VIN MODEL YEAR 2014<VZE> M4X16	8-98047-416-0	02	1	1402-
34	LEVER; SHUTTER,HTR UNIT	8-98047-389-0	01	1	1312-1401
34	LEVER; SHUTTER,HTR UNIT EXC. VIN MODEL YEAR 2014<VZE>	8-98047-389-0	01	1	1402-
35	LEVER; SHUTTER,HTR UNIT	8-98047-392-0	01	1	1312-1401
35	LEVER; SHUTTER,HTR UNIT EXC. VIN MODEL YEAR 2014<VZE>	8-98047-392-0	01	1	1402-
48	LEVER; HTR UNIT	8-98047-391-0	01	1	1312-1401
48	LEVER; HTR UNIT EXC. VIN MODEL YEAR 2014<VZE>	8-98047-391-0	01	1	1402-
52	LEVER; SHUTTER,HTR UNIT	8-98047-390-0	01	1	1312-1401
52	LEVER; SHUTTER,HTR UNIT EXC. VIN MODEL YEAR 2014<VZE>	8-98047-390-0	01	1	1402-
56	LEVER; SHUTTER,HTR UNIT	8-98047-393-0	01	1	1312-1401
56	LEVER; SHUTTER,HTR UNIT EXC. VIN MODEL YEAR 2014<VZE>	8-98047-393-0	01	1	1402-
59	SHUTTER; HTR UNIT,SIDE	8-98047-386-0	01	1	1312-1401
59	SHUTTER; HTR UNIT,SIDE EXC. VIN MODEL YEAR 2014<VZE>	8-98047-386-0	01	1	1402-
61	CASE; HTR UNIT (A)	8-98077-422-0	01	1	1312-1401
61	CASE; HTR UNIT EXC. VIN MODEL YEAR 2014<VZE> (A)	8-98077-422-0	01	1	1402-
61	CASE; HTR UNIT (B)	8-98077-423-0	01	1	1312-1401
61	CASE; HTR UNIT EXC. VIN MODEL YEAR 2014<VZE> (B)	8-98077-423-0	01	1	1402-
67	CLIP; HTR UNIT	8-98047-417-0	01	1	1312-1401
67	CLIP; HTR UNIT EXC. VIN MODEL YEAR 2014<VZE>	8-98047-417-0	01	1	1402-
72	NUT; CASE,HTR UNIT M6	8-98047-428-0	03	1	1312-1401
72	NUT; CASE,HTR UNIT EXC. VIN MODEL YEAR 2014<VZE> M6	8-98047-428-0	03	1	1402-
76	BRACKET; HTR UNIT	8-98009-742-1	02	1	1312-1401
76	BRACKET; HTR UNIT EXC. VIN MODEL YEAR 2014<VZE>	8-98009-742-1	02	1	1402-
77	COVER; HTR CASE	8-98047-414-0	01	1	1312-1401
77	COVER; HTR CASE EXC. VIN MODEL YEAR 2014<VZE>	8-98047-414-0	01	1	1402-
236	GASKET; HEATER (A)	8-98047-420-0	01	1	1312-1401
236	GASKET; HEATER EXC. VIN MODEL YEAR 2014<VZE> (A)	8-98047-420-0	01	1	1402-
236	GASKET; HEATER (B)	8-98047-421-0	01	1	1312-1401
236	GASKET; HEATER EXC. VIN MODEL YEAR 2014<VZE> (B)	8-98047-421-0	01	1	1402-
242	GASKET; CASE	8-98048-816-0	01	1	1312-1401
242	GASKET; CASE EXC. VIN MODEL YEAR 2014<VZE>	8-98048-816-0	01	1	1402-1411

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	1	HEATER UNIT	8-98214-400-0	01	1	1312-1401
	1	HEATER UNIT EXC. VIN MODEL YEAR 2014<VZE>	8-98214-400-1	01	1	1402-
