Isuzu WW
▶
TRUCKS
▶
FRR
▶
11563 - FRR(INDONESIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-40 - HEATER SYSTEM
▶
8-40 — HEATER SYSTEM
(#131141) — 66 parça
◀

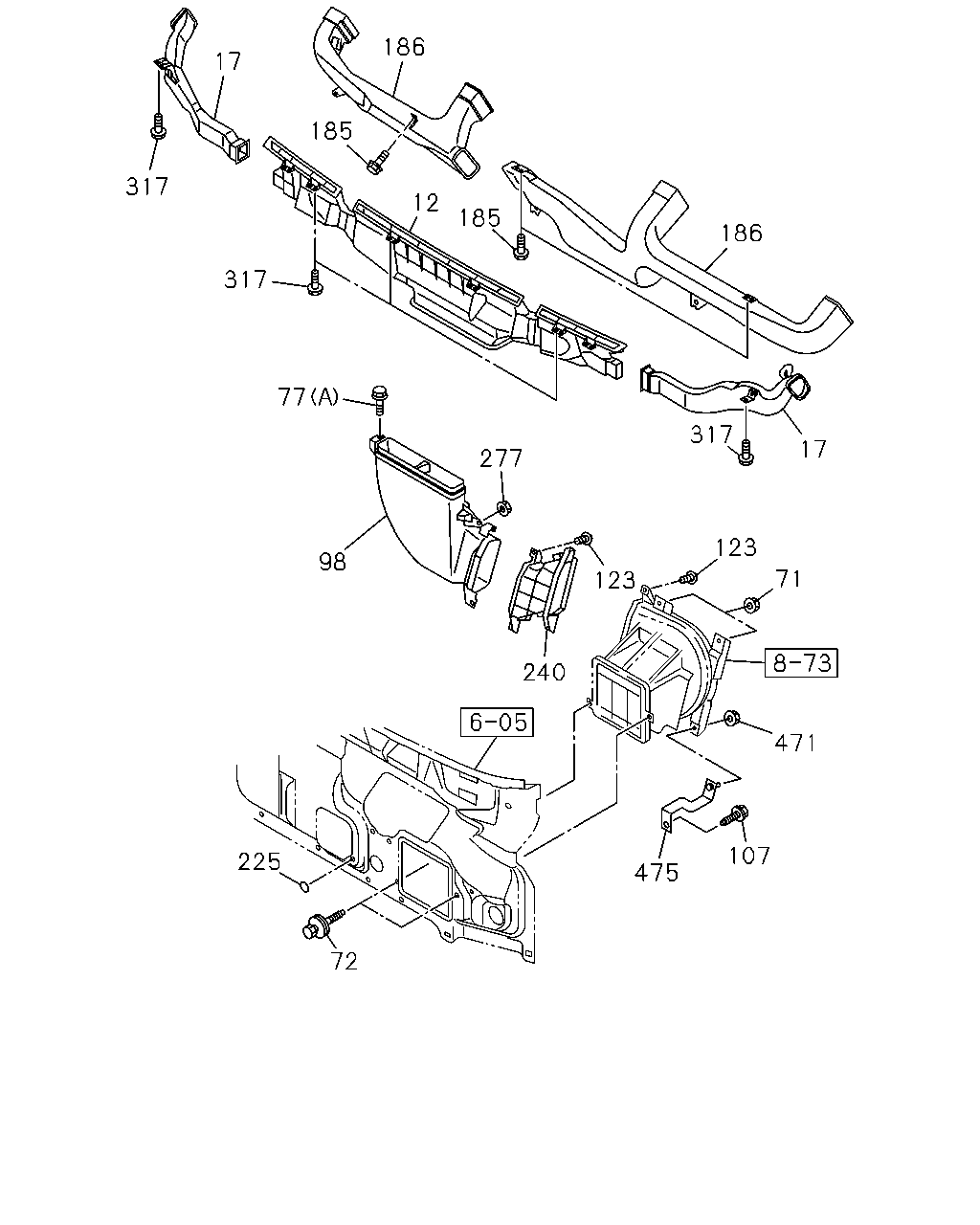

[840A] DUCT;VIN MODEL YEAR 2014 (31 parça)

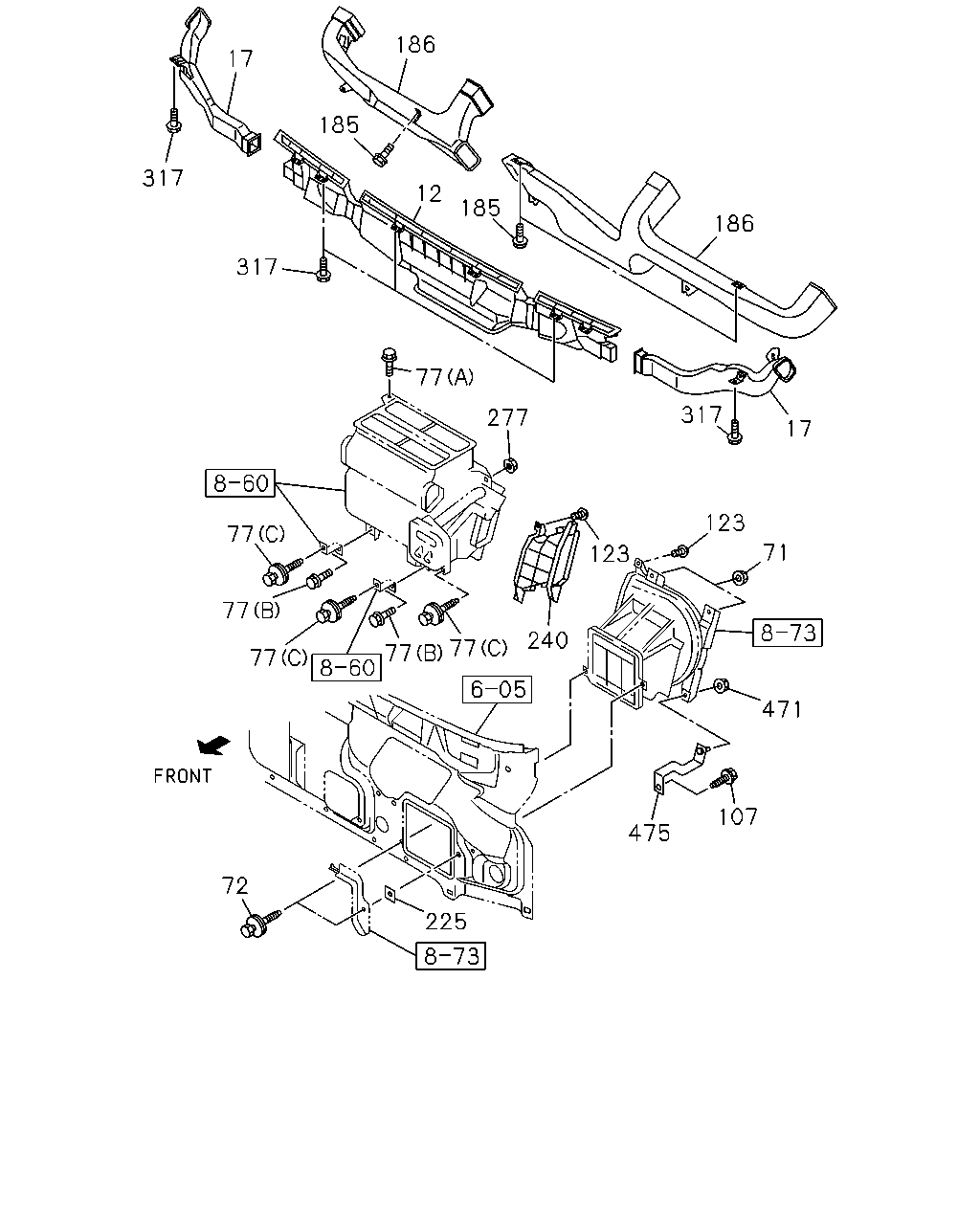

[840A] DUCT;EXC.VIN MODEL YEAR 2014 (30 parça)
[840A] OTHER PARTS (5 parça)
▶
17
317
317
77
186
185
12
185
186
17
317
123
123
71
277
98
240
471
107
475
72
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
NOZZLE; DEFROSTER
8-98040-009-3
01
1
1312-1401
12
NOZZLE; DEFROSTER
EXC. VIN MODEL YEAR 2014<VZE>
8-98040-009-3
01
1
1402-
17
NOZZLE; DEFROSTER,SIDE
8-98040-016-1
01
1
1312-1401
17
NOZZLE; DEFROSTER,SIDE
EXC. VIN MODEL YEAR 2014<VZE>
8-98040-016-1
01
1
1402-
17
NOZZLE; DEFROSTER,SIDE
8-98040-011-1
01
1
1312-1401
17
NOZZLE; DEFROSTER,SIDE
EXC. VIN MODEL YEAR 2014<VZE>
8-98040-011-1
01
1
1402-
71
NUT; BLOWER UNIT TO DASH
M6 FLANGE
0-91180-106-0
02
1
1312-
72
BOLT; BLOWER UNIT
M6X20 W/LK&PL WASHER
8-98081-175-0
02
1
1312-
77
BOLT; HTR UNIT
(A) M6X16 FLANGE
0-28650-616-0
01
1
1312-
77
BOLT; HTR UNIT
(B) M6X20 FLANGE IDN
0-28650-620-0
02
1
1312-1401
77
BOLT; HTR UNIT
EXC. VIN MODEL YEAR 2014<VZE> (B) M6X20 FLANGE IDN
0-28650-620-0
02
1
1402-
77
BOLT; HTR UNIT
(C) M6X20 W/LK&PL WASHER
8-98081-175-0
02
1
1312-1401
77
BOLT; HTR UNIT
EXC. VIN MODEL YEAR 2014<VZE> (C) M6X20 W/LK&PL WASHER
8-98081-175-0
02
1
1402-
98
DUCT; BLOWER UNIT TO HTR UNIT
VIN MODEL YEAR 2014<VZE>
8-97520-908-0
01
1
1402-
107
BOLT; STAY,HTR UNIT
M8X25 W/LK&PL WASHER
8-98018-439-0
01
1
1312-
123
SCREW; DUCT
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1312-
185
SCREW; VENT DUCT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1312-
186
DUCT; VENTILATOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-97585-488-4
01
1
1312-1410
186
DUCT; VENTILATOR
8-98285-576-0
01
1
1411-
186
DUCT; VENTILATOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-98174-737-0
01
1
1312-1410
186
DUCT; VENTILATOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-98285-571-0
01
1
1411-
225
SEAL; WATER
EXC. VIN MODEL YEAR 2014<VZE> OD=25 BLACK
1-76798-019-0
01
1
1402-
225
SEAL; WATER
OD=25 BLACK
1-76798-019-0
01
1
1312-1401
225
SEAL; WATER
VIN MODEL YEAR 2014<VZE> OD=25 BLACK
1-76798-019-0
03
1
1402-
225
SEAL; WATER
IDN
8-97856-616-0
01
1
1312-
240
DUCT; AIR,HTR
8-98041-402-1
01
1
1312-
277
NUT; HTR
M6 FLANGE
0-91180-106-0
01
1
1312-
317
SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
08
1
1312-1401
317
SCREW; DEFROSTER NOZZLE
EXC. VIN MODEL YEAR 2014<VZE> M5X16 TAPPING HEXALOBULAR
0-72180-516-0
08
1
1402-
471
NUT; BLOWER
M6 FLANGE
0-91180-106-0
01
1
1312-
475
BRACKET; BLOWER
8-98043-500-1
01
1
1312-
17
317
186
185
12
185
186
17
317
317
77
277
123
123
71
471
107
475
225
72
77
77
77
77
77
240
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
NOZZLE; DEFROSTER
8-98040-009-3
01
1
1312-1401
12
NOZZLE; DEFROSTER
EXC. VIN MODEL YEAR 2014<VZE>
8-98040-009-3
01
1
1402-
17
NOZZLE; DEFROSTER,SIDE
8-98040-016-1
01
1
1312-1401
17
NOZZLE; DEFROSTER,SIDE
EXC. VIN MODEL YEAR 2014<VZE>
8-98040-016-1
01
1
1402-
17
NOZZLE; DEFROSTER,SIDE
8-98040-011-1
01
1
1312-1401
17
NOZZLE; DEFROSTER,SIDE
EXC. VIN MODEL YEAR 2014<VZE>
8-98040-011-1
01
1
1402-
71
NUT; BLOWER UNIT TO DASH
M6 FLANGE
0-91180-106-0
02
1
1312-
72
BOLT; BLOWER UNIT
M6X20 W/LK&PL WASHER
8-98081-175-0
02
1
1312-
77
BOLT; HTR UNIT
(A) M6X16 FLANGE
0-28650-616-0
01
1
1312-
77
BOLT; HTR UNIT
(B) M6X20 FLANGE IDN
0-28650-620-0
02
1
1312-1401
77
BOLT; HTR UNIT
EXC. VIN MODEL YEAR 2014<VZE> (B) M6X20 FLANGE IDN
0-28650-620-0
02
1
1402-
77
BOLT; HTR UNIT
(C) M6X20 W/LK&PL WASHER
8-98081-175-0
02
1
1312-1401
77
BOLT; HTR UNIT
EXC. VIN MODEL YEAR 2014<VZE> (C) M6X20 W/LK&PL WASHER
8-98081-175-0
02
1
1402-
107
BOLT; STAY,HTR UNIT
M8X25 W/LK&PL WASHER
8-98018-439-0
01
1
1312-
123
SCREW; DUCT
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1312-
185
SCREW; VENT DUCT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1312-
186
DUCT; VENTILATOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-97585-488-4
01
1
1312-1410
186
DUCT; VENTILATOR
8-98285-576-0
01
1
1411-
186
DUCT; VENTILATOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-98174-737-0
01
1
1312-1410
186
DUCT; VENTILATOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ>
8-98285-571-0
01
1
1411-
225
SEAL; WATER
EXC. VIN MODEL YEAR 2014<VZE> OD=25 BLACK
1-76798-019-0
01
1
1402-
225
SEAL; WATER
OD=25 BLACK
1-76798-019-0
01
1
1312-1401
225
SEAL; WATER
VIN MODEL YEAR 2014<VZE> OD=25 BLACK
1-76798-019-0
03
1
1402-
225
SEAL; WATER
IDN
8-97856-616-0
01
1
1312-
240
DUCT; AIR,HTR
8-98041-402-1
01
1
1312-
277
NUT; HTR
M6 FLANGE
0-91180-106-0
01
1
1312-
317
SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
08
1
1312-1401
317
SCREW; DEFROSTER NOZZLE
EXC. VIN MODEL YEAR 2014<VZE> M5X16 TAPPING HEXALOBULAR
0-72180-516-0
08
1
1402-
471
NUT; BLOWER
M6 FLANGE
0-91180-106-0
01
1
1312-
475
BRACKET; BLOWER
8-98043-500-1
01
1
1312-
223
476
50
206
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
VALVE ASM; HTR
IDN
8-97925-112-0
01
1
1312-
206
GROMMET; A/C PIPE TO BLOWER UNIT
IDN
8-98019-649-0
01
1
1312-1401
206
GROMMET; A/C PIPE TO BLOWER UNIT
EXC. VIN MODEL YEAR 2014<VZE> IDN
8-98019-649-0
01
1
1402-
223
GROMMET; SCREW
D=7.9X7.9 L=20 M5 IDN
8-94441-539-0
01
1
1312-
476
SCREW; VALVE
M5X16 TAPPING HEXALOBULAR IDN
8-98062-675-0
01
1
1312-
