Sayfa 7-43 - Isuzu EPC

7-43 — SUN VISOR AND ASSIST GRIP (#131127) — 75 parça

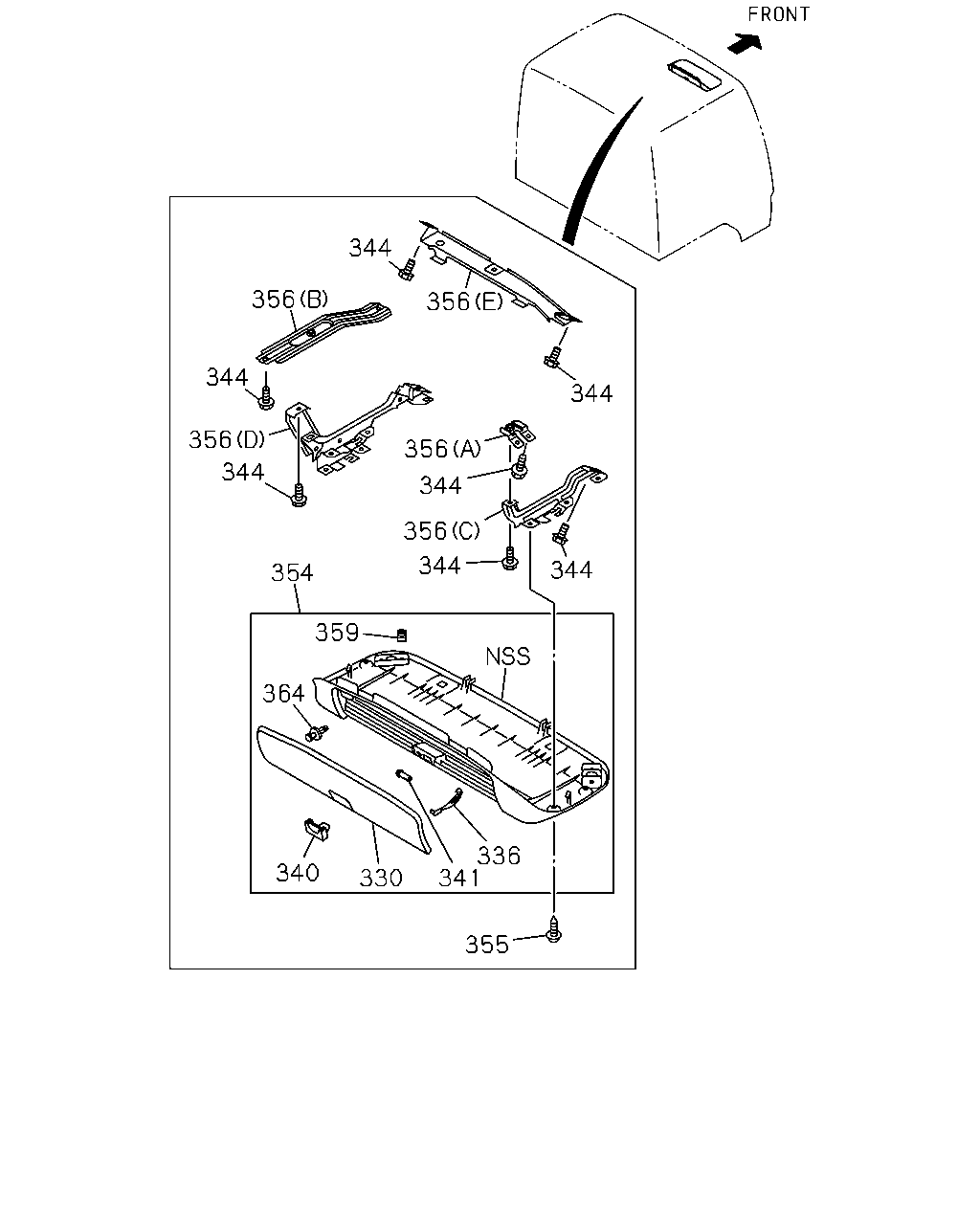

344 356 356 344 344 344 344 356 344 356 344 336 341 355 330 340 364 359 354 356

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
330	LID; HEADER SHELF DARK GRAY	8-97407-834-1	01	1	1312-
336	STAY; LID	1-72448-379-3	02	1	1312-
340	LOCK; HEADER SHELF	1-72448-376-0	01	1	1312-
341	HINGE; LID,HEADER SHELF	8-98025-428-2	02	1	1312-
344	BOLT; BRKT,FRT VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> M6X12 FLANGE	8-97108-669-0	02	1	1403-1403
344	BOLT; BRKT,FRT VIN MODEL YEAR 2014<VZE> M6X12 FLANGE	8-97108-669-0	02	1	1404-
344	BOLT; BRKT,FRT EXC. VIN MODEL YEAR 2014<VZE> M6X12 FLANGE	8-97108-669-0	04	1	1404-
344	BOLT; BRKT,FRT M6X12 FLANGE	8-97108-669-0	10	1	1312-1403
344	BOLT; BRKT,FRT M6X12 FLANGE	8-97108-669-0	08	1	1404-
354	TRAY; HEADER ROOF DARK GRAY	8-97407-386-5	01	1	1312-1401
354	TRAY; HEADER ROOF DARK GRAY	8-97428-821-0	01	1	1402-
355	SCREW; TRAY M5X16 TAPPING HEXALOBULAR IDN	0-72380-516-0	04	1	1312-
356	BRACKET; ROOF OUTER VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (E)	8-98042-016-3	01	1	1403-1403
356	BRACKET; ROOF OUTER EXC. VIN MODEL YEAR 2014<VZE> (E)	8-98042-016-3	01	1	1404-
356	BRACKET; ROOF OUTER (A)	8-97386-874-1	01	1	1312-
356	BRACKET; ROOF OUTER (B)	8-98010-059-0	01	1	1312-
356	BRACKET; ROOF OUTER (C)	8-98014-088-3	01	1	1312-
356	BRACKET; ROOF OUTER (D)	8-98023-257-2	01	1	1312-
356	BRACKET; ROOF OUTER (E)	8-98042-015-3	01	1	1312-
359	HOLDER; HEADER TRAY	8-98041-754-0	04	1	1312-
364	STOPPER; LID IDN	8-98010-867-1	03	1	1312-

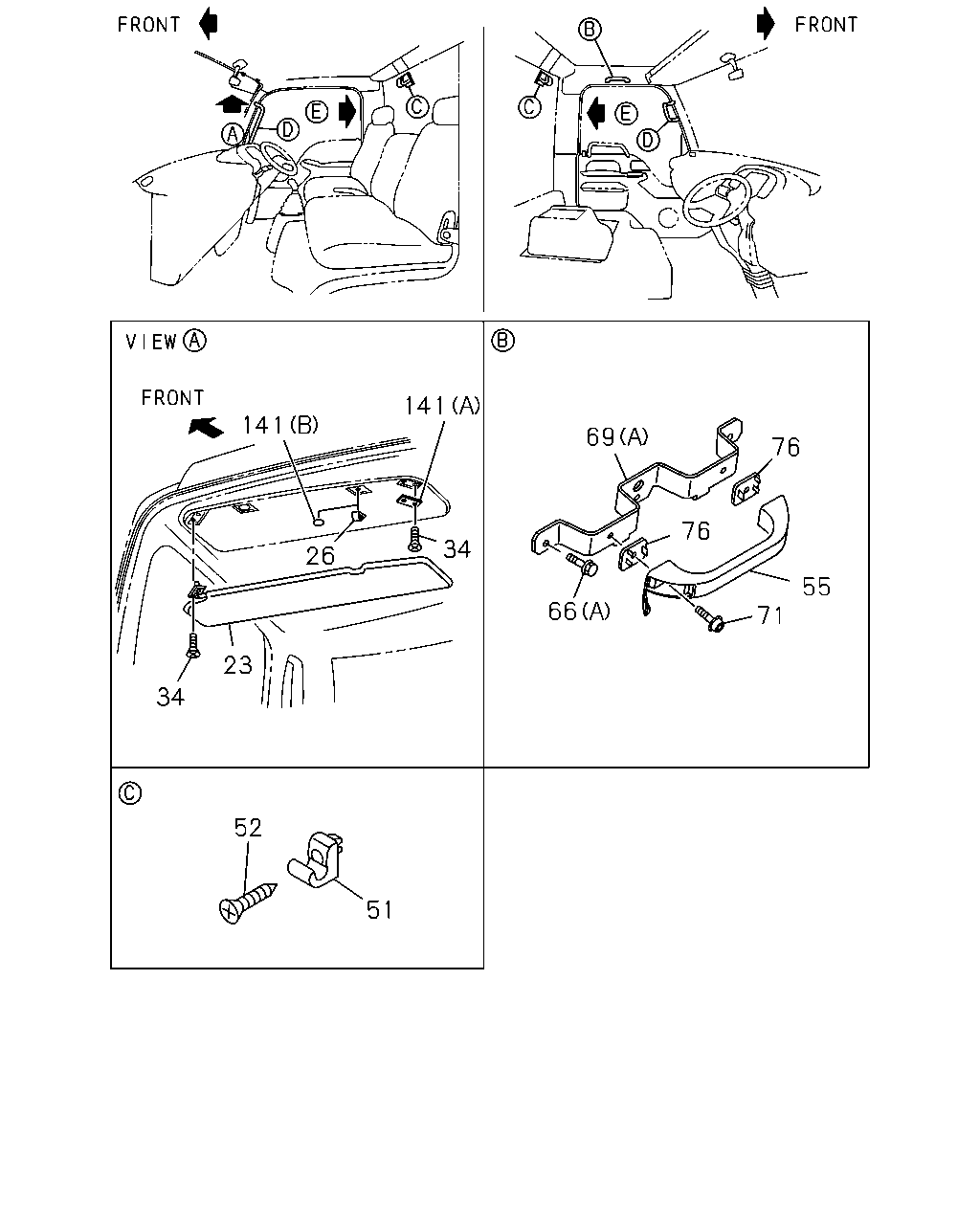

141 141 26 34 23 34 52 51 71 55 76 69 66 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	SUN VISOR DARK GRAY IDN	8-97407-373-2	01	1	1312-
26	HOLDER; SUN VISOR DARK GRAY	8-97405-171-0	01	1	1312-
34	SCREW; SUN VISOR M6X26	8-98033-674-0	04	1	1312-
51	HOOK; COAT HANGER DARK GRAY	8-97409-845-0	02	1	1312-
52	SCREW; HOOK M4X20 TAPPING OVAL-HEAD IDN	0-70540-420-0	02	1	1312-
55	GRIP; ASSIST,CAB SIDE UPR DARK GRAY	8-97405-285-2	01	1	1312-
66	BOLT; ASSIST GRIP BRKT EXC. VIN MODEL YEAR 2014<VZE> (A) M6X12 FLANGE	8-97108-669-0	06	1	1404-
66	BOLT; ASSIST GRIP BRKT (B) M8X16 FLANGE	0-28050-816-0	04	1	1312-
66	BOLT; ASSIST GRIP BRKT (A) M6X12 FLANGE	8-97108-669-0	03	1	1312-1402
66	BOLT; ASSIST GRIP BRKT (A) M6X12 FLANGE	8-97108-669-0	03	1	1403-1403
66	BOLT; ASSIST GRIP BRKT VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (A) M6X12 FLANGE	8-97108-669-0	03	1	1403-1403
66	BOLT; ASSIST GRIP BRKT VIN MODEL YEAR 2014<VZE> (A) M6X12 FLANGE	8-97108-669-0	03	1	1404-
69	BRACKET; ASSIST GRIP EXC. VIN MODEL YEAR 2014<VZE> (A)	8-98014-094-0	02	1	1404-
69	BRACKET; ASSIST GRIP (A)	8-98014-094-0	01	1	1312-1402
69	BRACKET; ASSIST GRIP (A)	8-98014-094-0	01	1	1403-1403
69	BRACKET; ASSIST GRIP VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (A)	8-98014-094-0	01	1	1403-1403
69	BRACKET; ASSIST GRIP VIN MODEL YEAR 2014<VZE> (A)	8-98014-094-0	01	1	1404-
69	BRACKET; ASSIST GRIP (B)	8-98057-972-2	01	1	1312-
69	BRACKET; ASSIST GRIP (B)	8-98057-971-2	01	1	1312-
71	SCREW M6X28	8-98004-344-0	02	1	1312-
76	SPACER; ASSIST GRIP DARK GRAY	8-97405-286-0	02	1	1312-
141	COVER; SUN VISOR (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1312-
141	COVER; SUN VISOR (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1312-1401
141	COVER; SUN VISOR (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	02	1	1402-

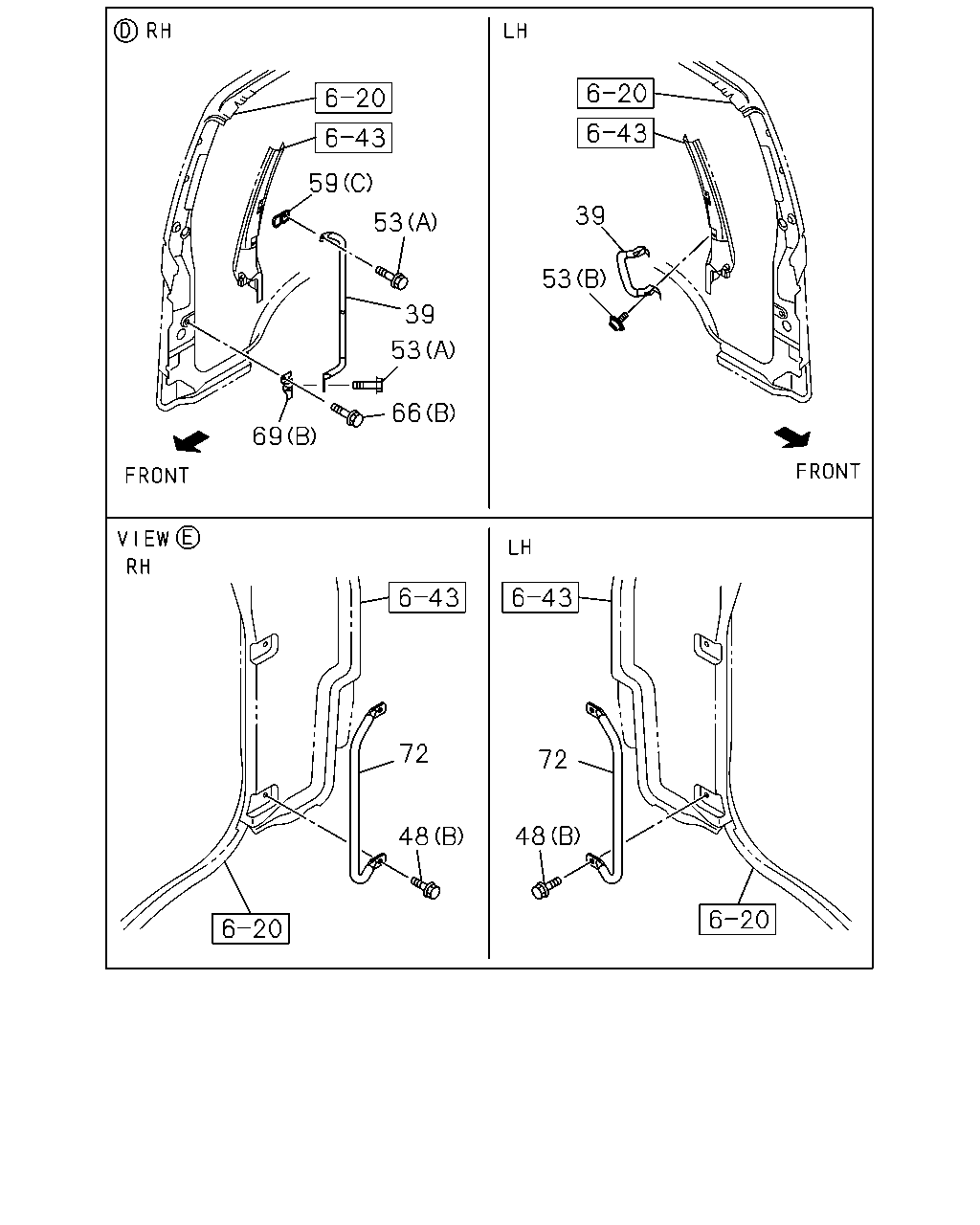

59 53 39 53 66 69 72 48 39 53 72 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	HANDLE; ASSIST,A-POST DARK GRAY	8-97405-249-2	01	1	1312-
39	HANDLE; ASSIST,A-POST DARK GRAY IDN	8-97407-942-2	01	1	1312-
48	BOLT; ASSIST GRIP (B) M8X16 FLANGE	0-28060-816-0	04	1	1312-
48	BOLT; ASSIST GRIP (A) M8X30 FLANGE	0-28660-830-0	04	1	1312-
53	SCREW; ASSIST HANDLE (B) M6X28	8-98004-344-0	02	1	1312-
53	SCREW; ASSIST HANDLE (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	1312-
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	1312-
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	1312-
59	COVER; ASSIST GRIP (C) DARK GRAY	8-97407-417-1	01	1	1312-
66	BOLT; ASSIST GRIP BRKT EXC. VIN MODEL YEAR 2014<VZE> (A) M6X12 FLANGE	8-97108-669-0	06	1	1404-
66	BOLT; ASSIST GRIP BRKT (B) M8X16 FLANGE	0-28050-816-0	04	1	1312-
66	BOLT; ASSIST GRIP BRKT (A) M6X12 FLANGE	8-97108-669-0	03	1	1312-1402
66	BOLT; ASSIST GRIP BRKT (A) M6X12 FLANGE	8-97108-669-0	03	1	1403-1403
66	BOLT; ASSIST GRIP BRKT VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (A) M6X12 FLANGE	8-97108-669-0	03	1	1403-1403
66	BOLT; ASSIST GRIP BRKT VIN MODEL YEAR 2014<VZE> (A) M6X12 FLANGE	8-97108-669-0	03	1	1404-
69	BRACKET; ASSIST GRIP EXC. VIN MODEL YEAR 2014<VZE> (A)	8-98014-094-0	02	1	1404-
69	BRACKET; ASSIST GRIP (A)	8-98014-094-0	01	1	1312-1402
69	BRACKET; ASSIST GRIP (A)	8-98014-094-0	01	1	1403-1403
69	BRACKET; ASSIST GRIP VENTILATOR & DEFROSTER WO/HEATER<SAZ> EXC. VIN MODEL YEAR 2014<VZE> (A)	8-98014-094-0	01	1	1403-1403
69	BRACKET; ASSIST GRIP VIN MODEL YEAR 2014<VZE> (A)	8-98014-094-0	01	1	1404-
69	BRACKET; ASSIST GRIP (B)	8-98057-972-2	01	1	1312-
69	BRACKET; ASSIST GRIP (B)	8-98057-971-2	01	1	1312-
72	GRIP; ASSIST,CAB ENTRY,BACK IDN	8-97386-939-0	02	1	1312-

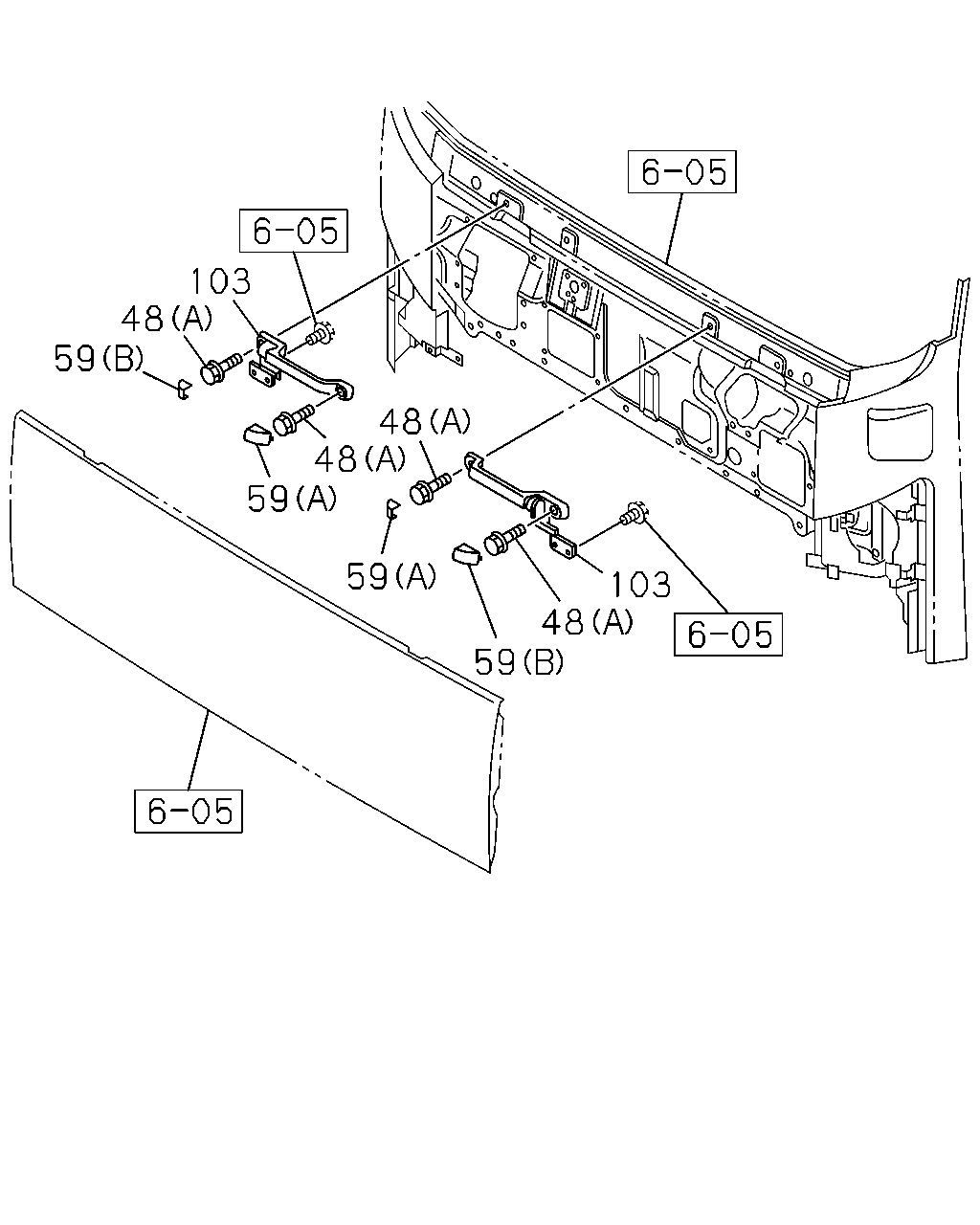

103 48 59 59 48 103 59 48 48 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (B) M8X16 FLANGE	0-28060-816-0	04	1	1312-
48	BOLT; ASSIST GRIP (A) M8X30 FLANGE	0-28660-830-0	04	1	1312-
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	1312-
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	1312-
59	COVER; ASSIST GRIP (C) DARK GRAY	8-97407-417-1	01	1	1312-
103	GRIP; ASSIST,FRT PNL	8-98036-565-1	01	1	1312-
103	GRIP; ASSIST,FRT PNL	8-98036-566-1	01	1	1312-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
