◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11563 - FRR(INDONESIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#131125) — 99 parça

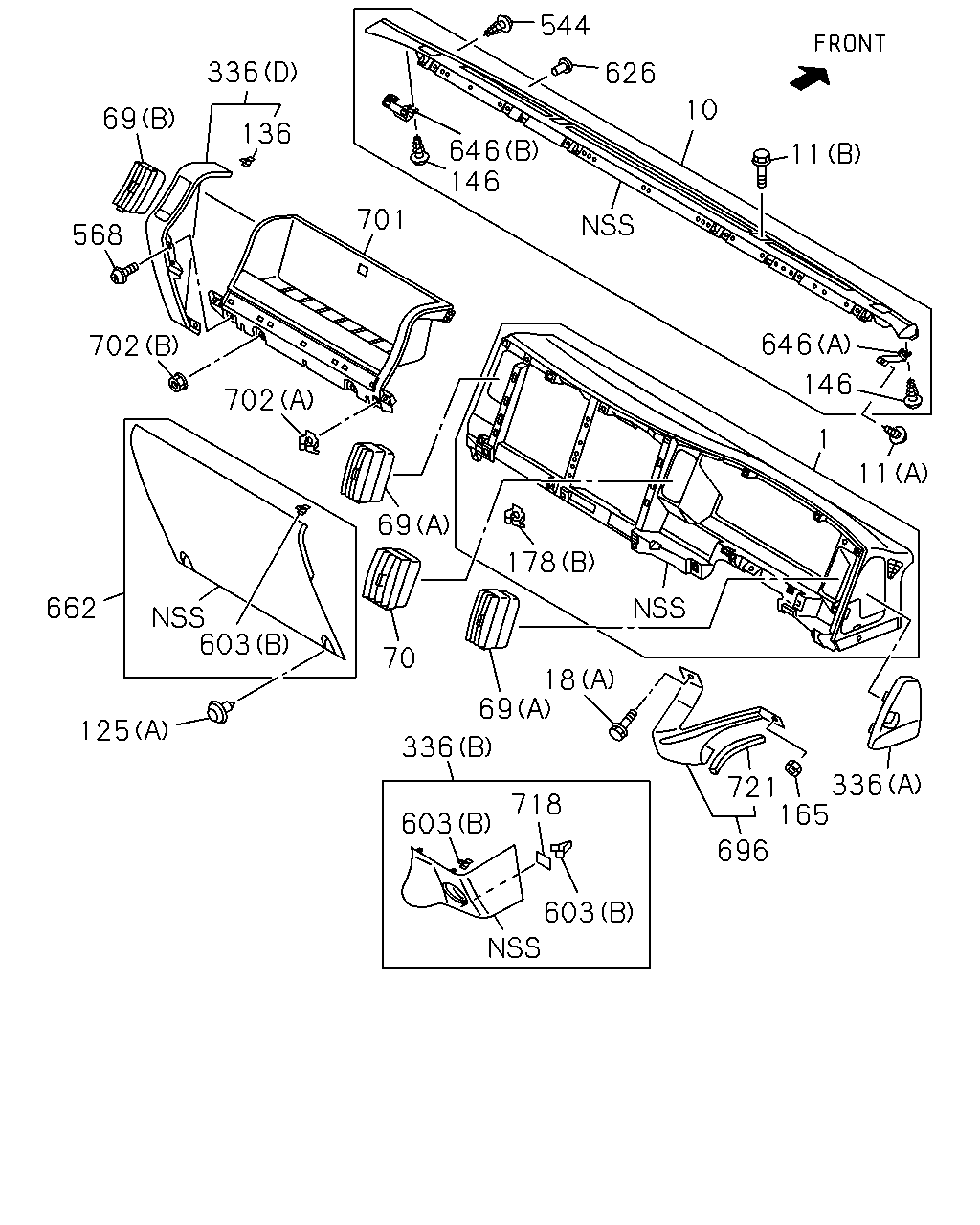

çizim 388679
11 10 626 544 646 146 646 146 11 336 165 696 721 603 718 603 336 69 18 178 70 125 603 662 69 702 702 568 69 336 136 701 1
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97423-015-0 01 1 1312-
10 PANEL ASM; GARNISH
GRAY 		8-97422-095-1 01 1 1312-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1312-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1312-
18 BOLT; BRKT
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1312-
18 BOLT; BRKT
(B) T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1312-
69 GRILLE; SIDE,AIR OUTLET
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) IDN 		8-98028-561-2 02 1 1312-
69 GRILLE; SIDE,AIR OUTLET
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) IDN 		8-98028-562-2 01 1 1312-
70 GRILLE; CENTER,AIR OUTLET
VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN 		8-98028-563-2 01 1 1312-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1312-
125 CLIP; INST PANEL
(A) GRAY IDN 		8-97419-968-1 02 1 1312-1401
125 CLIP; INST PANEL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) GRAY IDN 		8-97419-968-1 02 1 1402-
136 CLIP; INST COVER 8-98076-254-0 02 1 1312-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1312-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1312-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1312-
178 NUT; INST PANEL
(B) IDN 		8-98037-629-0 15 1 1312-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1312-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1312-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1312-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1312-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1312-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1312-1401
568 BOLT; COVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1402-
603 CLIP; COVER
(A) IDN 		8-98004-025-0 01 1 1312-
603 CLIP; COVER
(B) IDN 		8-98021-271-0 04 1 1312-
603 CLIP; COVER
(B) IDN 		8-98021-271-0 05 1 1312-1401
603 CLIP; COVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) IDN 		8-98021-271-0 05 1 1402-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1312-
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1312-
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1312-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-428-2 01 1 1312-1401
662 COVER; LWR,INST PANEL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> GRAY 		8-97407-428-2 01 1 1402-
696 BRACKET; KNEE 8-98066-085-1 01 1 1312-
701 TRAY; INST
GRAY 		8-97421-976-1 01 1 1312-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1312-
702 NUT; TRAY
(A) IDN 		8-98037-629-0 01 1 1312-
718 SEAL; COVER
7X31 IDN 		8-98061-777-0 01 1 1312-
721 FINISHER; BRKT,KNEE
L=140 IDN 		8-97892-742-0 01 1 1312-

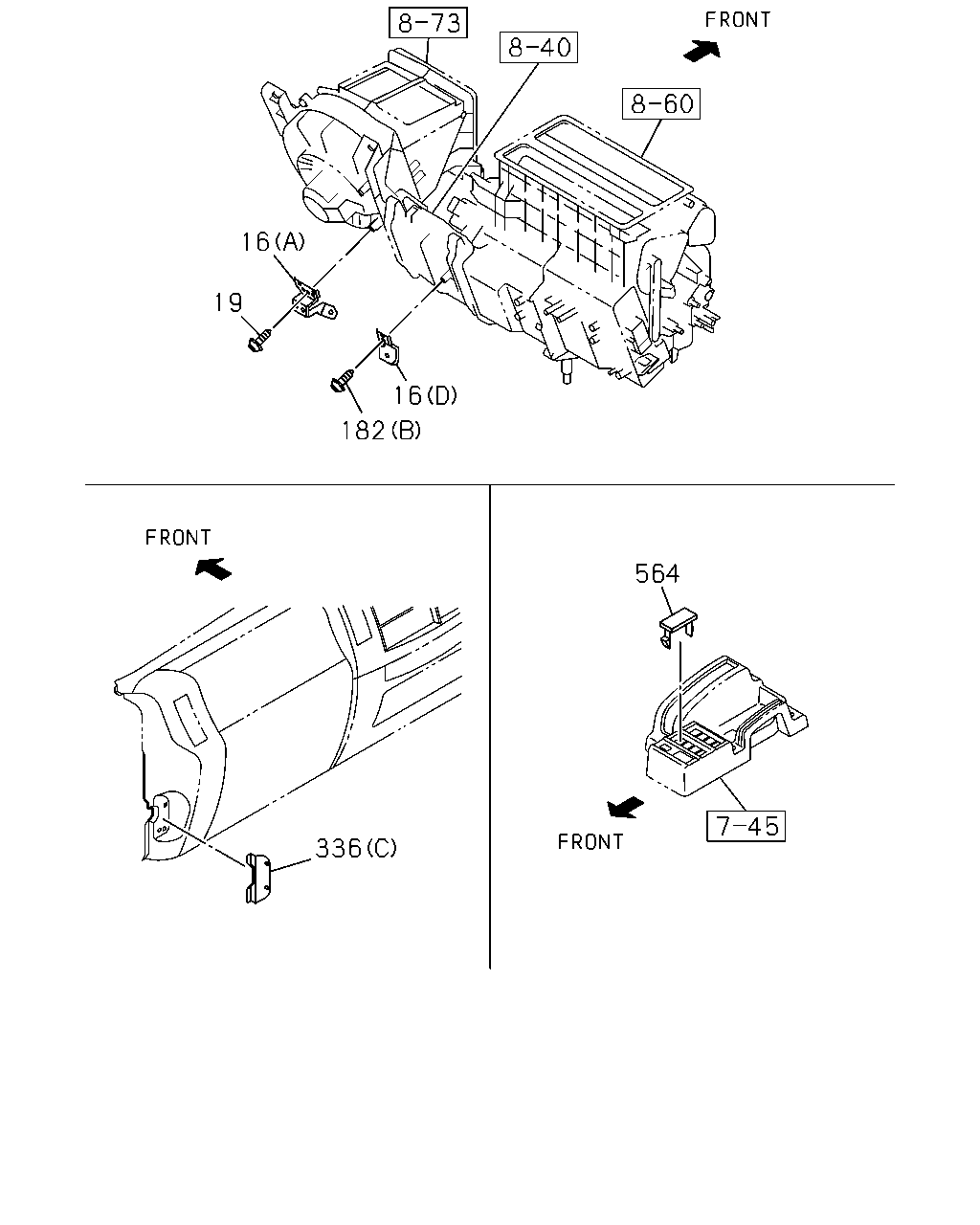

çizim 388988
16 182 19 16 336 564
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(C) IDN 		8-98053-711-0 01 1 1312-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1312-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1312-
16 BRACKET; INST PNL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-97585-612-2 01 1 1312-
16 BRACKET; INST PNL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (D) 		8-98010-154-0 01 1 1312-
19 SCREW; BRKT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1312-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1312-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1312-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1312-
182 BOLT; BRKT,INST PANEL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1312-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1312-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1312-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1312-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1312-
564 COVER; SW 8-97043-732-1 06 1 1312-

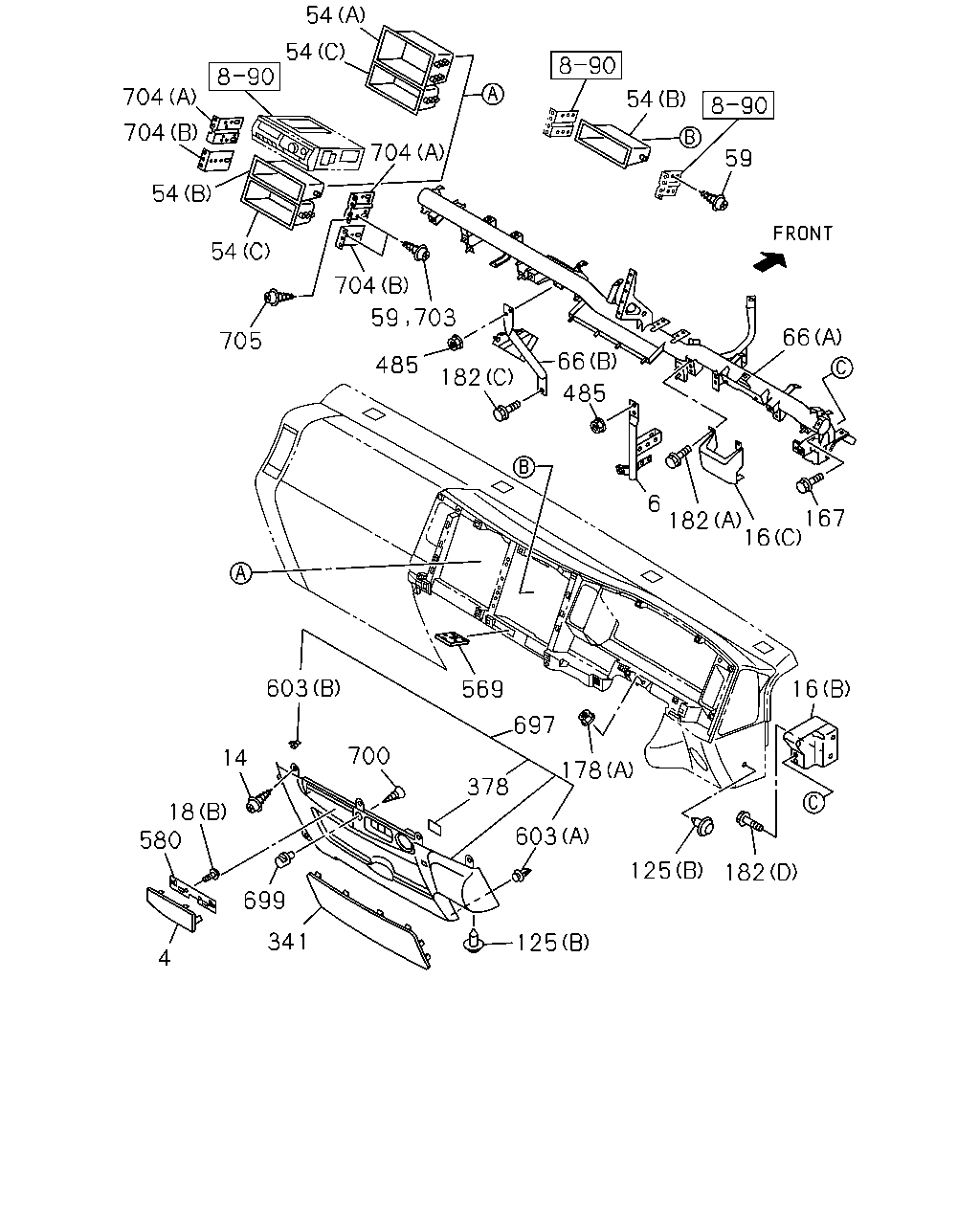

çizim 389227
569 603 697 178 125 182 603 378 700 14 18 580 699 341 4 125 182 6 485 66 182 485 59 703 54 59 66 167 16 16 705 54 54 704 704 54 54 704 704
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL
GRAY IDN 		8-97407-898-1 01 1 1312-
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1312-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1312-
16 BRACKET; INST PNL
(C) IDN 		8-98053-711-0 01 1 1312-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1312-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1312-
16 BRACKET; INST PNL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-97585-612-2 01 1 1312-
16 BRACKET; INST PNL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (D) 		8-98010-154-0 01 1 1312-
18 BOLT; BRKT
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1312-
18 BOLT; BRKT
(B) T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1312-
54 POCKET; CENTER CLUSTER
VIN MODEL YEAR 2014<VZE> (A) IDN 		8-97926-874-0 01 1 1402-
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK IDN 		8-97407-129-2 01 1 1312-1401
54 POCKET; CENTER CLUSTER
EXC. VIN MODEL YEAR 2014<VZE> (A) H=108.4 BLACK IDN 		8-97407-129-3 01 1 1402-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK IDN 		8-97408-864-3 01 1 1312-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK IDN 		8-97408-865-3 01 1 1312-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1312-
66 REINFORCEMENT; INST PANEL
(B) 		8-98151-167-0 01 1 1312-
66 REINFORCEMENT; INST PANEL
(A) 		8-98170-401-0 01 1 1312-1406
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-605-0 01 1 1407-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1312-
125 CLIP; INST PANEL
(A) GRAY IDN 		8-97419-968-1 02 1 1312-1401
125 CLIP; INST PANEL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) GRAY IDN 		8-97419-968-1 02 1 1402-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1312-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1312-
178 NUT; INST PANEL
(B) IDN 		8-98037-629-0 15 1 1312-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1312-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1312-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1312-
182 BOLT; BRKT,INST PANEL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1312-
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1312-
378 SEAL; INST PANEL
5X30 IDN 		8-98176-199-0 01 1 1312-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1312-
569 HOLDER; CARD
IDN 		8-97410-276-1 01 1 1312-
580 BRACKET; COVER
IDN 		8-98091-546-0 01 1 1312-
603 CLIP; COVER
(A) IDN 		8-98004-025-0 01 1 1312-
603 CLIP; COVER
(B) IDN 		8-98021-271-0 04 1 1312-
603 CLIP; COVER
(B) IDN 		8-98021-271-0 05 1 1312-1401
603 CLIP; COVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) IDN 		8-98021-271-0 05 1 1402-
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1312-
699 HOOK; INST PANEL
GRAY IDN 		8-97408-927-0 01 1 1312-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1312-
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1312-
704 BRACKET; CENTER POCKET
(B) IDN 		8-97585-616-2 02 1 1312-
704 BRACKET; CENTER POCKET
(A) IDN 		8-97585-618-2 02 1 1312-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1312-
