7-20 — MIRROR AND MIRROR STAY (#131123) — 87 parça

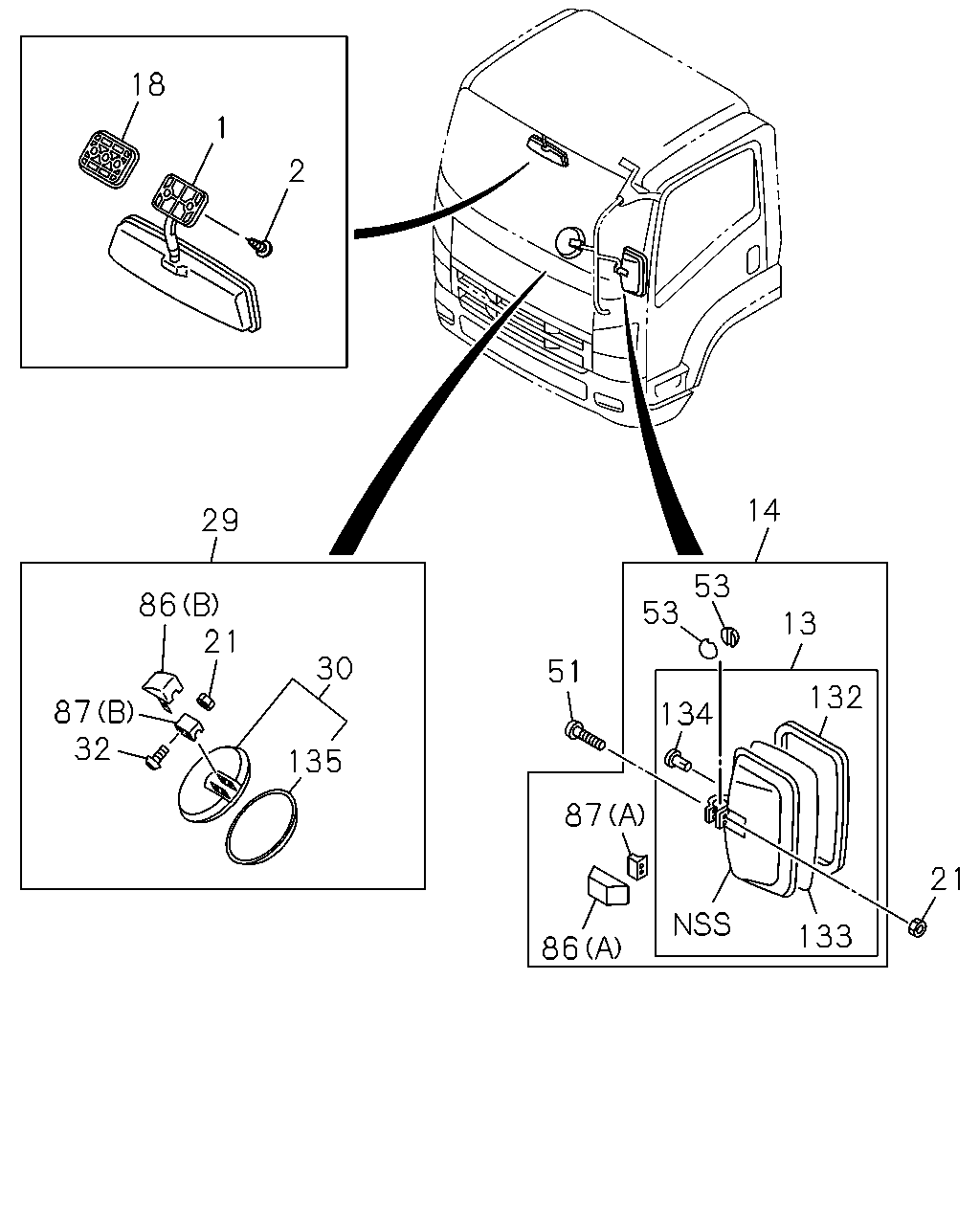

2 1 18 29 86 87 32 135 30 51 53 14 53 13 132 134 87 86 133 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM IDN	8-97924-058-2	01	1	1312-
2	SCREW; MIRROR TO BODY M6X26	8-98033-674-0	02	1	1312-
13	MIRROR ASM; OUTSIDE RR VIEW	1-71737-917-3	01	1	1312-
13	MIRROR ASM; OUTSIDE RR VIEW	1-71737-918-3	01	1	1312-
14	MIRROR ASM; OUTSIDE PIVOT ID=22.2	1-71707-152-1	01	1	1312-
14	MIRROR ASM; OUTSIDE PIVOT ID=22.2	1-71737-922-1	01	1	1312-
18	CLIP; MIRROR DARK GRAY	8-97408-241-0	01	1	1312-
21	NUT; MIRROR M5	1-09984-124-0	04	1	1312-
21	NUT; MIRROR M5	1-09984-124-0	02	1	1312-
29	MIRROR ASM; UNDER	1-71798-422-0	01	1	1312-
30	MIRROR; UNDER	1-71798-591-1	01	1	1312-
32	SCREW; UNDER MIRROR M5X40 W/PL WASHER	1-71737-797-0	02	1	1312-
51	SCREW; MIRROR	1-09981-541-0	04	1	1312-
53	PIVOT; SIDE MIRROR ID=22.2	1-71736-489-2	04	1	1312-
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-1	02	1	1312-
86	COVER; STAY,OUTSIDE MIRROR (B) BLACK	1-71737-649-1	01	1	1312-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98040-545-1	01	1	1312-
86	COVER; STAY,OUTSIDE MIRROR (D)	8-98040-546-1	01	1	1312-
86	COVER; STAY,OUTSIDE MIRROR (E)	8-98040-541-1	01	1	1312-
87	SPACER (A)	1-71737-704-0	02	1	1312-
87	SPACER (B)	1-71737-646-2	01	1	1312-
132	RING; MIRROR	1-71737-933-0	01	1	1312-
132	RING; MIRROR	1-71737-934-0	01	1	1312-
133	LENS; MIRROR,OUTSIDE	1-71737-926-0	01	1	1312-
133	LENS; MIRROR,OUTSIDE	1-71737-927-0	01	1	1312-
134	CLIP; MIRROR LENS	1-71737-936-0	02	1	1312-
135	LENS; MIRROR,SIDE UNDER	1-71798-838-0	01	1	1312-

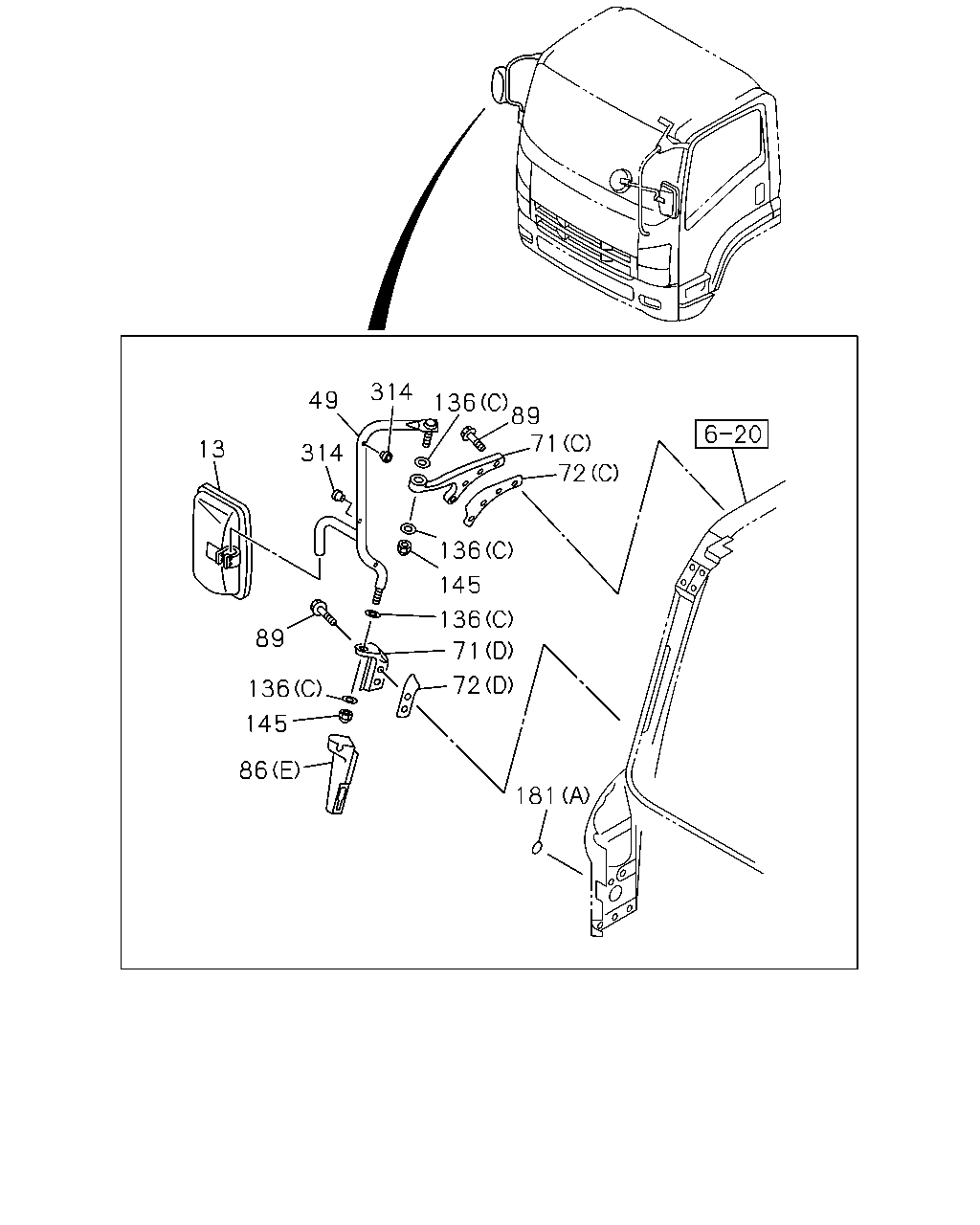

13 89 136 145 86 181 72 71 136 145 136 72 71 89 136 314 49 314

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	1-71737-917-3	01	1	1312-
13	MIRROR ASM; OUTSIDE RR VIEW	1-71737-918-3	01	1	1312-
49	STAY; MIRROR SIDE	8-98170-680-0	01	1	1312-
49	STAY; MIRROR SIDE	8-98170-679-0	01	1	1312-1502
49	STAY; MIRROR SIDE IDN	8-98305-763-0	01	1	1503-
71	BRACKET; OUTSIDE MIRROR (A)	8-98040-022-1	01	1	1312-
71	BRACKET; OUTSIDE MIRROR (B)	8-98201-957-0	01	1	1312-
71	BRACKET; OUTSIDE MIRROR (C)	8-98040-021-0	01	1	1312-
71	BRACKET; OUTSIDE MIRROR (D)	8-98040-543-1	01	1	1312-
72	SHEET (A)	8-98040-535-0	01	1	1312-
72	SHEET (B)	8-98040-537-1	01	1	1312-
72	SHEET (C)	8-98040-351-0	01	1	1312-
72	SHEET (D)	8-98040-353-1	01	1	1312-
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-1	02	1	1312-
86	COVER; STAY,OUTSIDE MIRROR (B) BLACK	1-71737-649-1	01	1	1312-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98040-545-1	01	1	1312-
86	COVER; STAY,OUTSIDE MIRROR (D)	8-98040-546-1	01	1	1312-
86	COVER; STAY,OUTSIDE MIRROR (E)	8-98040-541-1	01	1	1312-
89	SCREW; BRKT,OUTSIDE MIRROR M8X26 W/PL WASHER	8-98067-249-2	10	1	1312-
136	WASHER; LK,BRKT,MIRROR STAY (A) ID=10	1-09985-180-0	01	1	1312-
136	WASHER; LK,BRKT,MIRROR STAY (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1312-
136	WASHER; LK,BRKT,MIRROR STAY (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1312-
145	NUT; CAP,SUB STAY M10 CAP NUT	1-09984-134-0	03	1	1312-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1312-
181	SEAL; BRKT (A) OD=25 BLACK	1-76798-019-0	01	1	1312-
314	BUFFER; STOPPER	8-94314-317-0	02	1	1312-

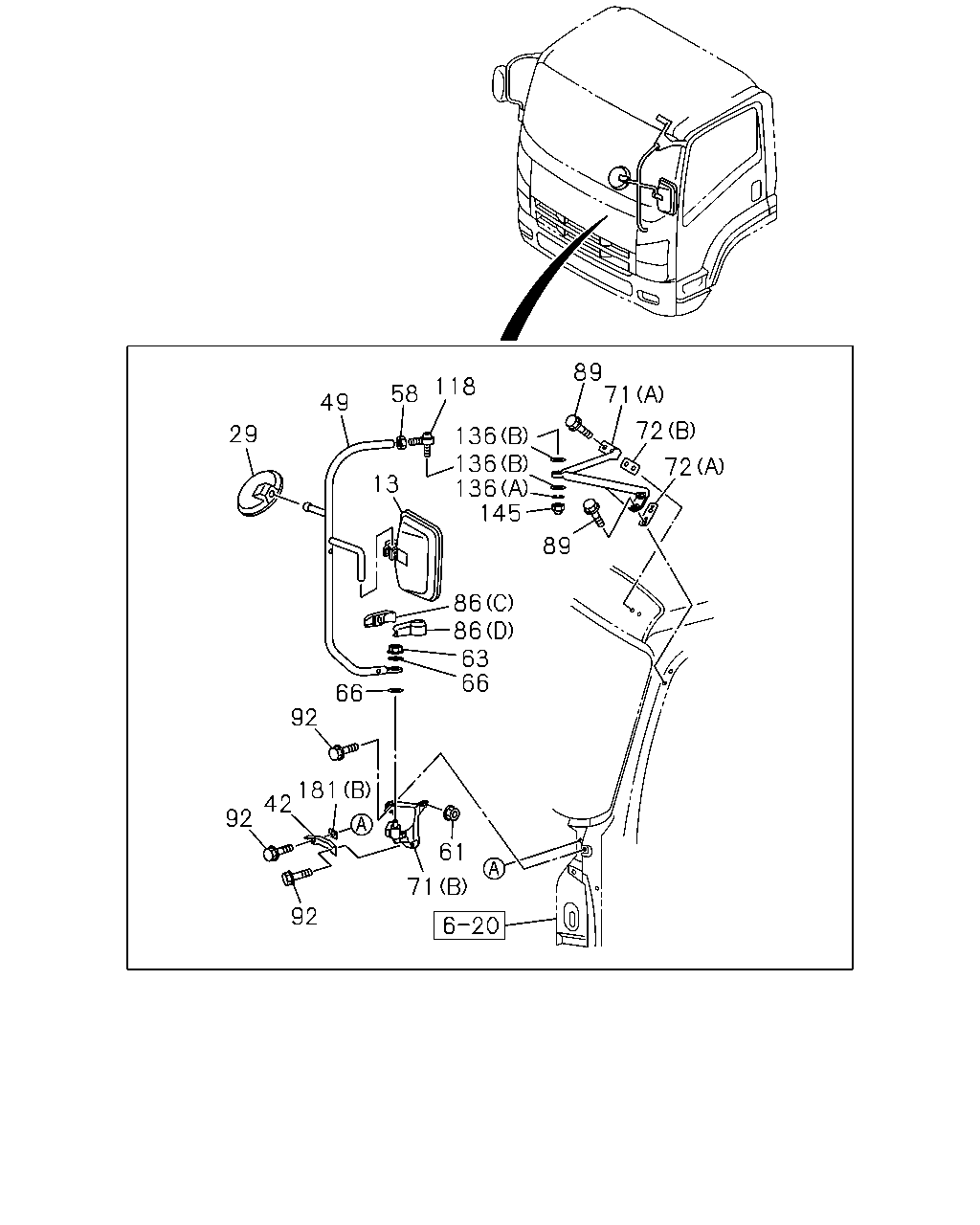

72 72 71 58 49 29 118 136 136 136 13 86 86 63 66 66 92 71 61 92 92 181 89 89 145 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW	1-71737-917-3	01	1	1312-
13	MIRROR ASM; OUTSIDE RR VIEW	1-71737-918-3	01	1	1312-
29	MIRROR ASM; UNDER	1-71798-422-0	01	1	1312-
42	ATTACHMENT; OUTSIDE MIRROR	8-98070-643-0	01	1	1312-
49	STAY; MIRROR SIDE	8-98170-680-0	01	1	1312-
49	STAY; MIRROR SIDE	8-98170-679-0	01	1	1312-1502
49	STAY; MIRROR SIDE IDN	8-98305-763-0	01	1	1503-
58	NUT; MIRROR STAY M12	8-98061-883-0	01	1	1312-
61	NUT; STAY,OUTSIDE MIRROR M8 FLANGE	0-91180-108-0	01	1	1312-
63	NUT; STAY M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1312-
66	WASHER; PL LOWER	0-91610-614-0	01	1	1312-
66	WASHER; PL UPPER	8-98201-756-0	01	1	1312-
71	BRACKET; OUTSIDE MIRROR (A)	8-98040-022-1	01	1	1312-
71	BRACKET; OUTSIDE MIRROR (B)	8-98201-957-0	01	1	1312-
71	BRACKET; OUTSIDE MIRROR (C)	8-98040-021-0	01	1	1312-
71	BRACKET; OUTSIDE MIRROR (D)	8-98040-543-1	01	1	1312-
72	SHEET (A)	8-98040-535-0	01	1	1312-
72	SHEET (B)	8-98040-537-1	01	1	1312-
72	SHEET (C)	8-98040-351-0	01	1	1312-
72	SHEET (D)	8-98040-353-1	01	1	1312-
86	COVER; STAY,OUTSIDE MIRROR (A) BLACK	1-71737-760-1	02	1	1312-
86	COVER; STAY,OUTSIDE MIRROR (B) BLACK	1-71737-649-1	01	1	1312-
86	COVER; STAY,OUTSIDE MIRROR (C)	8-98040-545-1	01	1	1312-
86	COVER; STAY,OUTSIDE MIRROR (D)	8-98040-546-1	01	1	1312-
86	COVER; STAY,OUTSIDE MIRROR (E)	8-98040-541-1	01	1	1312-
89	SCREW; BRKT,OUTSIDE MIRROR M8X26 W/PL WASHER	8-98067-249-2	10	1	1312-
92	BOLT; STAY BRKT,MIRROR M8X16 FLANGE	8-98076-109-0	04	1	1312-
118	JOINT ASM; BALL	1-71798-356-2	01	1	1312-
136	WASHER; LK,BRKT,MIRROR STAY (A) ID=10	1-09985-180-0	01	1	1312-
136	WASHER; LK,BRKT,MIRROR STAY (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1312-
136	WASHER; LK,BRKT,MIRROR STAY (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1312-
145	NUT; CAP,SUB STAY M10 CAP NUT	1-09984-134-0	03	1	1312-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1312-
181	SEAL; BRKT (A) OD=25 BLACK	1-76798-019-0	01	1	1312-
