◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11563 - FRR(INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#131102) — 112 parça

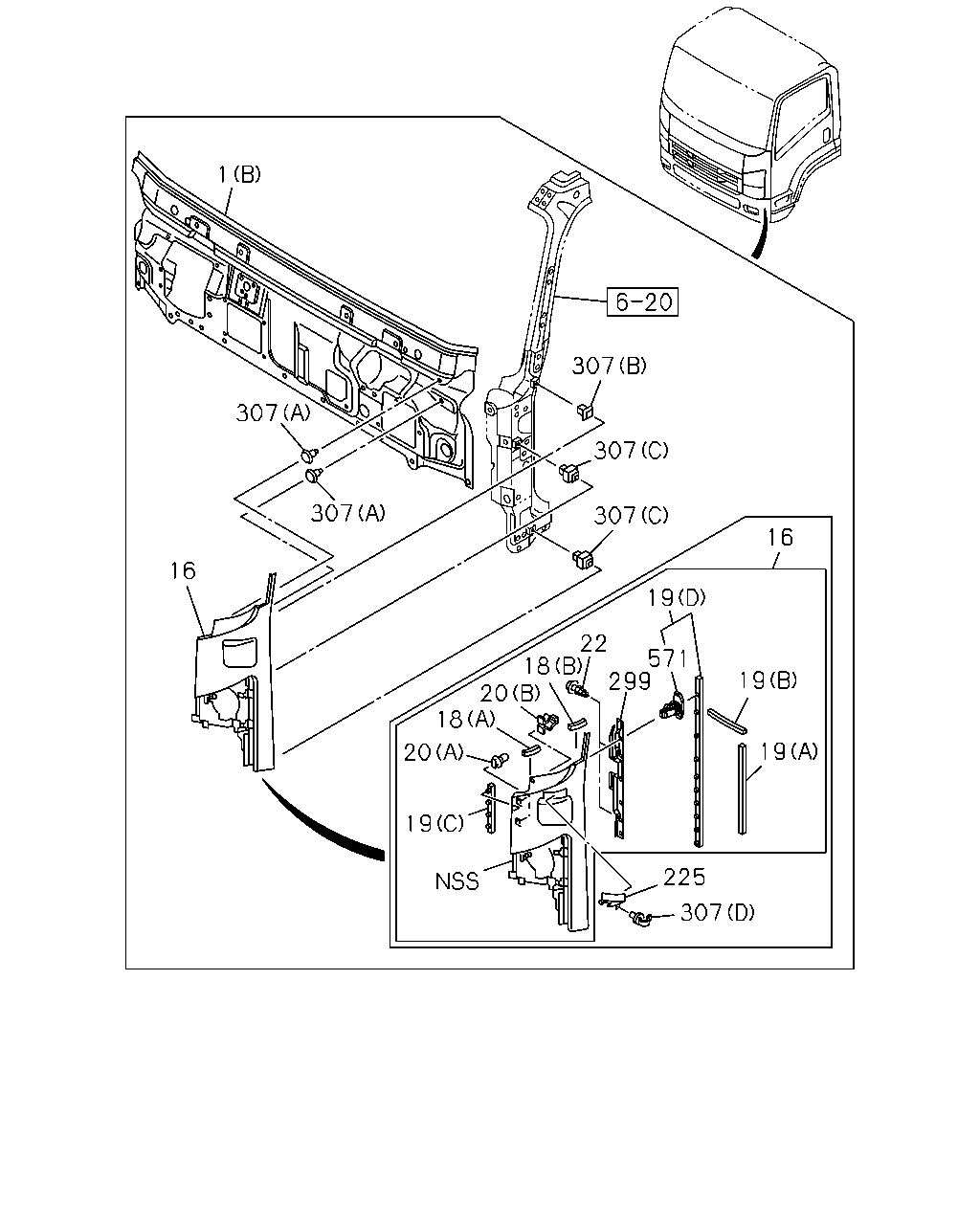

çizim 388616
307 307 307 307 307 307 16 1 19 22 18 20 18 20 19 225 19 19 571 299 16
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1312-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1312-
16 PANEL; FRONT,SIDE
WHITE IDN 		8-97407-511-5 01 1 1312-
16 PANEL; FRONT,SIDE
WHITE IDN 		8-97407-509-4 01 1 1312-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) IDN 		8-98038-608-0 02 1 1312-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) IDN 		8-98043-511-1 02 1 1312-
19 SEAL; FRT SIDE PANEL
(B) IDN 		8-98035-268-0 02 1 1312-
19 SEAL; FRT SIDE PANEL
(A) IDN 		8-98062-215-0 02 1 1312-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-581-0 01 1 1312-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-359-2 01 1 1312-
19 SEAL; FRT SIDE PANEL
(C) 		8-98036-580-0 01 1 1312-
19 SEAL; FRT SIDE PANEL
(D) 		8-98041-358-2 01 1 1312-
20 CLIP; FRT PANEL SIDE
(A) IDN 		8-97410-739-1 04 1 1312-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-3 02 1 1312-
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER IDN 		0-74360-410-0 06 1 1312-
225 COVER; SIDE,FRT 8-98041-431-1 01 1 1312-
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1312-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1312-
307 GROMMET; FRT PANEL
(B) IDN 		8-97410-738-0 02 1 1312-
307 GROMMET; FRT PANEL
(C) IDN 		8-98021-300-1 04 1 1312-
307 GROMMET; FRT PANEL
(A) OD=20 IDN 		8-98034-363-1 04 1 1312-
307 GROMMET; FRT PANEL
(D) IDN 		8-98028-743-0 01 1 1312-
571 CLIP; SEAL
NATURAL IDN 		8-98027-457-0 20 1 1312-

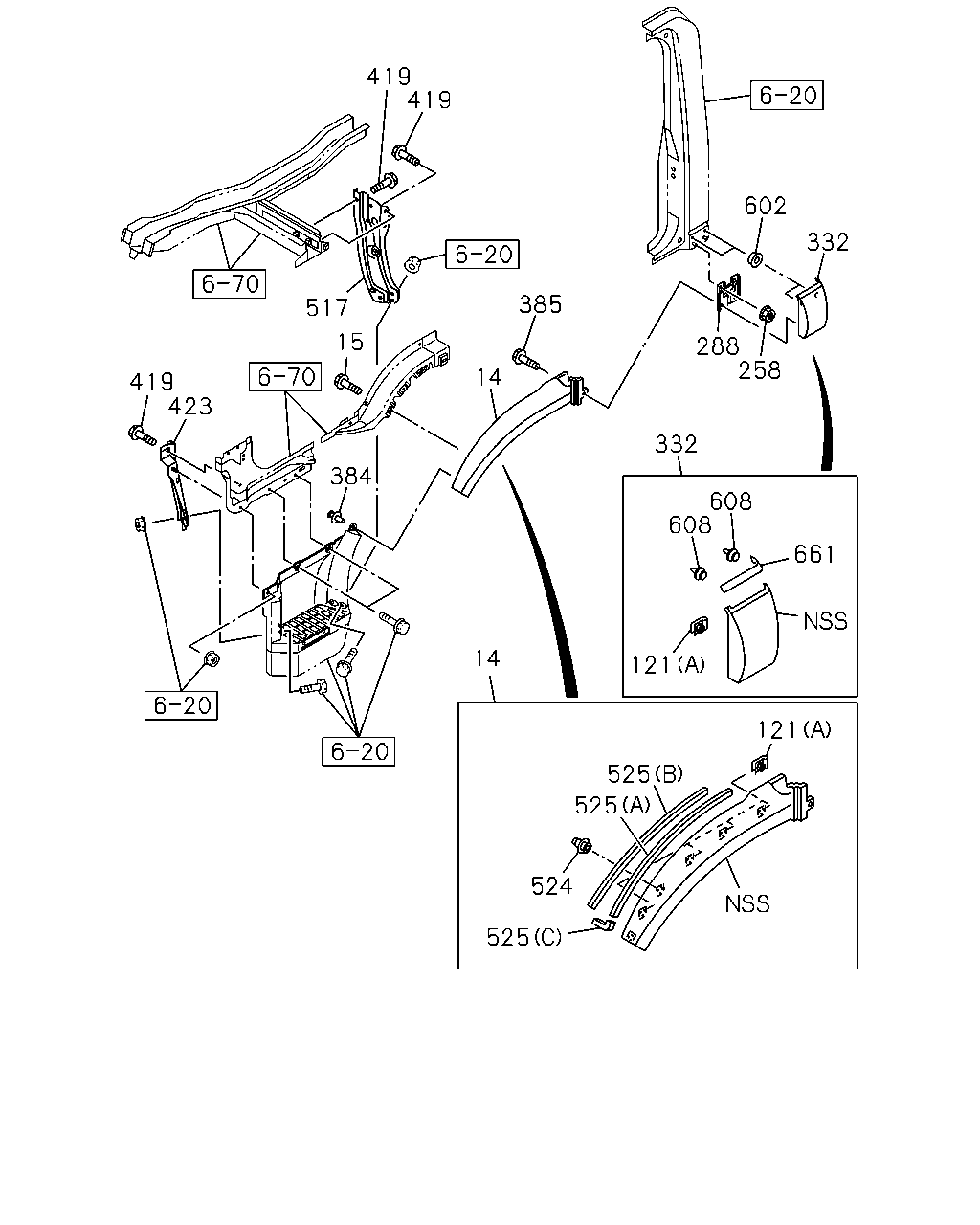

çizim 388619
385 419 419 602 258 288 332 608 608 661 14 525 121 121 525 524 525 14 15 517 384 423 419 332
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT 8-98182-321-0 01 1 1312-
14 FENDER; FRT 8-98182-320-0 01 1 1312-
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1312-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 IDN 		8-94279-078-0 06 1 1312-
121 GROMMET; FENDER
(A) 		8-94279-723-0 02 1 1312-
121 GROMMET; FENDER
(A) 		8-94279-723-0 06 1 1312-
121 GROMMET; FENDER
(D) OD=8.3 IDN 		8-94279-989-0 10 1 1312-
121 GROMMET; FENDER
(B) H=15 IDN 		8-94463-268-1 04 1 1312-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1312-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1312-
258 NUT; BRKT
M6 FLANGE 		0-91180-106-0 04 1 1312-
288 BRACKET; FENDER SKIRT 8-98041-162-1 02 1 1312-
332 FENDER; RR 8-98089-820-0 01 1 1312-
332 FENDER; RR 8-98089-819-0 01 1 1312-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1312-
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 02 1 1312-
419 BOLT; STEP
M8X20 FLANGE IDN 		0-28650-820-0 08 1 1312-
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 1312-
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 1312-
517 SUPPORT; STEP PANEL 8-98037-339-2 01 1 1312-
517 SUPPORT; STEP PANEL 8-98037-338-2 01 1 1312-
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1312-
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 1312-
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 1312-
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1312-
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 04 1 1312-
608 CLIP
D5.4X8 		1-09983-154-0 04 1 1312-
661 FINISHER; FENDER RR 8-98072-722-0 01 1 1312-
661 FINISHER; FENDER RR 8-98041-171-1 01 1 1312-

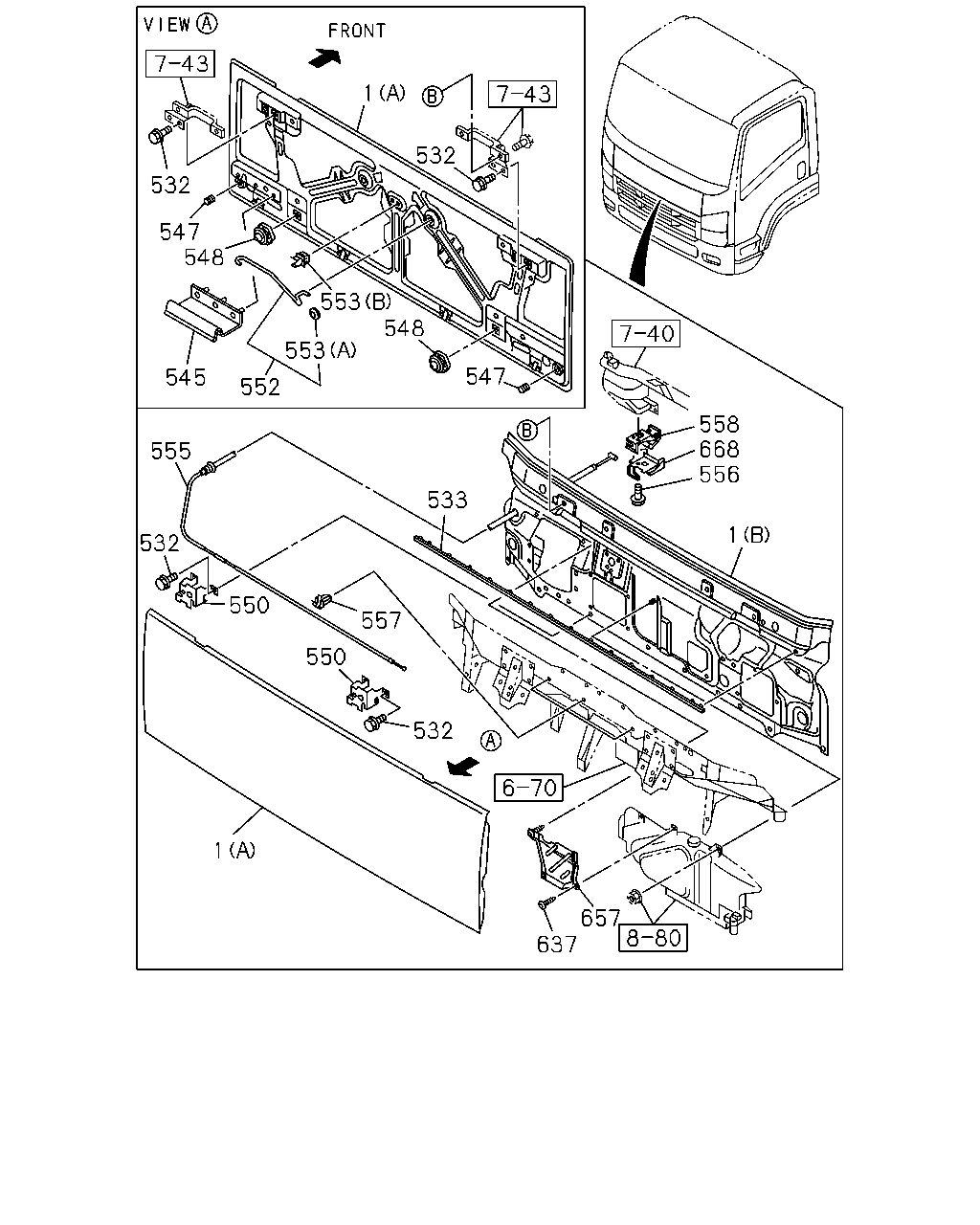

çizim 388676
1 533 557 550 532 657 637 1 532 555 545 548 547 532 1 532 547 548 553 553 552 558 556 668 550
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1312-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1312-
532 BOLT; FRT PANEL
M8X20 FLANGE IDN 		0-28650-820-0 08 1 1312-
533 SEAL; FRT PANEL
IDN 		8-98096-288-0 01 1 1312-
545 SEAL; FRT LID
IDN 		8-98123-264-0 01 1 1312-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1312-
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1312-
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 1312-
552 STAY; FRT LID 8-98089-836-0 01 1 1312-
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1312-
553 CLIP; STAY
(A) 		8-98059-320-0 01 1 1312-
555 CABLE; FRT LID 8-98036-573-1 01 1 1312-
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 1312-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1312-
558 LEVER; FRT LID 1-79338-007-1 01 1 1312-
637 CLIP; COVER
OD=16 L=11 IDN 		1-76378-155-0 02 1 1312-
657 COVER; WIPER IDLER 8-98060-908-0 01 1 1312-
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 1312-

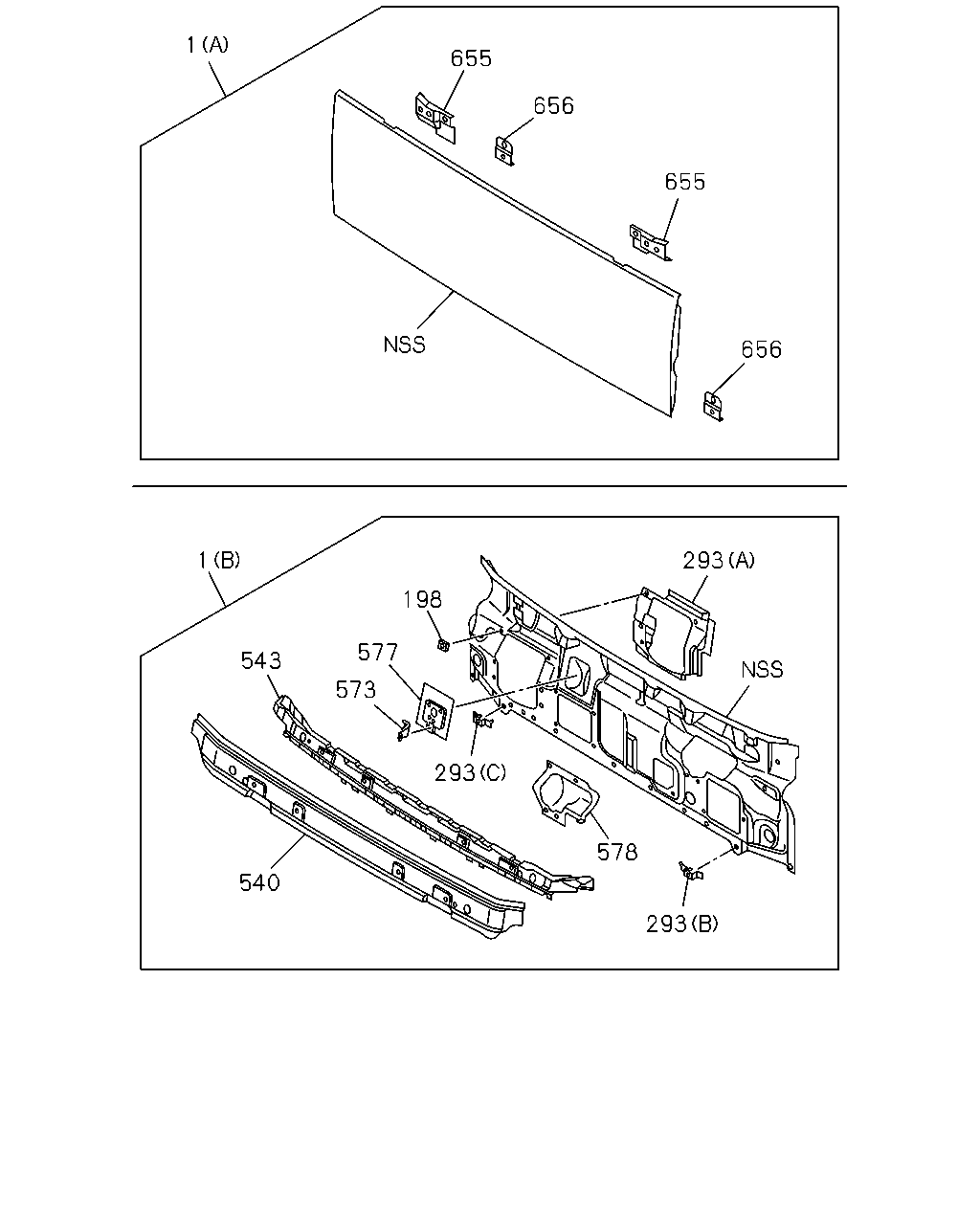

çizim 388761
1 655 656 655 656 293 1 198 543 577 573 293 578 293 540
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-958-9 01 1 1312-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 1312-
198 NUT; PANEL
M6 		9-09114-086-0 02 1 1312-
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 1312-
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1312-
293 BRACKET; PANEL
(C) 		8-98008-126-1 01 1 1312-
540 PANEL; FRONT,OUTER 8-97585-965-2 01 1 1312-
543 CLOSING; FRT MTG RAIL 8-97585-989-4 01 1 1312-
573 BRACKET; SUPPORT 8-98008-127-2 01 1 1312-
577 BRACKET; IDLER 8-97586-019-1 01 1 1312-
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 1312-
655 PATCH; HINGE 8-98031-263-0 01 1 1312-
655 PATCH; HINGE 8-98031-264-0 01 1 1312-
656 PATCH; STRIKER 8-98031-265-0 02 1 1312-

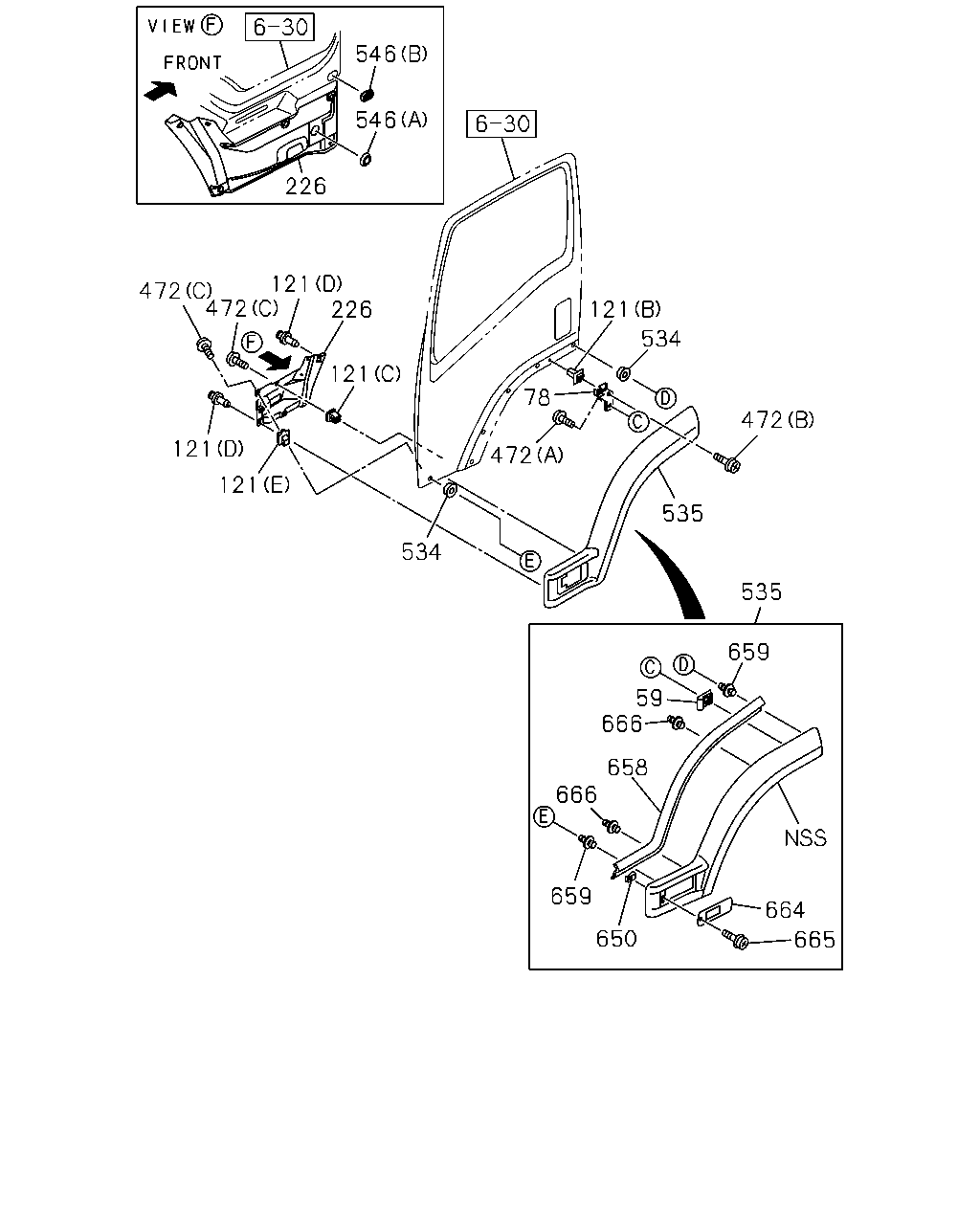

çizim 389263
546 546 226 121 472 472 226 121 121 121 534 472 78 121 534 472 535 535 659 59 666 658 666 659 650 664 665
BalonParca AdiParca NoAdetTipApplied Date
59 GROMMET; SCREW 8-94279-723-0 02 1 1312-
78 BRACKET; FENDER 8-98041-166-1 01 1 1312-
78 BRACKET; FENDER 8-98041-165-1 01 1 1312-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 IDN 		8-94279-078-0 06 1 1312-
121 GROMMET; FENDER
(A) 		8-94279-723-0 02 1 1312-
121 GROMMET; FENDER
(A) 		8-94279-723-0 06 1 1312-
121 GROMMET; FENDER
(D) OD=8.3 IDN 		8-94279-989-0 10 1 1312-
121 GROMMET; FENDER
(B) H=15 IDN 		8-94463-268-1 04 1 1312-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1312-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1312-
226 PROTECTOR; FRT 8-98037-713-2 01 1 1312-
226 PROTECTOR; FRT 8-98037-712-2 01 1 1312-
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1312-
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1312-
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1312-
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1312-
535 FENDER; BLISTER
BLACK 		8-98106-499-0 01 1 1312-
535 FENDER; BLISTER
BLACK 		8-98106-498-0 01 1 1312-
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1312-
546 PLUG; DUMMY HOLE
(B) IDN 		8-94430-184-1 02 1 1312-
650 NUT; SPIRE 8-94279-501-0 02 1 1312-
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 1312-
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 1312-
659 CLIP; FENDER
D5.4X8 		1-09983-154-0 08 1 1312-
664 BASE; DOOR,SIDE TURN 8-98053-146-1 01 1 1312-
664 BASE; DOOR,SIDE TURN 8-98053-145-1 01 1 1312-
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 1312-
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 1312-
