6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶

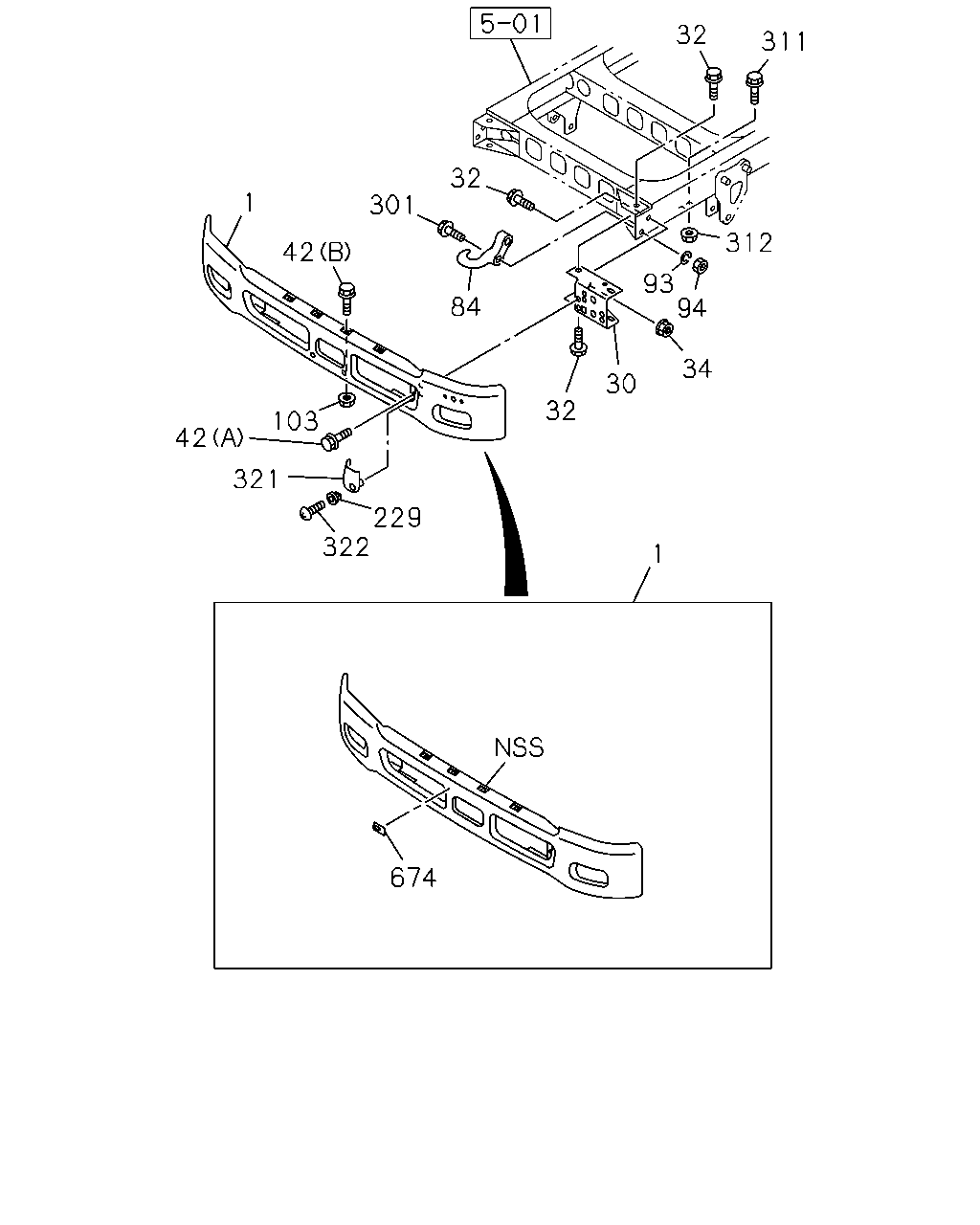

6-01 — FRONT BUMPER
(#131100) — 19 parça
674
322
229
321
42
103
32
30
34
94
93
312
311
32
32
84
301
42
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BUMPER ASM; FRT
WHITE IDN
8-97407-725-3
01
1
1312-
30
BRACKET; FRT BUMPER
8-97611-516-4
01
1
1312-
30
BRACKET; FRT BUMPER
8-97611-515-4
01
1
1312-
32
BOLT; BRKT,BUMPER
M10X35 FLANGE IDN
0-28651-035-0
06
1
1312-
34
NUT; BRKT,BUMPER
M10 FLANGE
0-91180-210-0
02
1
1312-
42
BOLT; BUMPER
(A) M10X30
8-94324-205-0
04
1
1312-
42
BOLT; BUMPER
(B) M6X16 FLANGE
8-98098-459-0
04
1
1312-
84
HOOK
IDN
8-97948-026-0
01
1
1312-
93
WASHER; LK,HOOK
ID=14.2
0-91510-814-0
02
1
1312-
94
NUT; HOOK
M14
0-91110-514-0
02
1
1312-
103
NUT; BUMPER STEP
M6 FLANGE
0-91180-106-0
04
1
1312-
229
GROMMET
D=7X7 L=7.5
5-09983-007-0
02
1
1312-
301
BOLT; HOOK TO FRAME
M14X60
0-10861-460-0
02
1
1312-
311
BOLT; BRKT
M14X45 FLANGE
0-28851-445-0
02
1
1312-
312
NUT; BRKT
M14 FLANGE
0-91180-214-0
02
1
1312-
321
COVER; BUMPER FRT SIDE
8-97616-294-0
01
1
1312-
321
COVER; BUMPER FRT SIDE
8-97616-293-0
01
1
1312-
322
SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1312-
674
BRACKET; BUMPER,PLATE
8-97611-491-1
01
1
1312-
