5 - Frame, Cab Mounting
▶
5-15 - CAB MOUNTING; CAB SIDE
▶
5-15 — CAB MOUNTING; CAB SIDE
(#131097) — 51 parça
◀

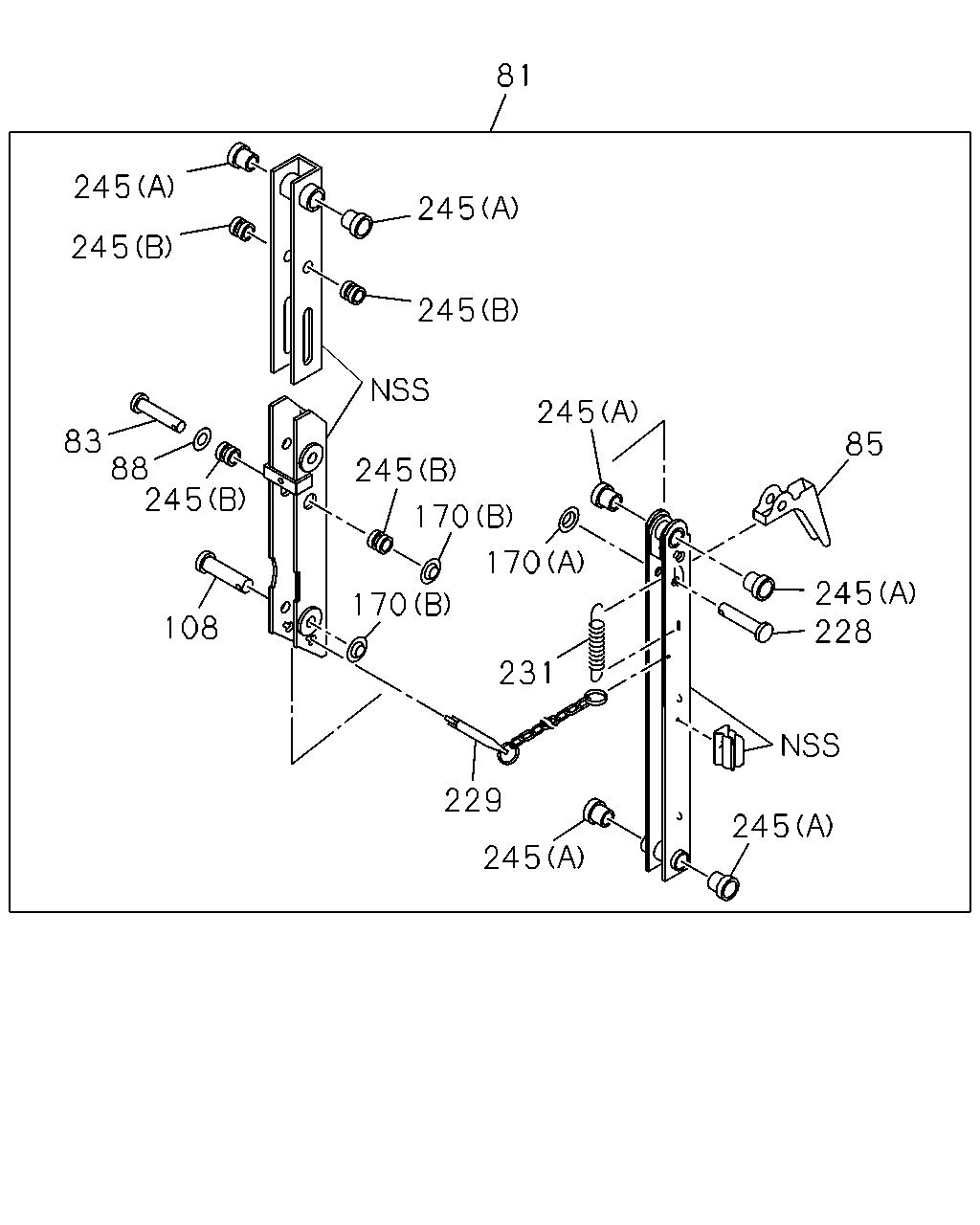

[515A] COMPONENT;CAB TILT STAY (13 parça)

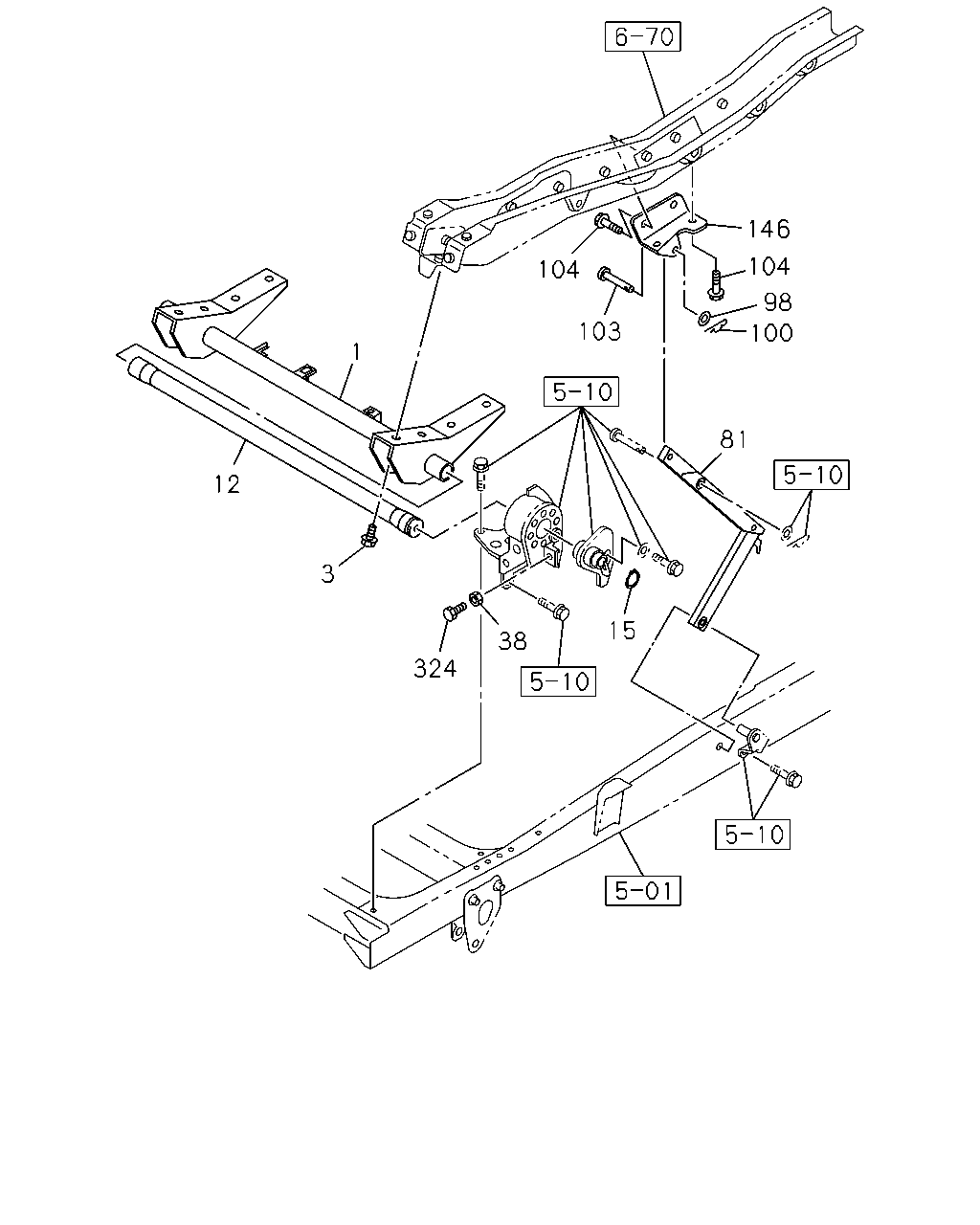

[515A] TORSION BAR AND CAB TILT STAY (13 parça)

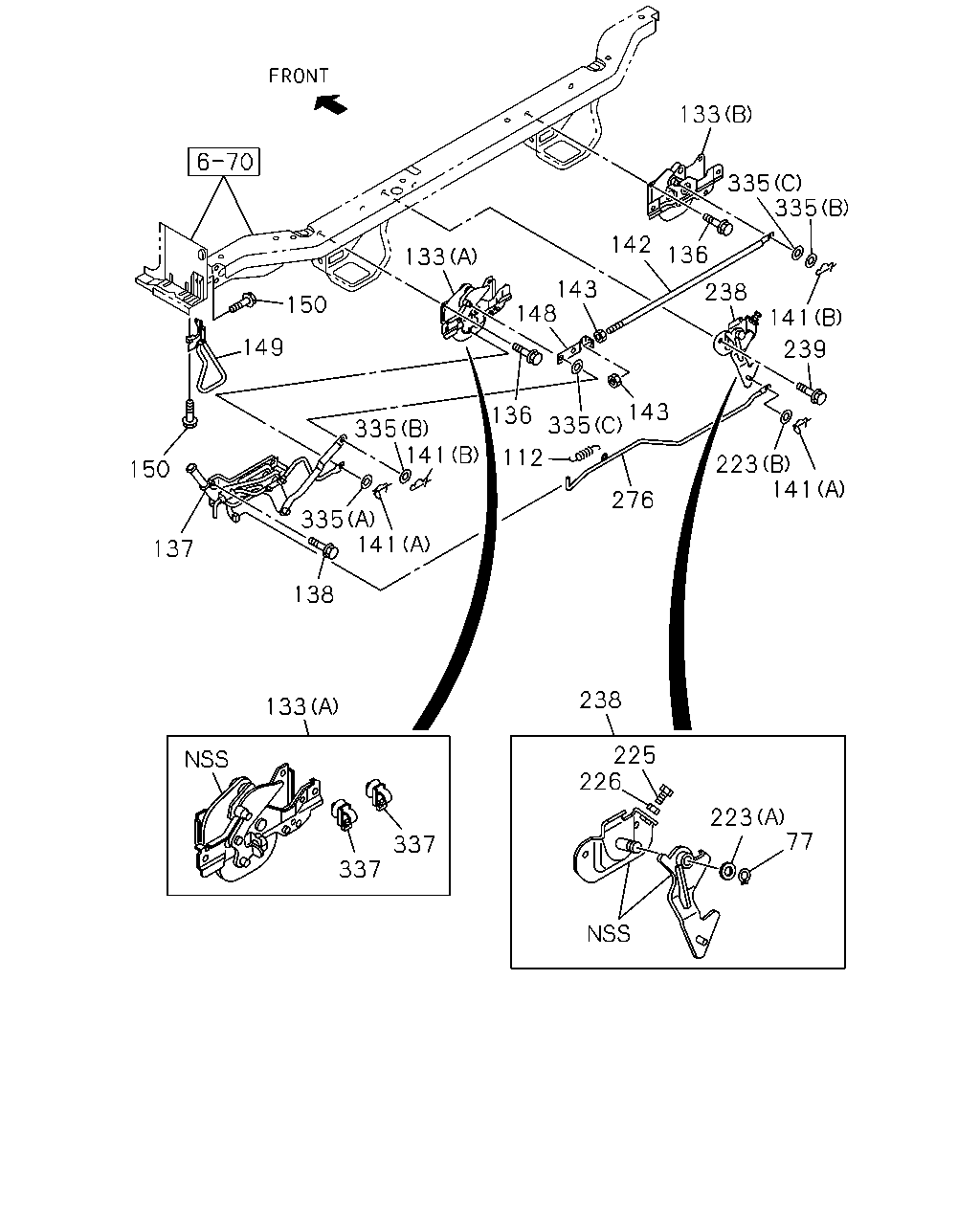

[515A] CAB LOCK (25 parça)
▶
85
245
228
245
245
229
231
170
245
170
170
108
245
88
83
245
245
245
81
245
245
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
81
STAY ASM; CAB TILT
1-62500-758-0
01
1
1312-1406
81
STAY ASM; CAB TILT
8-98278-114-0
01
1
1407-
83
PIN; JOINT,CAB STAY
OD=10 L=42
1-09744-106-0
01
1
1312-
85
LEVER; LOCK,CAB STAY
1-62500-503-0
01
1
1312-
88
WASHER; PL,CAB STAY PIN
ID=10.5 T=2.0
1-09985-183-0
01
1
1312-
108
PIN; ADJ,CAB STAY
OD=10 L=42
1-09744-106-0
01
1
1312-
170
NUT
(A) ID=7.9 PUSH NUT
8-97022-565-0
01
1
1312-
170
NUT
(B) ID=9.9 PUSH NUT
8-97022-566-0
02
1
1312-
228
PIN; SAFETY LOCK SPRING,CAB STAY
1-09744-086-2
01
1
1312-
229
PIN ASM; SAFETY
1-62500-517-1
01
1
1312-
231
SPRING; RETURN,LOCK LEVER,CAB STAY
1-09583-244-0
01
1
1312-
245
BUSHING; CAB STAY
(A)
1-62500-587-0
06
1
1312-
245
BUSHING; CAB STAY
(B)
1-62500-588-0
04
1
1312-
146
104
98
100
103
104
81
1
12
3
324
38
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LEVER; TORSION BAR
8-98010-752-7
01
1
1312-
3
BOLT; LEVER
M12X42 FLANGE
8-98090-287-1
08
1
1312-
12
BAR; TORSION,UPR
8-98010-945-1
01
1
1312-
15
RING; SNAP,TORSION BAR
T=1.90 BLUE
8-97129-615-0
01
1
1312-
38
NUT; LK
M14
0-91110-514-0
01
1
1312-
81
STAY ASM; CAB TILT
1-62500-758-0
01
1
1312-1406
81
STAY ASM; CAB TILT
8-98278-114-0
01
1
1407-
98
WASHER; CAB STAY
ID=10.5 T=2.0
1-09985-183-0
01
1
1312-
100
PIN; SNAP,CAB STAY TO CAB
L=34
8-98039-426-1
01
1
1312-
103
PIN; JOINT,CAB STAY
1-09744-108-1
01
1
1312-
104
BOLT; CAB STAY BRKT
M10X30 FLANGE
0-28661-030-0
04
1
1312-
146
BRACKET ASM; CAB STAY UPR
8-98019-506-0
01
1
1312-
324
BOLT; ADJUST
M14X55
8-98004-319-1
01
1
1312-
133
335
335
141
239
238
136
142
141
223
143
143
148
335
276
133
136
112
150
149
335
141
141
335
150
137
138
238
225
223
77
226
337
337
133
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
77
RING; SNAP
ID=14.7
0-91800-616-0
01
1
1312-
112
SPRING; RETURN,SAFETY ROD
1-79718-655-0
01
1
1312-
133
LOCK ASM; CAB
(A)
8-98101-514-1
01
1
1312-
133
LOCK ASM; CAB
(B)
8-98061-489-1
01
1
1312-
136
BOLT; CAB LK
M8X20 FLANGE IDN
0-28650-820-0
08
1
1312-
137
CONTROL UNIT; CAB LOCK
8-97584-470-5
01
1
1312-
138
BOLT; CAB LOCK CONT UNIT
M8X20 FLANGE IDN
0-28650-820-0
04
1
1312-
141
PIN; SNAP,CAB LOCK ROD
(A) L=25.3
8-98039-045-1
02
1
1312-
141
PIN; SNAP,CAB LOCK ROD
(B) L=32.6
8-98062-280-0
02
1
1312-
142
ROD; HOOK TO HOOK
8-97587-990-0
01
1
1312-
143
NUT; JAW JOINT,HOOK TO HOOK
M10
0-91110-510-0
02
1
1312-
148
JOINT; JAW,HOOK TO HOOK
8-97410-736-0
01
1
1312-
149
HANDLE; TILT
IDN
8-98025-705-0
01
1
1312-
150
BOLT; TILT HANDLE
M8X20 FLANGE IDN
0-28650-820-0
03
1
1312-
223
WASHER; PL,SAFETY LK
(B) ID=8.4 OD=16
0-91610-508-0
01
1
1312-
223
WASHER; PL,SAFETY LK
(A) ID=17 OD=30
0-91610-516-0
01
1
1312-
225
BOLT; SAFETY LK
M8X30 FLANGE
0-28050-830-0
01
1
1312-
226
NUT; SAFETY LK
M8 IDN
0-91110-508-0
01
1
1312-
238
LOCK ASM; SAFETY,CAB TILT
8-98048-899-1
01
1
1312-
239
BOLT; SAFETY LK
M8X20 FLANGE IDN
0-28650-820-0
02
1
1312-
276
ROD ASM; CAB LOCK,HOOK TO HOOK
8-98048-830-1
01
1
1312-
335
WASHER; CAB LOCK ROD
(A) ID=8.4 OD=16
0-91610-508-0
01
1
1312-
335
WASHER; CAB LOCK ROD
(B) ID=12.5 OD=26
0-91610-612-0
02
1
1312-
335
WASHER; CAB LOCK ROD
(C) ID=13 OD=22 IDN
8-98060-839-0
02
1
1312-
337
CLIP; CAB LOCK
L=155 IDN
8-97173-307-0
02
1
1312-
