3-55 — BRAKE PIPING; OIL,REAR
(#131072) — 15 parça
◀

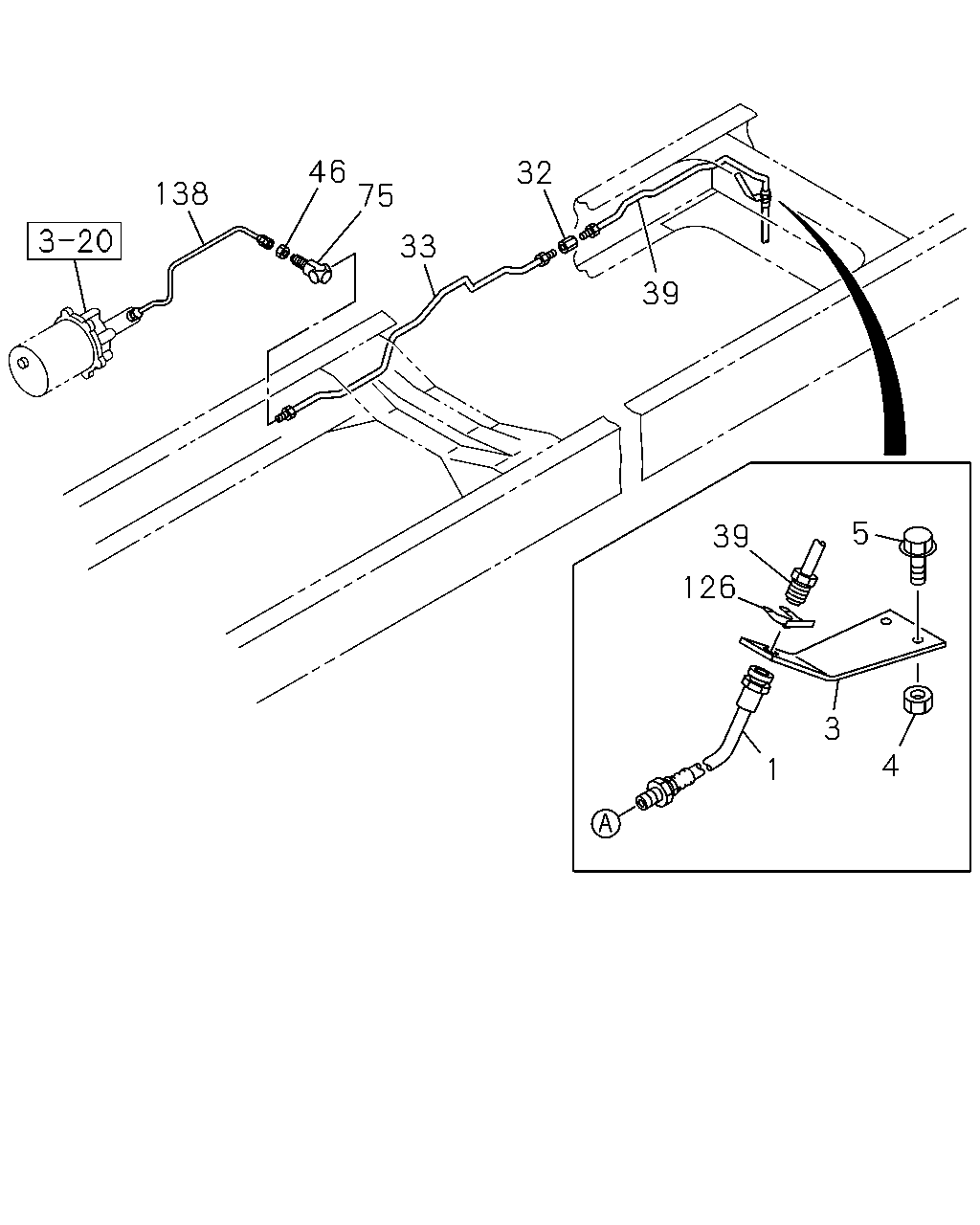

[355A] FRAME SIDE (11 parça)

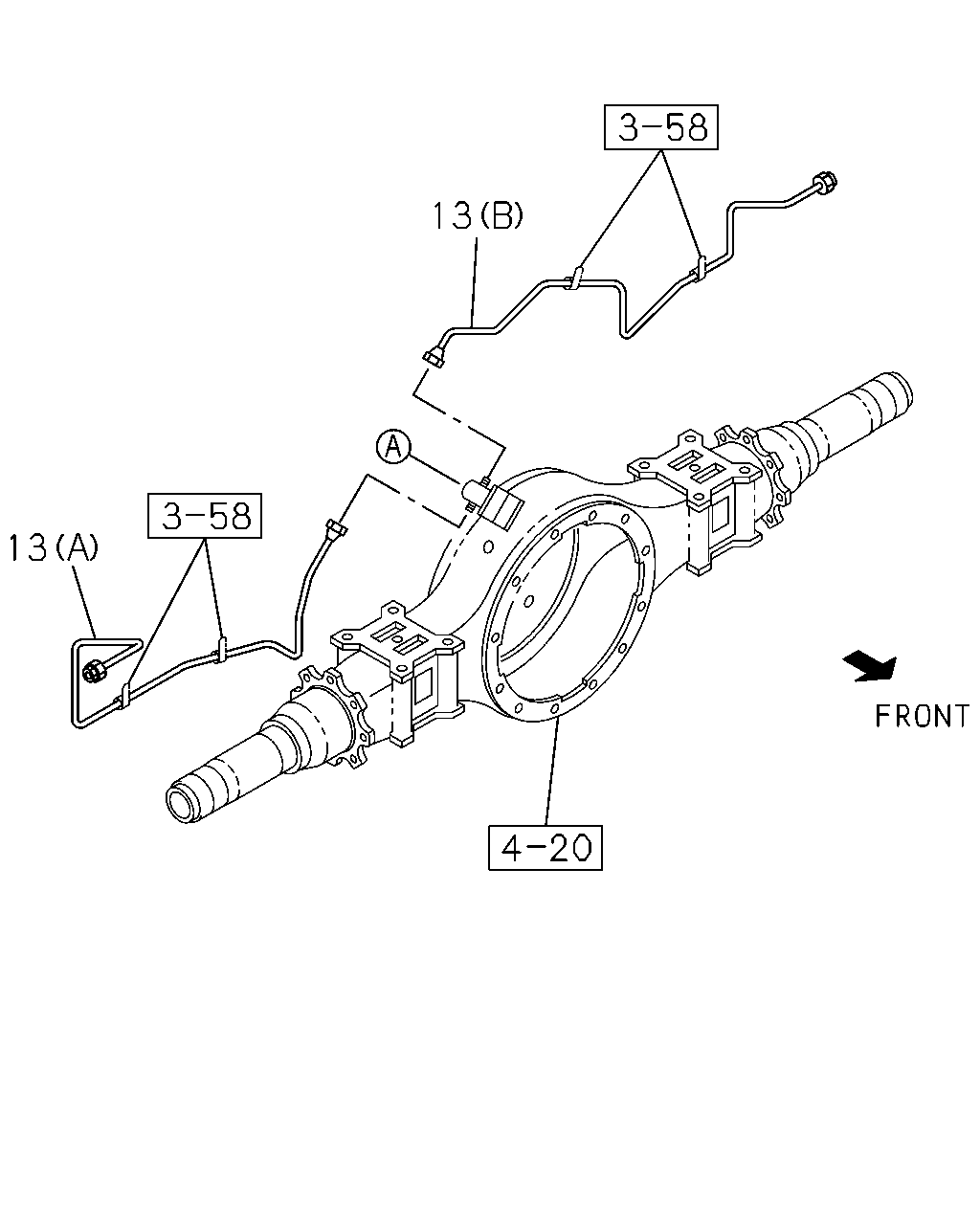

[355A] REAR AXLE SIDE (4 parça)
▶
4
3
1
126
5
39
39
32
33
75
46
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=520
8-98175-918-0
01
1
1312-
3
BRACKET; FLEX HOSE,RR BRK
8-98175-942-0
01
1
1312-
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91180-108-0
02
1
1312-
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE
0-28650-830-0
02
1
1312-
32
UNION; OIL PIPE
M10 STRAIGHT IDN
0-92107-005-0
01
1
1312-
33
PIPE; OIL,UNION TO UNION
L=2923
8-98183-304-0
01
1
1312-
39
PIPE; OIL,UNION TO RR FLEX HOSE
L=2100 IDN
8-98175-941-0
01
1
1312-
46
NUT; UNION,OIL PIPE
M10 H=8
1-09400-029-0
01
1
1312-
75
UNION; OIL PIPE
8-98018-438-0
01
1
1312-
126
CLIP; FLEX HOSE
8-97360-054-0
01
1
1312-
138
PIPE; HYDRAULIC UNIT
L=697
8-98213-366-0
01
1
1312-
13
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
PIPE; BRK,RR AXLE
(A)
8-98029-679-0
01
1
1410-1410
13
PIPE; BRK,RR AXLE
(B)
8-98029-680-0
01
1
1410-1410
13
PIPE; BRK,RR AXLE
(A) L=675
1-47427-105-0
01
1
1312-
13
PIPE; BRK,RR AXLE
(B) L=847
1-47427-106-0
01
1
1312-
