Isuzu WW
▶
TRUCKS
▶
FRR
▶
11563 - FRR(INDONESIA)
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#131070) — 38 parça
◀

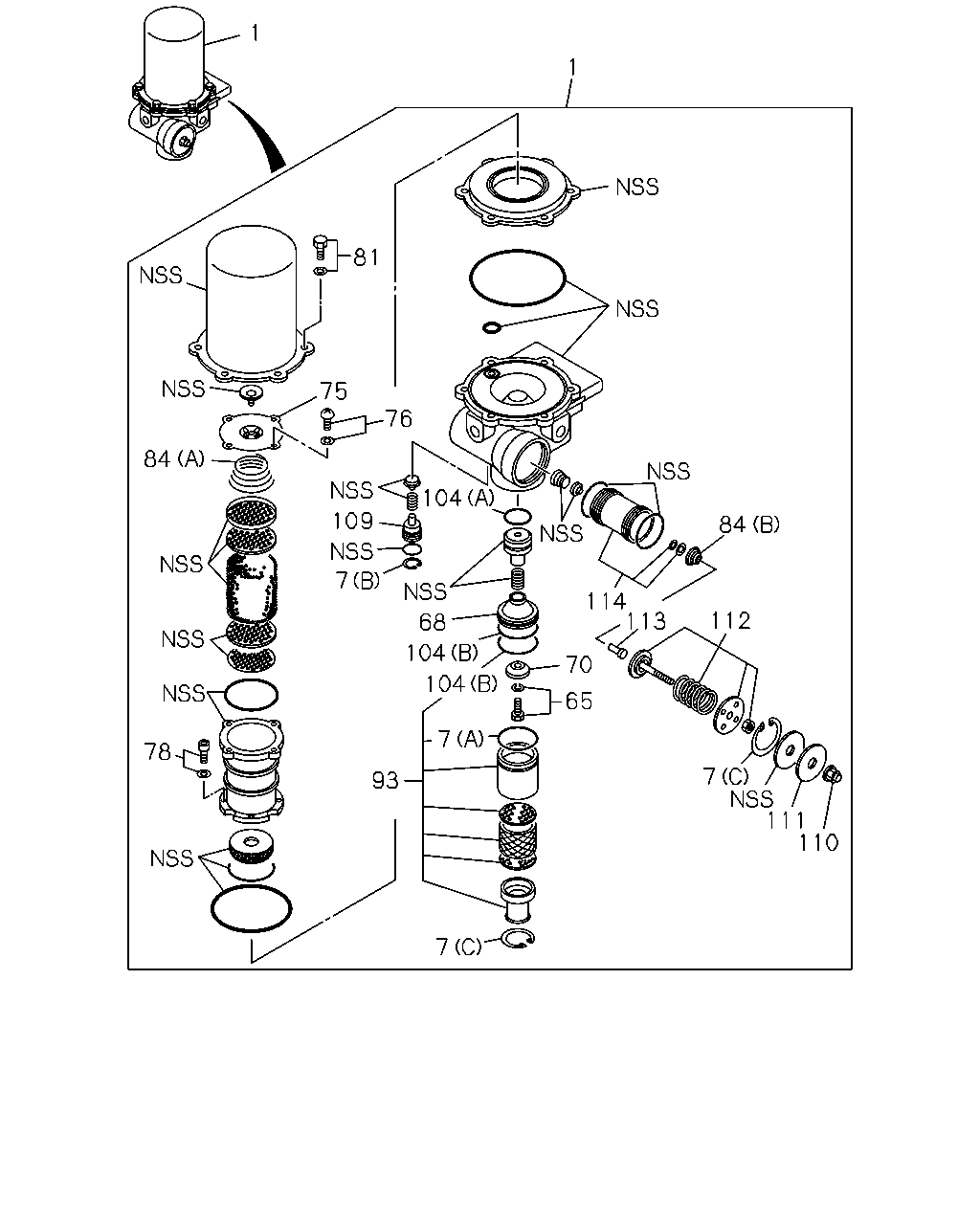

[346A] COMPONENT (22 parça)

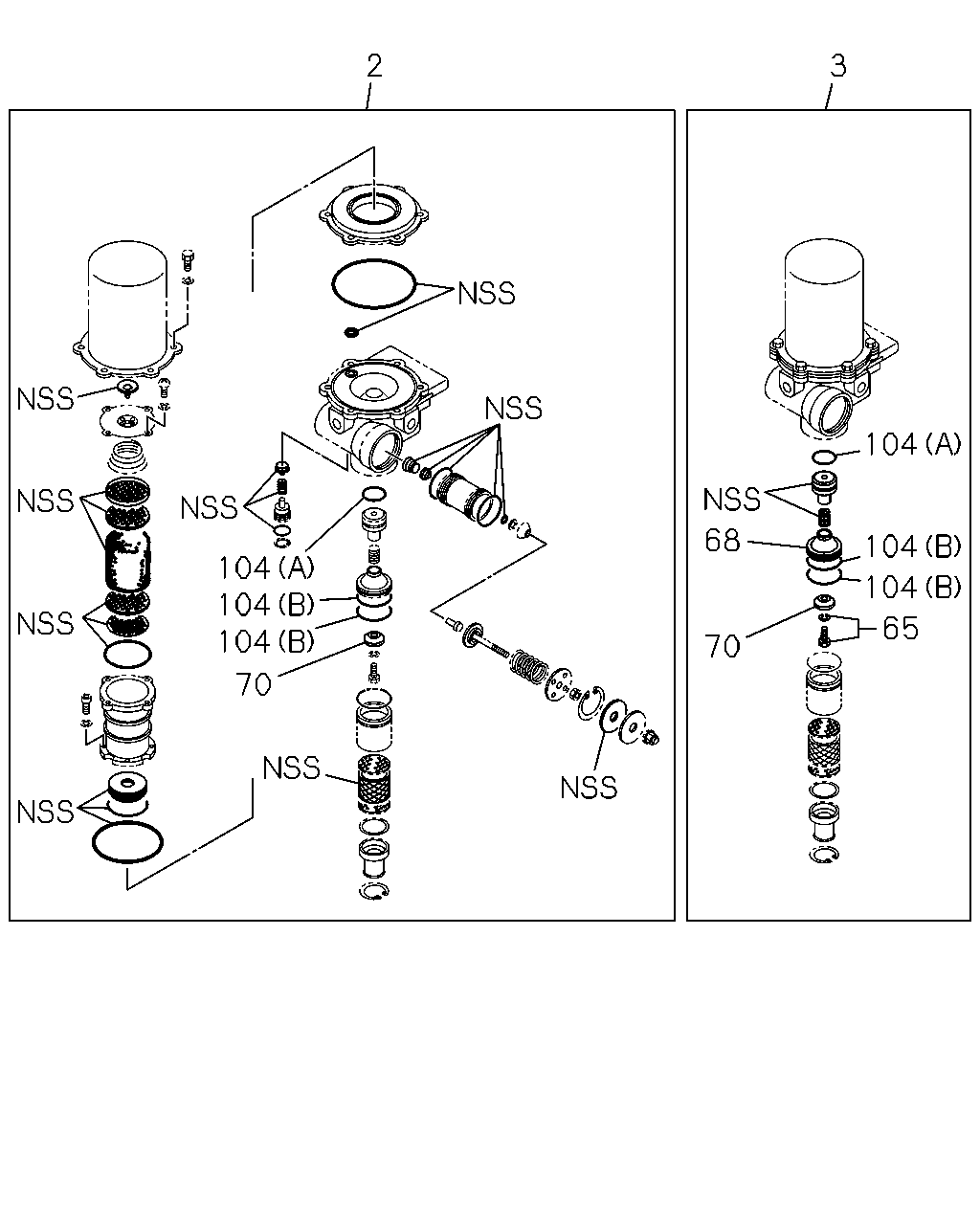

[346A] PISTON AND REPAIR KIT (8 parça)

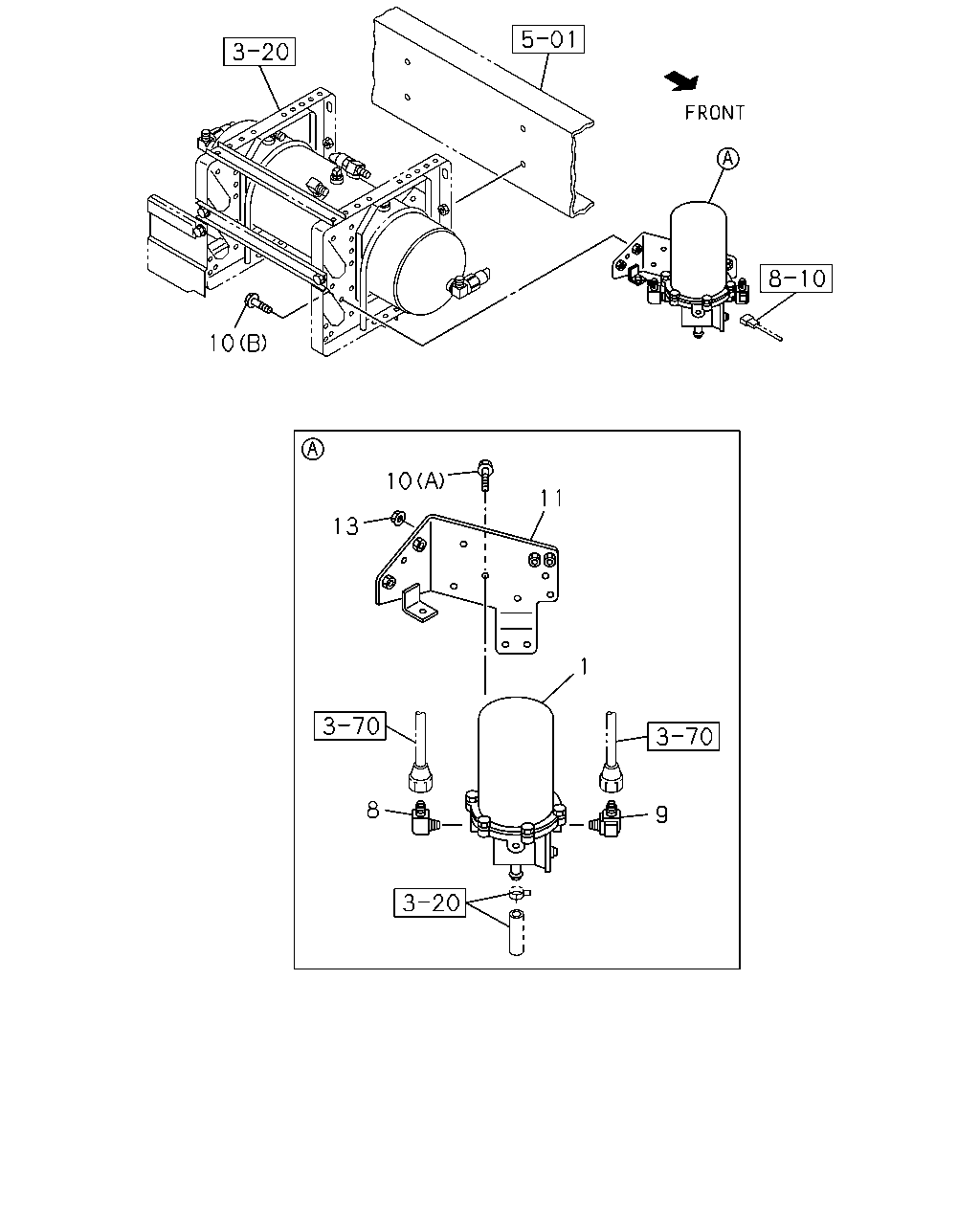

[346A] FIXING (8 parça)
▶
110
111
7
112
114
113
84
104
68
104
104
78
93
7
76
75
84
7
7
70
65
81
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
8-98225-290-0
01
1
1312-
7
RING; SNAP,AIR DRYER
(C)
1-48199-520-0
02
1
1312-
7
RING; SNAP,AIR DRYER
(B)
1-48199-529-0
01
1
1312-
7
RING; SNAP,AIR DRYER
(A)
1-48199-579-0
01
1
1312-
65
BOLT; PURGE VLV
1-48199-517-0
01
1
1312-
68
BODY; VALVE
1-48199-515-0
01
1
1312-
70
VALVE; AIR DRYER
1-48199-504-0
01
1
1312-
75
COVER; CASE,AIR DRYER
1-48199-395-0
01
1
1312-
76
BOLT; COVER,AIR DRYER
1-48199-412-0
04
1
1312-
78
BOLT; OIL FILTER,AIR DRYER
1-48199-417-0
04
1
1312-
81
BOLT; CASE,AIR DRYER
1-48199-436-0
06
1
1312-
84
SPRING; AIR DRYER
(A)
1-48199-396-0
01
1
1312-
84
SPRING; AIR DRYER
(B)
1-48199-523-0
01
1
1312-
93
SILENCER; AIR DRYER
1-48199-619-0
01
1
1312-
104
GASKET
(B)
1-48199-496-0
02
1
1312-
104
GASKET
(A)
8-98226-321-0
01
1
1312-
109
STOPPER; CHECK VALVE
1-48199-539-0
01
1
1312-
110
NUT; CAP
1-48199-527-0
01
1
1312-
111
PLATE; GOVERNOR
1-48199-526-0
01
1
1312-
112
SCREW & SPRING ASM; AIR DRYER
1-48199-524-0
01
1
1312-
113
STEM; EXHAUST
1-48199-522-0
01
1
1312-
114
PISTON ASM; GOVERNOR
1-48199-521-0
01
1
1312-
2
3
104
104
104
70
104
104
104
65
68
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
8-98226-326-0
01
1
1312-
3
PISTON KIT; AIR DRYER
8-98226-322-0
01
1
1312-
65
BOLT; PURGE VLV
1-48199-517-0
01
1
1312-
68
BODY; VALVE
1-48199-515-0
01
1
1312-
70
VALVE; AIR DRYER
1-48199-504-0
01
1
1312-
104
GASKET
(B)
1-48199-496-0
02
1
1312-
104
GASKET
(A)
8-98226-321-0
01
1
1312-
109
STOPPER; CHECK VALVE
1-48199-539-0
01
1
1312-
10
1
11
9
8
10
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
8-98225-290-0
01
1
1312-
8
CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW
1-09650-443-0
01
1
1312-
9
CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 ELBOW IDN
0-92134-315-0
01
1
1312-
10
BOLT; AIR DRYER
(B) M8X20 FLANGE
0-28050-820-0
02
1
1312-
10
BOLT; AIR DRYER
(A) M10X25 FLANGE
0-28051-025-0
03
1
1312-
11
BRACKET; AIR DRYER
8-98044-548-4
01
1
1312-
13
NUT; AIR DRYER
M8 FLANGE
0-91180-108-0
02
1
1312-
109
STOPPER; CHECK VALVE
1-48199-539-0
01
1
1312-
