2-26 — MANUAL TRANSMISSION GEAR (#131054) — 76 parça

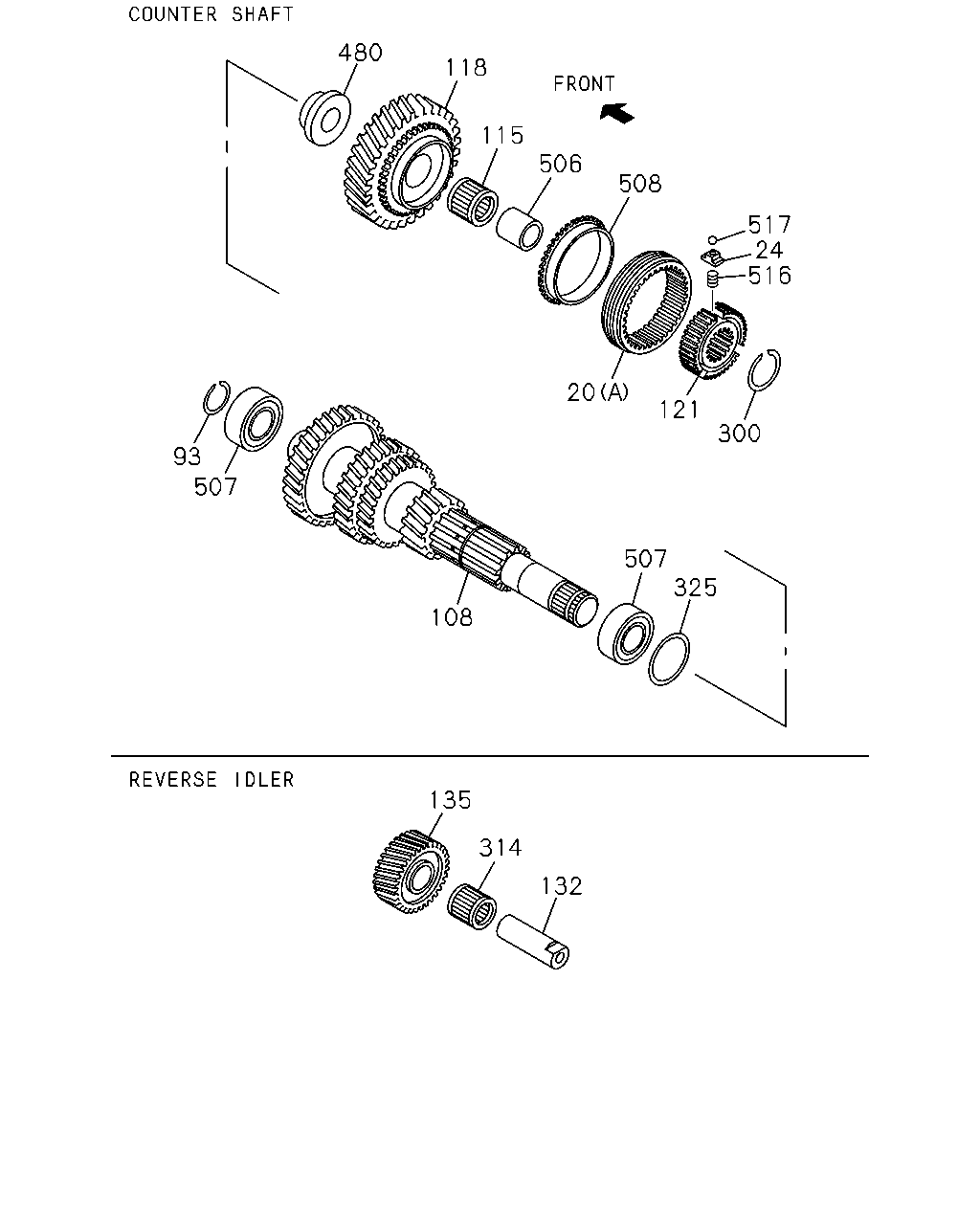

çizim 388368
480 118 115 506 508 517 24 516 121 300 20 507 325 108 507 93 135 314 132
BalonParca AdiParca NoAdetTipApplied Date
20 SLEEVE
(B) Z=54 		8-97241-295-2 01 1 1312-
20 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1312-1312
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1312-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1312-
93 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=1.9 		8-97254-735-0 01 1 1312-
93 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.1 		8-97254-738-0 01 1 1312-
93 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.3 		8-97254-741-0 01 1 1312-
108 SHAFT; COUNTER
Z=46-37-27-21 		8-98249-483-0 01 1 1312-
115 BEARING; NEEDLE,6TH,COUNTER
OD=49.8 		8-98286-084-0 01 1 1411-
115 BEARING; NEEDLE,6TH,COUNTER
OD=49.75 		8-97253-113-0 01 1 1312-
118 GEAR; 6TH,COUNTER
Z=46 		8-97241-245-0 01 1 1312-
121 HUB; CLU,6TH 8-97241-301-2 01 1 1312-
132 SHAFT; REV 8-97252-655-0 01 1 1312-
135 GEAR; REV IDLER
Z=26 		8-97241-292-2 01 1 1312-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.7 		8-97288-618-0 01 1 1312-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.8 		8-97288-619-0 01 1 1312-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.9 		8-97288-620-0 01 1 1312-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.6 		8-97365-616-0 01 1 1312-
314 BEARING; NEEDLE,REV GEAR
NSK 		8-97253-114-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.38 		8-97252-656-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.44 		8-97252-657-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.50 		8-97252-658-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.56 		8-97252-659-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.62 		8-97252-660-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.68 		8-97252-661-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.74 		8-97252-662-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.80 		8-97252-663-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.86 		8-97252-664-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.92 		8-97252-665-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.98 		8-97257-621-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.20 		8-97306-185-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.26 		8-97306-186-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.32 		8-97306-187-0 01 1 1312-
480 WASHER; THRUST,6TH 8-97253-122-1 01 1 1312-
506 COLLAR; 6TH,COUNTER 8-97253-120-1 01 1 1312-
507 BEARING; COUNTER SHAFT,FRT & RR 8-97253-106-0 02 1 1312-
508 RING; BLOCK,6TH
Z=45 		8-97241-306-1 01 1 1312-
516 SPRING; SYNCHRO,INDEX 8-97305-803-1 09 1 1312-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1312-

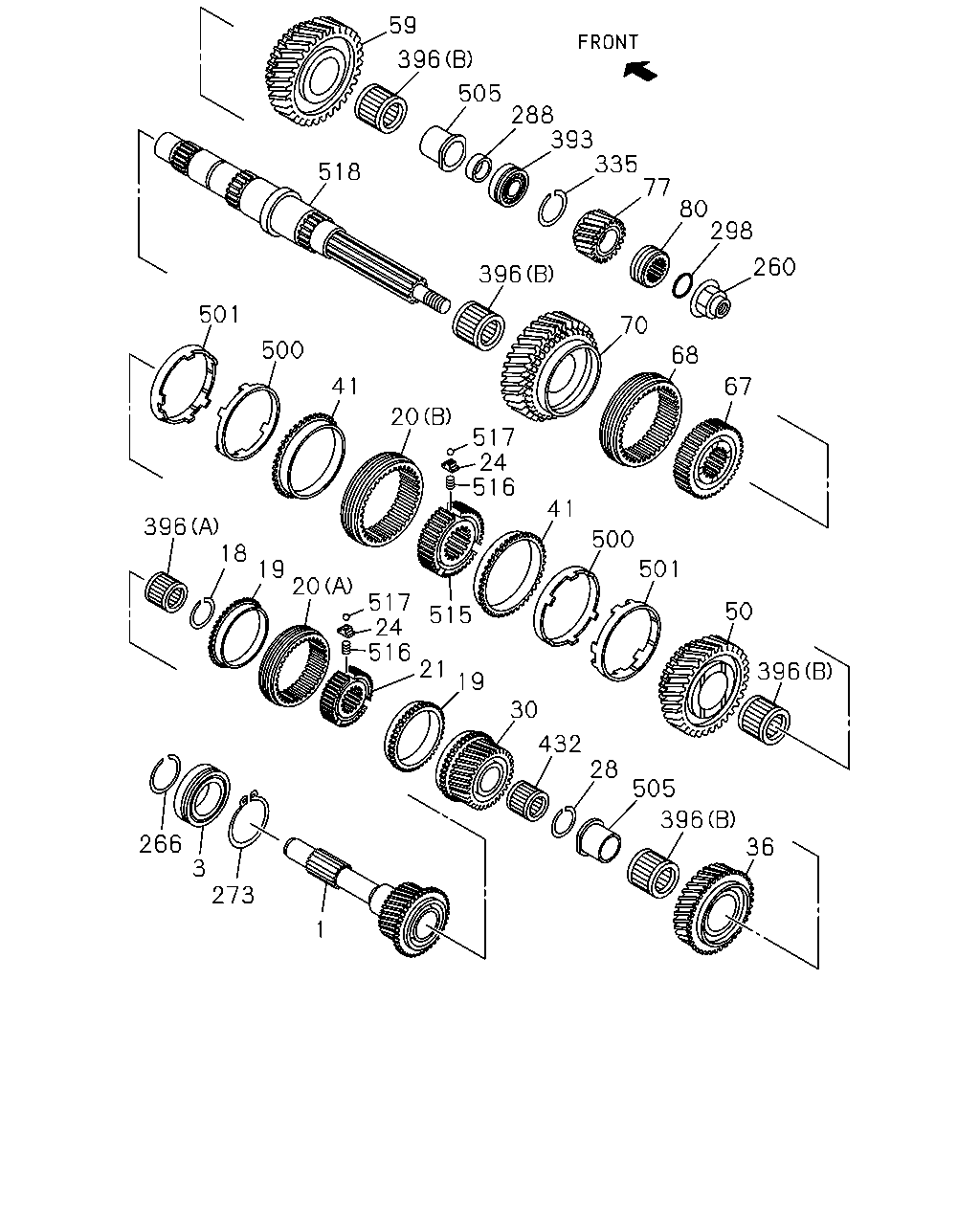

çizim 389233
59 396 505 393 288 335 260 298 80 77 518 396 70 67 68 501 500 41 20 517 24 516 500 41 501 50 396 515 36 396 505 28 432 30 19 21 516 24 517 20 19 18 396 3 266 273 1
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS
Z=25 		8-97371-089-0 01 1 1312-
3 BEARING; TOP GEAR SHAFT
NSK 		8-97253-097-1 01 1 1312-
18 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 1312-
19 RING; BLOCK,4TH & 5TH
Z=45 		8-97241-306-1 02 1 1312-
20 SLEEVE
(B) Z=54 		8-97241-295-2 01 1 1312-
20 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1312-1312
20 SLEEVE
(A) Z=45 		8-98258-279-0 02 1 1312-
21 HUB; CLU,4TH & 5TH 8-97241-299-3 01 1 1312-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1312-
28 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 		8-97254-743-0 01 1 1312-
30 GEAR; 4TH,MAINSHAFT
Z=29 		8-97241-228-0 01 1 1312-
36 GEAR; 3RD,MAINSHAFT
Z=35 		8-98168-524-0 01 1 1312-
41 RING; BLOCK,2ND & 3RD
Z=54 		8-97241-305-2 02 1 1312-
50 GEAR; 2ND,MAINSHAFT
Z=43 		8-97241-236-1 01 1 1312-
59 GEAR; REV MAINSHAFT
Z=45 		8-97254-182-0 01 1 1312-
67 HUB; CLU,1ST TO REV 8-97255-184-1 01 1 1312-
68 SLEEVE; 1ST TO REV 1-33262-175-1 01 1 1312-
70 GEAR; 1ST,MAINSHAFT
Z=45 		8-97254-889-0 01 1 1312-
77 GEAR; 6TH,MAINSHAFT
Z=18 		8-97241-264-0 01 1 1312-
80 GEAR; SPD DRIVE
Z=4 		8-97253-555-0 01 1 1312-
260 NUT; MAINSHAFT END
M27 H=25 		8-97360-410-0 01 1 1312-
266 RING; SNAP,BRG INNER 8-97286-915-0 01 1 1312-
273 RING; SNAP,BRG OUTER 8-97254-609-0 01 1 1312-
288 SPACER; BRG,MAINSHAFT 8-97252-941-0 01 1 1312-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5 		1-09623-379-0 01 1 1312-
335 RING; SNAP,BEARING 8-97254-720-0 01 1 1312-
393 BEARING; MAINSHAFT END 8-97253-104-0 01 1 1312-
396 BEARING; NEEDLE,MAINSHAFT
(A) 		8-97253-099-1 01 1 1312-
396 BEARING; NEEDLE,MAINSHAFT
(B) 		8-97253-110-0 04 1 1312-
432 BEARING; NEEDLE,4TH
NSK 		8-97253-111-0 01 1 1312-
500 RING; OUTSIDE,3RD & 2ND 8-97241-307-1 02 1 1312-
501 RING; INSIDE,3RD & 2ND 8-97241-311-1 02 1 1312-
505 COLLAR; 3RD & REV 8-97253-119-2 02 1 1312-
515 HUB; CLU,1ST & REV,2ND & 3RD 8-97239-155-2 01 1 1312-
516 SPRING; SYNCHRO,INDEX 8-97305-803-1 09 1 1312-
517 BALL; SYNCHRO,INDEX 8-97252-935-0 09 1 1312-
518 SHAFT; MAIN,5TH & 6TH SPEED
Z=26-42-23 		8-97253-115-3 01 1 1312-
