◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11563 - FRR(INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#131050) — 33 parça
çizim 389207
1 1 47 20 2 91 36 89 90
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; CLUTCH MASTER
VIN MODEL YEAR 2014<VZE> (B) IDN 		8-97948-360-1 01 1 1402-1406
1 CYLINDER ASM; CLUTCH MASTER
(A) 		1-47500-250-2 01 1 1312-1401
1 CYLINDER ASM; CLUTCH MASTER
EXC. VIN MODEL YEAR 2014<VZE> (A) 		1-47500-250-2 01 1 1402-1406
1 CYLINDER ASM; CLUTCH MASTER
(A) 		1-47500-250-2 01 1 1407-
2 REPAIR KIT; CLU M/CYL 1-85576-461-0 01 1 1312-1401
2 REPAIR KIT; CLU M/CYL
EXC. VIN MODEL YEAR 2014<VZE> 		1-85576-461-0 01 1 1402-1406
2 REPAIR KIT; CLU M/CYL 1-85576-461-0 01 1 1407-
20 RING; SNAP,BODY 1-47519-013-0 01 1 1312-1401
20 RING; SNAP,BODY
EXC. VIN MODEL YEAR 2014<VZE> 		1-47519-013-0 01 1 1402-1406
20 RING; SNAP,BODY 1-47519-013-0 01 1 1407-
36 GASKET; CLU M/CYL 1-47519-014-0 01 1 1312-1401
36 GASKET; CLU M/CYL
EXC. VIN MODEL YEAR 2014<VZE> 		1-47519-014-0 01 1 1402-1406
36 GASKET; CLU M/CYL 1-47519-014-0 01 1 1407-
47 COVER; DUST,PUSH ROD 1-47519-018-0 01 1 1312-1401
47 COVER; DUST,PUSH ROD
EXC. VIN MODEL YEAR 2014<VZE> 		1-47519-018-0 01 1 1402-1406
47 COVER; DUST,PUSH ROD 1-47519-018-0 01 1 1407-
89 CAP; OIL FILLER,CLU M/CYL 1-47519-017-0 01 1 1312-1401
89 CAP; OIL FILLER,CLU M/CYL
EXC. VIN MODEL YEAR 2014<VZE> 		1-47519-017-0 01 1 1402-1406
89 CAP; OIL FILLER,CLU M/CYL 1-47519-017-0 01 1 1407-
90 GASKET; OIL FILLER,CLU M/CYL 1-47519-016-0 01 1 1312-1401
90 GASKET; OIL FILLER,CLU M/CYL
EXC. VIN MODEL YEAR 2014<VZE> 		1-47519-016-0 01 1 1402-1406
90 GASKET; OIL FILLER,CLU M/CYL 1-47519-016-0 01 1 1407-
91 BOLT; STOPPER 1-47519-015-0 01 1 1312-1401
91 BOLT; STOPPER
EXC. VIN MODEL YEAR 2014<VZE> 		1-47519-015-0 01 1 1402-1406
91 BOLT; STOPPER 1-47519-015-0 01 1 1407-

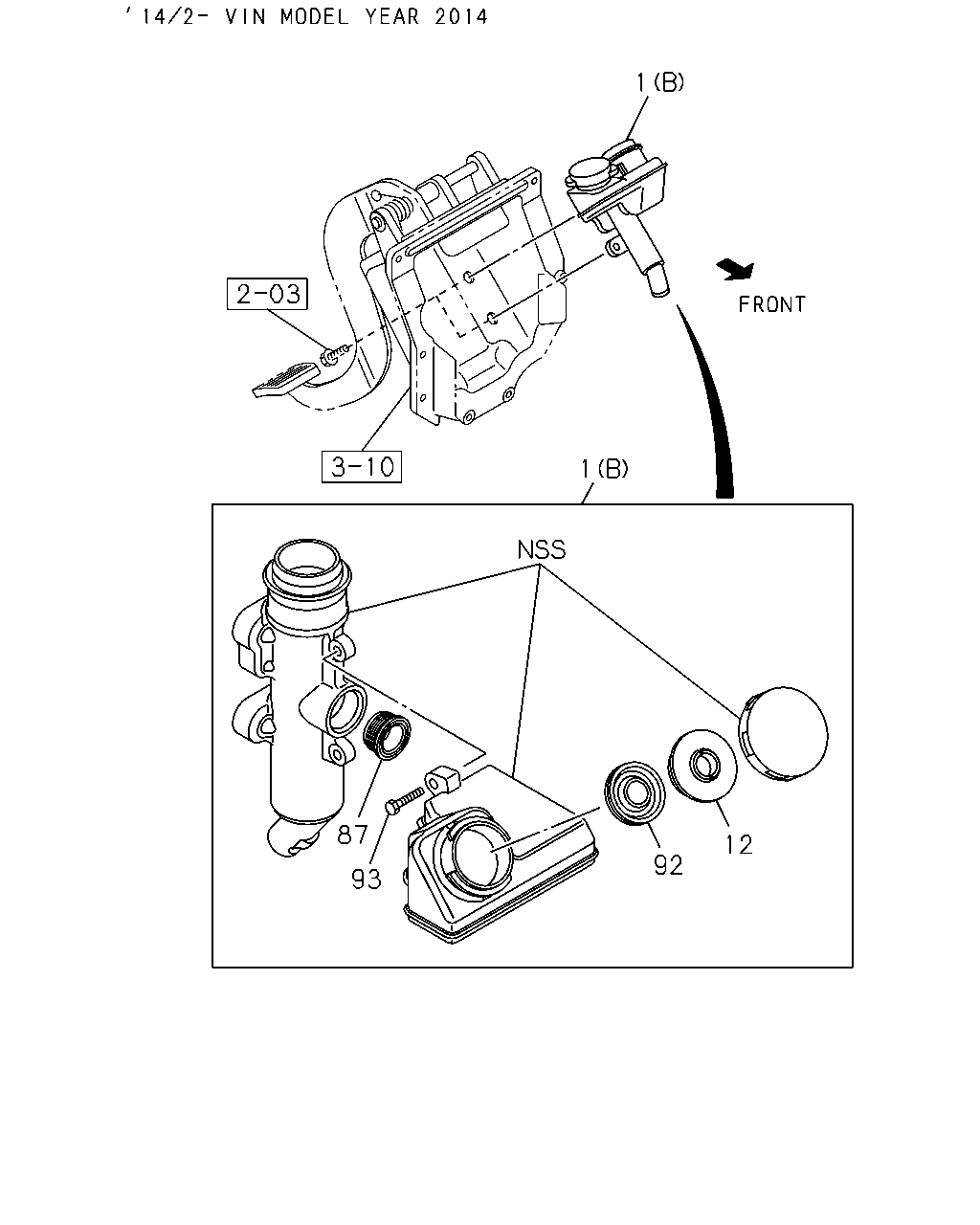

çizim 413207
1 1 92 87 93 12
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; CLUTCH MASTER
VIN MODEL YEAR 2014<VZE> (B) IDN 		8-97948-360-1 01 1 1402-1406
1 CYLINDER ASM; CLUTCH MASTER
(A) 		1-47500-250-2 01 1 1312-1401
1 CYLINDER ASM; CLUTCH MASTER
EXC. VIN MODEL YEAR 2014<VZE> (A) 		1-47500-250-2 01 1 1402-1406
1 CYLINDER ASM; CLUTCH MASTER
(A) 		1-47500-250-2 01 1 1407-
12 CAP; INNER,OIL TANK,CLU M/CYL
VIN MODEL YEAR 2014<VZE> IDN 		8-94412-206-0 01 1 1402-1406
87 GROMMET; CLU M/CYL
VIN MODEL YEAR 2014<VZE> IDN 		8-97942-834-0 01 1 1402-1406
92 SEAL; CLU M/CYL
VIN MODEL YEAR 2014<VZE> IDN 		8-94412-205-0 01 1 1402-1406
93 BOLT; CLU M/CYL
VIN MODEL YEAR 2014<VZE> IDN 		8-97945-452-0 02 1 1402-1406
