Isuzu WW
▶
TRUCKS
▶
FRR
▶
11563 - FRR(INDONESIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-05 - CLUTCH PIPING
▶
2-05 — CLUTCH PIPING
(#131048) — 30 parça
◀

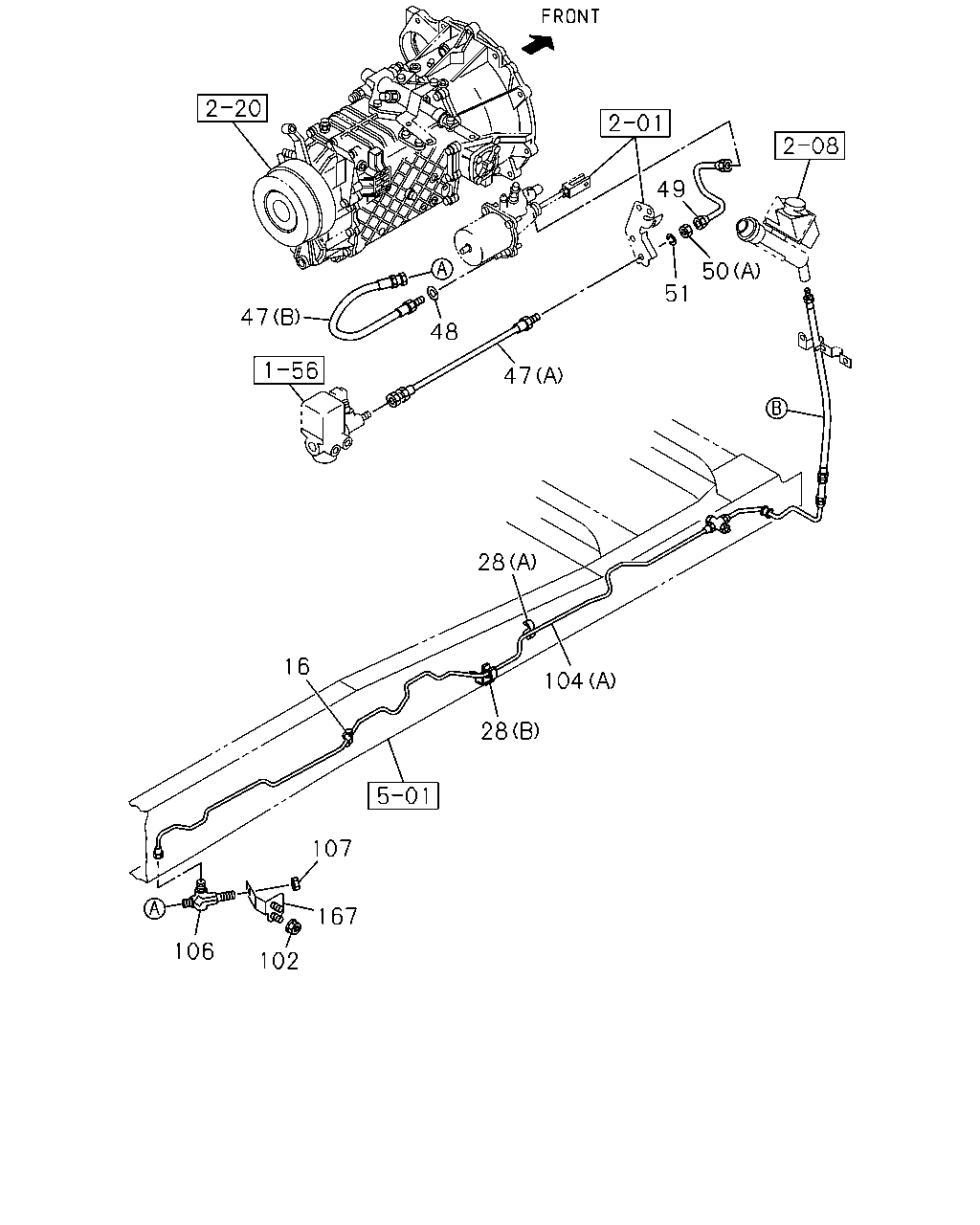

[205A] NO.1 (17 parça)
[205A] NO.2 (13 parça)
▶
47
48
47
51
49
50
28
16
28
104
107
106
167
102
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
CLIP; FLEX HOSE
ID=10 & 12
1-09709-278-1
01
1
1312-
28
CLIP; OIL PIPE
(B) ID=6.35
1-09701-247-1
01
1
1312-
28
CLIP; OIL PIPE
(A) ID=6.35 & 10.0
1-09709-274-1
03
1
1312-
47
HOSE; FLEX,CLU CONT
(A) L=720
1-09363-801-0
01
1
1312-
47
HOSE; FLEX,CLU CONT
(B) L=440 IDN
8-98072-346-0
01
1
1312-
48
GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0
9-09571-410-0
02
1
1312-
49
PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=207
1-49124-782-0
01
1
1312-
50
NUT; UNION
(B) M12
0-91111-512-0
01
1
1312-
50
NUT; UNION
(A) M12
9-09840-280-0
01
1
1312-
50
NUT; UNION
(A) M12
9-09840-280-0
01
1
1312-
51
WASHER; LK
ID=12.2
0-91510-512-0
01
1
1312-
102
NUT; FLEX HOSE,CLU CONT
M10 FLANGE
0-91180-210-0
02
1
1312-
104
PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=336 IDN
8-98067-058-0
01
1
1312-
104
PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2683 IDN
8-98162-742-1
01
1
1312-
106
UNION; OIL PIPE
M12 2WAY
1-09654-059-2
01
1
1312-
107
NUT; UNION,OIL PIPE
M12
0-91111-512-0
01
1
1312-
167
BRACKET; UNION
8-98086-811-1
01
1
1312-
48
101
16
28
28
104
50
184
23
50
104
239
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
CLIP; FLEX HOSE
ID=10 & 12
1-09709-278-1
01
1
1312-
23
GROMMET; CLU PIPE
ID=15 OD=20 T=17.5
1-09332-130-0
01
1
1312-
28
CLIP; OIL PIPE
(B) ID=6.35
1-09701-247-1
01
1
1312-
28
CLIP; OIL PIPE
(A) ID=6.35 & 10.0
1-09709-274-1
03
1
1312-
48
GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0
9-09571-410-0
02
1
1312-
50
NUT; UNION
(B) M12
0-91111-512-0
01
1
1312-
50
NUT; UNION
(A) M12
9-09840-280-0
01
1
1312-
50
NUT; UNION
(A) M12
9-09840-280-0
01
1
1312-
101
HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 IDN
8-98072-346-0
01
1
1312-
104
PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=336 IDN
8-98067-058-0
01
1
1312-
104
PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2683 IDN
8-98162-742-1
01
1
1312-
184
UNION; FLEX HOSE
8-98150-865-0
01
1
1312-
239
UNION; CLU HOSE
M12 L=66.5
0-92113-306-0
01
1
1312-
