Isuzu WW
▶
TRUCKS
▶
FRR
▶
11563 - FRR(INDONESIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-50 - EXHAUST PIPE AND SILENCER
▶
1-50 — EXHAUST PIPE AND SILENCER
(#131043) — 38 parça
◀

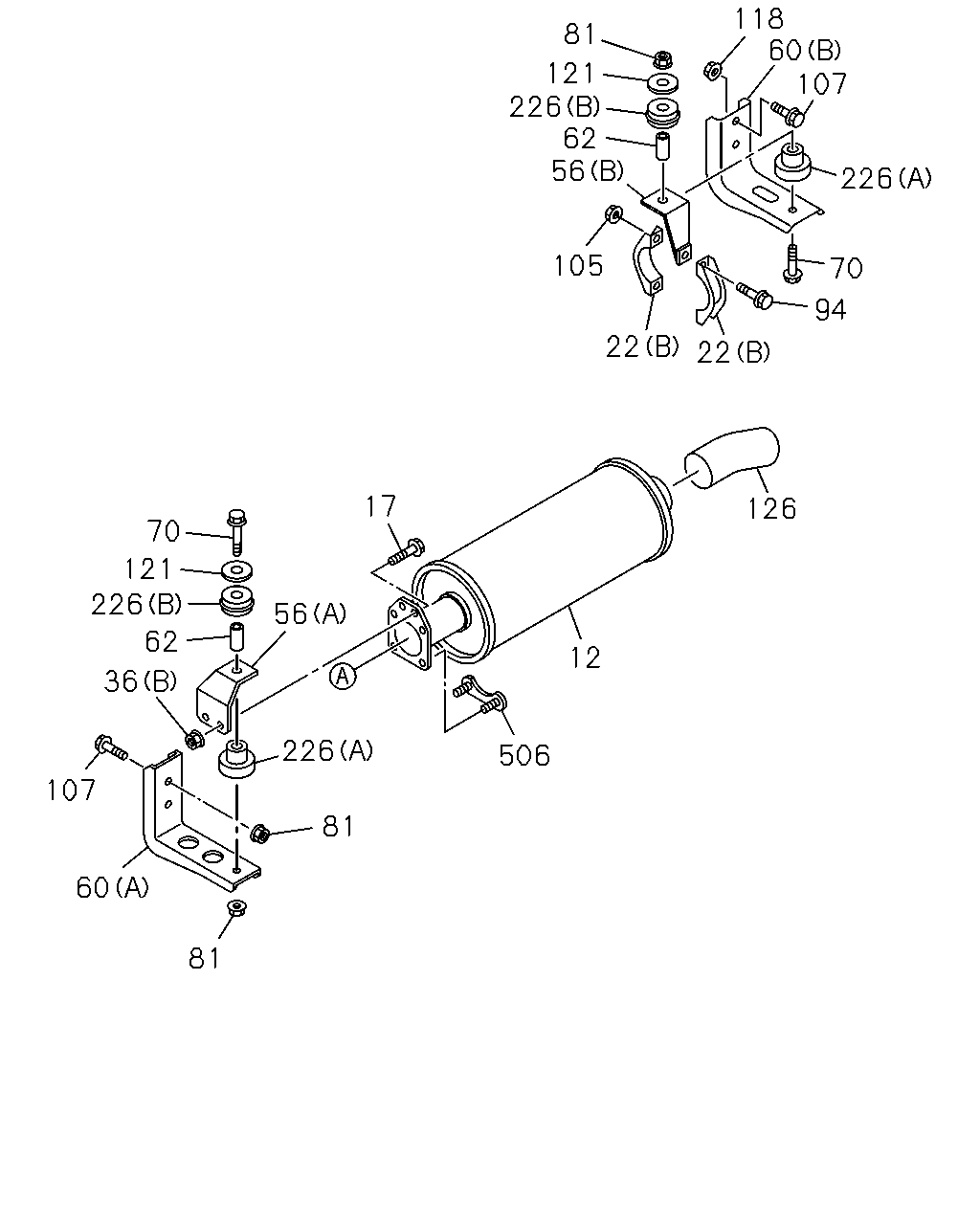

[150A] REAR (23 parça)
[150A] FRONT (15 parça)
▶
17
12
506
226
81
81
60
107
36
226
70
56
62
121
126
81
118
107
226
70
94
22
22
105
56
62
226
121
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
SILENCER ASM; EXH
IDN
8-98090-389-2
01
1
1312-
17
BOLT; EXH PIPE
M10X35 FLANGE IDN
0-28651-035-0
02
1
1312-
22
CLAMP; EXH PIPE
(B) ID=80-84 IDN
1-22133-233-0
02
1
1312-
22
CLAMP; EXH PIPE
(A)
8-97646-674-0
01
1
1312-
36
NUT; EXH PIPE
(B) M10 FLANGE
0-91180-210-0
02
1
1312-
36
NUT; EXH PIPE
(A) M10 FLANGE
8-97096-192-1
03
1
1312-
56
BRACKET; CLAMP,EXH PIPE
(A)
8-98074-824-1
01
1
1312-
56
BRACKET; CLAMP,EXH PIPE
(B)
8-98086-352-0
01
1
1312-
60
BRACKET; FRAME TO BRKT
(A)
1-22152-274-1
01
1
1312-
60
BRACKET; FRAME TO BRKT
(B)
8-98245-530-0
01
1
1312-
62
TUBE; DIST,BRKT
L=39
8-98060-852-0
02
1
1312-
70
BOLT; BRKT
M10X70 FLANGE IDN
0-28051-070-0
02
1
1312-
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1312-
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1312-
94
BOLT; CLAMP
M10X40 FLANGE
0-28651-040-0
02
1
1312-
105
NUT; CLAMP
M10 FLANGE
0-91180-210-0
02
1
1312-
107
BOLT; BRKT
M10X35 FLANGE IDN
0-28651-035-0
04
1
1312-
118
NUT; SILENCER MTG BRKT
M10 FLANGE
0-91180-210-0
02
1
1312-
121
WASHER; PL,BRKT
ID=11 OD=54
1-09503-154-2
02
1
1312-
126
PIPE; EXH,RR
IDN
1-22126-108-1
01
1
1312-
226
RUBBER; CUSHION
(A) IDN
8-94457-277-1
02
1
1312-
226
RUBBER; CUSHION
(B) IDN
8-94457-278-1
02
1
1312-
506
BRACKET; STUD
M12X35
1-22131-963-0
02
1
1312-
1
22
236
49
52
318
571
571
2
36
1
6
5
505
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; EXH
(B)
8-98096-347-0
01
1
1312-
1
PIPE; EXH
(A) IDN
8-98082-498-0
01
1
1312-
2
GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97381-455-0
01
1
1312-
5
PROTECTOR; HEAT
8-98089-287-1
01
1
1312-
6
BOLT; HEAT PROTECTOR
M8X25 FLANGE IDN
0-28650-825-0
02
1
1312-
22
CLAMP; EXH PIPE
(B) ID=80-84 IDN
1-22133-233-0
02
1
1312-
22
CLAMP; EXH PIPE
(A)
8-97646-674-0
01
1
1312-
36
NUT; EXH PIPE
(B) M10 FLANGE
0-91180-210-0
02
1
1312-
36
NUT; EXH PIPE
(A) M10 FLANGE
8-97096-192-1
03
1
1312-
49
BRACKET; EXH PIPE TO TRANS
8-98234-530-0
01
1
1312-
52
NUT; BRKT
M12 FLANGE
0-91180-212-0
04
1
1312-
236
BOLT; PIPE CLAMP TO BRKT
M10X30 FLANGE
0-28651-030-0
02
1
1312-
318
NUT; EXH PIPE,FRT
M8 W/LK WASHER IDN
8-97581-234-0
04
1
1312-
505
GASKET; CONV TO EXH PIPE
IDN
8-98096-305-0
01
1
1312-
571
GASKET
ID=64
8-97373-108-0
02
1
1312-
