1-41 — FUEL PIPING; CHASSIS (#131041) — 148 parça

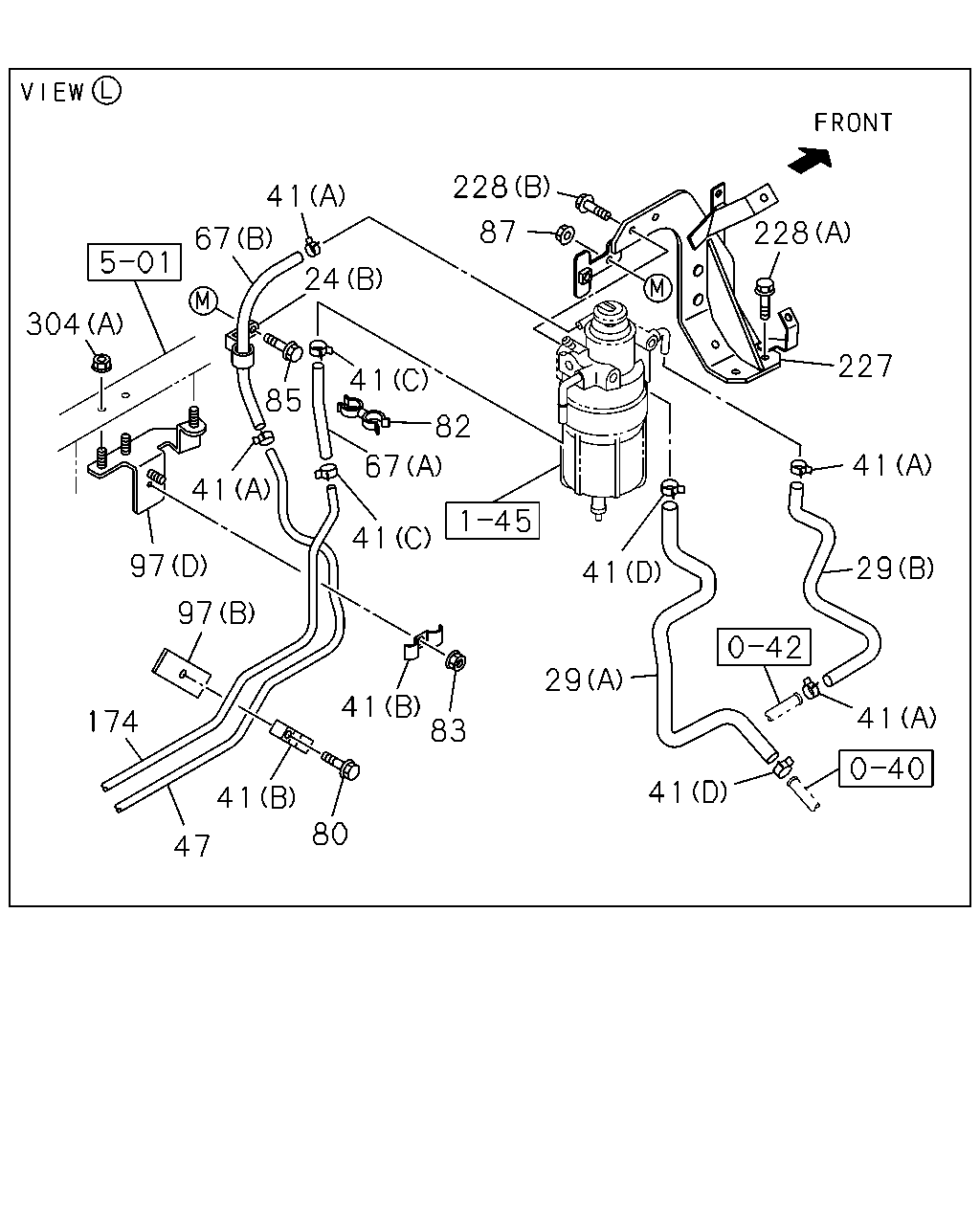

228 227 41 29 41 41 29 41 87 228 41 24 41 82 67 41 41 83 80 41 47 174 97 97 41 85 67 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (D) ID=17 H=50 L=25	1-09700-083-0	01	1	1704-
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1312-
24	CLIP; FUEL HOSE (C) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1312-1703
24	CLIP; FUEL HOSE EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1704-
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	04	1	1312-
29	HOSE; FUEL BIO DIESEL FUEL B10<8NV> (C) SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1704-
29	HOSE; FUEL BIO DIESEL FUEL B10<8NV> (A)	8-98285-410-0	01	1	1704-
29	HOSE; FUEL (C) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	1312-1703
29	HOSE; FUEL EXC. BIO DIESEL FUEL B10<8NV> (C) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	1704-
29	HOSE; FUEL (A) IDN	8-98078-194-3	01	1	1312-1703
29	HOSE; FUEL EXC. BIO DIESEL FUEL B10<8NV> (A) IDN	8-98078-194-3	01	1	1704-
29	HOSE; FUEL (B) IDN	8-98078-195-1	01	1	1312-
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (C) ID=16 IDN	8-94238-568-0	06	1	1704-
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (E) L=250 IDN	5-09707-030-1	04	1	1704-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1312-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14 IDN	1-09704-102-0	06	1	1312-1703
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14 IDN	1-09704-102-0	06	1	1704-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250 IDN	5-09707-030-1	04	1	1312-1703
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (E) L=250 IDN	5-09707-030-1	05	1	1704-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16 IDN	8-94238-568-0	02	1	1312-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13 IDN	8-94238-571-0	06	1	1312-
47	PIPE; FUEL,RETURN BIO DIESEL FUEL B10<8NV> L=2251	8-98285-412-0	01	1	1704-
47	PIPE; FUEL,RETURN L=2240	8-98220-907-0	01	1	1312-1703
47	PIPE; FUEL,RETURN EXC. BIO DIESEL FUEL B10<8NV> L=2240	8-98220-907-0	01	1	1704-
67	HOSE; FUEL,DELIVERY BIO DIESEL FUEL B10<8NV> (A) L=140 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1704-
67	HOSE; FUEL,DELIVERY (A) L=140 SERVICED BY L=3000	0-01260-300-0	01	1	1312-1703
67	HOSE; FUEL,DELIVERY EXC. BIO DIESEL FUEL B10<8NV> (A) L=140 SERVICED BY L=3000	0-01260-300-0	01	1	1704-
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	1312-
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE	0-28050-850-0	03	1	1312-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE IDN	0-28650-820-0	01	1	1312-
82	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> ID=16.5 & 16.5	8-94468-380-0	01	1	1704-
82	CLIP; FUEL HOSE ID=13 & 16.5	8-94169-028-0	01	1	1312-1703
82	CLIP; FUEL HOSE EXC. BIO DIESEL FUEL B10<8NV> ID=13 & 16.5	8-94169-028-0	01	1	1704-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	06	1	1312-
85	BOLT; CLIP,FUEL HOSE M8X20 FLANGE IDN	0-28650-820-0	01	1	1312-
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	01	1	1312-
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1312-
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	1312-
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	1312-
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1312-
97	BRACKET; CLIP (E)	8-98109-768-0	01	1	1312-
174	PIPE; FUEL,FEED,FRT BIO DIESEL FUEL B10<8NV>	8-98285-411-0	01	1	1704-
174	PIPE; FUEL,FEED,FRT L=2080	8-98220-906-0	01	1	1312-1703
174	PIPE; FUEL,FEED,FRT EXC. BIO DIESEL FUEL B10<8NV> L=2080	8-98220-906-0	01	1	1704-
227	BRACKET; FUEL SEDIMENTER	8-98133-172-0	01	1	1312-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1312-
228	BOLT; BRKT,SEDIMENTER (C) M10X60 FLANGE IDN	0-28051-060-0	02	1	1312-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE IDN	0-28650-820-0	02	1	1312-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1312-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1312-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1312-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1312-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1312-

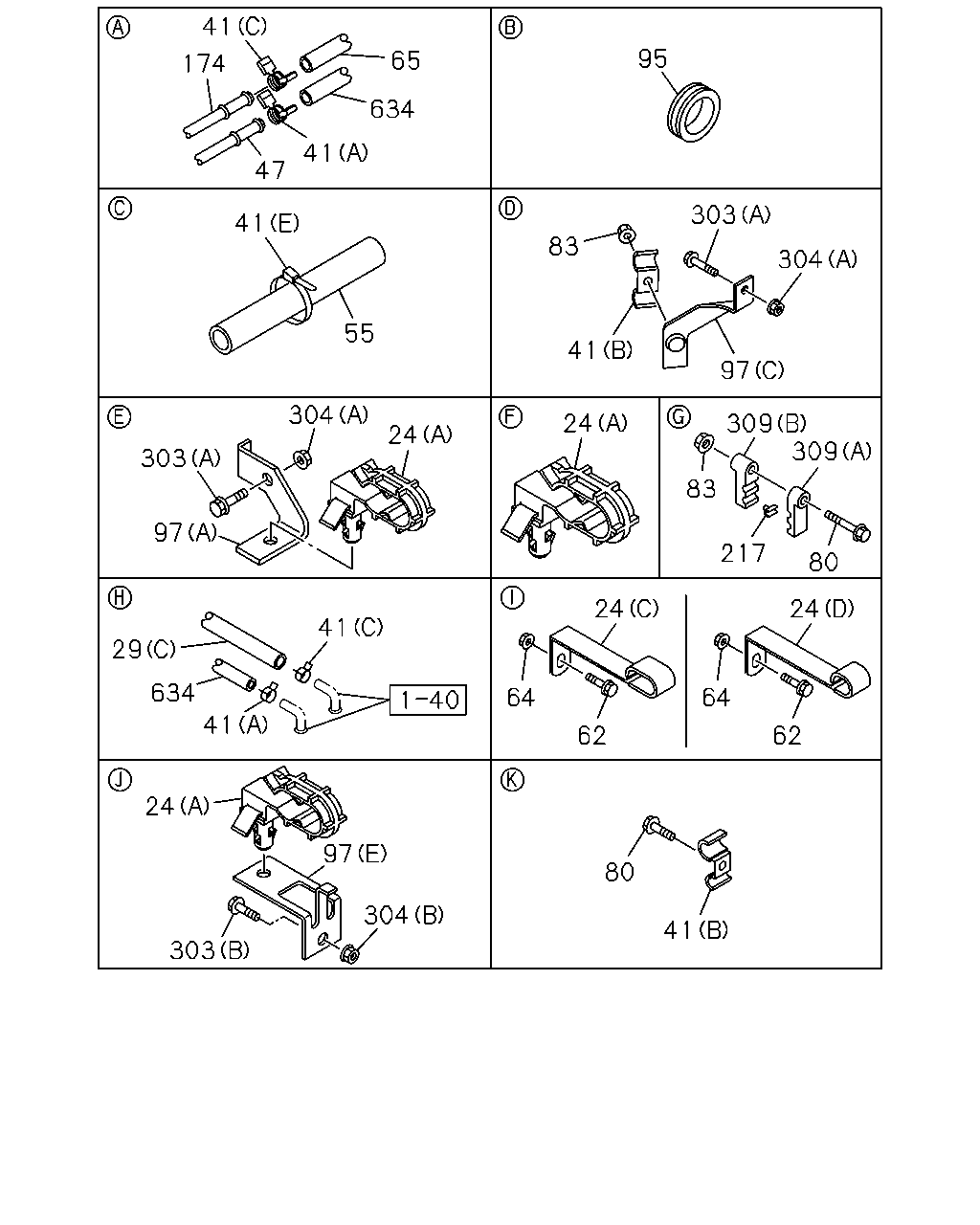

41 174 65 41 634 47 41 95 303 83 304 41 97 55 303 304 24 24 97 309 83 309 217 24 24 80 41 29 634 41 64 62 64 62 24 97 304 303 80 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE BIO DIESEL FUEL B10<8NV> (D) ID=17 H=50 L=25	1-09700-083-0	01	1	1704-
24	CLIP; FUEL HOSE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1312-
24	CLIP; FUEL HOSE (C) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1312-1703
24	CLIP; FUEL HOSE EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1704-
24	CLIP; FUEL HOSE (A) ID=14.5 & 14.5	1-09701-246-1	04	1	1312-
29	HOSE; FUEL BIO DIESEL FUEL B10<8NV> (C) SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1704-
29	HOSE; FUEL BIO DIESEL FUEL B10<8NV> (A)	8-98285-410-0	01	1	1704-
29	HOSE; FUEL (C) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	1312-1703
29	HOSE; FUEL EXC. BIO DIESEL FUEL B10<8NV> (C) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	1704-
29	HOSE; FUEL (A) IDN	8-98078-194-3	01	1	1312-1703
29	HOSE; FUEL EXC. BIO DIESEL FUEL B10<8NV> (A) IDN	8-98078-194-3	01	1	1704-
29	HOSE; FUEL (B) IDN	8-98078-195-1	01	1	1312-
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (C) ID=16 IDN	8-94238-568-0	06	1	1704-
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (E) L=250 IDN	5-09707-030-1	04	1	1704-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1312-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14 IDN	1-09704-102-0	06	1	1312-1703
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14 IDN	1-09704-102-0	06	1	1704-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250 IDN	5-09707-030-1	04	1	1312-1703
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (E) L=250 IDN	5-09707-030-1	05	1	1704-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16 IDN	8-94238-568-0	02	1	1312-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13 IDN	8-94238-571-0	06	1	1312-
47	PIPE; FUEL,RETURN BIO DIESEL FUEL B10<8NV> L=2251	8-98285-412-0	01	1	1704-
47	PIPE; FUEL,RETURN L=2240	8-98220-907-0	01	1	1312-1703
47	PIPE; FUEL,RETURN EXC. BIO DIESEL FUEL B10<8NV> L=2240	8-98220-907-0	01	1	1704-
55	COVER; PIPE,FUEL TANK ID=17 OD=21 L=40	1-09337-012-0	01	1	1312-
55	COVER; PIPE,FUEL TANK L=800	1-09361-018-0	01	1	1312-
62	BOLT; CLIP FIX M8X20 FLANGE IDN	0-28650-820-0	01	1	1312-1703
62	BOLT; CLIP FIX M8X25 FLANGE IDN	0-28650-825-0	01	1	1704-
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1312-
65	HOSE; FUEL,DELIVERY PIPE BIO DIESEL FUEL B10<8NV> L=300 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1704-
65	HOSE; FUEL,DELIVERY PIPE L=2100 SERVICED BY L=3000	0-01260-300-0	01	1	1312-1703
65	HOSE; FUEL,DELIVERY PIPE EXC. BIO DIESEL FUEL B10<8NV> L=2100 SERVICED BY L=3000	0-01260-300-0	01	1	1704-
80	BOLT; CLIP,FUEL TANK M8X50 FLANGE	0-28050-850-0	03	1	1312-
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE IDN	0-28650-820-0	01	1	1312-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	06	1	1312-
95	BUSHING; PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> ID=28 OD=35 T=17	9-09956-256-2	01	1	1704-
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	1312-1703
95	BUSHING; PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> ID=28 OD=35 T=17	9-09956-256-2	02	1	1704-
97	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	1312-
97	BRACKET; CLIP (C)	8-98078-201-0	01	1	1312-
97	BRACKET; CLIP (A)	8-98083-349-0	01	1	1312-
97	BRACKET; CLIP (D)	8-98083-537-0	01	1	1312-
97	BRACKET; CLIP (E)	8-98109-768-0	01	1	1312-
174	PIPE; FUEL,FEED,FRT BIO DIESEL FUEL B10<8NV>	8-98285-411-0	01	1	1704-
174	PIPE; FUEL,FEED,FRT L=2080	8-98220-906-0	01	1	1312-1703
174	PIPE; FUEL,FEED,FRT EXC. BIO DIESEL FUEL B10<8NV> L=2080	8-98220-906-0	01	1	1704-
217	COLLAR; FUEL PIPE FIX ID=8	1-47459-011-0	03	1	1312-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1312-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1312-
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	1312-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1312-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1312-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1312-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1312-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1312-
309	CLIP; PIPE (A) ID=10 & 10	1-09709-241-0	03	1	1312-
309	CLIP; PIPE (B) ID=10 & 10	1-09709-243-0	03	1	1312-
634	HOSE; RUBBER RETURN L=1500 SERVICED BY L=3000	0-01558-300-0	01	1	1312-

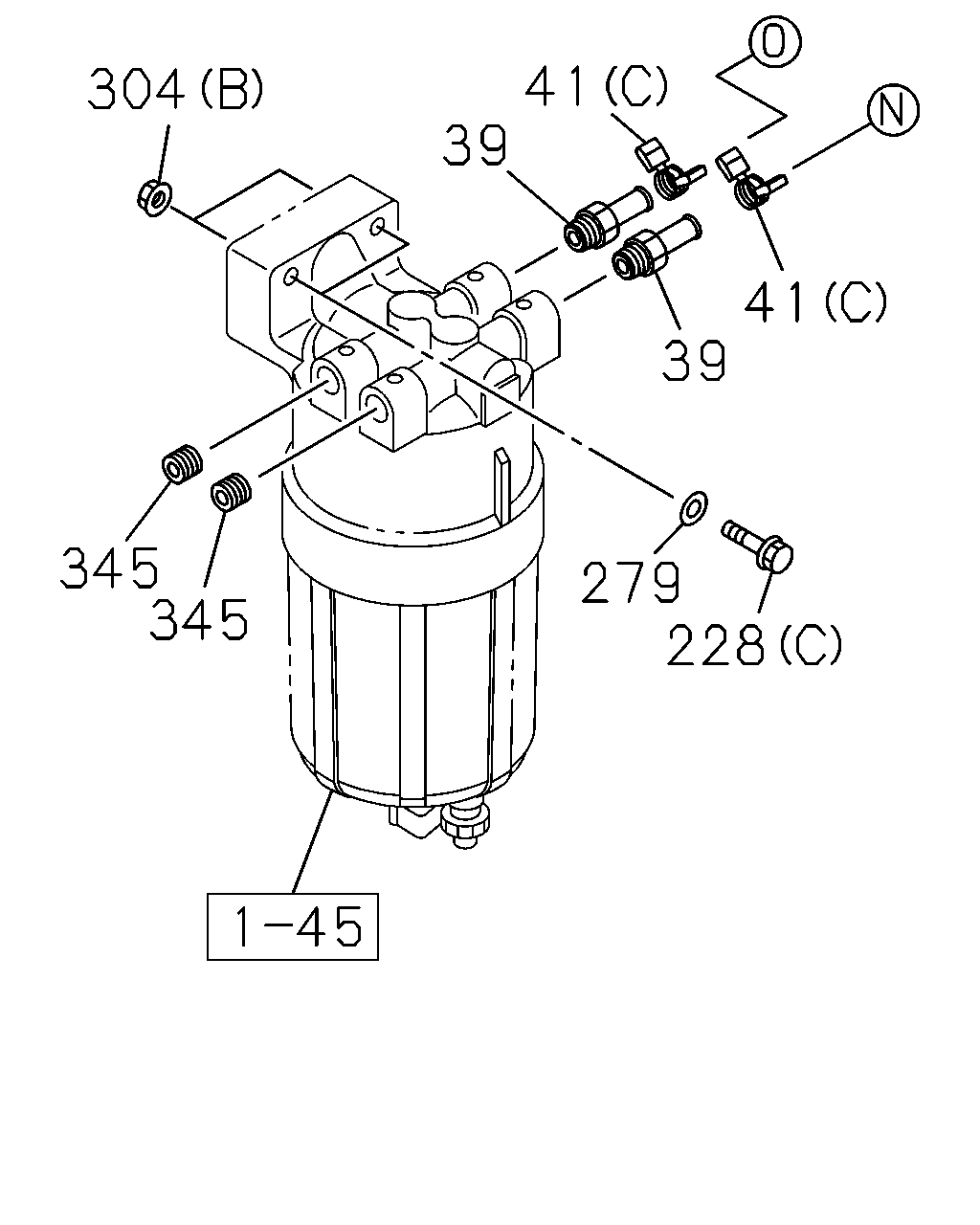

39 228 279 41 41 39 304 345 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL NPTF3/8-18 OD=10	8-98122-953-0	02	1	1312-
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (C) ID=16 IDN	8-94238-568-0	06	1	1704-
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (E) L=250 IDN	5-09707-030-1	04	1	1704-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	1312-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14 IDN	1-09704-102-0	06	1	1312-1703
41	CLIP; FUEL PIPE,FUEL TANK EXC. BIO DIESEL FUEL B10<8NV> (C) ID=14 IDN	1-09704-102-0	06	1	1704-
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250 IDN	5-09707-030-1	04	1	1312-1703
41	CLIP; FUEL PIPE,FUEL TANK BIO DIESEL FUEL B10<8NV> (E) L=250 IDN	5-09707-030-1	05	1	1704-
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16 IDN	8-94238-568-0	02	1	1312-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13 IDN	8-94238-571-0	06	1	1312-
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	1312-
228	BOLT; BRKT,SEDIMENTER (C) M10X60 FLANGE IDN	0-28051-060-0	02	1	1312-
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE IDN	0-28650-820-0	02	1	1312-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1312-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1312-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1312-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1312-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	01	1	1312-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1312-
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1312-

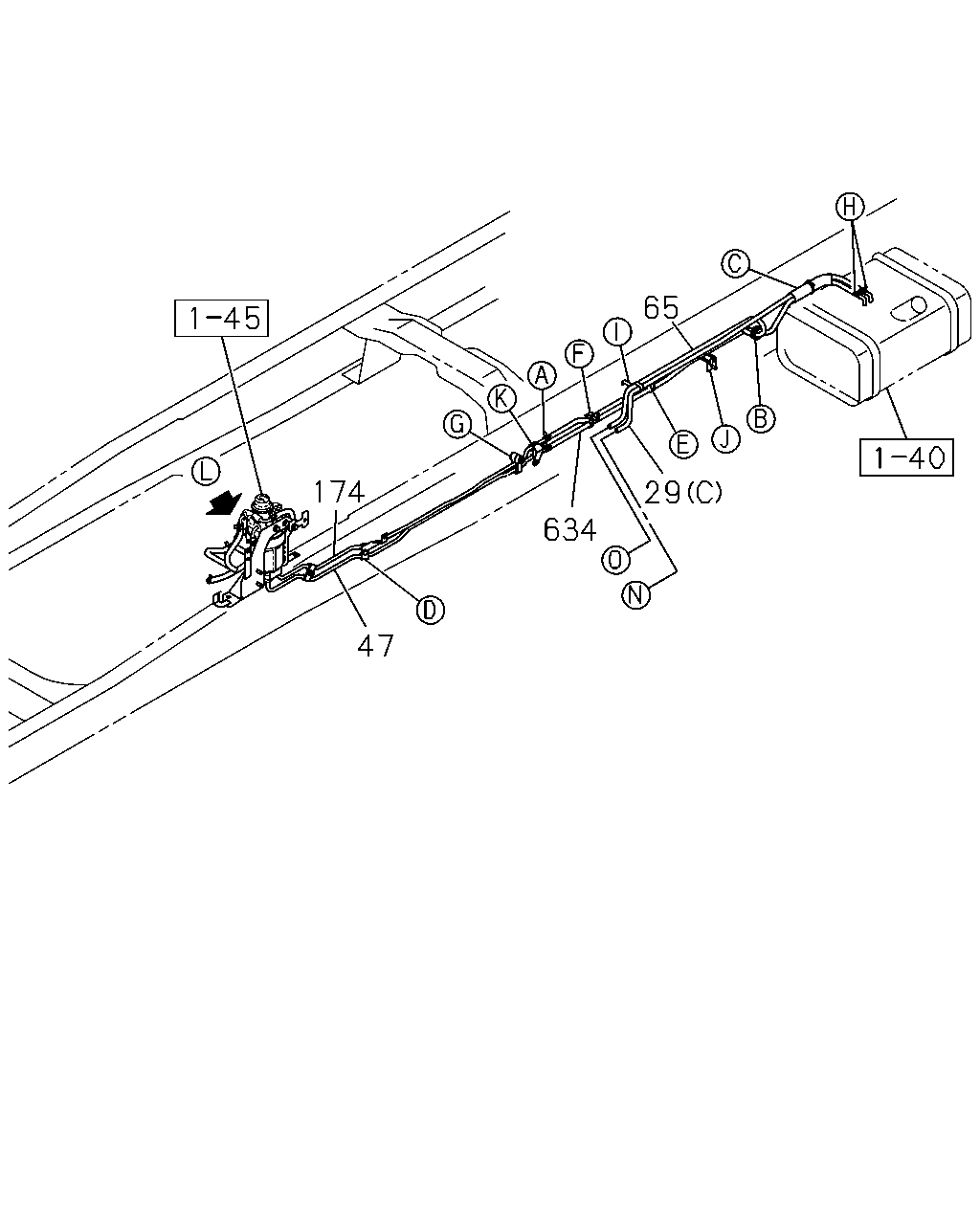

174 47 634 29 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL BIO DIESEL FUEL B10<8NV> (C) SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1704-
29	HOSE; FUEL BIO DIESEL FUEL B10<8NV> (A)	8-98285-410-0	01	1	1704-
29	HOSE; FUEL (C) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	1312-1703
29	HOSE; FUEL EXC. BIO DIESEL FUEL B10<8NV> (C) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	1704-
29	HOSE; FUEL (A) IDN	8-98078-194-3	01	1	1312-1703
29	HOSE; FUEL EXC. BIO DIESEL FUEL B10<8NV> (A) IDN	8-98078-194-3	01	1	1704-
29	HOSE; FUEL (B) IDN	8-98078-195-1	01	1	1312-
47	PIPE; FUEL,RETURN BIO DIESEL FUEL B10<8NV> L=2251	8-98285-412-0	01	1	1704-
47	PIPE; FUEL,RETURN L=2240	8-98220-907-0	01	1	1312-1703
47	PIPE; FUEL,RETURN EXC. BIO DIESEL FUEL B10<8NV> L=2240	8-98220-907-0	01	1	1704-
65	HOSE; FUEL,DELIVERY PIPE BIO DIESEL FUEL B10<8NV> L=300 SERVICED BY L=3000 IDN	0-01859-300-0	01	1	1704-
65	HOSE; FUEL,DELIVERY PIPE L=2100 SERVICED BY L=3000	0-01260-300-0	01	1	1312-1703
65	HOSE; FUEL,DELIVERY PIPE EXC. BIO DIESEL FUEL B10<8NV> L=2100 SERVICED BY L=3000	0-01260-300-0	01	1	1704-
174	PIPE; FUEL,FEED,FRT BIO DIESEL FUEL B10<8NV>	8-98285-411-0	01	1	1704-
174	PIPE; FUEL,FEED,FRT L=2080	8-98220-906-0	01	1	1312-1703
174	PIPE; FUEL,FEED,FRT EXC. BIO DIESEL FUEL B10<8NV> L=2080	8-98220-906-0	01	1	1704-
634	HOSE; RUBBER RETURN L=1500 SERVICED BY L=3000	0-01558-300-0	01	1	1312-
