Isuzu WW
▶
TRUCKS
▶
FRR
▶
11563 - FRR(INDONESIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#131038) — 56 parça
◀

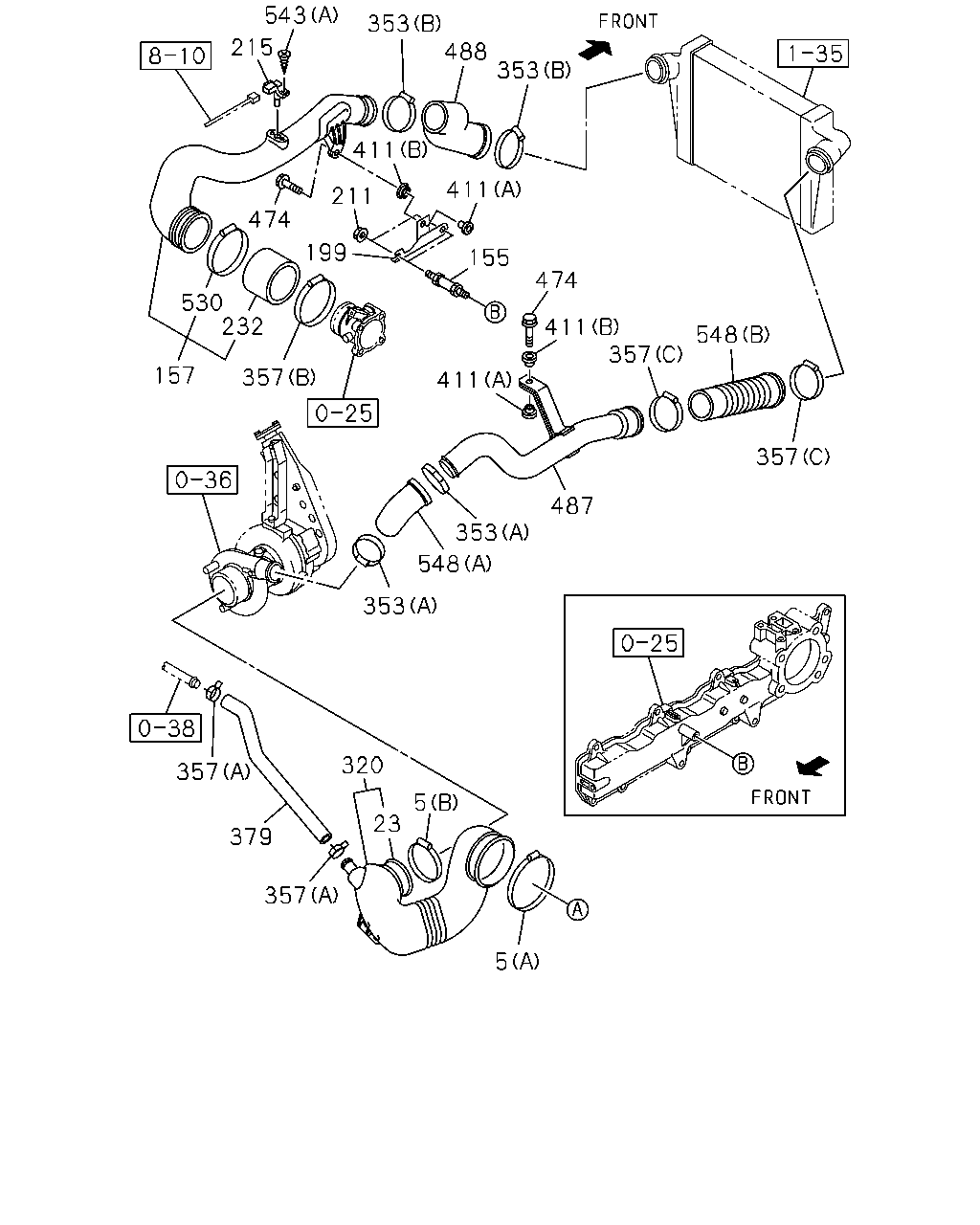

[131A] PIPING (27 parça)
[131A] DUCT FIXING (29 parça)
▶
543
353
353
211
411
411
155
411
411
474
357
548
357
487
353
548
353
357
379
357
23
320
5
5
199
357
232
530
474
215
488
157
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(B) ID=55-75
8-98133-349-0
01
1
1312-
5
CLIP; AIR DUCT
(A) ID=110-130
8-98133-359-0
01
1
1312-
23
CLIP; HOSE
ID=87-116
1-09707-144-0
01
1
1312-
155
BOLT; BRKT
M10X17,M10X30 L=105
8-97233-428-0
02
1
1312-
157
PIPE; AIR
8-98010-719-3
01
1
1312-
199
BRACKET; PIPE
8-97385-293-1
01
1
1312-
211
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1312-
215
SENSOR; MAP
8-98009-418-0
01
1
1312-
232
HOSE; CONN
8-98067-929-0
01
1
1312-
320
HOSE; CONN,ACL
8-98073-539-3
01
1
1312-
353
CLIP; RUBBER HOSE
(A) ID=60-65
8-98096-418-0
02
1
1312-
353
CLIP; RUBBER HOSE
(B) ID=55-75
8-98133-349-0
02
1
1312-
357
CLIP; RUBBER HOSE
(A) ID=24
8-98025-921-0
02
1
1312-
357
CLIP; RUBBER HOSE
(C) ID=55-75
8-98133-349-0
02
1
1312-
357
CLIP; RUBBER HOSE
(B) ID=75-95
8-98133-357-0
01
1
1312-
379
HOSE; RUBBER
8-98075-713-1
01
1
1312-
411
RUBBER; CUSHION
(A) OD=32
8-94395-766-0
02
1
1312-
411
RUBBER; CUSHION
(B) OD=23
8-97105-689-6
02
1
1312-
474
BOLT; PIPE
M8X40 FLANGE
0-28650-840-0
02
1
1312-
487
PIPE; TURBO TO CHARGE AIR COOLER
8-98073-592-0
01
1
1312-
488
HOSE; RUBBER,PIPE
IDN
8-98010-723-0
01
1
1312-
530
CLAMP; AIR DUCT
ID=75-95
8-98133-357-0
01
1
1312-
543
SCREW; SENSOR
(B) M5X14 W/LK WASHER
0-36220-514-0
01
1
1312-
543
SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1312-
543
SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1312-
548
HOSE; RUBBER,TURBO TO INL PIPE
(A) IDN
8-98181-971-1
01
1
1312-
548
HOSE; RUBBER,TURBO TO INL PIPE
(B) IDN
8-98181-972-1
01
1
1312-
49
242
58
56
56
49
245
58
48
58
56
56
49
242
61
26
560
450
316
543
543
58
49
242
252
71
368
564
480
209
296
210
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
1312-
48
BOLT; AIR DUCT
M10X26
1-09030-044-1
02
1
1312-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
1312-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
1312-
49
NUT; AIR DUCT
(C) M8 FLANGE IDN
8-94279-517-0
02
1
1312-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
1312-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
1312-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1312-
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
1312-
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
1312-
71
CLIP; AIR DUCT
ID=120-140
8-98133-367-0
01
1
1312-
209
BRACKET; ACL
8-98010-343-4
01
1
1312-
210
BOLT; ACL BRKT
M10X25 FLANGE IDN
0-28651-025-0
04
1
1312-
225
GASKET; AIR PIPE
ID=24.4
1-09623-057-0
01
1
1312-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
1312-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
1312-
242
BRACKET; AIR DUCT
(A)
8-98019-303-1
01
1
1312-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
1312-
252
DUCT; AIR INT
8-98010-639-1
01
1
1312-
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
1312-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
1312-
368
SENSOR; TEMP
8-98065-377-0
01
1
1312-
450
CLAMP; HOSE
9-09915-504-1
01
1
1312-
480
ADAPTER
8-98086-417-0
01
1
1312-
543
SCREW; SENSOR
(B) M5X14 W/LK WASHER
0-36220-514-0
01
1
1312-
543
SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1312-
543
SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1312-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
1312-
564
GASKET; ADAPTER
8-98071-416-0
01
1
1312-
