Isuzu WW
▶
TRUCKS
▶
FRR
▶
11563 - FRR(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶
0-13 — OIL PAN AND LEVEL GAUGE
(#131006) — 17 parça
◀
[013A] OIL LEVEL GAUGE AND GUIDE TUBE (11 parça)

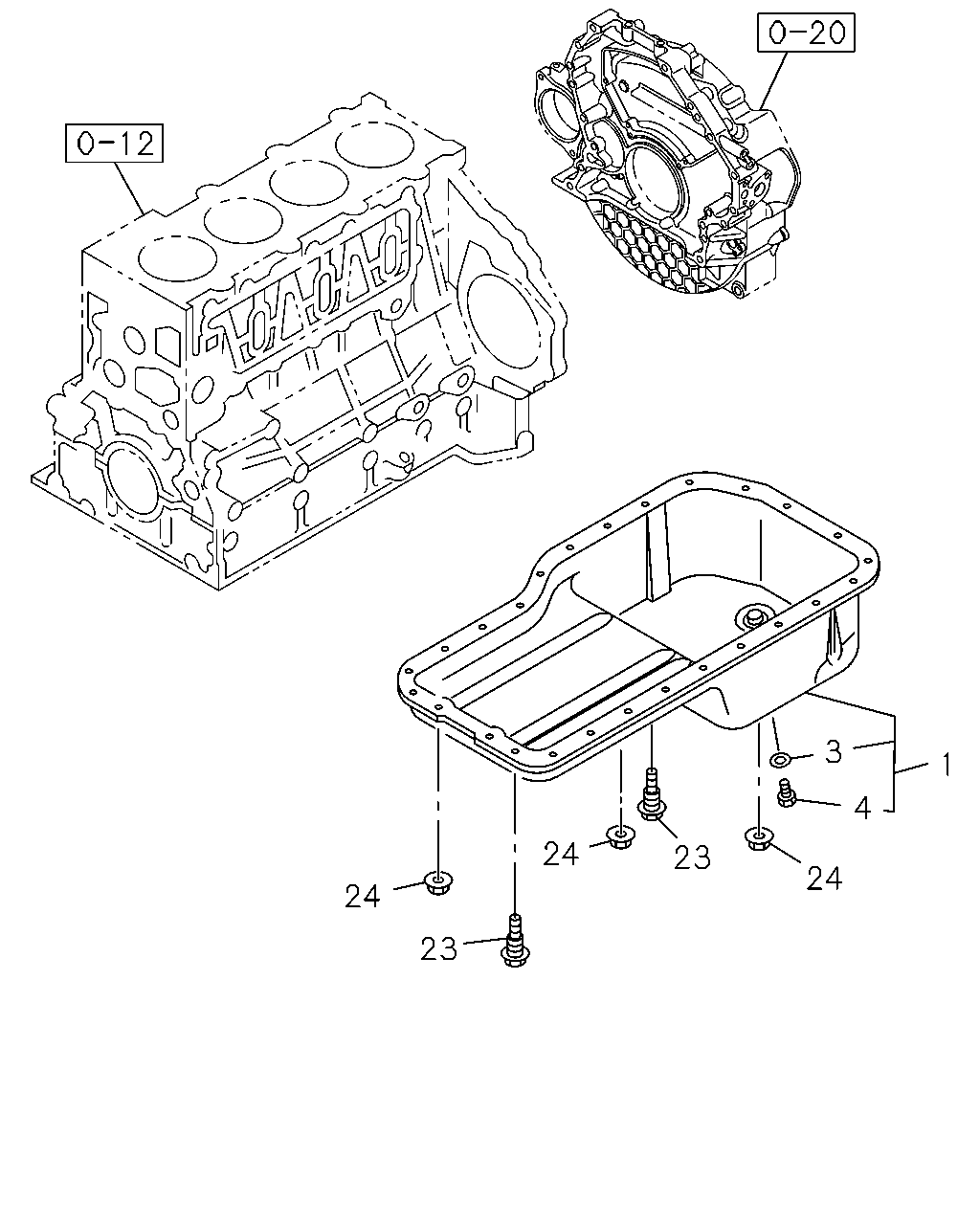

[013A] OIL PAN (6 parça)
▶
8
9
10
193
379
192
193
8
10
2
380
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GAUGE; OIL LEVEL
8-98085-153-0
01
1
1312-1406
2
GAUGE; OIL LEVEL
8-98245-514-0
01
1
1407-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-98009-115-1
01
1
1312-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
8-98010-328-1
01
1
1312-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
1312-
10
BOLT; GUIDE TUBE
(A) M6X12 FLANGE
0-28050-612-0
01
1
1312-
10
BOLT; GUIDE TUBE
(B) M8X20 FLANGE IDN
0-28650-820-0
02
1
1312-
192
HOSE; GUIDE TUBE
L=300 IDN
1-09360-978-0
01
1
1312-
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
1312-
379
CLIP; PIPE TO HOSE
ID=18 & 18
8-94323-068-0
01
1
1312-
380
PROTECTOR; PIPE
ID=18 L=40
8-98070-445-0
01
1
1312-
24
23
24
23
3
4
1
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
8-98191-050-0
01
1
1312-
3
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24
8-94158-328-0
01
1
1312-
4
PLUG; DRAIN,OIL
M14X14 IDN
8-94152-613-0
01
1
1312-
23
BOLT; OIL PAN
M8X14 W/SCOTCH GRIP
8-97047-004-1
01
1
1312-
23
BOLT; OIL PAN
M8X14
8-97047-005-0
18
1
1312-
24
NUT; OIL PAN
M8 W/LK WASHER IDN
8-97581-234-0
07
1
1312-
