Isuzu WW
▶
TRUCKS
▶
FRR
▶
11563 - FRR(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-05 - ENGINE GASKET KIT
▶
0-05 — ENGINE GASKET KIT
(#131002) — 15 parça
◀
[005A] ENG OVERHAUL (9 parça)
[005A] ENG HD OVERHAUL (6 parça)
▶

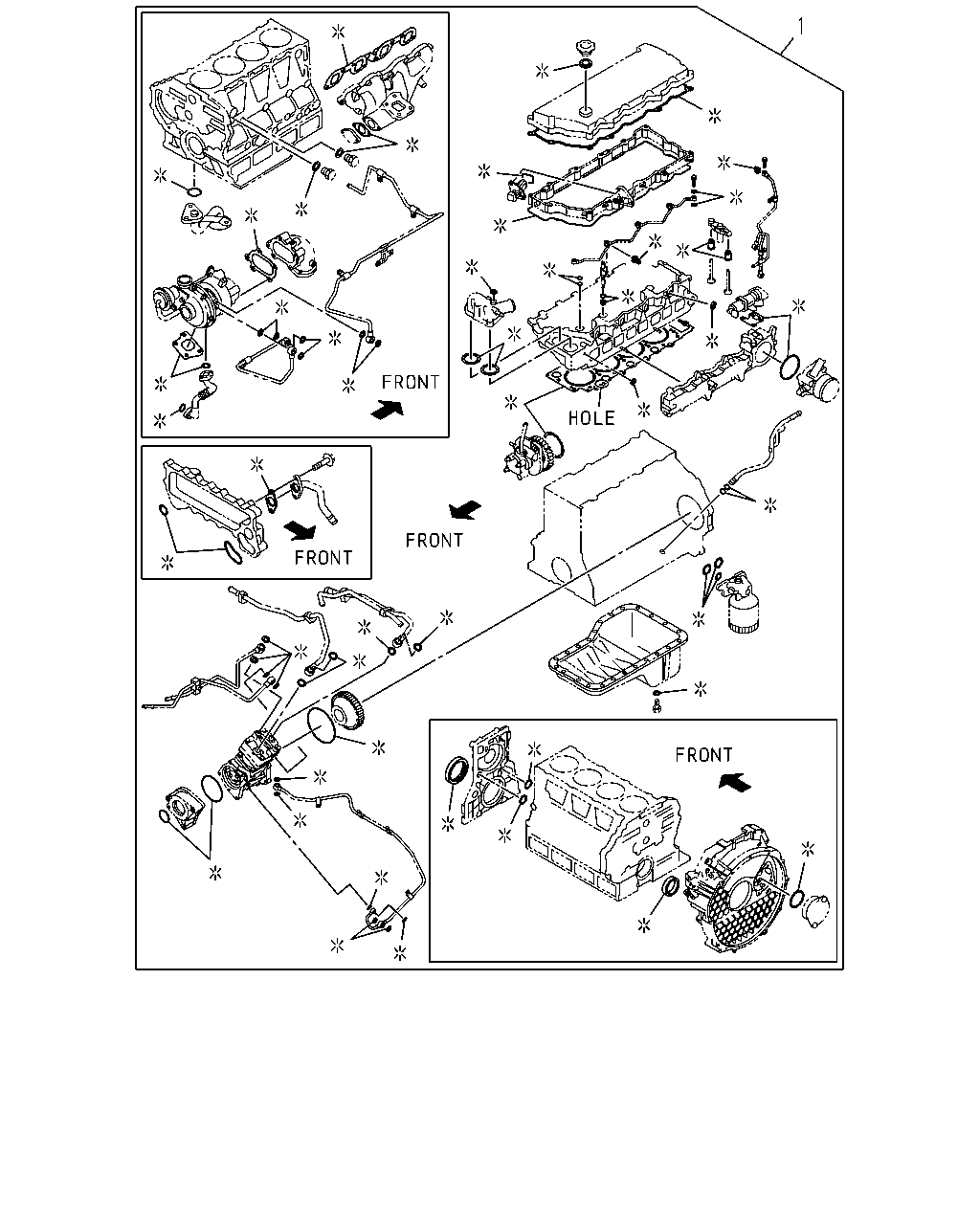

1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE
1-87813-721-2
01
1
1312-1312
1
GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE
1-87814-229-0
01
1
1401-1501
1
GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE
1-87815-559-0
01
1
1502-
1
GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE
1-87813-722-2
01
1
1312-1312
1
GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE
1-87814-230-0
01
1
1401-1501
1
GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE
1-87815-560-0
01
1
1502-
1
GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE
1-87813-723-2
01
1
1312-1312
1
GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE
1-87814-231-0
01
1
1401-1501
1
GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE
1-87815-561-0
01
1
1502-

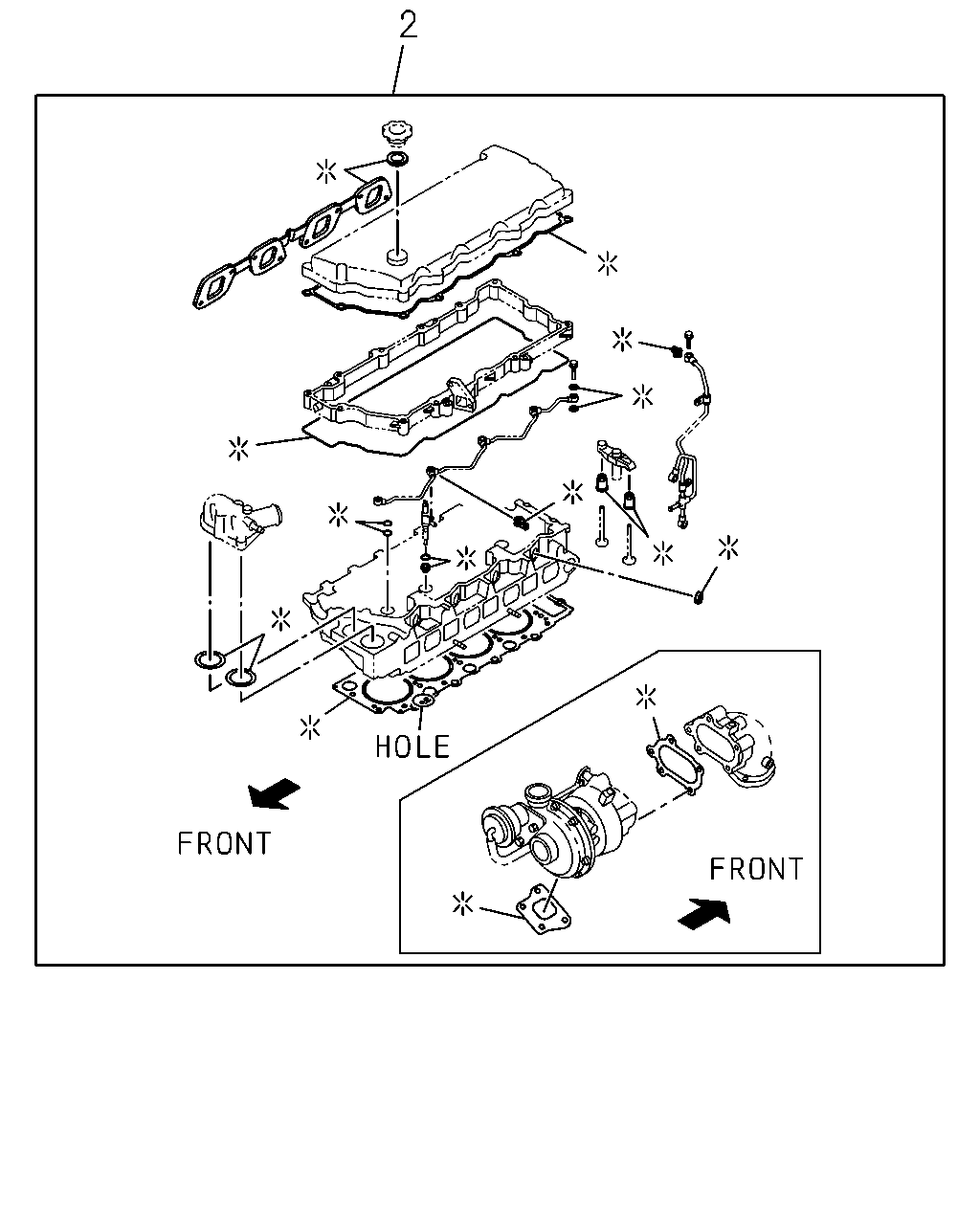

2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE
1-87813-441-3
01
1
1312-1501
2
GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE
1-87815-507-0
01
1
1502-
2
GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE
1-87813-442-3
01
1
1312-1501
2
GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE
1-87815-508-0
01
1
1502-
2
GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE
1-87813-443-3
01
1
1312-1501
2
GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE
1-87815-509-0
01
1
1502-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
