4-65B — REAR LEAF SPRING (#130945) — 55 parça

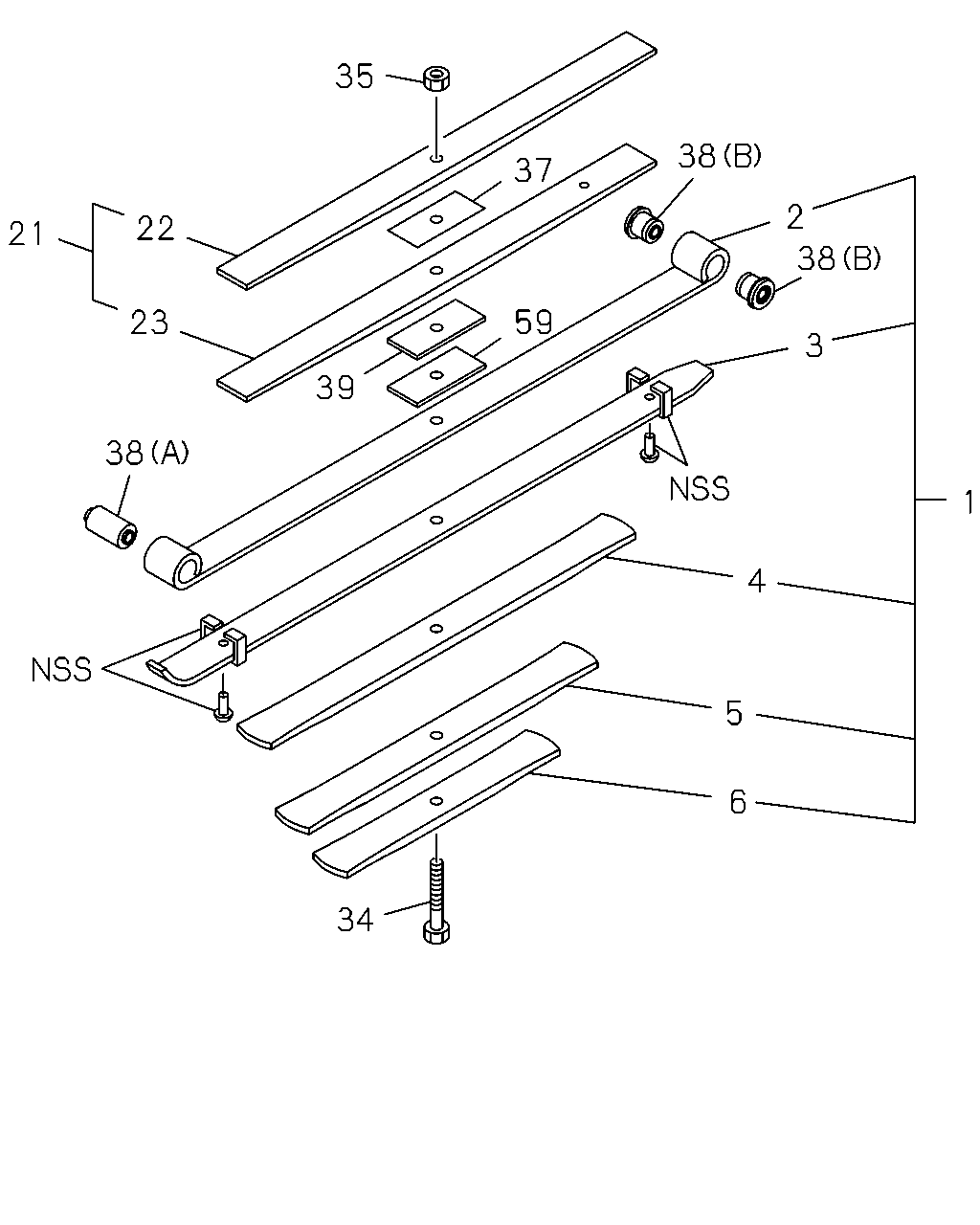

6 5 4 1 3 38 38 37 59 39 22 23 21 38 34 35 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-98252-083-0, 98252083	8-98252-545-0	01	1	-
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: B = 8-98258-484-0, 98258484	8-98259-193-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-98252-083-0, 98252083	8-98252-546-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-98258-484-0, 98258484	8-98259-194-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-98252-083-0, 98252083	8-98252-547-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-98258-484-0, 98258484	8-98259-195-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-98252-083-0, 98252083	8-98252-548-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-98258-484-0, 98258484	8-98259-196-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-98252-083-0, 98252083	8-98252-549-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-98258-484-0, 98258484	8-98259-197-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 8-98252-083-0, 98252083	8-98252-550-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 8-98258-484-0, 98258484	8-98259-198-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: A = 8-98252-083-0, 98252083	8-98252-551-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: B = 8-98258-484-0, 98258484	8-98259-199-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-98252-083-0, 98252083	8-98252-552-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-98258-484-0, 98258484	8-98259-200-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-98252-083-0, 98252083	8-98252-553-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-98258-484-0, 98258484	8-98259-201-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=125 ASM PART: A = 8-98252-083-0, 98252083	8-98037-584-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=130 ASM PART: B = 8-98258-484-0, 98258484	8-98041-355-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-98252-083-0, 98252083, B = 8-98258-484-0, 98258484	9-99110-512-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-98252-083-0, 98252083, B = 8-98258-484-0, 98258484	8-97084-102-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), BEST VALUE PARTS ASM PART: A = 8-98252-083-0, 98252083, B = 8-98258-484-0, 98258484	5-87610-163-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (B) ASM PART: A = 8-98252-083-0, 98252083, B = 8-98258-484-0, 98258484	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), OD=42 L=81 ASM PART: A = 8-98252-083-0, 98252083, B = 8-98258-484-0, 98258484	8-97074-826-0	01	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN 07.513, T=9 ASM PART: B = 8-98258-484-0, 98258484	8-98040-314-0	03	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN 07.513, T=9 ASM PART: A = 8-98252-083-0, 98252083	8-98040-314-0	01	1	-
59	07.513 SEAT; RR SPRING,SUB T=12 ASM PART: A = 8-98252-083-0, 98252083	8-98025-941-0	01	1	-

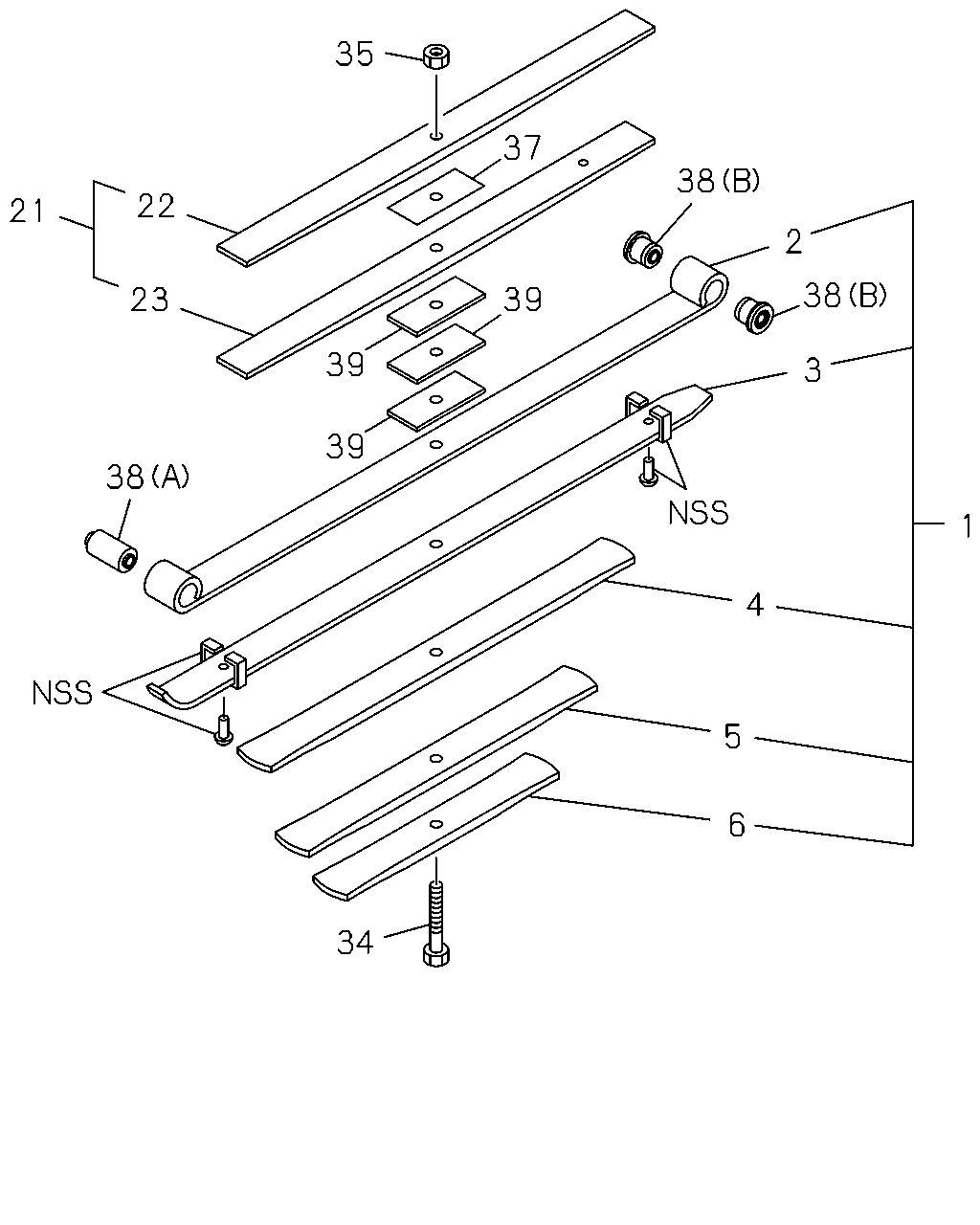

34 38 21 22 23 39 39 39 37 35 38 38 3 1 4 5 6 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-98252-083-0, 98252083	8-98252-545-0	01	1	-
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: B = 8-98258-484-0, 98258484	8-98259-193-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-98252-083-0, 98252083	8-98252-546-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: B = 8-98258-484-0, 98258484	8-98259-194-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-98252-083-0, 98252083	8-98252-547-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: B = 8-98258-484-0, 98258484	8-98259-195-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-98252-083-0, 98252083	8-98252-548-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: B = 8-98258-484-0, 98258484	8-98259-196-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-98252-083-0, 98252083	8-98252-549-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: B = 8-98258-484-0, 98258484	8-98259-197-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 8-98252-083-0, 98252083	8-98252-550-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: B = 8-98258-484-0, 98258484	8-98259-198-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: A = 8-98252-083-0, 98252083	8-98252-551-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: B = 8-98258-484-0, 98258484	8-98259-199-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-98252-083-0, 98252083	8-98252-552-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: B = 8-98258-484-0, 98258484	8-98259-200-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-98252-083-0, 98252083	8-98252-553-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: B = 8-98258-484-0, 98258484	8-98259-201-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=125 ASM PART: A = 8-98252-083-0, 98252083	8-98037-584-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=130 ASM PART: B = 8-98258-484-0, 98258484	8-98041-355-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-98252-083-0, 98252083, B = 8-98258-484-0, 98258484	9-99110-512-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-98252-083-0, 98252083, B = 8-98258-484-0, 98258484	8-97084-102-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), BEST VALUE PARTS ASM PART: A = 8-98252-083-0, 98252083, B = 8-98258-484-0, 98258484	5-87610-163-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (B) ASM PART: A = 8-98252-083-0, 98252083, B = 8-98258-484-0, 98258484	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (A), OD=42 L=81 ASM PART: A = 8-98252-083-0, 98252083, B = 8-98258-484-0, 98258484	8-97074-826-0	01	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN 07.513, T=9 ASM PART: B = 8-98258-484-0, 98258484	8-98040-314-0	03	1	-
39	07.518 SEAT; LEAF SPR,RR MAIN 07.513, T=9 ASM PART: A = 8-98252-083-0, 98252083	8-98040-314-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
