4-65A — REAR LEAF SPRING (#130944) — 64 parça

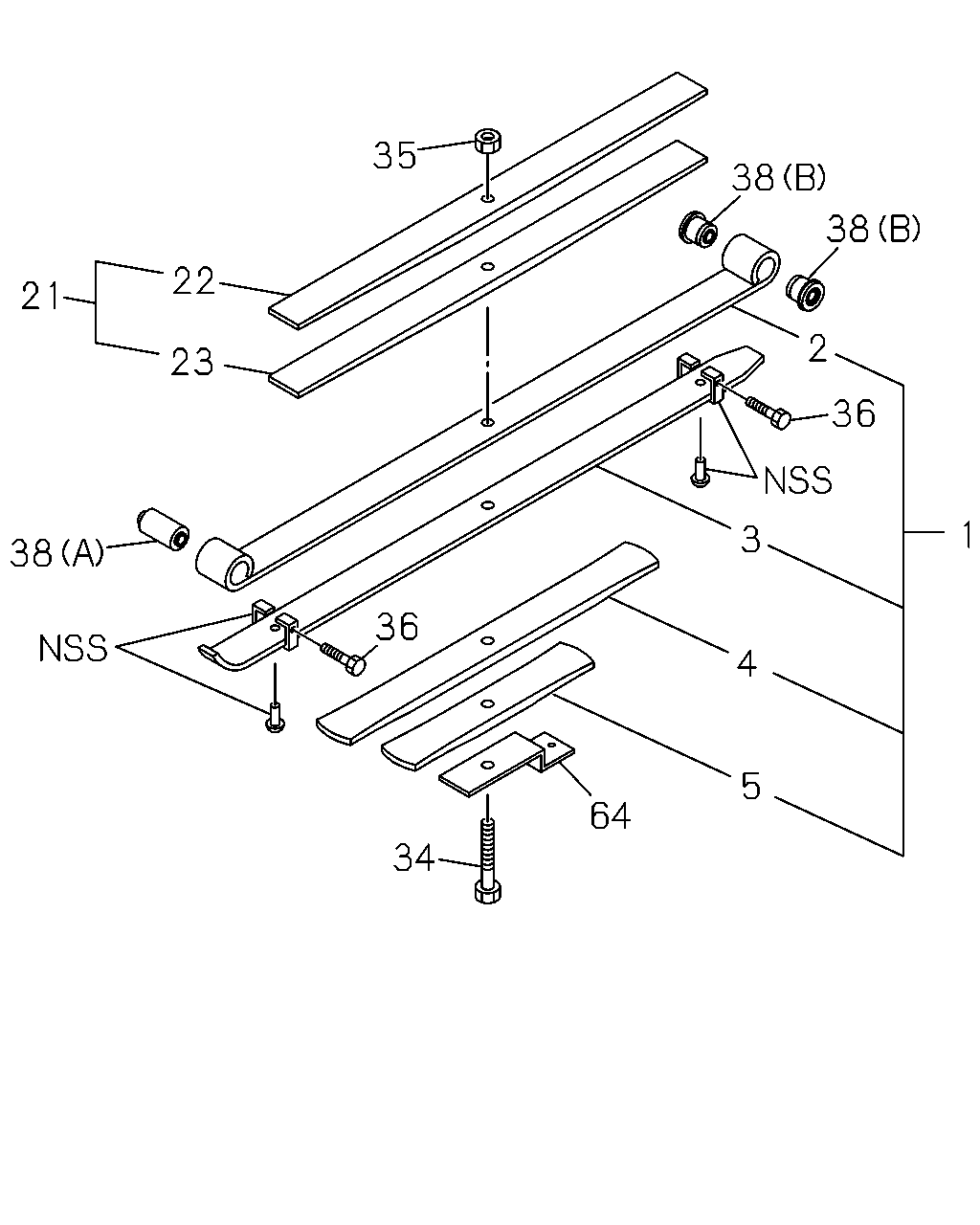

çizim 159777
35 22 23 21 38 36 64 34 4 5 3 1 36 2 38 38
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: B = 8-98001-652-0, 98001652 		8-98022-650-0 01 1 -
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98001-619-0, 98001619 		8-98037-695-0 01 1 -
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: C = 8-98253-318-0, 98253318 		8-98254-044-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: B = 8-98001-652-0, 98001652 		8-98022-651-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98001-619-0, 98001619 		8-98037-696-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: C = 8-98253-318-0, 98253318 		8-98254-045-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: B = 8-98001-652-0, 98001652 		8-98022-652-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98001-619-0, 98001619 		8-98037-697-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: C = 8-98253-318-0, 98253318 		8-98254-046-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: B = 8-98001-652-0, 98001652 		8-98022-653-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98001-619-0, 98001619 		8-98037-698-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: C = 8-98253-318-0, 98253318 		8-98254-047-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: B = 8-98001-652-0, 98001652 		8-98022-654-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: B = 8-98001-652-0, 98001652 		8-98022-655-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-98001-619-0, 98001619 		8-98037-699-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: C = 8-98253-318-0, 98253318 		8-98254-048-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: B = 8-98001-652-0, 98001652 		8-98022-656-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98001-619-0, 98001619 		8-98037-700-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: C = 8-98253-318-0, 98253318 		8-98254-049-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: B = 8-98001-652-0, 98001652 		8-98022-657-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-98001-619-0, 98001619 		8-98037-701-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: C = 8-98253-318-0, 98253318 		8-98254-050-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=105 ASM PART: B = 8-98001-652-0, 98001652 		8-98040-307-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=110 ASM PART: A = 8-98001-619-0, 98001619, C = 8-98253-318-0, 98253318 		8-98040-312-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-98001-619-0, 98001619, B = 8-98001-652-0, 98001652, C = 8-98253-318-0, 98253318 		9-99110-512-0 01 1 -
36 07.506 BOLT; CLIP,LEAF SPR,RR
M8X91 ASM PART: A = 8-98001-619-0, 98001619, C = 8-98253-318-0, 98253318 		8-98040-331-0 02 1 -
36 07.506 BOLT; CLIP,LEAF SPR,RR
M8X89 ASM PART: B = 8-98001-652-0, 98001652 		8-98040-332-0 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), BEST VALUE PARTS ASM PART: A = 8-98001-619-0, 98001619, B = 8-98001-652-0, 98001652, C = 8-98253-318-0, 98253318 		5-87610-163-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.524, (B) ASM PART: B = 8-98001-652-0, 98001652 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), OD=42 L=81 ASM PART: A = 8-98001-619-0, 98001619, B = 8-98001-652-0, 98001652, C = 8-98253-318-0, 98253318 		8-97074-826-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
(B), OD=40 L=41 ASM PART: A = 8-98001-619-0, 98001619, C = 8-98253-318-0, 98253318 		8-97374-410-0 02 1 -
64 07.513 SUPPORT; RR SPR
ASM PART: B = 8-98001-652-0, 98001652 		8-97044-353-2 01 1 -

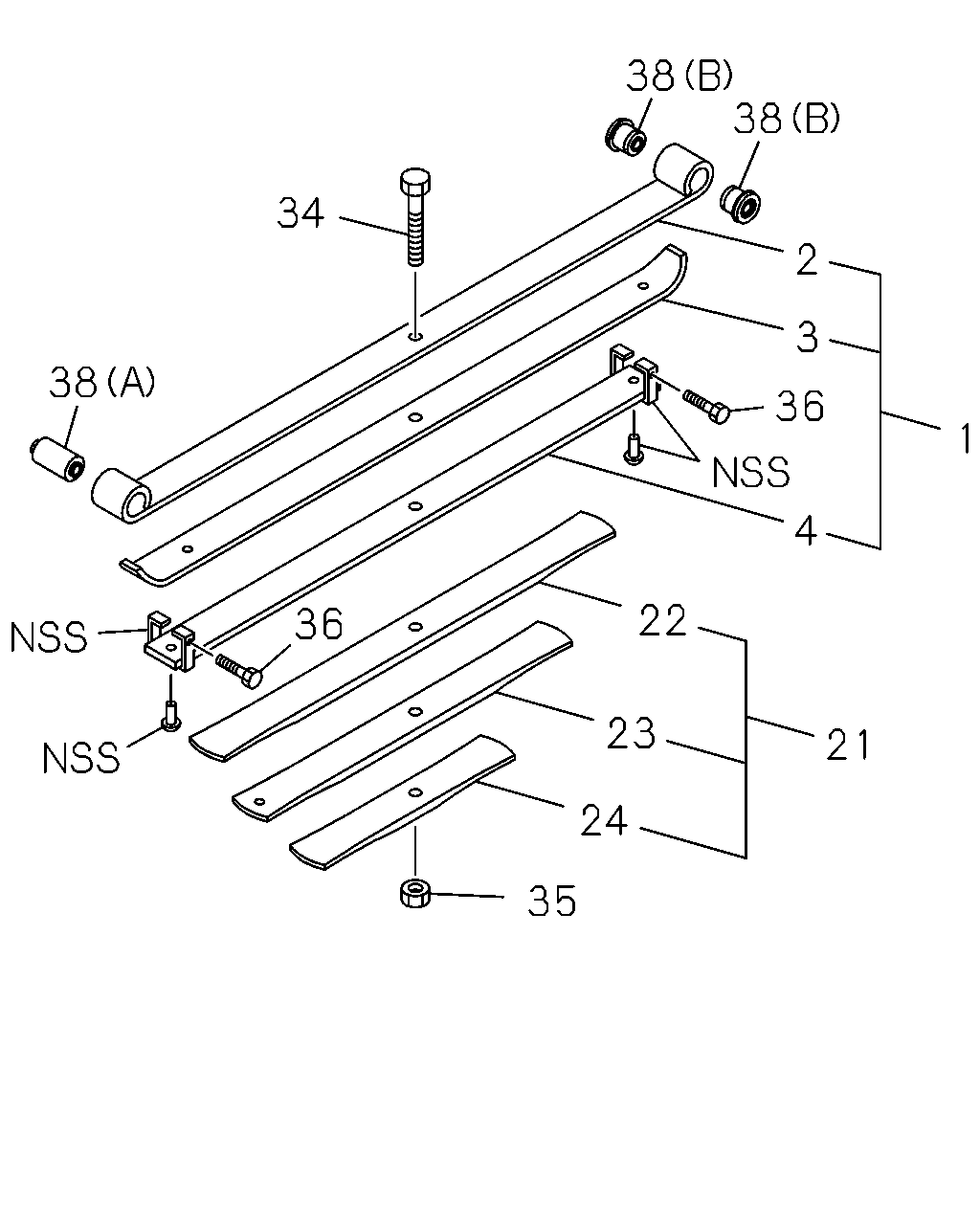

çizim 159847
21 1 4 36 3 2 38 38 22 23 24 35 36 34 38
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: B = 8-98001-652-0, 98001652 		8-98022-650-0 01 1 -
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98001-619-0, 98001619 		8-98037-695-0 01 1 -
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: C = 8-98253-318-0, 98253318 		8-98254-044-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: B = 8-98001-652-0, 98001652 		8-98022-651-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98001-619-0, 98001619 		8-98037-696-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: C = 8-98253-318-0, 98253318 		8-98254-045-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: B = 8-98001-652-0, 98001652 		8-98022-652-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98001-619-0, 98001619 		8-98037-697-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: C = 8-98253-318-0, 98253318 		8-98254-046-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: B = 8-98001-652-0, 98001652 		8-98022-653-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98001-619-0, 98001619 		8-98037-698-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: C = 8-98253-318-0, 98253318 		8-98254-047-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: B = 8-98001-652-0, 98001652 		8-98022-655-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-98001-619-0, 98001619 		8-98037-699-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: C = 8-98253-318-0, 98253318 		8-98254-048-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: B = 8-98001-652-0, 98001652 		8-98022-656-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98001-619-0, 98001619 		8-98037-700-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: C = 8-98253-318-0, 98253318 		8-98254-049-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: B = 8-98001-652-0, 98001652 		8-98022-657-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-98001-619-0, 98001619 		8-98037-701-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: C = 8-98253-318-0, 98253318 		8-98254-050-0 01 1 -
24 07.505 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 8-98001-619-0, 98001619 		8-98037-702-0 01 1 -
24 07.505 SPRING; LEAF,NO 3,RR SUB
ASM PART: C = 8-98253-318-0, 98253318 		8-98254-051-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=105 ASM PART: B = 8-98001-652-0, 98001652 		8-98040-307-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=110 ASM PART: A = 8-98001-619-0, 98001619, C = 8-98253-318-0, 98253318 		8-98040-312-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-98001-619-0, 98001619, B = 8-98001-652-0, 98001652, C = 8-98253-318-0, 98253318 		9-99110-512-0 01 1 -
36 07.506 BOLT; CLIP,LEAF SPR,RR
M8X91 ASM PART: A = 8-98001-619-0, 98001619, C = 8-98253-318-0, 98253318 		8-98040-331-0 02 1 -
36 07.506 BOLT; CLIP,LEAF SPR,RR
M8X89 ASM PART: B = 8-98001-652-0, 98001652 		8-98040-332-0 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), BEST VALUE PARTS ASM PART: A = 8-98001-619-0, 98001619, B = 8-98001-652-0, 98001652, C = 8-98253-318-0, 98253318 		5-87610-163-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.524, (B) ASM PART: B = 8-98001-652-0, 98001652 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), OD=42 L=81 ASM PART: A = 8-98001-619-0, 98001619, B = 8-98001-652-0, 98001652, C = 8-98253-318-0, 98253318 		8-97074-826-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
(B), OD=40 L=41 ASM PART: A = 8-98001-619-0, 98001619, C = 8-98253-318-0, 98253318 		8-97374-410-0 02 1 -
