9-33 — REAR BODY; GATE AND SIDE GUARD (#130940) — 69 parça

40 36 37 39 40 39 37 38 37 39 38 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
36	RUBBER; STOPPER,RR GATE RR BODY FLAT BED<RS6> PABCO	8-98045-163-0	02	1	1312-
37	SCREW RR BODY FLAT BED<RS6> (A) M6X30 PABCO	8-98045-188-0	04	1	1312-
37	SCREW RR BODY FLAT BED<RS6> (B) M6X25 PABCO	8-98045-191-0	02	1	1312-
38	RUBBER; STOPPER,SIDE GATE RR BODY FLAT BED<RS6> (A) H=30 PABCO	8-98045-162-0	02	1	1312-
38	RUBBER; STOPPER,SIDE GATE RR BODY FLAT BED<RS6> (B) H=23 PABCO	8-98045-164-0	02	1	1312-
39	WASHER; STOPPER RUBBER RR BODY FLAT BED<RS6> PABCO	8-98045-202-0	06	1	1312-
40	NUT; STOPPER RUBBER RR BODY FLAT BED<RS6> M6 FLANGE MAL	0-91180-106-0	06	1	1312-

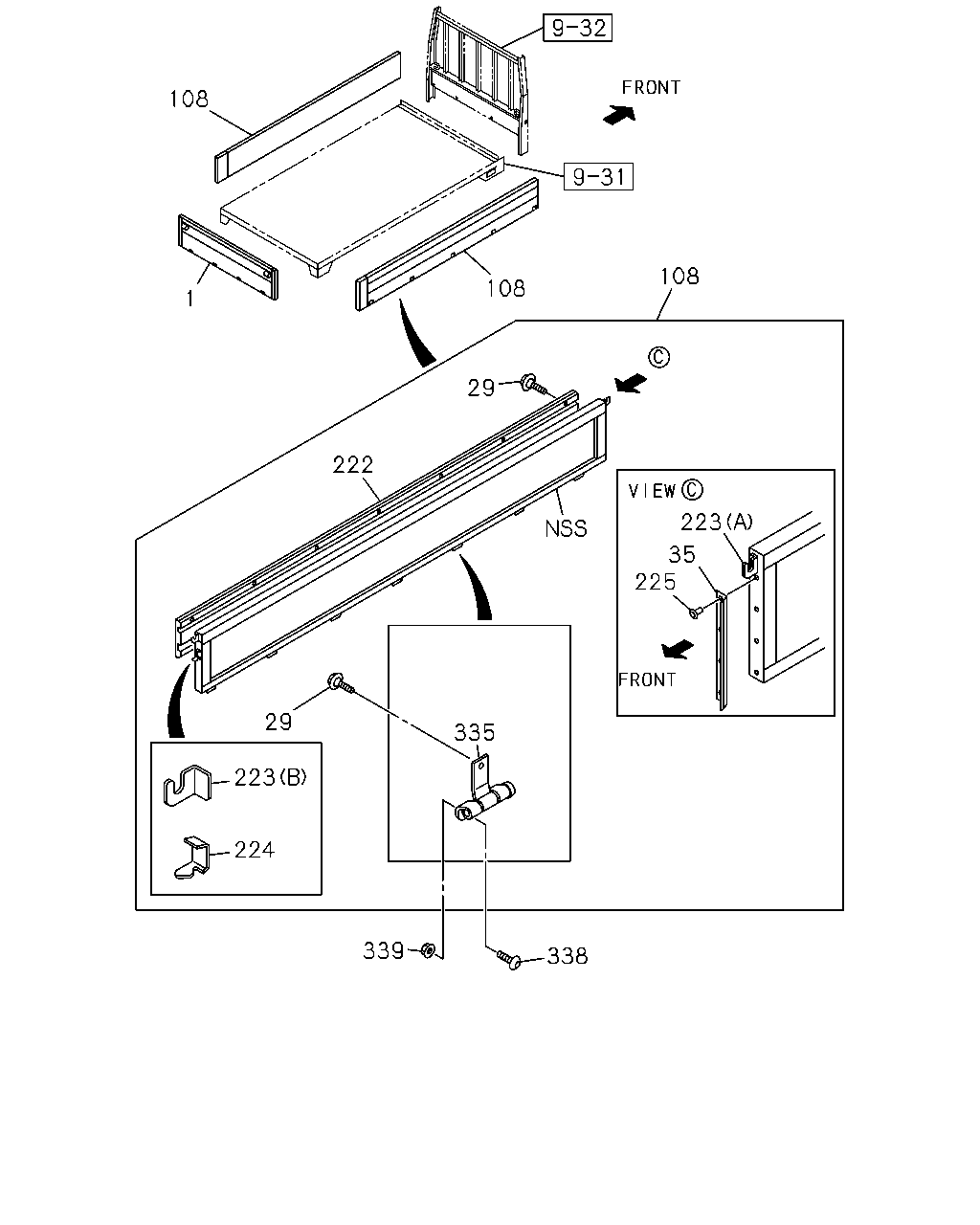

108 108 108 29 222 35 225 223 335 29 223 224 339 338 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GATE ASM; RR RR BODY FLAT BED<RS6> L=2071 H=389 B=50 PLYWOOD PABCO	8-98030-806-2	01	1	1312-
29	SCREW; PANEL SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> M8X25 PABCO	8-98045-183-0	28	1	1312-
29	SCREW; PANEL SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> M8X25 PABCO	8-98045-183-0	32	1	1312-
35	WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED<RS6> PABCO	8-98045-209-0	02	1	1312-
108	GATE ASM; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> L=4265 H=389 B=50 PLYWOOD PABCO	8-98106-930-0	01	1	1312-
108	GATE ASM; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> L=4265 H=389 B=50 PLYWOOD PABCO	8-98106-931-0	01	1	1312-
108	GATE ASM; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=4352 H=389 B=50 PLYWOOD PABCO	8-98030-792-1	01	1	1312-
108	GATE ASM; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=4352 H=389 B=50 PLYWOOD PABCO	8-98030-793-1	01	1	1312-
108	GATE ASM; SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> L=4940 H=389 B=50 PLYWOOD PABCO	8-98089-981-1	01	1	1312-
108	GATE ASM; SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> L=4940 H=389 B=50 PLYWOOD PABCO	8-98089-983-1	01	1	1312-
108	GATE ASM; SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5002 H=389 B=50 PLYWOOD PABCO	8-98030-796-1	01	1	1312-
108	GATE ASM; SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5002 H=389 B=50 PLYWOOD PABCO	8-98030-797-1	01	1	1312-
222	BOARD; SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ>	8-98093-290-0	02	1	1312-
222	BOARD; SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> PABCO	8-98045-107-1	02	1	1312-
222	BOARD; SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> PABCO	8-98045-238-1	02	1	1312-
222	BOARD; SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> PABCO	8-98045-112-1	02	1	1312-
223	HOOK; PLATE RR BODY FLAT BED<RS6> (A) FRONT PABCO	5-87580-002-0	01	1	1312-
223	HOOK; PLATE RR BODY FLAT BED<RS6> (A) FRONT PABCO	5-87580-003-0	01	1	1312-
223	HOOK; PLATE RR BODY FLAT BED<RS6> (B) REAR PABCO	5-87580-004-0	01	1	1312-
223	HOOK; PLATE RR BODY FLAT BED<RS6> (B) REAR PABCO	5-87580-005-0	01	1	1312-
224	HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> PABCO	5-87580-007-0	01	1	1312-
224	HOOK; VERTICAL LOCK RR BODY FLAT BED<RS6> PABCO	5-87580-008-0	01	1	1312-
225	CLIP; WEATHERSTRIP RR BODY FLAT BED<RS6> PABCO	8-98045-207-0	08	1	1312-
335	HINGE ASM; SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> PABCO	5-87580-006-0	14	1	1312-
335	HINGE ASM; SIDE GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> PABCO	5-87580-006-0	16	1	1312-
338	SCREW; HINGE,GATE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> M8X20 PABCO	8-98045-181-0	40	1	1312-
338	SCREW; HINGE,GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> M8X20 PABCO	8-98045-181-0	36	1	1312-
339	NUT; HINGE,GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE MAL	0-91180-108-0	22	1	1312-
339	NUT; HINGE,GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> M8 FLANGE MAL	0-91180-108-0	22	1	1312-
339	NUT; HINGE,GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE MAL	0-91180-108-0	24	1	1312-

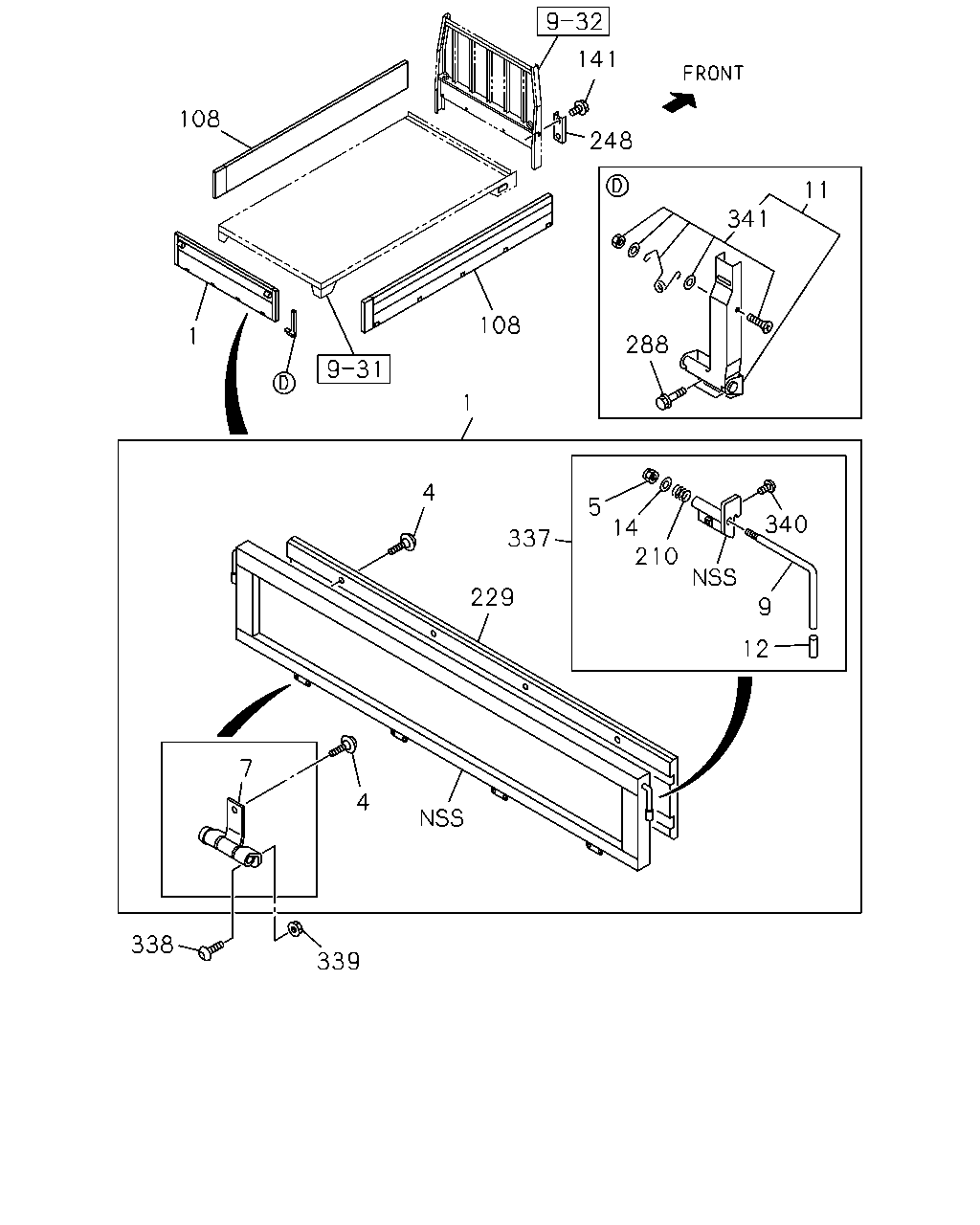

141 248 11 341 288 14 5 210 340 9 12 337 1 108 4 229 4 7 339 338 1 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GATE ASM; RR RR BODY FLAT BED<RS6> L=2071 H=389 B=50 PLYWOOD PABCO	8-98030-806-2	01	1	1312-
4	SCREW; PANEL,RR GATE RR BODY FLAT BED<RS6> M8X25 PABCO	8-98045-183-0	08	1	1312-
5	NUT; LATCH HANDLE RR BODY FLAT BED<RS6> M12 PABCO	8-98045-194-0	02	1	1312-
7	HINGE ASM; RR GATE RR BODY FLAT BED<RS6> PABCO	5-87580-016-0	04	1	1312-
9	HANDLE; LATCH,RR GATE RR BODY FLAT BED<RS6> PABCO	5-87580-104-0	02	1	1312-
11	LOCK ASM; VERTICAL RR BODY FLAT BED<RS6> PABCO	8-98031-211-0	01	1	1312-
11	LOCK ASM; VERTICAL RR BODY FLAT BED<RS6> PABCO	8-98031-212-0	01	1	1312-
12	PIECE; END,RR HANDLE RR BODY FLAT BED<RS6> PABCO	8-98045-208-0	02	1	1312-
14	WASHER; PL,HANDLE RR BODY FLAT BED<RS6> PABCO	8-98045-201-0	02	1	1312-
108	GATE ASM; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> L=4265 H=389 B=50 PLYWOOD PABCO	8-98106-930-0	01	1	1312-
108	GATE ASM; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> L=4265 H=389 B=50 PLYWOOD PABCO	8-98106-931-0	01	1	1312-
108	GATE ASM; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=4352 H=389 B=50 PLYWOOD PABCO	8-98030-792-1	01	1	1312-
108	GATE ASM; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=4352 H=389 B=50 PLYWOOD PABCO	8-98030-793-1	01	1	1312-
108	GATE ASM; SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> L=4940 H=389 B=50 PLYWOOD PABCO	8-98089-981-1	01	1	1312-
108	GATE ASM; SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> L=4940 H=389 B=50 PLYWOOD PABCO	8-98089-983-1	01	1	1312-
108	GATE ASM; SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5002 H=389 B=50 PLYWOOD PABCO	8-98030-796-1	01	1	1312-
108	GATE ASM; SIDE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> L=5002 H=389 B=50 PLYWOOD PABCO	8-98030-797-1	01	1	1312-
141	BOLT RR BODY FLAT BED<RS6> M8X16 FLANGE	0-28060-816-0	02	1	1312-
210	SPRING; LATCH HANDLE RR BODY FLAT BED<RS6> PABCO	8-98045-213-0	02	1	1312-
229	BOARD; RR GATE RR BODY FLAT BED<RS6> PABCO	8-98045-115-2	01	1	1312-
248	PATCH; CARGO RR RR BODY FLAT BED<RS6> PABCO	8-98030-315-0	02	1	1312-
288	BOLT; LOCK ASM,VERTICAL RR BODY FLAT BED<RS6> M8X20 PABCO	8-98045-181-0	04	1	1312-
337	HANDLE ASM; LATCH,RR GATE RR BODY FLAT BED<RS6> PABCO	8-98045-149-0	01	1	1312-
337	HANDLE ASM; LATCH,RR GATE RR BODY FLAT BED<RS6> PABCO	8-98045-150-0	01	1	1312-
338	SCREW; HINGE,GATE RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> M8X20 PABCO	8-98045-181-0	40	1	1312-
338	SCREW; HINGE,GATE RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> M8X20 PABCO	8-98045-181-0	36	1	1312-
339	NUT; HINGE,GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE MAL	0-91180-108-0	22	1	1312-
339	NUT; HINGE,GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> M8 FLANGE MAL	0-91180-108-0	22	1	1312-
339	NUT; HINGE,GATE WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE MAL	0-91180-108-0	24	1	1312-
340	SCREW; BRKT,RR GATE RR BODY FLAT BED<RS6> M8X17 PABCO	8-98045-185-0	04	1	1312-
341	SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> PABCO	8-98045-198-0	01	1	1312-
341	SPRING KIT; VERTICAL LOCK RR BODY FLAT BED<RS6> PABCO	8-98045-199-0	01	1	1312-
