Isuzu WW
▶
TRUCKS
▶
NPR
▶
51501 - NPR(MALAYSIA)
▶
9 - Tools
▶

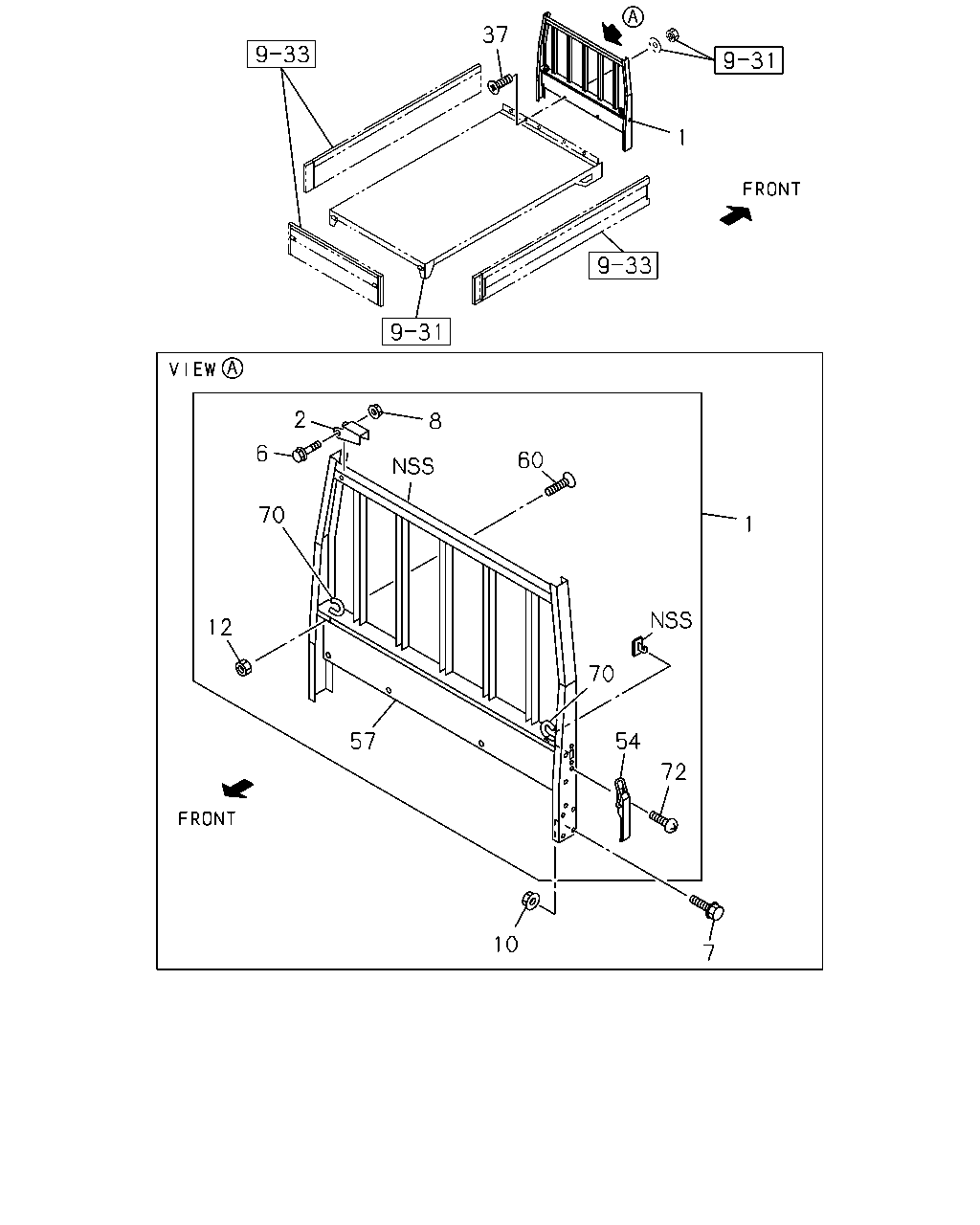

9-32 - REAR BODY; GUARD FRAME
▶
9-32 — REAR BODY; GUARD FRAME
(#130939) — 15 parça
37
1
1
60
8
2
6
70
12
57
54
72
70
7
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> PABCO
8-98024-567-2
01
1
1312-
1
FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> PABCO
8-98009-916-2
01
1
1312-
2
STOPPER; GUARD FRAME
RR BODY FLAT BED<RS6>
8-98045-225-0
02
1
1312-
6
BOLT; STOPPER TO GUARD FRAME
RR BODY FLAT BED<RS6>
8-98045-226-0
02
1
1312-
7
BOLT; GUARD FRAME STOPPER,RR BODY
RR BODY FLAT BED<RS6> M12X25 FLANGE
0-28661-225-0
08
1
1312-
8
NUT; STOPPER BOLT
RR BODY FLAT BED<RS6> M10
8-98045-227-0
02
1
1312-
10
NUT; GUARD FRAME STOPPER
RR BODY FLAT BED<RS6> M12 FLANGE MAL
0-91180-212-0
08
1
1312-
12
NUT; GUARD FRAME
RR BODY FLAT BED<RS6> M8 LOCK NUT FLANGE MAL
0-91380-008-0
05
1
1312-
37
BOLT; GUARD FRAME
RR BODY FLAT BED<RS6> M8X25 PABCO
8-98030-412-0
05
1
1312-
54
HANDLE; LOCK,GATE,FRT
RR BODY FLAT BED<RS6> PABCO
8-98045-206-0
02
1
1312-
57
BOARD; HEADER
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> PABCO
8-98045-229-2
01
1
1312-
57
BOARD; HEADER
RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> PABCO
8-98045-105-2
01
1
1312-
60
SCREW; BOARD
RR BODY FLAT BED<RS6> M8X25 PABCO
8-98030-412-0
05
1
1312-
70
HOOK; ROPE,GUARD FRAME
RR BODY FLAT BED<RS6> PABCO
5-87580-001-0
02
1
1312-
72
SCREW; HANDLE TO GUARD FRAME
RR BODY FLAT BED<RS6> M8X13 PABCO
8-98045-180-0
04
1
1312-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
