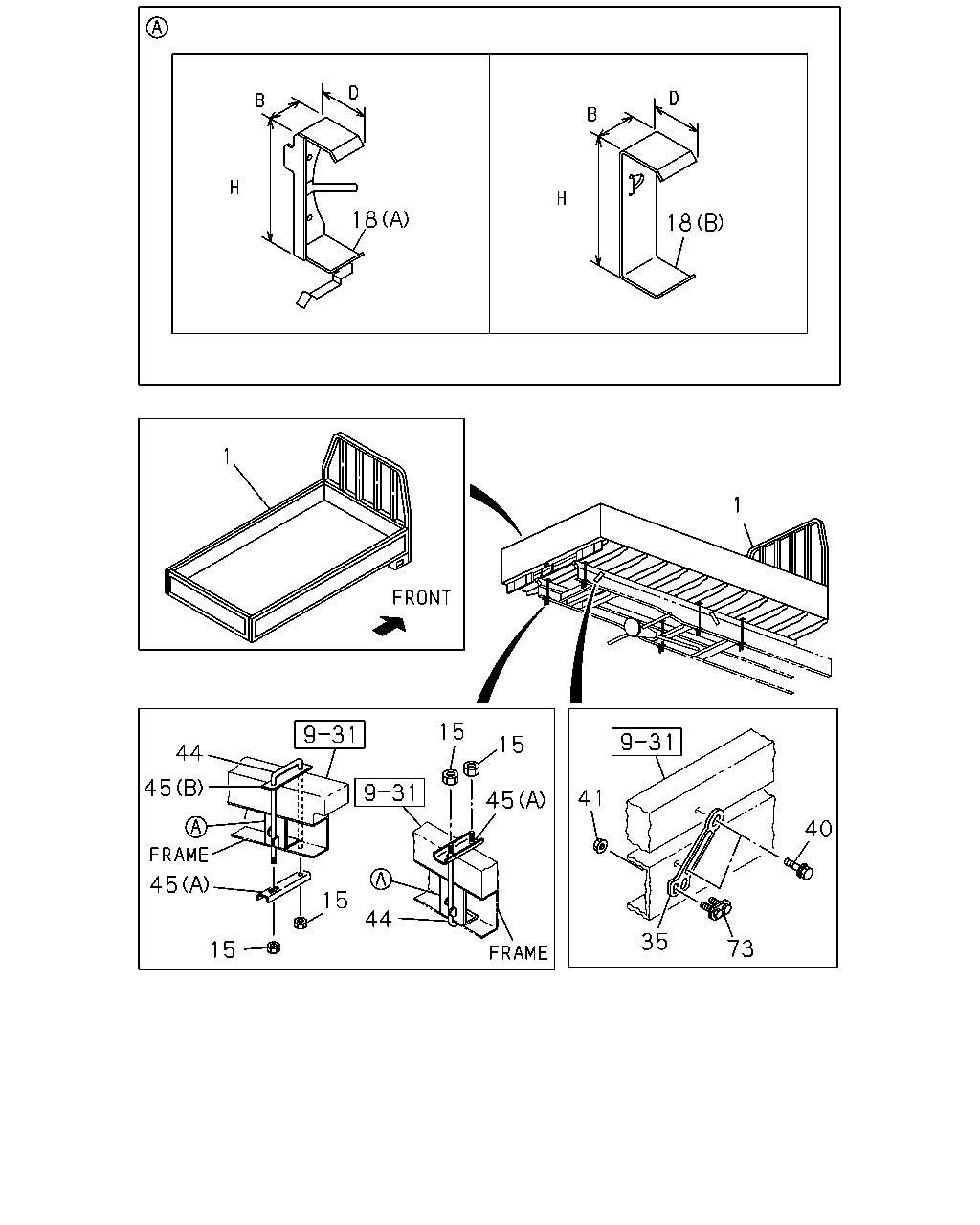

1 |
BODY ASM; REAR
WHEEL BASE 3300MM(33W)
BODY COLOR ARC WHITE(729)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
WHITE
|
8-97415-072-1 |
01 |
1 |
1312- |
| |
1 |
BODY ASM; REAR
WHEEL BASE 3300MM(33W)
BODY COLOR ARC WHITE(729)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
WHITE
|
8-97414-516-0 |
01 |
1 |
1312- |
| |
1 |
BODY ASM; REAR
WHEEL BASE 3300MM(33W)
BODY COLOR MARINE BLUE(890)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
BLUE
|
8-97417-360-1 |
01 |
1 |
1312- |
| |
1 |
BODY ASM; REAR
WHEEL BASE 3300MM(33W)
BODY COLOR MARINE BLUE(890)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
BLUE
|
8-97417-340-0 |
01 |
1 |
1312- |
| |
1 |
BODY ASM; REAR
WHEEL BASE 3300MM(33W)
BODY COLOR QUICK SILVER MET(998)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
LIGHT GRAY
|
8-97415-071-1 |
01 |
1 |
1312- |
| |
1 |
BODY ASM; REAR
WHEEL BASE 3300MM(33W)
BODY COLOR QUICK SILVER MET(998)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
LIGHT GRAY
|
8-97414-656-0 |
01 |
1 |
1312- |
| |
1 |
BODY ASM; REAR
WHEEL BASE 3300MM(33W)
BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
BLUE
|
8-97415-070-1 |
01 |
1 |
1312- |
| |
1 |
BODY ASM; REAR
WHEEL BASE 3300MM(33W)
BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
BLUE
|
8-97414-517-0 |
01 |
1 |
1312- |
| |
1 |
BODY ASM; REAR
WHEEL BASE 3800MM(38W)
BODY COLOR ARC WHITE(729)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
WHITE
|
8-97414-520-1 |
01 |
1 |
1312- |
| |
1 |
BODY ASM; REAR
WHEEL BASE 3800MM(38W)
BODY COLOR ARC WHITE(729)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
WHITE
|
8-97414-518-0 |
01 |
1 |
1312- |
| |
1 |
BODY ASM; REAR
WHEEL BASE 3800MM(38W)
BODY COLOR MARINE BLUE(890)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
BLUE
|
8-97417-342-1 |
01 |
1 |
1312- |
| |
1 |
BODY ASM; REAR
WHEEL BASE 3800MM(38W)
BODY COLOR MARINE BLUE(890)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
BLUE
|
8-97417-341-0 |
01 |
1 |
1312- |
| |
1 |
BODY ASM; REAR
WHEEL BASE 3800MM(38W)
BODY COLOR QUICK SILVER MET(998)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
LIGHT GRAY
|
8-97414-658-1 |
01 |
1 |
1312- |
| |
1 |
BODY ASM; REAR
WHEEL BASE 3800MM(38W)
BODY COLOR QUICK SILVER MET(998)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
LIGHT GRAY
|
8-97414-657-0 |
01 |
1 |
1312- |
| |
1 |
BODY ASM; REAR
WHEEL BASE 3800MM(38W)
BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED<RS6>
FRAME STRAIGHT TYPE<7KJ>
BLUE
|
8-97414-521-1 |
01 |
1 |
1312- |
| |
1 |
BODY ASM; REAR
WHEEL BASE 3800MM(38W)
BODY COLOR TRANS BLUE(999)
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
BLUE
|
8-97414-519-0 |
01 |
1 |
1312- |
| |
15 |
NUT; RR BODY MTG
RR BODY FLAT BED<RS6>
M14
|
9-09130-414-0 |
12 |
1 |
1312- |
| |
18 |
REINFORCEMENT; U-BOLT
RR BODY FLAT BED<RS6>
(B)
H=204 B=50 D=72
|
8-97362-217-0 |
04 |
1 |
1312- |
| |
18 |
REINFORCEMENT; U-BOLT
RR BODY FLAT BED<RS6>
(B)
H=164 B=50 D=72
|
8-97362-218-0 |
02 |
1 |
1312- |
| |
18 |
REINFORCEMENT; U-BOLT
RR BODY FLAT BED<RS6>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
H=196 B=40 D=72
|
8-98047-120-1 |
01 |
1 |
1312- |
| |
35 |
STOPPER; RR BODY
RR BODY FLAT BED<RS6>
|
8-98030-398-2 |
04 |
1 |
1312- |
| |
40 |
BOLT; STOPPER TO RR BODY
RR BODY FLAT BED<RS6>
|
8-97189-615-0 |
04 |
1 |
1312- |
| |
41 |
NUT; STOPPER TO RR BODY
RR BODY FLAT BED<RS6>
M10 FLANGE
MAL
|
0-91180-110-0 |
08 |
1 |
1312- |
| |
44 |
U-BOLT; FRAME TO RR BODY
RR BODY FLAT BED<RS6>
L=400
|
1-66900-255-0 |
04 |
1 |
1312- |
| |
44 |
U-BOLT; FRAME TO RR BODY
RR BODY FLAT BED<RS6>
L=365
|
1-66900-460-0 |
02 |
1 |
1312- |
| |
45 |
PLATE; U-BOLT
RR BODY FLAT BED<RS6>
(B)
L=123 B=35
|
8-98047-139-0 |
06 |
1 |
1312- |
| |
45 |
PLATE; U-BOLT
RR BODY FLAT BED<RS6>
(A)
L=135 B=50
|
9-61208-235-0 |
06 |
1 |
1312- |
| |
73 |
PLATE; STUD BOLT
RR BODY FLAT BED<RS6>
|
8-98047-322-0 |
04 |
1 |
1312- |
