Isuzu WW
▶
TRUCKS
▶
NPR
▶
51501 - NPR(MALAYSIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-75 - CONDENSER
▶
8-75 — CONDENSER
(#130933) — 23 parça
Tümü
A - NPR5SN
B - NPR5WN
◀

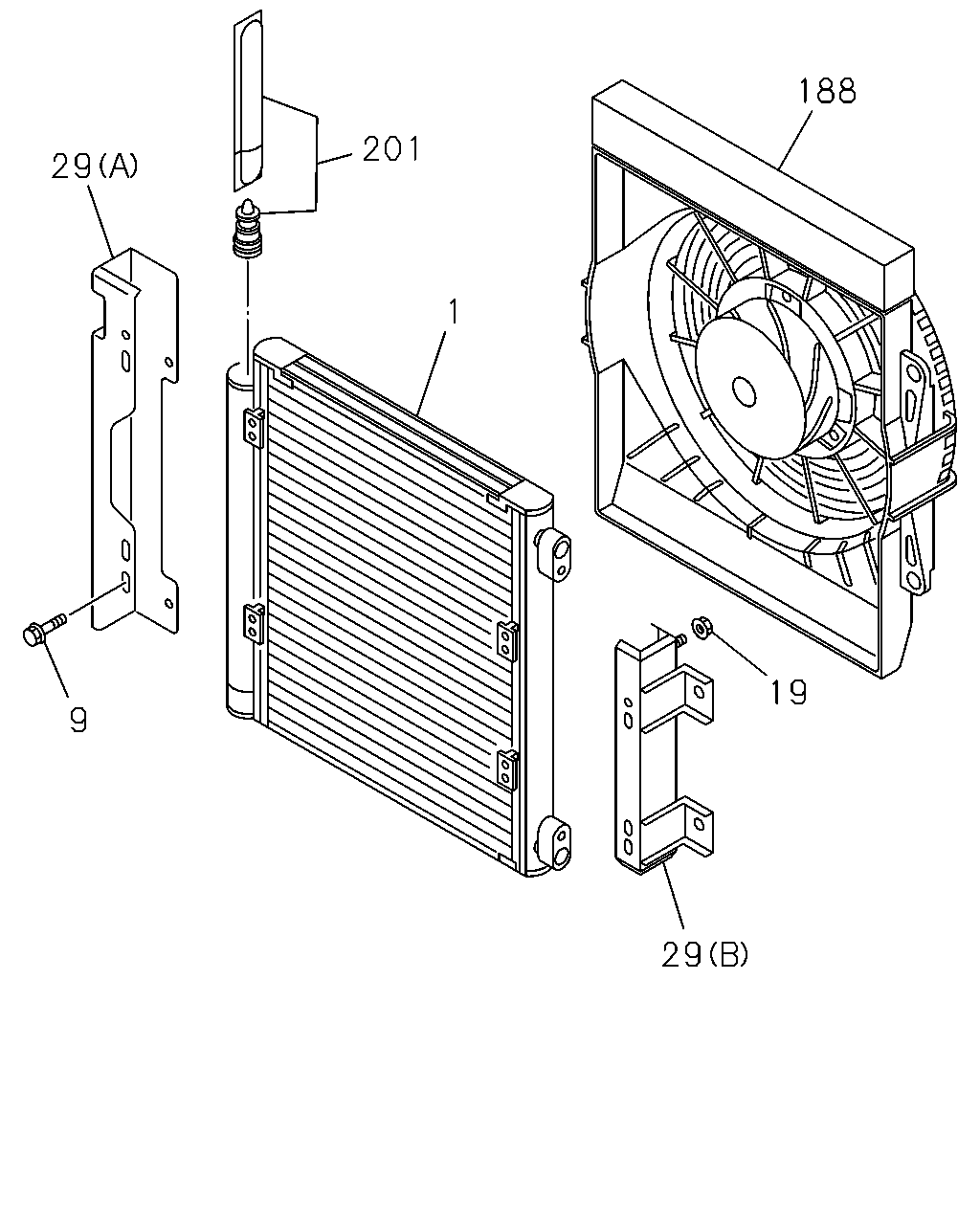

[875A] CONDENSER;AIR CONDITIONER (15 parça)

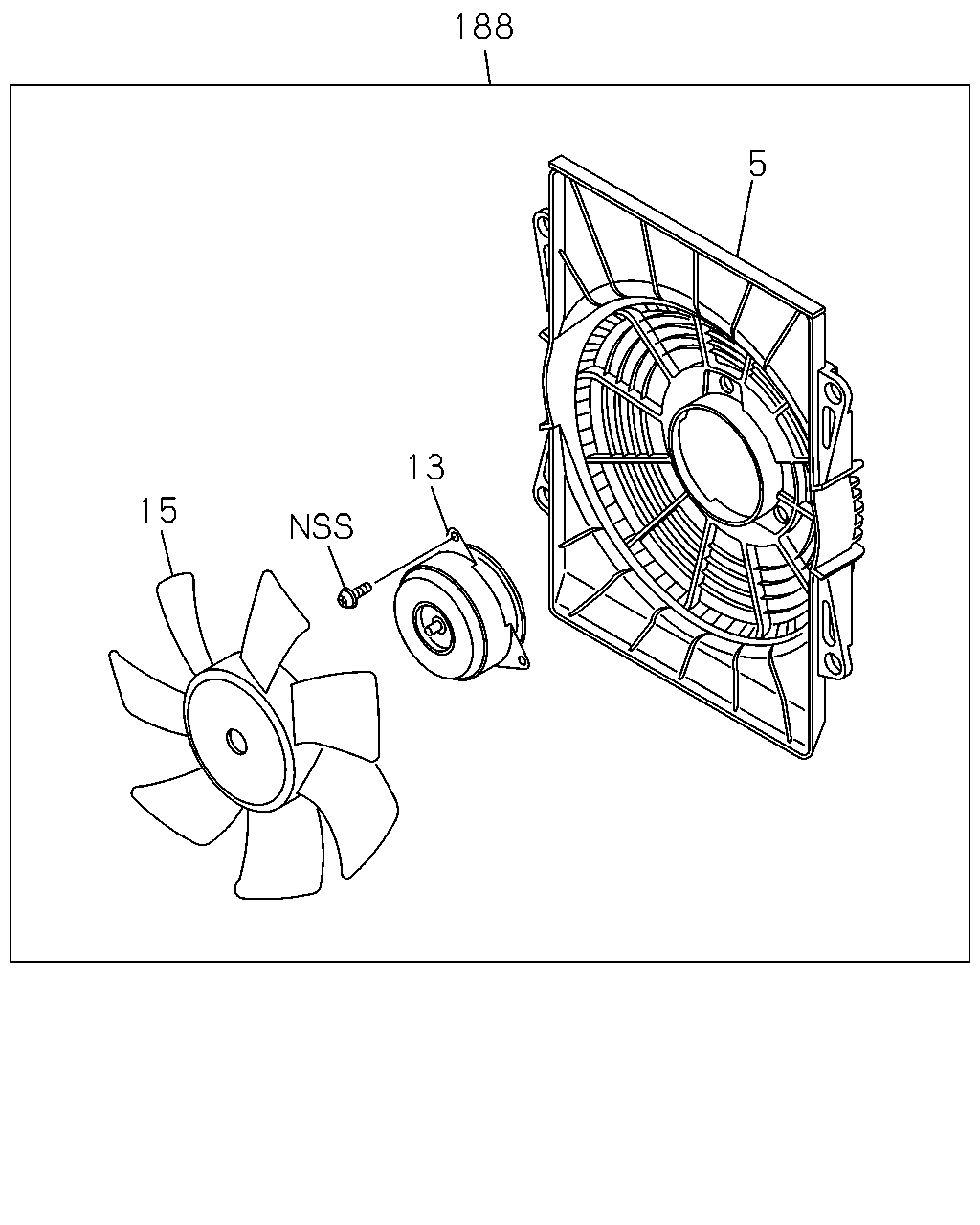

[875A] COMPONENT;BLOWER (8 parça)
▶
188
201
1
29
9
19
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)
8-98042-456-1
01
1
1311-1412
●
1
CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)
8-98042-456-1
01
1
1501-
●
●
9
BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6X14
1-83539-382-0
08
1
1311-1412
●
9
BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6X14
1-83539-382-0
08
1
1501-
●
●
19
NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 MAL
1-83539-354-0
04
1
1311-1412
●
19
NUT; BRKT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 MAL
1-83539-354-0
04
1
1501-
●
●
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)
8-98042-466-0
01
1
1311-1412
●
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)
8-98042-466-0
01
1
1501-
●
●
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)
8-98042-467-0
01
1
1311-1412
●
29
BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)
8-98042-467-0
01
1
1501-
●
●
188
BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)
8-98042-461-0
01
1
1311-1412
●
188
BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)
8-98042-461-0
01
1
1501-
●
●
201
DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)
1-83535-097-0
01
1
1311-1409
●
201
DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)
8-98282-482-0
01
1
1410-1412
●
201
DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)
8-98282-482-0
01
1
1501-
●
●
188
13
5
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
5
SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)
8-98152-866-0
01
1
1311-1412
●
5
SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)
8-98152-866-0
01
1
1501-
●
●
13
MOTOR; FAN
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)
8-98157-045-0
01
1
1311-1412
●
13
MOTOR; FAN
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)
8-98157-045-0
01
1
1501-
●
●
15
FAN; MOTOR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)
8-98152-861-0
01
1
1311-1412
●
15
FAN; MOTOR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)
8-98152-861-0
01
1
1501-
●
●
188
BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)
8-98042-461-0
01
1
1311-1412
●
188
BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)
8-98042-461-0
01
1
1501-
●
●
