◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51501 - NPR(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶
8-73 — BLOWER UNIT (#130932) — 38 parça

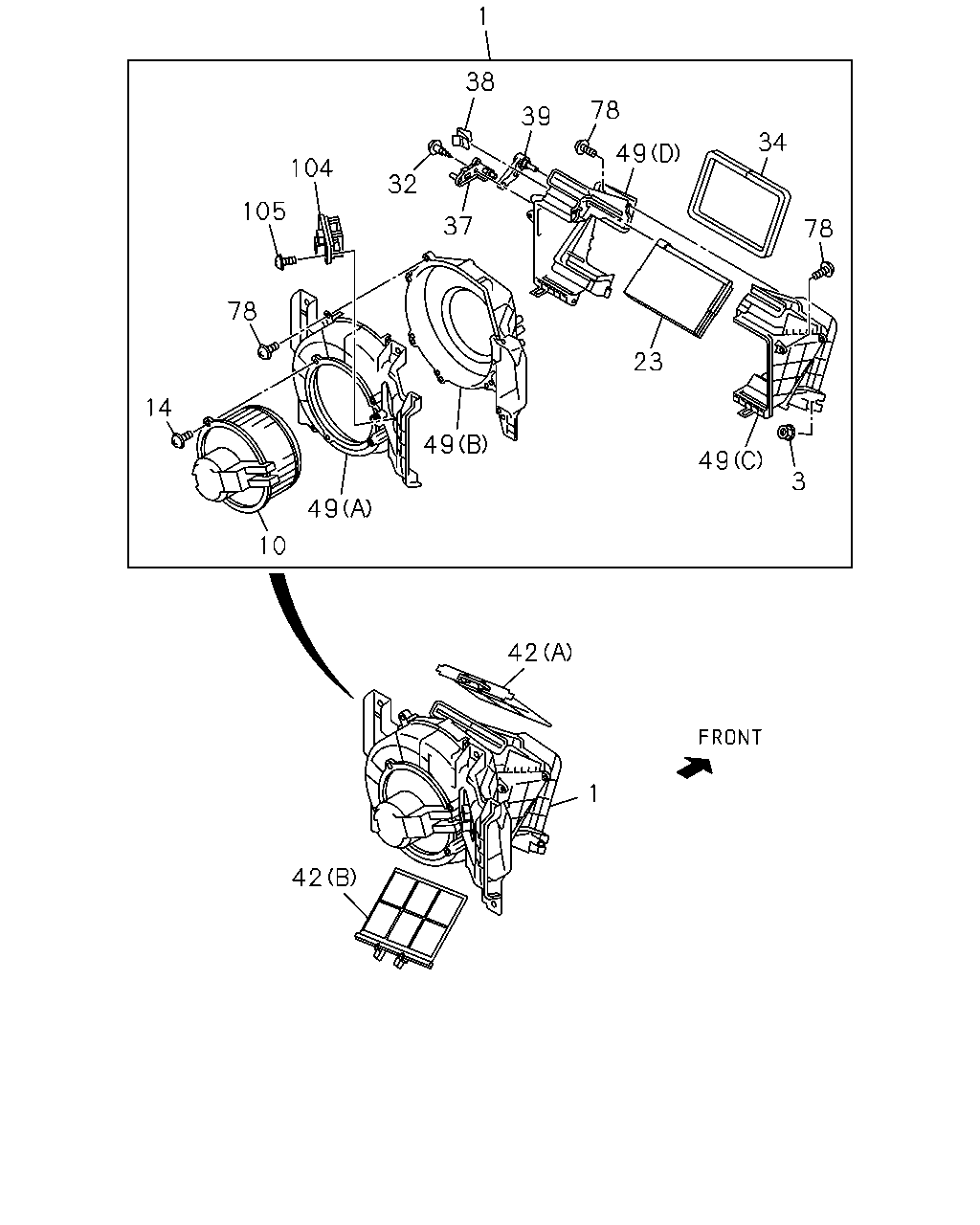

çizim 386750
1 14 78 105 104 32 38 39 37 78 49 34 78 3 49 23 49 49 10 42 42 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98183-589-0 01 1 1311-1412 ●
1 BLOWER ASM
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98183-589-0 01 1 1501- ● ●
3 NUT; CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 MAL 		1-83539-354-0 02 1 1311-1412 ●
3 NUT; CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 MAL 		1-83539-354-0 02 1 1501- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98183-924-0 01 1 1311-1412 ●
10 MOTOR ASM; FAN,BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98183-924-0 01 1 1501- ● ●
14 SCREW; COVER TO CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X16 MAL 		8-98047-448-0 03 1 1311-1412 ●
14 SCREW; COVER TO CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X16 MAL 		8-98047-448-0 03 1 1501- ● ●
23 SHUTTER; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-437-0 01 1 1311-1412 ●
23 SHUTTER; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-437-0 01 1 1501- ● ●
32 SCREW; LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M4X16 MAL 		8-98047-416-0 01 1 1311-1412 ●
32 SCREW; LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M4X16 MAL 		8-98047-416-0 01 1 1501- ● ●
34 LINING; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-430-0 01 1 1311-1412 ●
34 LINING; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-430-0 01 1 1501- ● ●
37 LEVER; MODE LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-436-0 01 1 1311-1412 ●
37 LEVER; MODE LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-436-0 01 1 1501- ● ●
38 CLIP; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-417-0 01 1 1311-1412 ●
38 CLIP; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-417-0 01 1 1501- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-435-0 01 1 1311-1412 ●
39 LEVER; SHUTTER,BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL 		8-98047-435-0 01 1 1501- ● ●
42 FILTER; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL 		8-98025-006-1 01 1 1311-1412 ●
42 FILTER; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL 		8-98025-006-1 01 1 1501- ● ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-97387-096-1 01 1 1311-1412 ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-97387-096-1 01 1 1501- ● ●
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL 		8-98047-440-0 01 1 1311-1412 ●
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL 		8-98047-440-0 01 1 1501- ● ●
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL 		8-98047-441-0 01 1 1311-1412 ●
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL 		8-98047-441-0 01 1 1501- ● ●
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) MAL 		8-98047-442-0 01 1 1311-1412 ●
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) MAL 		8-98047-442-0 01 1 1501- ● ●
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D) MAL 		8-98047-443-0 01 1 1311-1412 ●
49 CASE; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D) MAL 		8-98047-443-0 01 1 1501- ● ●
78 SCREW; CASE TO CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M4X16 TAPPING MAL 		8-97957-708-0 15 1 1311-1412 ●
78 SCREW; CASE TO CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M4X16 TAPPING MAL 		8-97957-708-0 15 1 1501- ● ●
104 RESISTOR; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98074-113-0 01 1 1311-1412 ●
104 RESISTOR; BLOWER UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98074-113-0 01 1 1501- ● ●
105 SCREW; RESISTOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M4X16 TAPPING MAL 		8-97957-708-0 02 1 1311-1412 ●
105 SCREW; RESISTOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M4X16 TAPPING MAL 		8-97957-708-0 02 1 1501- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
