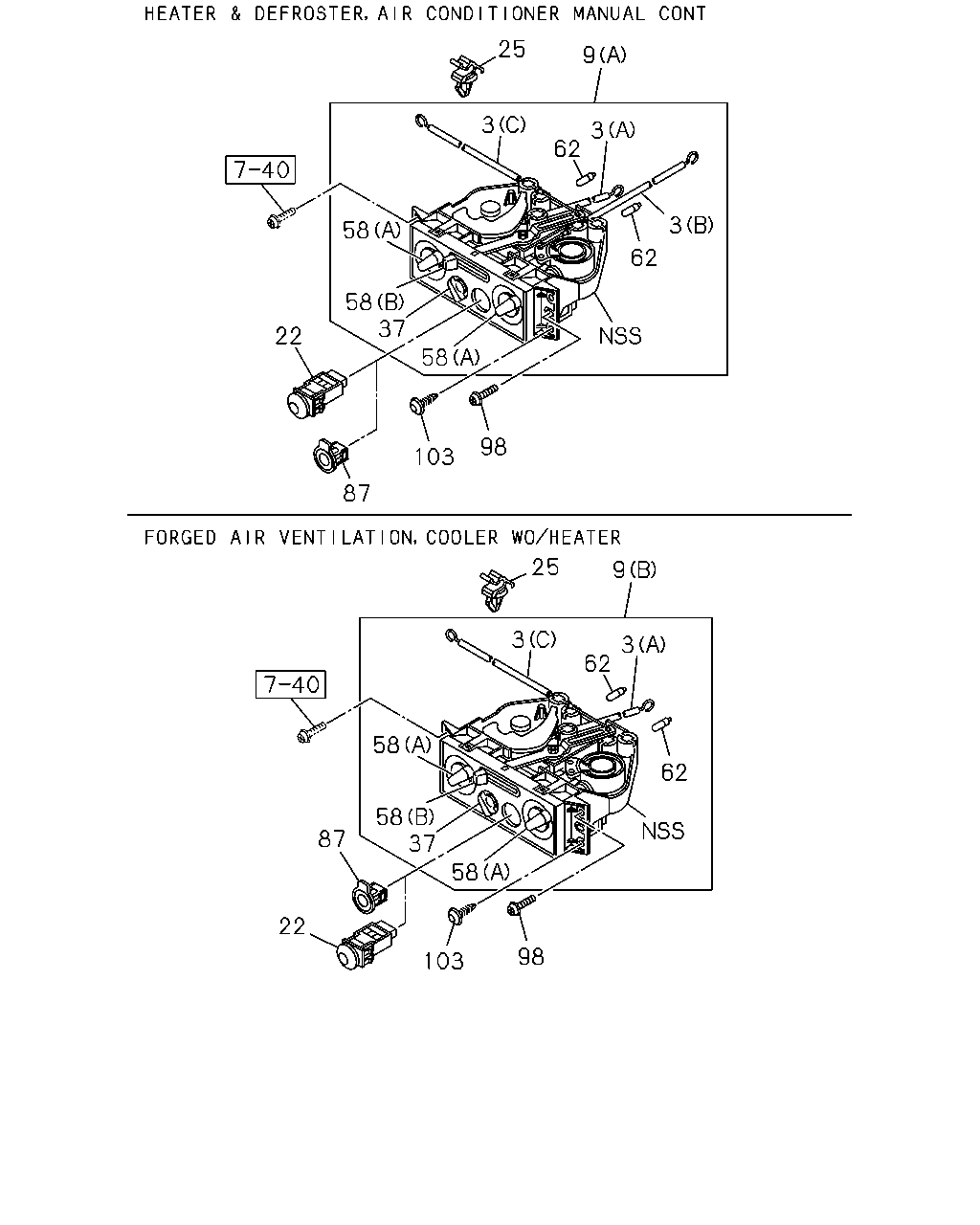

8-65 — CONTROL LEVER; HEATER AND AIR CON (#130930) — 32 parça

25 9 3 62 3 62 3 58 37 58 58 22 87 103 98 25 9 3 62 3 62 58 37 98 103 22 87 58 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	CABLE; HTR CONT LVR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MODE MAL	8-98039-250-0	01	1	1311-1412	●
3	CABLE; HTR CONT LVR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MODE MAL	8-98039-250-0	01	1	1501-	●	●
3	CABLE; HTR CONT LVR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) FRESH MAL	8-98039-253-2	01	1	1311-1412	●
3	CABLE; HTR CONT LVR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) FRESH MAL	8-98039-253-2	01	1	1501-	●	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) MIX	8-98039-251-0	01	1	1311-1412	●
3	CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) MIX	8-98039-251-0	01	1	1501-	●	●
9	LEVER ASM; HTR & A/C CONT FORGED AIR VENTILATION(C39) (B)	8-98066-001-1	01	1	1311-1412	●
9	LEVER ASM; HTR & A/C CONT FORGED AIR VENTILATION(C39) (B)	8-98066-001-1	01	1	1501-	●	●
9	LEVER ASM; HTR & A/C CONT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98037-363-2	01	1	1311-1412	●
9	LEVER ASM; HTR & A/C CONT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98037-363-2	01	1	1501-	●	●
9	LEVER ASM; HTR & A/C CONT COOLER WO/HEATER(C65) (B)	8-98066-000-1	01	1	1311-1412	●
9	LEVER ASM; HTR & A/C CONT COOLER WO/HEATER(C65) (B)	8-98066-000-1	01	1	1501-	●	●
22	SWITCH; A/C,MAIN AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98021-982-0	01	1	1311-1412	●
22	SWITCH; A/C,MAIN AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98021-982-0	01	1	1501-	●	●
25	CLIP; CABLE,CONT LEVER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ID=4.8 MAL	8-94128-483-0	01	1	1311-1412	●
25	CLIP; CABLE,CONT LEVER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ID=4.8 MAL	8-94128-483-0	01	1	1501-	●	●
37	KNOB; SW,HTR CONT LVR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98037-368-0	01	1	1311-1412	●
37	KNOB; SW,HTR CONT LVR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98037-368-0	01	1	1501-	●	●
58	KNOB; LVR,HTR CONT LVR FORGED AIR VENTILATION(C39) (A) MAL	8-98037-369-0	01	1	1311-1412	●
58	KNOB; LVR,HTR CONT LVR FORGED AIR VENTILATION(C39) (A) MAL	8-98037-369-0	01	1	1501-	●	●
58	KNOB; LVR,HTR CONT LVR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL	8-98037-370-0	01	1	1311-1412	●
58	KNOB; LVR,HTR CONT LVR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL	8-98037-370-0	01	1	1501-	●	●
58	KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL	8-98037-369-0	02	1	1311-1412	●
58	KNOB; LVR,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL	8-98037-369-0	02	1	1501-	●	●
62	BULB; HTR CONT LVR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 24V 1.1W MAL	8-98037-371-0	02	1	1311-1412	●
62	BULB; HTR CONT LVR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 24V 1.1W MAL	8-98037-371-0	02	1	1501-	●	●
87	CAP; A/C SWITCH FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-98006-089-0	01	1	1311-1412	●
87	CAP; A/C SWITCH FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41)	8-98006-089-0	01	1	1501-	●	●
98	SCREW; CONT PANEL FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X20 TAPPING HEXALOBULAR MAL	0-72180-520-0	01	1	1311-1412	●
98	SCREW; CONT PANEL FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X20 TAPPING HEXALOBULAR MAL	0-72180-520-0	01	1	1501-	●	●
103	CLIP FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) DARK GRAY MAL	8-97098-326-0	01	1	1311-1412	●
103	CLIP FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) DARK GRAY MAL	8-97098-326-0	01	1	1501-	●	●
