Sayfa 8-60 - Isuzu EPC

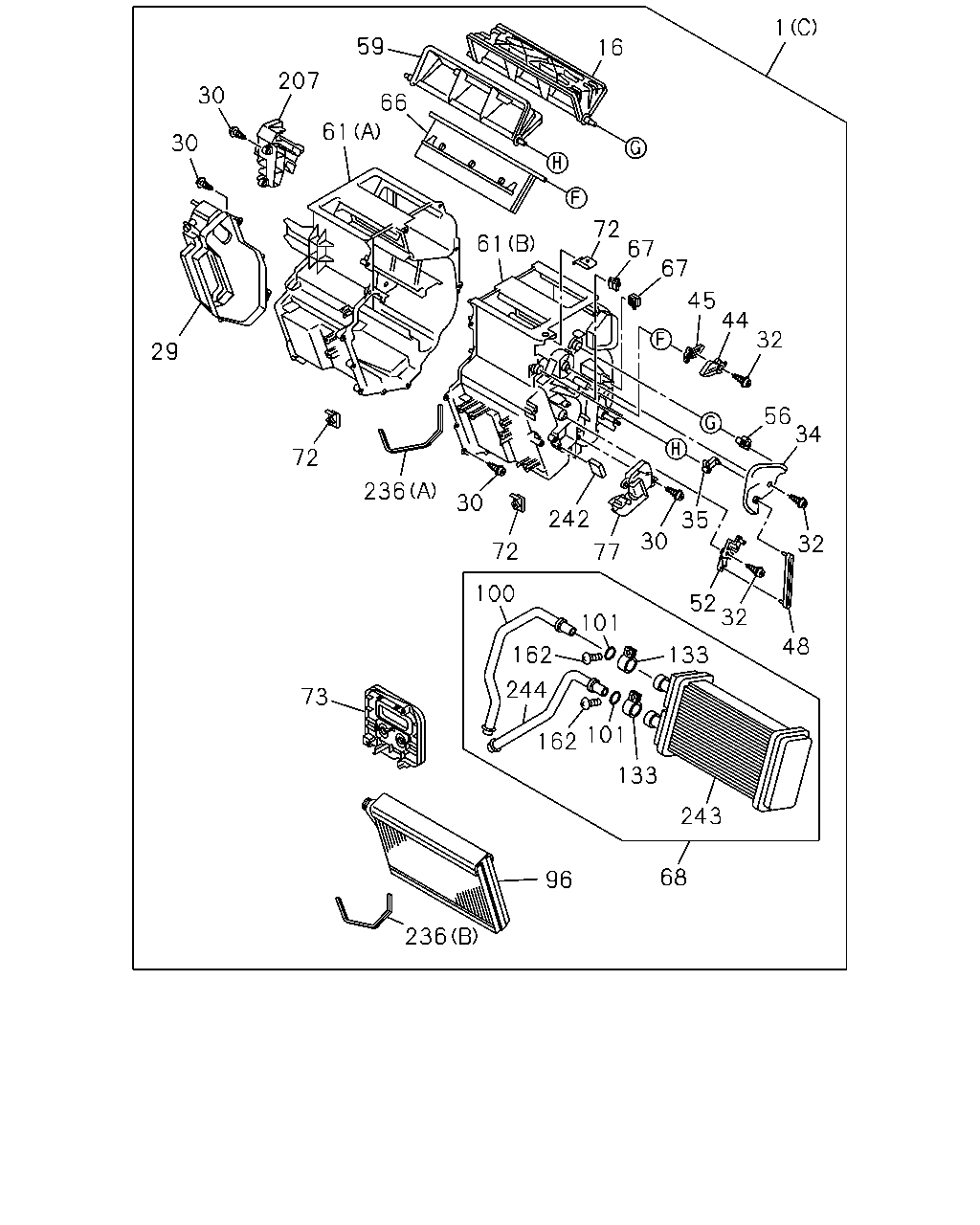

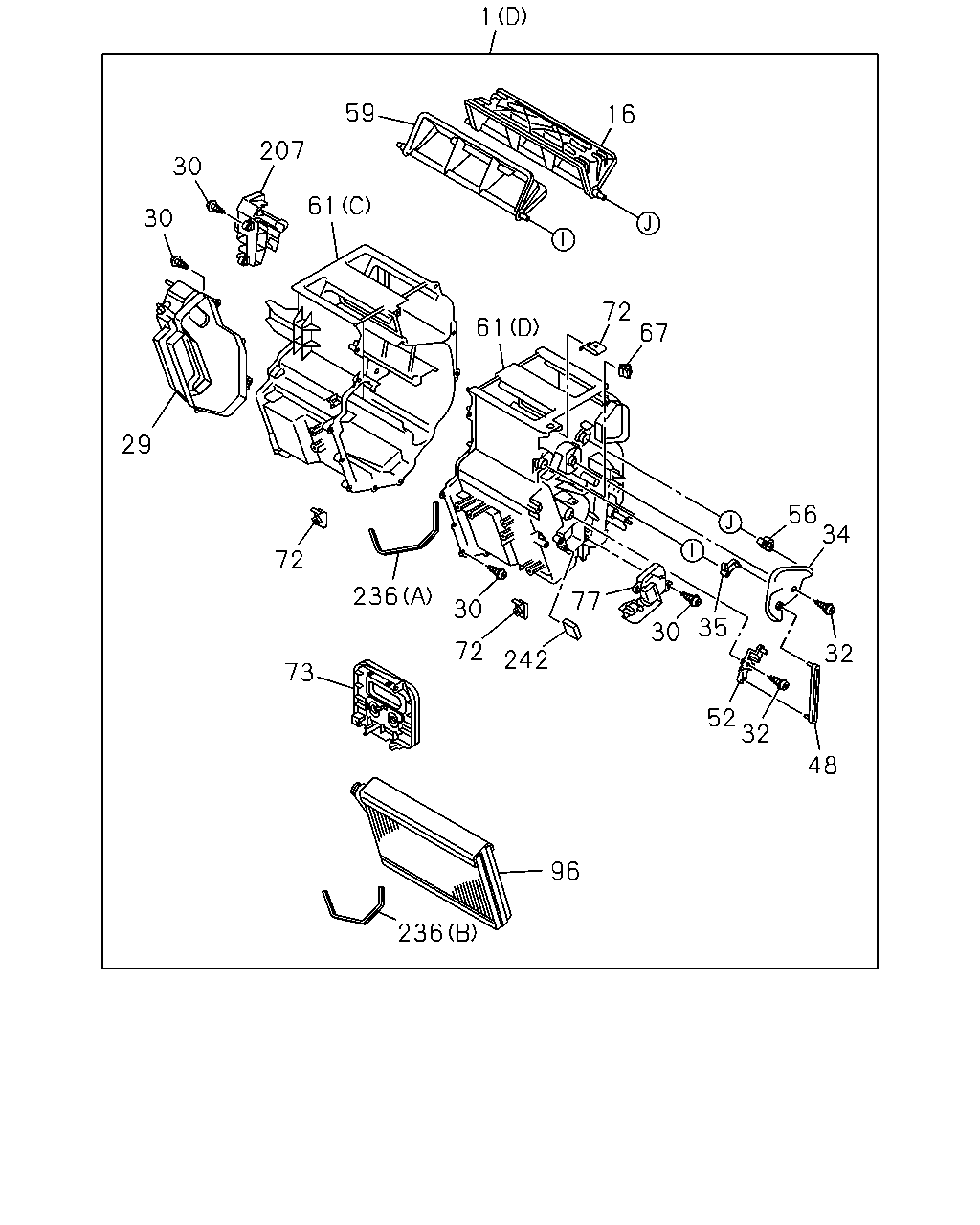

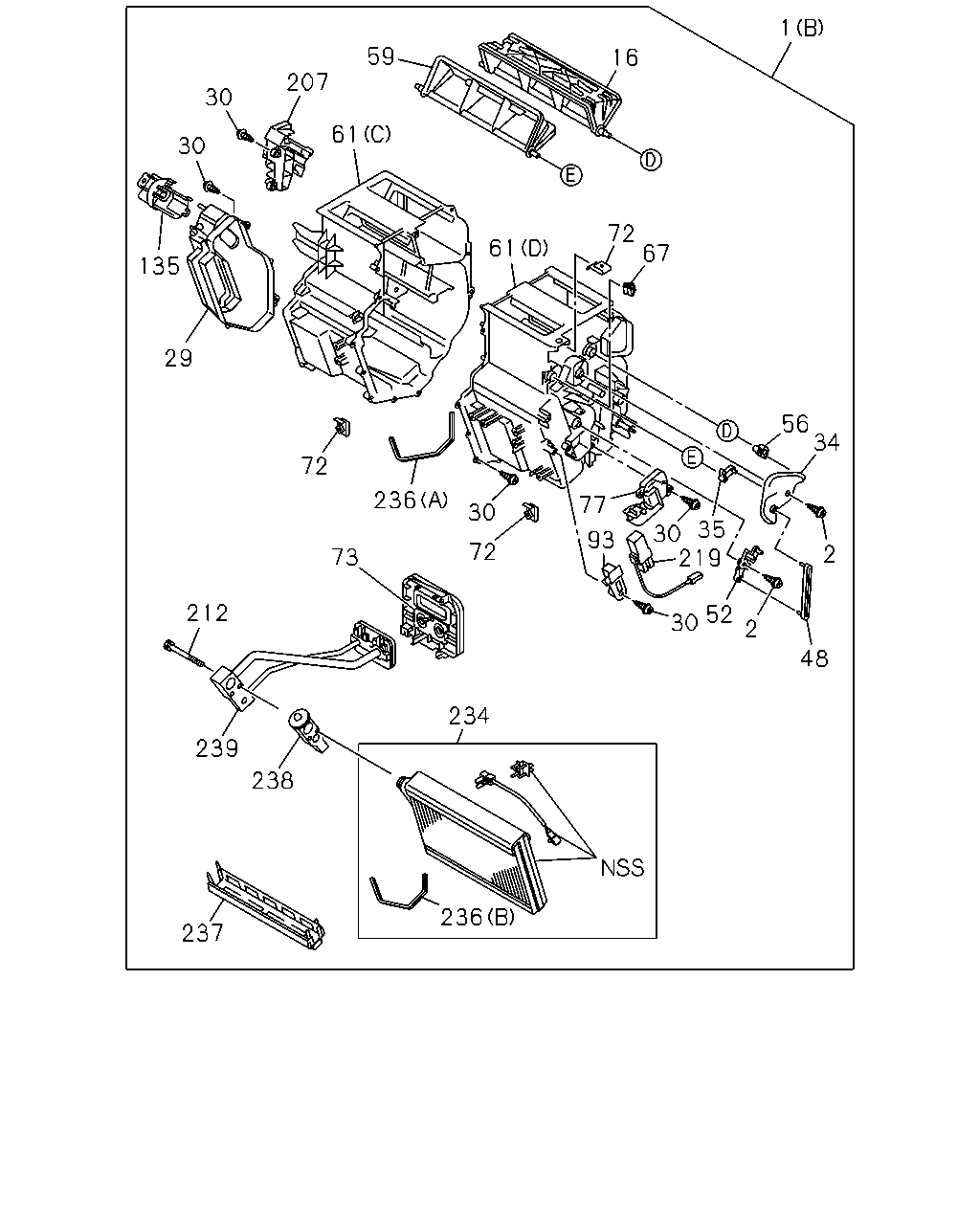

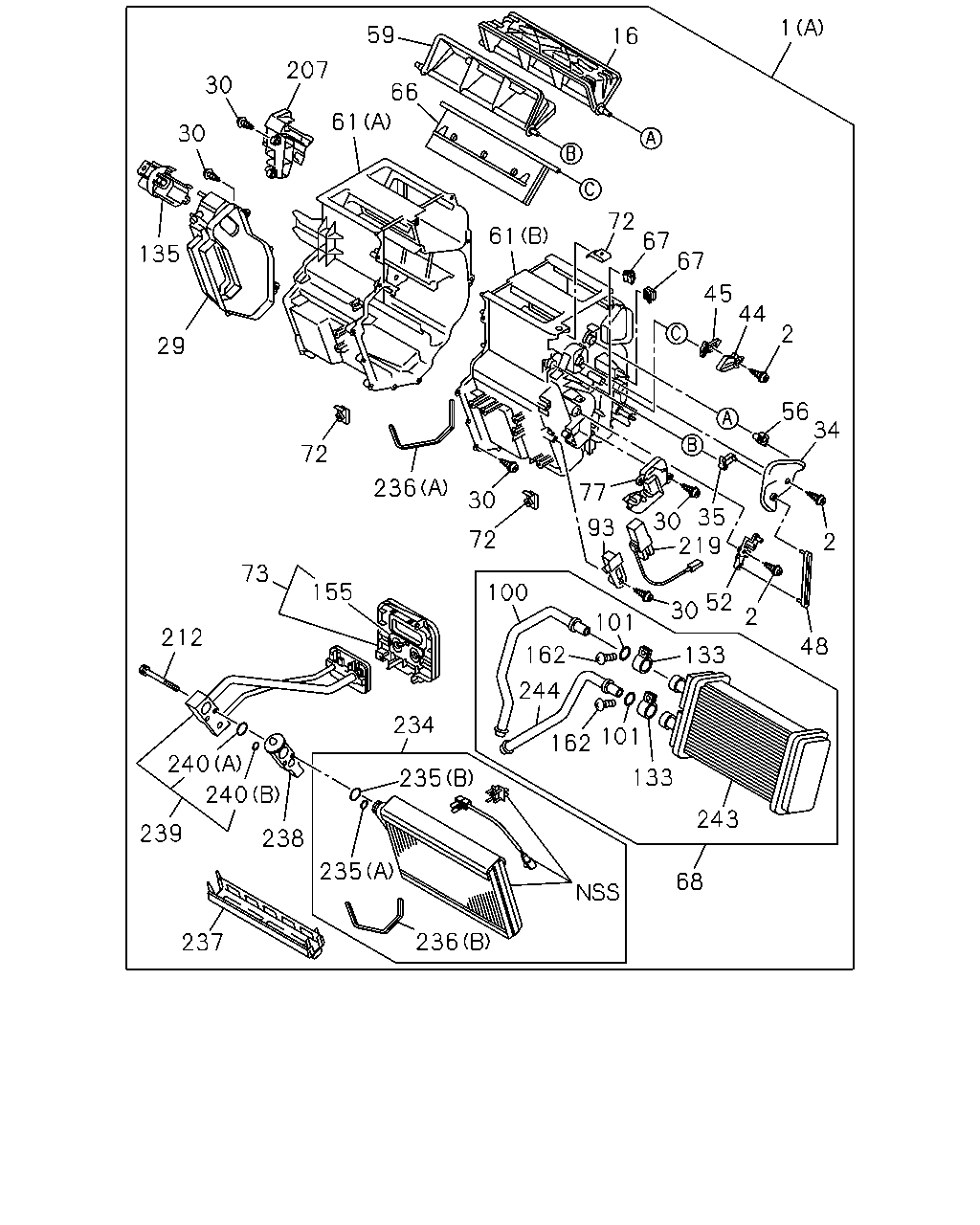

8-60 — HEATER UNIT; FRONT (#130929) — 352 parça

1 16 59 207 30 30 135 29 72 236 61 61 66 72 67 45 56 44 2 34 2 48 30 77 35 30 93 30 219 52 2 133 101 100 72 155 73 212 240 239 237 238 235 236 68 243 133 101 162 235 234 240 244 162 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEATER UNIT FORGED AIR VENTILATION(C39) (D) MAL	8-98214-400-1	01	1	1311-1412	●
1	HEATER UNIT FORGED AIR VENTILATION(C39) (D) MAL	8-98214-400-1	01	1	1501-	●	●
1	HEATER UNIT HEATER & DEFROSTER(C41) (C)	8-98062-756-1	01	1	1311-1412	●
1	HEATER UNIT HEATER & DEFROSTER(C41) (C)	8-98062-756-1	01	1	1501-	●	●
1	HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1311-1412	●
1	HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1501-	●	●
1	HEATER UNIT COOLER WO/HEATER(C65) (B)	8-98057-980-2	01	1	1311-1412	●
1	HEATER UNIT COOLER WO/HEATER(C65) (B)	8-98057-980-2	01	1	1501-	●	●
2	SCREW; LEVER AIR CONDITIONER MANUAL CONT(C60) M4X16 MAL	8-98047-416-0	03	1	1311-1412	●
2	SCREW; LEVER AIR CONDITIONER MANUAL CONT(C60) M4X16 MAL	8-98047-416-0	03	1	1501-	●	●
2	SCREW; LEVER COOLER WO/HEATER(C65) M4X16 MAL	8-98047-416-0	02	1	1311-1412	●
2	SCREW; LEVER COOLER WO/HEATER(C65) M4X16 MAL	8-98047-416-0	02	1	1501-	●	●
16	SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-387-0	01	1	1311-1412	●
16	SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-387-0	01	1	1501-	●	●
29	COVER; HTR UNIT FORGED AIR VENTILATION(C39) MAL	8-98231-367-0	01	1	1311-1412	●
29	COVER; HTR UNIT FORGED AIR VENTILATION(C39) MAL	8-98231-367-0	01	1	1501-	●	●
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-119-0	01	1	1311-1412	●
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-119-0	01	1	1501-	●	●
30	SCREW; HTR UNIT FORGED AIR VENTILATION(C39) M4X16 TAPPING MAL	8-97957-708-0	20	1	1311-1412	●
30	SCREW; HTR UNIT FORGED AIR VENTILATION(C39) M4X16 TAPPING MAL	8-97957-708-0	20	1	1501-	●	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING MAL	8-97957-708-0	25	1	1311-1412	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING MAL	8-97957-708-0	25	1	1501-	●	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M4X16 TAPPING MAL	8-97957-708-0	27	1	1311-1412	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M4X16 TAPPING MAL	8-97957-708-0	27	1	1501-	●	●
34	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-389-0	01	1	1311-1412	●
34	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-389-0	01	1	1501-	●	●
35	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-392-0	01	1	1311-1412	●
35	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-392-0	01	1	1501-	●	●
44	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-394-0	01	1	1311-1412	●
44	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-394-0	01	1	1501-	●	●
45	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-395-0	01	1	1311-1412	●
45	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-395-0	01	1	1501-	●	●
48	LEVER; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-391-0	01	1	1311-1412	●
48	LEVER; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-391-0	01	1	1501-	●	●
52	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-390-0	01	1	1311-1412	●
52	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-390-0	01	1	1501-	●	●
56	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-393-0	01	1	1311-1412	●
56	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-393-0	01	1	1501-	●	●
59	SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-386-0	01	1	1311-1412	●
59	SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-386-0	01	1	1501-	●	●
61	CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) MAL	8-98077-422-0	01	1	1311-1412	●
61	CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) MAL	8-98077-422-0	01	1	1501-	●	●
61	CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D) MAL	8-98077-423-0	01	1	1311-1412	●
61	CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D) MAL	8-98077-423-0	01	1	1501-	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1311-1412	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1501-	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-376-0	01	1	1311-1412	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-376-0	01	1	1501-	●	●
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-385-0	01	1	1311-1412	●
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-385-0	01	1	1501-	●	●
67	CLIP; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) MAL	8-98047-417-0	01	1	1311-1412	●
67	CLIP; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) MAL	8-98047-417-0	01	1	1501-	●	●
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) MAL	8-98047-417-0	02	1	1311-1412	●
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) MAL	8-98047-417-0	02	1	1501-	●	●
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-380-0	01	1	1311-1412	●
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-380-0	01	1	1501-	●	●
72	NUT; CASE,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 MAL	8-98047-428-0	03	1	1311-1412	●
72	NUT; CASE,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 MAL	8-98047-428-0	03	1	1501-	●	●
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	1311-1412	●
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	1501-	●	●
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-118-0	01	1	1311-1412	●
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-118-0	01	1	1501-	●	●
73	PLATE; HTR UNIT COOLER WO/HEATER(C65)	8-98077-420-0	01	1	1311-1412	●
73	PLATE; HTR UNIT COOLER WO/HEATER(C65)	8-98077-420-0	01	1	1501-	●	●
77	COVER; HTR CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-414-0	01	1	1311-1412	●
77	COVER; HTR CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-414-0	01	1	1501-	●	●
93	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-427-0	01	1	1311-1412	●
93	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-427-0	01	1	1501-	●	●
100	PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-528-0	01	1	1311-1412	●
100	PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-528-0	01	1	1501-	●	●
101	GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-531-0	02	1	1311-1412	●
101	GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-531-0	02	1	1501-	●	●
133	CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-530-0	02	1	1311-1412	●
133	CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-530-0	02	1	1501-	●	●
135	COVER; HTR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-384-0	01	1	1311-1412	●
135	COVER; HTR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-384-0	01	1	1501-	●	●
155	GROMMET; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-431-0	01	1	1311-1412	●
155	GROMMET; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-431-0	01	1	1501-	●	●
162	SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-529-0	02	1	1311-1412	●
162	SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-529-0	02	1	1501-	●	●
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-379-0	01	1	1311-1412	●
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-379-0	01	1	1501-	●	●
212	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X61	8-98047-415-0	02	1	1311-1412	●
212	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X61	8-98047-415-0	02	1	1501-	●	●
219	AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	1311-1412	●
219	AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	1501-	●	●
219	AMPLIFIER; HEATER UNIT COOLER WO/HEATER(C65)	8-98064-733-0	01	1	1311-1412	●
219	AMPLIFIER; HEATER UNIT COOLER WO/HEATER(C65)	8-98064-733-0	01	1	1501-	●	●
234	EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-116-1	01	1	1311-1412	●
234	EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-116-1	01	1	1501-	●	●
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	01	1	1311-1412	●
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	01	1	1501-	●	●
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) (B) ID=14.5	8-97095-908-0	01	1	1311-1412	●
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) (B) ID=14.5	8-97095-908-0	01	1	1501-	●	●
236	GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL	8-98047-420-0	01	1	1311-1412	●
236	GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL	8-98047-420-0	01	1	1501-	●	●
236	GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL	8-98047-421-0	01	1	1311-1412	●
236	GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL	8-98047-421-0	01	1	1501-	●	●
237	INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-382-0	01	1	1311-1412	●
237	INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-382-0	01	1	1501-	●	●
238	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-383-0	01	1	1311-1412	●
238	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-383-0	01	1	1501-	●	●
239	TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-115-0	01	1	1311-1412	●
239	TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-115-0	01	1	1501-	●	●
240	GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) (B) ID=7.4	8-97095-906-0	01	1	1311-1412	●
240	GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) (B) ID=7.4	8-97095-906-0	01	1	1501-	●	●
240	GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) (A) ID=14.5	8-97095-908-0	01	1	1311-1412	●
240	GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) (A) ID=14.5	8-97095-908-0	01	1	1501-	●	●
243	CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98048-508-0	01	1	1311-1412	●
243	CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98048-508-0	01	1	1501-	●	●
244	PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98048-510-0	01	1	1311-1412	●
244	PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98048-510-0	01	1	1501-	●	●

16 59 66 61 207 30 30 29 72 236 30 242 72 77 30 52 32 48 243 133 101 162 133 101 162 244 100 73 96 68 236 1 72 67 67 45 44 32 56 32 34 35 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEATER UNIT FORGED AIR VENTILATION(C39) (D) MAL	8-98214-400-1	01	1	1311-1412	●
1	HEATER UNIT FORGED AIR VENTILATION(C39) (D) MAL	8-98214-400-1	01	1	1501-	●	●
1	HEATER UNIT HEATER & DEFROSTER(C41) (C)	8-98062-756-1	01	1	1311-1412	●
1	HEATER UNIT HEATER & DEFROSTER(C41) (C)	8-98062-756-1	01	1	1501-	●	●
1	HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1311-1412	●
1	HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1501-	●	●
1	HEATER UNIT COOLER WO/HEATER(C65) (B)	8-98057-980-2	01	1	1311-1412	●
1	HEATER UNIT COOLER WO/HEATER(C65) (B)	8-98057-980-2	01	1	1501-	●	●
16	SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-387-0	01	1	1311-1412	●
16	SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-387-0	01	1	1501-	●	●
29	COVER; HTR UNIT FORGED AIR VENTILATION(C39) MAL	8-98231-367-0	01	1	1311-1412	●
29	COVER; HTR UNIT FORGED AIR VENTILATION(C39) MAL	8-98231-367-0	01	1	1501-	●	●
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-119-0	01	1	1311-1412	●
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-119-0	01	1	1501-	●	●
30	SCREW; HTR UNIT FORGED AIR VENTILATION(C39) M4X16 TAPPING MAL	8-97957-708-0	20	1	1311-1412	●
30	SCREW; HTR UNIT FORGED AIR VENTILATION(C39) M4X16 TAPPING MAL	8-97957-708-0	20	1	1501-	●	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING MAL	8-97957-708-0	25	1	1311-1412	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING MAL	8-97957-708-0	25	1	1501-	●	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M4X16 TAPPING MAL	8-97957-708-0	27	1	1311-1412	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M4X16 TAPPING MAL	8-97957-708-0	27	1	1501-	●	●
32	SCREW; HTR UNIT FORGED AIR VENTILATION(C39) M4X16 MAL	8-98047-416-0	02	1	1311-1412	●
32	SCREW; HTR UNIT FORGED AIR VENTILATION(C39) M4X16 MAL	8-98047-416-0	02	1	1501-	●	●
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 MAL	8-98047-416-0	03	1	1311-1412	●
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 MAL	8-98047-416-0	03	1	1501-	●	●
34	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-389-0	01	1	1311-1412	●
34	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-389-0	01	1	1501-	●	●
35	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-392-0	01	1	1311-1412	●
35	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-392-0	01	1	1501-	●	●
44	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-394-0	01	1	1311-1412	●
44	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-394-0	01	1	1501-	●	●
45	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-395-0	01	1	1311-1412	●
45	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-395-0	01	1	1501-	●	●
48	LEVER; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-391-0	01	1	1311-1412	●
48	LEVER; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-391-0	01	1	1501-	●	●
52	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-390-0	01	1	1311-1412	●
52	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-390-0	01	1	1501-	●	●
56	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-393-0	01	1	1311-1412	●
56	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-393-0	01	1	1501-	●	●
59	SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-386-0	01	1	1311-1412	●
59	SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-386-0	01	1	1501-	●	●
61	CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) MAL	8-98077-422-0	01	1	1311-1412	●
61	CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) MAL	8-98077-422-0	01	1	1501-	●	●
61	CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D) MAL	8-98077-423-0	01	1	1311-1412	●
61	CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D) MAL	8-98077-423-0	01	1	1501-	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1311-1412	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1501-	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-376-0	01	1	1311-1412	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-376-0	01	1	1501-	●	●
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-385-0	01	1	1311-1412	●
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-385-0	01	1	1501-	●	●
67	CLIP; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) MAL	8-98047-417-0	01	1	1311-1412	●
67	CLIP; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) MAL	8-98047-417-0	01	1	1501-	●	●
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) MAL	8-98047-417-0	02	1	1311-1412	●
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) MAL	8-98047-417-0	02	1	1501-	●	●
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-380-0	01	1	1311-1412	●
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-380-0	01	1	1501-	●	●
72	NUT; CASE,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 MAL	8-98047-428-0	03	1	1311-1412	●
72	NUT; CASE,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 MAL	8-98047-428-0	03	1	1501-	●	●
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	1311-1412	●
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	1501-	●	●
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-118-0	01	1	1311-1412	●
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-118-0	01	1	1501-	●	●
73	PLATE; HTR UNIT COOLER WO/HEATER(C65)	8-98077-420-0	01	1	1311-1412	●
73	PLATE; HTR UNIT COOLER WO/HEATER(C65)	8-98077-420-0	01	1	1501-	●	●
77	COVER; HTR CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-414-0	01	1	1311-1412	●
77	COVER; HTR CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-414-0	01	1	1501-	●	●
96	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1311-1412	●
96	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1501-	●	●
100	PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-528-0	01	1	1311-1412	●
100	PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-528-0	01	1	1501-	●	●
101	GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-531-0	02	1	1311-1412	●
101	GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-531-0	02	1	1501-	●	●
133	CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-530-0	02	1	1311-1412	●
133	CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-530-0	02	1	1501-	●	●
162	SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-529-0	02	1	1311-1412	●
162	SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-529-0	02	1	1501-	●	●
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-379-0	01	1	1311-1412	●
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-379-0	01	1	1501-	●	●
236	GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL	8-98047-420-0	01	1	1311-1412	●
236	GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL	8-98047-420-0	01	1	1501-	●	●
236	GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL	8-98047-421-0	01	1	1311-1412	●
236	GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL	8-98047-421-0	01	1	1501-	●	●
242	GASKET; CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL	8-98048-816-0	01	1	1311-1411	●
242	GASKET; CASE HEATER & DEFROSTER(C41) MAL	8-98048-816-0	01	1	1412-1412	●
242	GASKET; CASE HEATER & DEFROSTER(C41) MAL	8-98048-816-0	01	1	1501-	●	●
243	CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98048-508-0	01	1	1311-1412	●
243	CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98048-508-0	01	1	1501-	●	●
244	PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98048-510-0	01	1	1311-1412	●
244	PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98048-510-0	01	1	1501-	●	●

1 16 59 207 30 30 135 29 72 73 236 72 30 77 30 2 52 48 2 236 237 238 239 234 212 93 35 30 219 56 34 67 72 61 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEATER UNIT FORGED AIR VENTILATION(C39) (D) MAL	8-98214-400-1	01	1	1311-1412	●
1	HEATER UNIT FORGED AIR VENTILATION(C39) (D) MAL	8-98214-400-1	01	1	1501-	●	●
1	HEATER UNIT HEATER & DEFROSTER(C41) (C)	8-98062-756-1	01	1	1311-1412	●
1	HEATER UNIT HEATER & DEFROSTER(C41) (C)	8-98062-756-1	01	1	1501-	●	●
1	HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1311-1412	●
1	HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1501-	●	●
1	HEATER UNIT COOLER WO/HEATER(C65) (B)	8-98057-980-2	01	1	1311-1412	●
1	HEATER UNIT COOLER WO/HEATER(C65) (B)	8-98057-980-2	01	1	1501-	●	●
2	SCREW; LEVER AIR CONDITIONER MANUAL CONT(C60) M4X16 MAL	8-98047-416-0	03	1	1311-1412	●
2	SCREW; LEVER AIR CONDITIONER MANUAL CONT(C60) M4X16 MAL	8-98047-416-0	03	1	1501-	●	●
2	SCREW; LEVER COOLER WO/HEATER(C65) M4X16 MAL	8-98047-416-0	02	1	1311-1412	●
2	SCREW; LEVER COOLER WO/HEATER(C65) M4X16 MAL	8-98047-416-0	02	1	1501-	●	●
16	SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-387-0	01	1	1311-1412	●
16	SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-387-0	01	1	1501-	●	●
29	COVER; HTR UNIT FORGED AIR VENTILATION(C39) MAL	8-98231-367-0	01	1	1311-1412	●
29	COVER; HTR UNIT FORGED AIR VENTILATION(C39) MAL	8-98231-367-0	01	1	1501-	●	●
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-119-0	01	1	1311-1412	●
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-119-0	01	1	1501-	●	●
30	SCREW; HTR UNIT FORGED AIR VENTILATION(C39) M4X16 TAPPING MAL	8-97957-708-0	20	1	1311-1412	●
30	SCREW; HTR UNIT FORGED AIR VENTILATION(C39) M4X16 TAPPING MAL	8-97957-708-0	20	1	1501-	●	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING MAL	8-97957-708-0	25	1	1311-1412	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING MAL	8-97957-708-0	25	1	1501-	●	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M4X16 TAPPING MAL	8-97957-708-0	27	1	1311-1412	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M4X16 TAPPING MAL	8-97957-708-0	27	1	1501-	●	●
34	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-389-0	01	1	1311-1412	●
34	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-389-0	01	1	1501-	●	●
35	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-392-0	01	1	1311-1412	●
35	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-392-0	01	1	1501-	●	●
48	LEVER; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-391-0	01	1	1311-1412	●
48	LEVER; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-391-0	01	1	1501-	●	●
52	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-390-0	01	1	1311-1412	●
52	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-390-0	01	1	1501-	●	●
56	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-393-0	01	1	1311-1412	●
56	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-393-0	01	1	1501-	●	●
59	SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-386-0	01	1	1311-1412	●
59	SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-386-0	01	1	1501-	●	●
61	CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) MAL	8-98077-422-0	01	1	1311-1412	●
61	CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) MAL	8-98077-422-0	01	1	1501-	●	●
61	CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D) MAL	8-98077-423-0	01	1	1311-1412	●
61	CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D) MAL	8-98077-423-0	01	1	1501-	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1311-1412	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1501-	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-376-0	01	1	1311-1412	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-376-0	01	1	1501-	●	●
67	CLIP; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) MAL	8-98047-417-0	01	1	1311-1412	●
67	CLIP; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) MAL	8-98047-417-0	01	1	1501-	●	●
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) MAL	8-98047-417-0	02	1	1311-1412	●
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) MAL	8-98047-417-0	02	1	1501-	●	●
72	NUT; CASE,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 MAL	8-98047-428-0	03	1	1311-1412	●
72	NUT; CASE,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 MAL	8-98047-428-0	03	1	1501-	●	●
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	1311-1412	●
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	1501-	●	●
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-118-0	01	1	1311-1412	●
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-118-0	01	1	1501-	●	●
73	PLATE; HTR UNIT COOLER WO/HEATER(C65)	8-98077-420-0	01	1	1311-1412	●
73	PLATE; HTR UNIT COOLER WO/HEATER(C65)	8-98077-420-0	01	1	1501-	●	●
77	COVER; HTR CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-414-0	01	1	1311-1412	●
77	COVER; HTR CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-414-0	01	1	1501-	●	●
93	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-427-0	01	1	1311-1412	●
93	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-427-0	01	1	1501-	●	●
135	COVER; HTR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-384-0	01	1	1311-1412	●
135	COVER; HTR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-384-0	01	1	1501-	●	●
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-379-0	01	1	1311-1412	●
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-379-0	01	1	1501-	●	●
212	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X61	8-98047-415-0	02	1	1311-1412	●
212	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X61	8-98047-415-0	02	1	1501-	●	●
219	AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	1311-1412	●
219	AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	1501-	●	●
219	AMPLIFIER; HEATER UNIT COOLER WO/HEATER(C65)	8-98064-733-0	01	1	1311-1412	●
219	AMPLIFIER; HEATER UNIT COOLER WO/HEATER(C65)	8-98064-733-0	01	1	1501-	●	●
234	EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-116-1	01	1	1311-1412	●
234	EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-116-1	01	1	1501-	●	●
236	GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL	8-98047-420-0	01	1	1311-1412	●
236	GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL	8-98047-420-0	01	1	1501-	●	●
236	GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL	8-98047-421-0	01	1	1311-1412	●
236	GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL	8-98047-421-0	01	1	1501-	●	●
237	INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-382-0	01	1	1311-1412	●
237	INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-382-0	01	1	1501-	●	●
238	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-383-0	01	1	1311-1412	●
238	VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-383-0	01	1	1501-	●	●
239	TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-115-0	01	1	1311-1412	●
239	TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-115-0	01	1	1501-	●	●

1 16 59 61 207 30 30 29 72 236 30 72 242 30 35 32 52 32 48 34 56 96 236 73 67 72 61 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEATER UNIT FORGED AIR VENTILATION(C39) (D) MAL	8-98214-400-1	01	1	1311-1412	●
1	HEATER UNIT FORGED AIR VENTILATION(C39) (D) MAL	8-98214-400-1	01	1	1501-	●	●
1	HEATER UNIT HEATER & DEFROSTER(C41) (C)	8-98062-756-1	01	1	1311-1412	●
1	HEATER UNIT HEATER & DEFROSTER(C41) (C)	8-98062-756-1	01	1	1501-	●	●
1	HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1311-1412	●
1	HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1501-	●	●
1	HEATER UNIT COOLER WO/HEATER(C65) (B)	8-98057-980-2	01	1	1311-1412	●
1	HEATER UNIT COOLER WO/HEATER(C65) (B)	8-98057-980-2	01	1	1501-	●	●
16	SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-387-0	01	1	1311-1412	●
16	SHUTTER; HTR UNIT,CENTER UPR FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-387-0	01	1	1501-	●	●
29	COVER; HTR UNIT FORGED AIR VENTILATION(C39) MAL	8-98231-367-0	01	1	1311-1412	●
29	COVER; HTR UNIT FORGED AIR VENTILATION(C39) MAL	8-98231-367-0	01	1	1501-	●	●
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-119-0	01	1	1311-1412	●
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98074-119-0	01	1	1501-	●	●
30	SCREW; HTR UNIT FORGED AIR VENTILATION(C39) M4X16 TAPPING MAL	8-97957-708-0	20	1	1311-1412	●
30	SCREW; HTR UNIT FORGED AIR VENTILATION(C39) M4X16 TAPPING MAL	8-97957-708-0	20	1	1501-	●	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING MAL	8-97957-708-0	25	1	1311-1412	●
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING MAL	8-97957-708-0	25	1	1501-	●	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M4X16 TAPPING MAL	8-97957-708-0	27	1	1311-1412	●
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M4X16 TAPPING MAL	8-97957-708-0	27	1	1501-	●	●
32	SCREW; HTR UNIT FORGED AIR VENTILATION(C39) M4X16 MAL	8-98047-416-0	02	1	1311-1412	●
32	SCREW; HTR UNIT FORGED AIR VENTILATION(C39) M4X16 MAL	8-98047-416-0	02	1	1501-	●	●
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 MAL	8-98047-416-0	03	1	1311-1412	●
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 MAL	8-98047-416-0	03	1	1501-	●	●
34	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-389-0	01	1	1311-1412	●
34	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-389-0	01	1	1501-	●	●
35	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-392-0	01	1	1311-1412	●
35	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-392-0	01	1	1501-	●	●
48	LEVER; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-391-0	01	1	1311-1412	●
48	LEVER; HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-391-0	01	1	1501-	●	●
52	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-390-0	01	1	1311-1412	●
52	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-390-0	01	1	1501-	●	●
56	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-393-0	01	1	1311-1412	●
56	LEVER; SHUTTER,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-393-0	01	1	1501-	●	●
59	SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-386-0	01	1	1311-1412	●
59	SHUTTER; HTR UNIT,SIDE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-386-0	01	1	1501-	●	●
61	CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) MAL	8-98077-422-0	01	1	1311-1412	●
61	CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) MAL	8-98077-422-0	01	1	1501-	●	●
61	CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D) MAL	8-98077-423-0	01	1	1311-1412	●
61	CASE; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D) MAL	8-98077-423-0	01	1	1501-	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1311-1412	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1501-	●	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-376-0	01	1	1311-1412	●
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-376-0	01	1	1501-	●	●
67	CLIP; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) MAL	8-98047-417-0	01	1	1311-1412	●
67	CLIP; HTR UNIT FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) MAL	8-98047-417-0	01	1	1501-	●	●
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) MAL	8-98047-417-0	02	1	1311-1412	●
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) MAL	8-98047-417-0	02	1	1501-	●	●
72	NUT; CASE,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 MAL	8-98047-428-0	03	1	1311-1412	●
72	NUT; CASE,HTR UNIT FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 MAL	8-98047-428-0	03	1	1501-	●	●
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	1311-1412	●
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	1501-	●	●
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-118-0	01	1	1311-1412	●
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-118-0	01	1	1501-	●	●
73	PLATE; HTR UNIT COOLER WO/HEATER(C65)	8-98077-420-0	01	1	1311-1412	●
73	PLATE; HTR UNIT COOLER WO/HEATER(C65)	8-98077-420-0	01	1	1501-	●	●
77	COVER; HTR CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-414-0	01	1	1311-1412	●
77	COVER; HTR CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) MAL	8-98047-414-0	01	1	1501-	●	●
96	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1311-1412	●
96	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1501-	●	●
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-379-0	01	1	1311-1412	●
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98047-379-0	01	1	1501-	●	●
236	GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL	8-98047-420-0	01	1	1311-1412	●
236	GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) MAL	8-98047-420-0	01	1	1501-	●	●
236	GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL	8-98047-421-0	01	1	1311-1412	●
236	GASKET; HEATER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) MAL	8-98047-421-0	01	1	1501-	●	●
242	GASKET; CASE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) MAL	8-98048-816-0	01	1	1311-1411	●
242	GASKET; CASE HEATER & DEFROSTER(C41) MAL	8-98048-816-0	01	1	1412-1412	●
242	GASKET; CASE HEATER & DEFROSTER(C41) MAL	8-98048-816-0	01	1	1501-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
