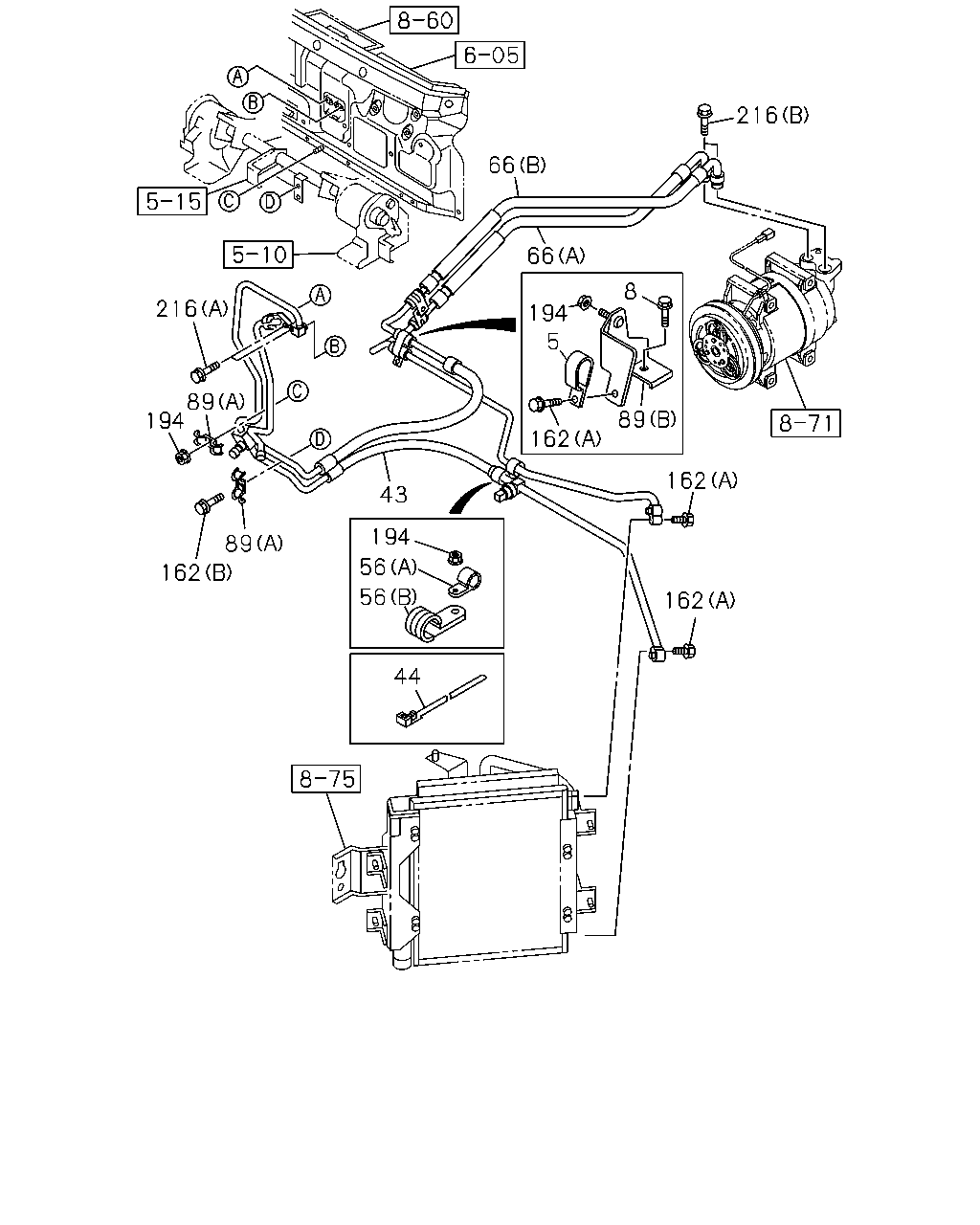

8-52 — PIPING; AIR CONDITIONING (#130928) — 66 parça

216 89 194 89 162 66 66 194 162 89 216 162 162 56 56 194 44 43 5 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98052-857-0	01	1	1311-1412	●
5	CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	8-98052-857-0	01	1	1501-	●	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M8X25 FLANGE MAL	0-28650-825-0	01	1	1311-1412	●
8	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M8X25 FLANGE MAL	0-28650-825-0	01	1	1501-	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) HIGH PRESSURE	8-98179-006-0	01	1	1311-1412	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) HIGH PRESSURE	8-98179-006-0	01	1	1501-	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=250	5-09707-030-1	01	1	1311-1412	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=250	5-09707-030-1	01	1	1311-1412	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=250	5-09707-030-1	01	1	1501-	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=250	5-09707-030-1	01	1	1501-	●	●
44	CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=170.3	1-09987-182-0	01	1	1312-1412	●
44	CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=170.3	1-09987-182-0	01	1	1501-	●	●
44	CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=350	8-94152-256-1	01	1	1312-1412	●
44	CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) L=350	8-94152-256-1	01	1	1501-	●	●
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98032-641-0	01	1	1311-1412	●
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98032-641-0	01	1	1501-	●	●
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) ID=13 L=20	0-95235-232-0	01	1	1311-1412	●
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) ID=13 L=20	0-95235-232-0	01	1	1501-	●	●
66	HOSE; FLEX,A/C 4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98100-100-1	01	1	1311-	●
66	HOSE; FLEX,A/C 4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98159-630-2	01	1	1311-	●
66	HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) HIGH PRESSURE	8-98098-289-0	01	1	1312-1412	●
66	HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) HIGH PRESSURE	8-98098-289-0	01	1	1501-	●	●
66	HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) LOW PRESSURE	8-98159-629-1	01	1	1312-1412	●
66	HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) LOW PRESSURE	8-98159-629-1	01	1	1501-	●	●
89	BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98151-264-0	02	1	1311-1412	●
89	BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98151-264-0	02	1	1501-	●	●
89	BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98002-365-2	01	1	1311-1412	●
89	BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98002-365-2	01	1	1501-	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M6X20 FLANGE MAL	0-28650-620-0	01	1	1311-1412	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M6X20 FLANGE MAL	0-28650-620-0	01	1	1501-	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M6X25 FLANGE MAL	0-28650-625-0	02	1	1311-1412	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M6X25 FLANGE MAL	0-28650-625-0	02	1	1501-	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M6X25 FLANGE MAL	0-28650-625-0	01	1	1311-1412	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M6X25 FLANGE MAL	0-28650-625-0	01	1	1501-	●	●
194	NUT; HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 FLANGE MAL	0-91180-106-0	03	1	1311-1412	●
194	NUT; HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6 FLANGE MAL	0-91180-106-0	03	1	1501-	●	●
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M6X30 FLANGE	0-28650-630-0	02	1	1311-1412	●
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) M6X30 FLANGE	0-28650-630-0	02	1	1501-	●	●
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1311-1412	●
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) M8X25 FLANGE MAL	0-28650-825-0	02	1	1501-	●	●

43 66 66 67 148 147 67 67 67 50 202 147 148 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) HIGH PRESSURE	8-98179-006-0	01	1	1311-1412	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) HIGH PRESSURE	8-98179-006-0	01	1	1501-	●	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ID=7.5	1-83539-316-0	02	1	1311-1412	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) ID=7.5	1-83539-316-0	02	1	1501-	●	●
66	HOSE; FLEX,A/C 4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-98100-100-1	01	1	1311-	●
66	HOSE; FLEX,A/C 4HG1-T ENG(RDP) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98159-630-2	01	1	1311-	●
66	HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) HIGH PRESSURE	8-98098-289-0	01	1	1312-1412	●
66	HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) HIGH PRESSURE	8-98098-289-0	01	1	1501-	●	●
66	HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) LOW PRESSURE	8-98159-629-1	01	1	1312-1412	●
66	HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) LOW PRESSURE	8-98159-629-1	01	1	1501-	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) ID=11.7	8-97095-907-0	02	1	1311-1412	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) ID=11.7	8-97095-907-0	02	1	1501-	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) ID=14.5	8-97095-908-0	01	1	1311-1412	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) ID=14.5	8-97095-908-0	01	1	1501-	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) ID=17.6	8-98036-895-0	01	1	1311-1412	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) ID=17.6	8-98036-895-0	01	1	1501-	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) CAP MARK H	8-97095-911-0	01	1	1311-1412	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) CAP MARK H	8-97095-911-0	01	1	1501-	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) CAP MARK L	1-83539-331-0	01	1	1311-1412	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) CAP MARK L	1-83539-331-0	01	1	1501-	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98031-629-0	01	1	1311-1412	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B)	8-98031-629-0	01	1	1501-	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97095-909-0	01	1	1311-1412	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A)	8-97095-909-0	01	1	1501-	●	●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	1-83564-392-1	01	1	1311-1412	●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65)	1-83564-392-1	01	1	1501-	●	●
